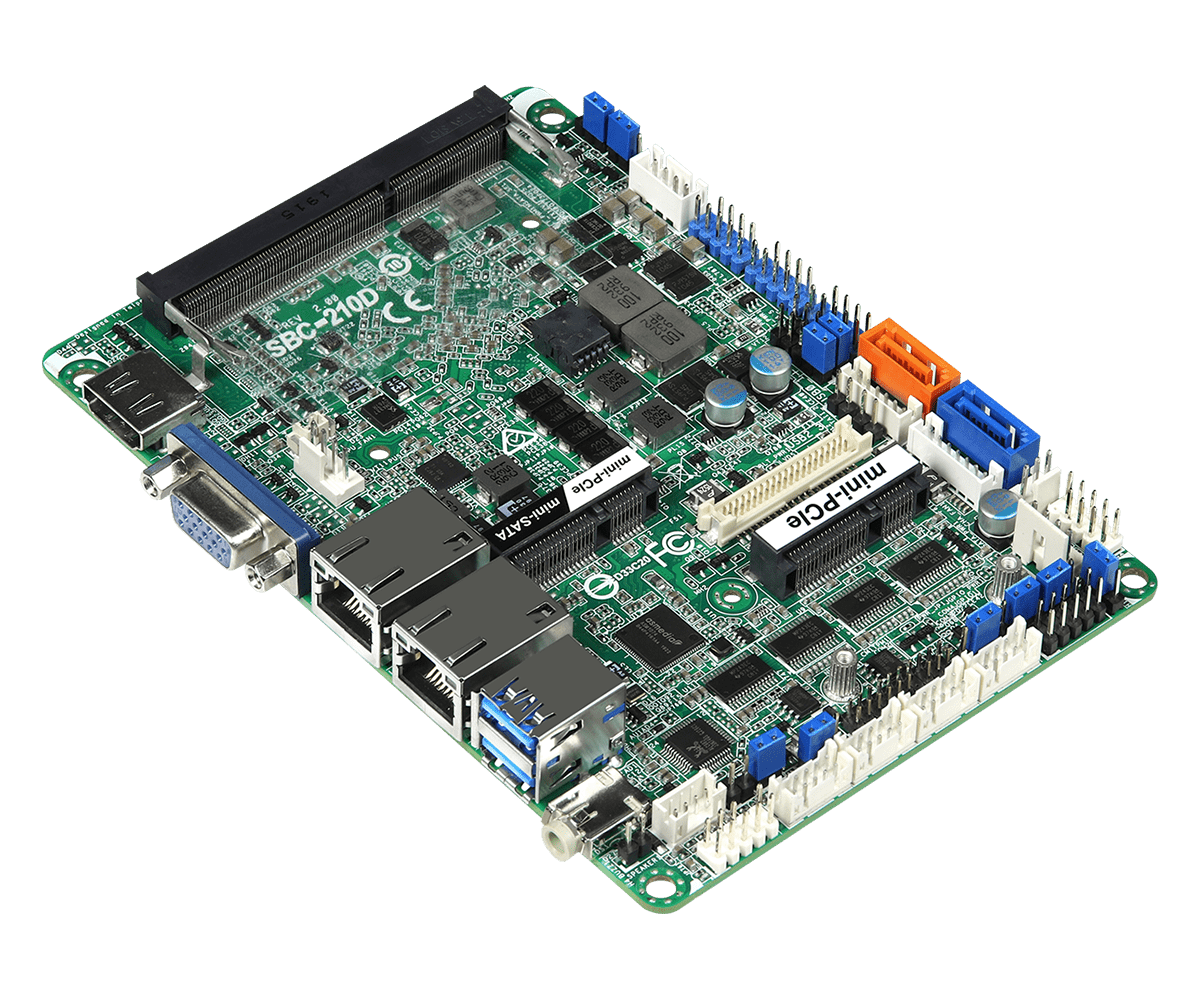

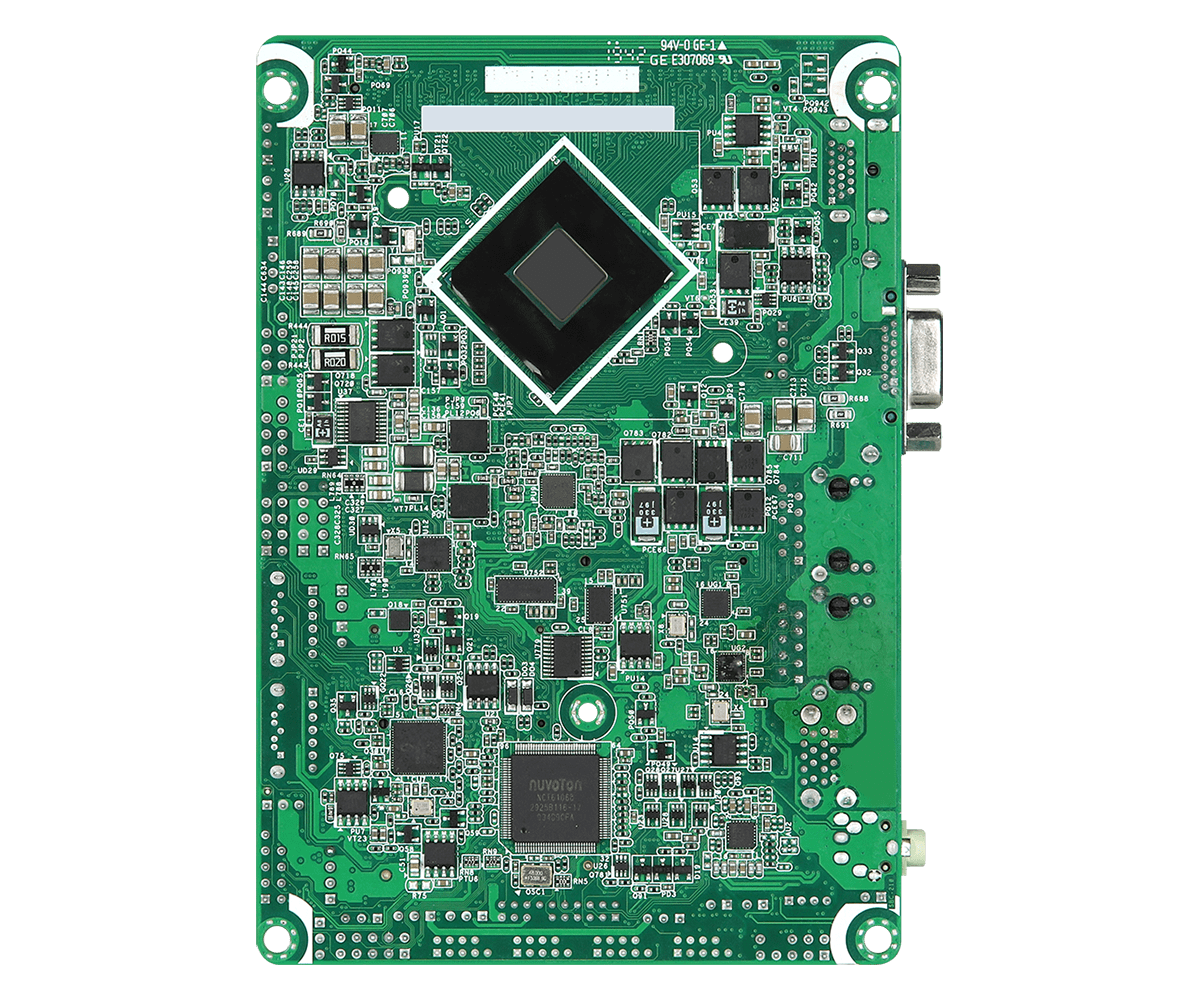

SBC 3.5

●Intel® Baytrail / Baytrail-I SoC Processor

●Supports Single Channel DDR3L SO-DIMM 1333, up to 8GB

●4 x COM

●1 x HDMI, 1 x D-Sub, 1 x LVDS

●2 x USB 3.0, 6 x USB 2.0, 2 x SATA2

●1 x mini-PCIe, 1 x mSATA (shared)

●2 x Realtek Lan

●1 x TPM Header

●9~36 V DC-in (4-pin DC-in PWR Con)

业务员：李工：15920004347（微信同号）

邮箱Email：haiping@powerwell.com.cn

产品型录产品咨询

产品规格

支援下载

Processor System

CPU	Intel® Baytrail / Baytrail-I SoC Processor J1900, QC, 2.00 GHz, 10 W
Chipset	SoC

Form Factor

Dimensions	3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm)

Memory

Technology	Single Channel DDR3L 1333 MHz
Capacity	8GB
Socket	1 x SO-DIMM

Graphics

Controller	Intel® Gen7 Intel® Graphics DX 11, OGL3.2
HDMI	Supports max resolution up to 1920 x 1200
VGA	Supports max resolution up to 1920 x 1200
LVDS	Supports max resolution up to 1920 x 1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

mini-PCIe	1 x Half size with PCIe x1 and USB 2.0
mini-PCIe/mSATA	1 x Full size with PCIe x1, SATA2 and USB 2.0

Audio

Interface	Realtek ALC662/897 HD, High Definition Audio. Line-out

Ethernet

Controller/ Speed	10/100/1000 Mbps
Connector	2 x Realtek RTL8111G-CG/RTL8111H-CG

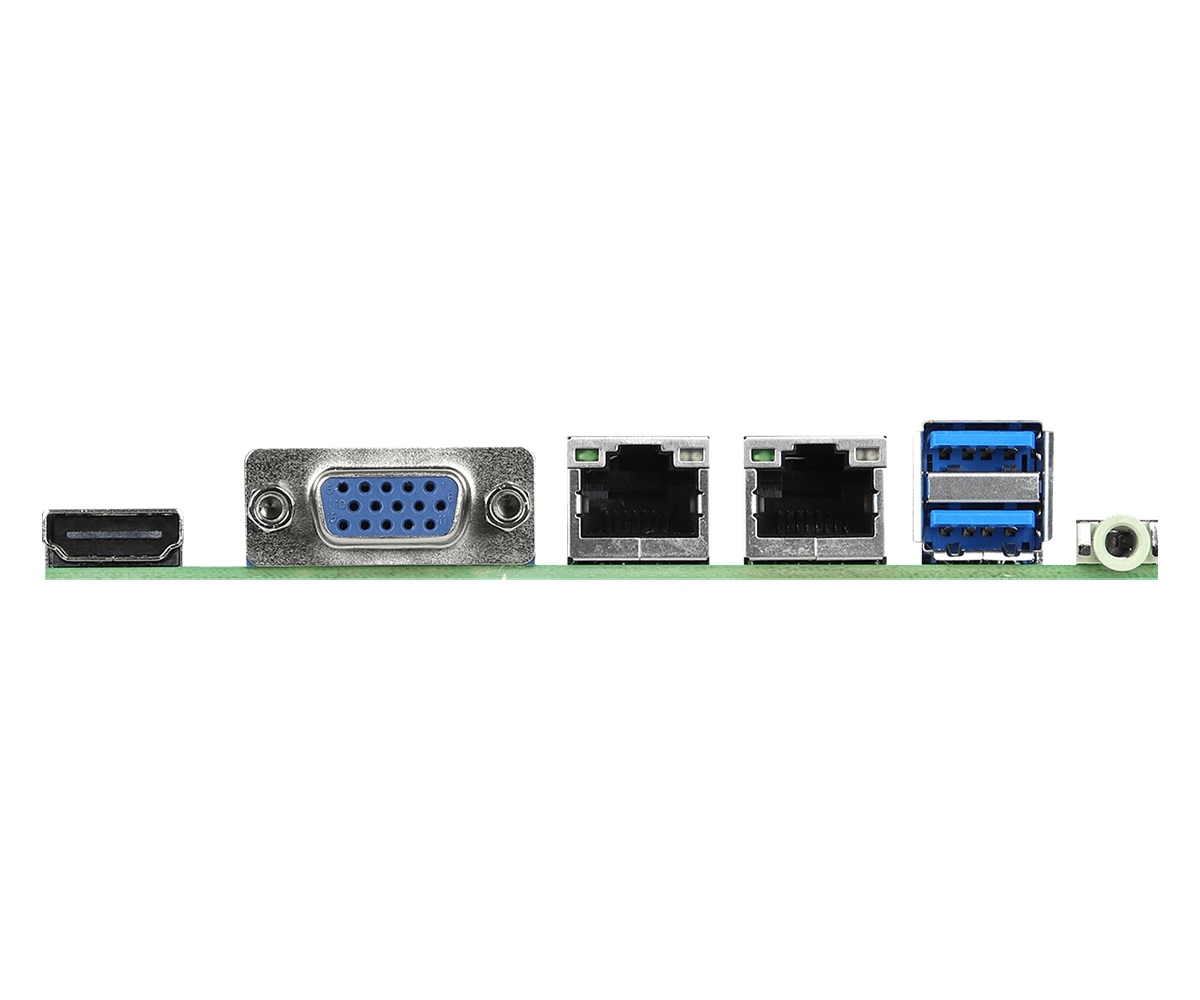

Rear I/O

HDMI	1
VGA	1
Ethernet	2
USB	2 x USB 3.0
Audio	1 (Line-out)

Internal Connector

USB	6 x USB 2.0
COM	3 x COM (RS-232), 1 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
TPM	1 x Header
LVDS	1
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA2 (3.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	9-36V DC-In (4-pin DC-in PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x HEATSINK 147*102.2mm (13G070194000AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC power jack,L=150 (14G000600900AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK)
