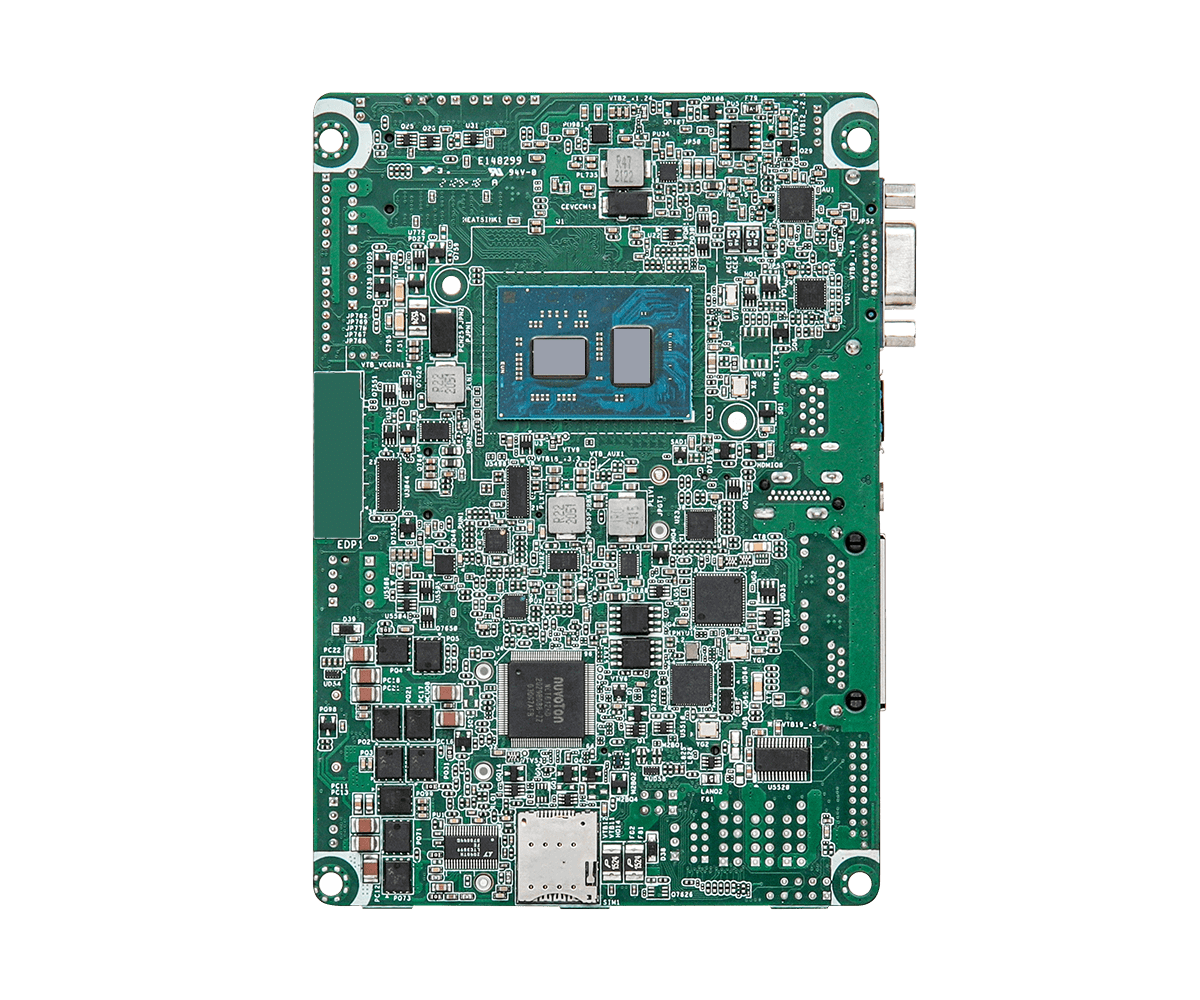

SBC 3.5

●Intel® Elkhart Lake SoC Processors J6412

●2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)

●1 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 1 x SATA3

●2 x Intel 2.5 Gigabit LAN

●Supports Triple display, 1 x HDMI 2.0b, 1 x VGA 1 x LVDS or eDP

●TPM 2.0 onboard IC

●9~36V DC-In

业务员：李工：15920004347（微信同号）

邮箱Email：haiping@powerwell.com.cn

产品型录产品咨询

产品规格

支援下载

Processor System

CPU	Intel® Elkhart Lake SoC Processors J6412, QC, Max Speed Up to 2.6GHz, 10W
Chipset	SoC
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	3.5"SBC (5.8-in x 4-in x 0.87-in, 14.7 cm x 10.2 cm x 2.20 cm)

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	32GB (16GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Gen 11 Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
VGA	Max resolution up to 1920 x 1200
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Triple display

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1 and USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC256 HD, High Definition Audio.

Ethernet

Controller/ Speed	LAN1: Intel® I225V with 10/100/1000/2500 Mbps LAN2: Intel® I225V with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

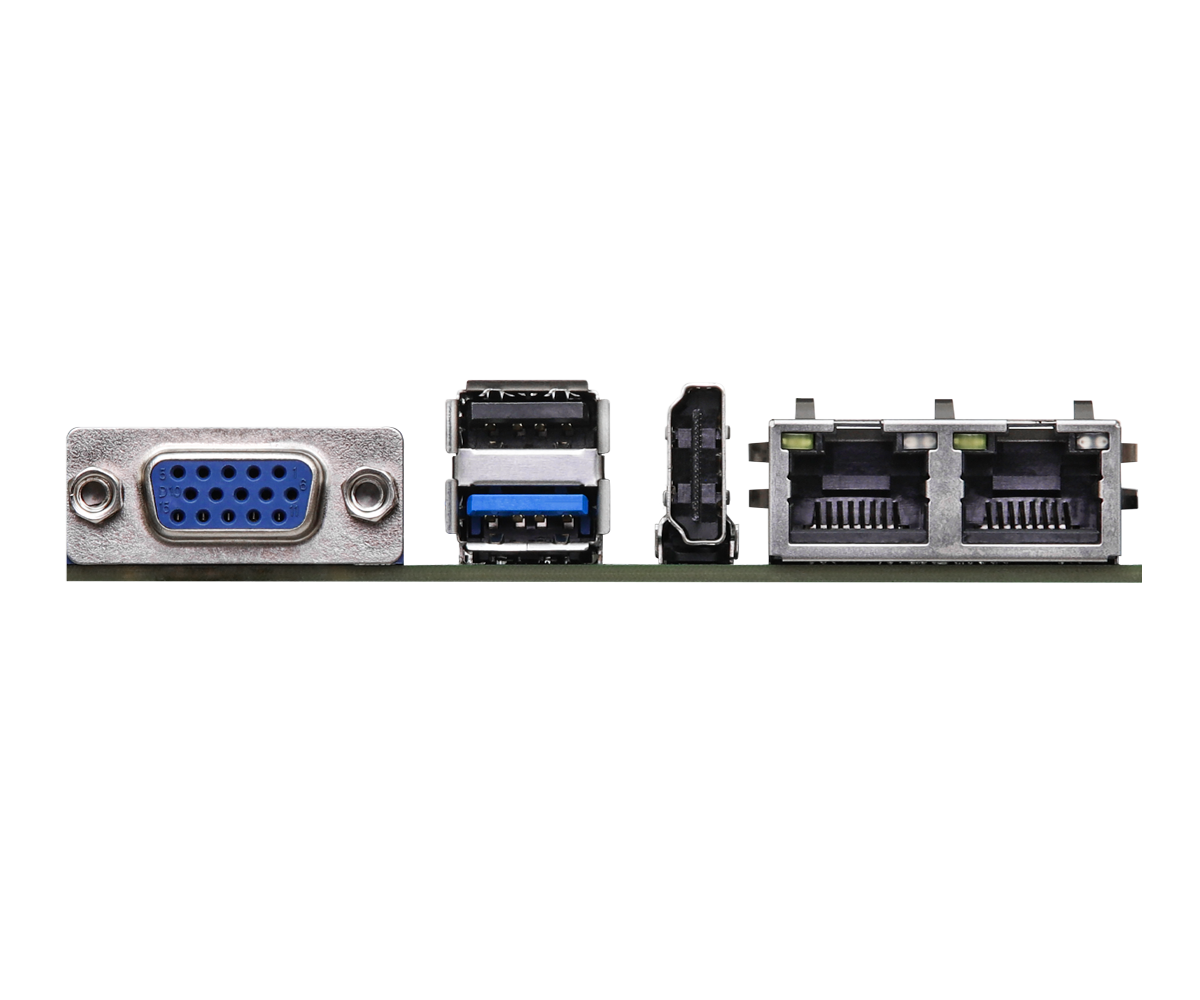

Rear I/O

HDMI	1 x HDMI 2.0b
VGA	1
Ethernet	2 x 2.5 Gigabit LAN
USB	1 x USB 3.2 Gen2, 1 x USB 2.0

Internal Connector

USB	1 x USB 3.2 Gen1 (1 x USB 3.1 header) 1 x USB 2.0 (1 x USB 3.1 header) 4 x USB 2.0 (2 x 2.54 pitch header)
COM	COM1, COM2, COM4 (RS-232) COM3 (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
TPM	TPM 2.0 onboard IC
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 for SSD
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	9~36V DC-In with 4-pin wafer PWR
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20°C ~ 70°C
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	3 x SCREW M2*2,D=5 (13G020302031AK) 1 x SINK FOR SBC-250 (13G070612000AI) 2 x COM Cable (14G000000340AK) 1 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK)
Bulk Package	3 x SCREW M2*2,D=5 (13G020302031AK)

说明	资讯	操作系统	日期	下载
INF driver ver:10.1.18634.8254_Public		Win 11 x 64	2024-12-25
Intel PSE Driver ver:5.4.1.4510	Size: 1190Kib Version:5.4.1.4510 SHA1: 9CD6BAFC3B0E2F920D0B61940D72385D7FA4B97B Filename:Intel_PSE(v5.4.1.4510).zip Release Note	Win 11 x 64	2024-12-25
Intel Serial IO driver ver:5.123.1.1023	Size: 1354Kib Version:5.123.1.1023 SHA1: DD8574BD2DBF926F3977C1A106D8F4115808BE28 Filename:SerialIO(v5.123.1.1023).zip Release Note	Win 11 x 64	2024-12-25
VGA Driver ver:27.20.100.9079.2		Win 11 x 64	2024-12-25
Realtek high definition audio driver ver:9471.1	Size: 39Mib Version:9471.1_UAD_WHQL SHA1: 590A670013211CDC3B66F9E70C1006675A174322 Filename:Realtek_Audio(v9471.1_UAD_WHQL).zip Release Note	Win 11 x 64	2024-12-25
Intel HID Event Filter ver:2.2.1.386	Size: 1258Kib Version: 2.2.1.386 SHA1: 448BBCF58B800250574D673E24F794D279C4BC13 Filename:Intel HID Event Filter(v2.2.1.386).zip Release Note	Win 11 x 64	2024-12-25
Intel Lan driver ver:1.1.4.38		Win 11 x 64	2024-12-25
Intel Lan driver ver:1.1.4.38		Win 10 x 64	2024-12-25
Intel Management Engine driver ver:15.40.16.2485_CONS_SW_DCH		Win 10 x 64	2024-12-25
Intel HID Event Filter ver:2.2.1.386	Size: 1258Kib Version: 2.2.1.386 SHA1: 448BBCF58B800250574D673E24F794D279C4BC13 Filename:Intel HID Event Filter(v2.2.1.386).zip Release Note	Win 10 x 64	2024-12-25
Realtek high definition audio driver ver:9471.1	Size: 39Mib Version:9471.1_UAD_WHQL SHA1: 590A670013211CDC3B66F9E70C1006675A174322 Filename:Realtek_Audio(v9471.1_UAD_WHQL).zip Release Note	Win 10 x 64	2024-12-25
VGA Driver ver:27.20.100.9079.2		Win 10 x 64	2024-12-25
Intel Serial IO driver ver:5.123.1.1023	Size: 1354Kib Version:5.123.1.1023 SHA1: DD8574BD2DBF926F3977C1A106D8F4115808BE28 Filename:SerialIO(v5.123.1.1023).zip Release Note	Win 10 x 64	2024-12-25
Intel PSE Driver ver:5.4.1.4510	Size: 1190Kib Version:5.4.1.4510 SHA1: 9CD6BAFC3B0E2F920D0B61940D72385D7FA4B97B Filename:Intel_PSE(v5.4.1.4510).zip Release Note	Win 10 x 64	2024-12-25
INF driver ver:10.1.18634.8254_Public		Win 10 x 64	2024-12-25
