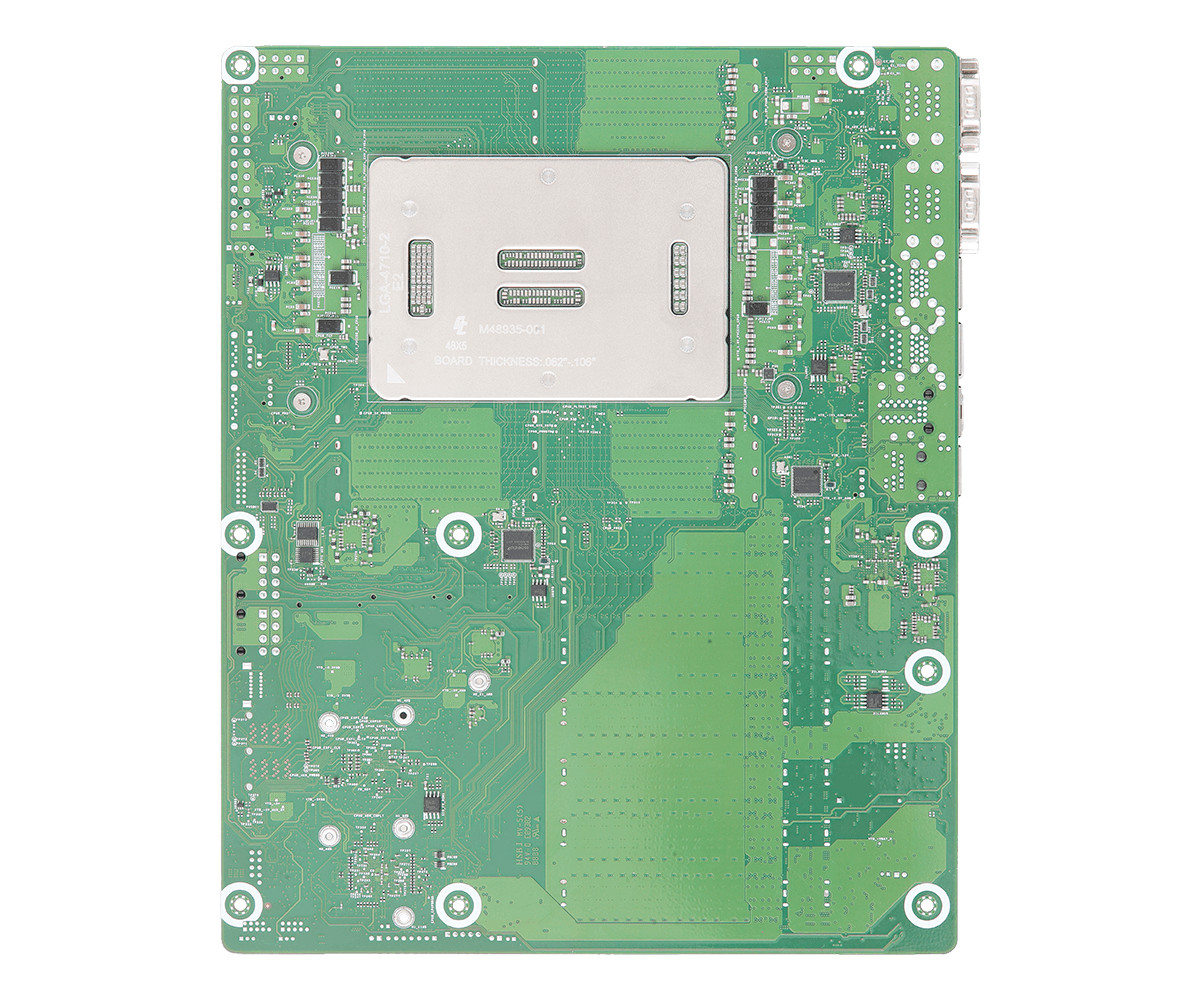

IMB-X1901

ATX Motherboard

  • ●Intel® Xeon® 6700E-series processors

  • ●8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 6400 MHz, up to 2TB

  • ●6 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 6 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 6 x COM, 2 x Mini-SAS, 4 x SATA3

  • ●4 x Intel 1 Gigabit LAN, 1 x Marvell 10 Gigabit LAN (optional)

  • ●TPM 2.0 onboard IC

  • ●Supports Intel® VMD RAID 0/1/10

  • ●ATX PWR (8+8+24 Pin)


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Xeon® 6700E-series processors
SocketLGA4710
BIOSAMI SPI 512 Mbit

Form Factor

DimensionsATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm)

Memory

TechnologyEight Channel ECC DDR5 6400 MHz
Capacity2TB
Socket8 x 288-pin RDIMM/RDIMM-3DS

Expansion Slot

PCIe7 x PCIe x16 Gen5 slot (PCIE3 supports x8 mode)
*PCIE slot 2, 4, 6 supported by selected processors
M.21 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 for Wireless

Audio

InterfaceRealtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in

Ethernet

Controller/ SpeedLAN1: Intel® I210 with 10/100/1000 Mbps
LAN2: Intel® I210 with 10/100/1000 Mbps
LAN3: Intel® I210 with 10/100/1000 Mbps
LAN4: Intel® I210 with 10/100/1000 Mbps
LAN5: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps (optional)
Connector5 x RJ-45

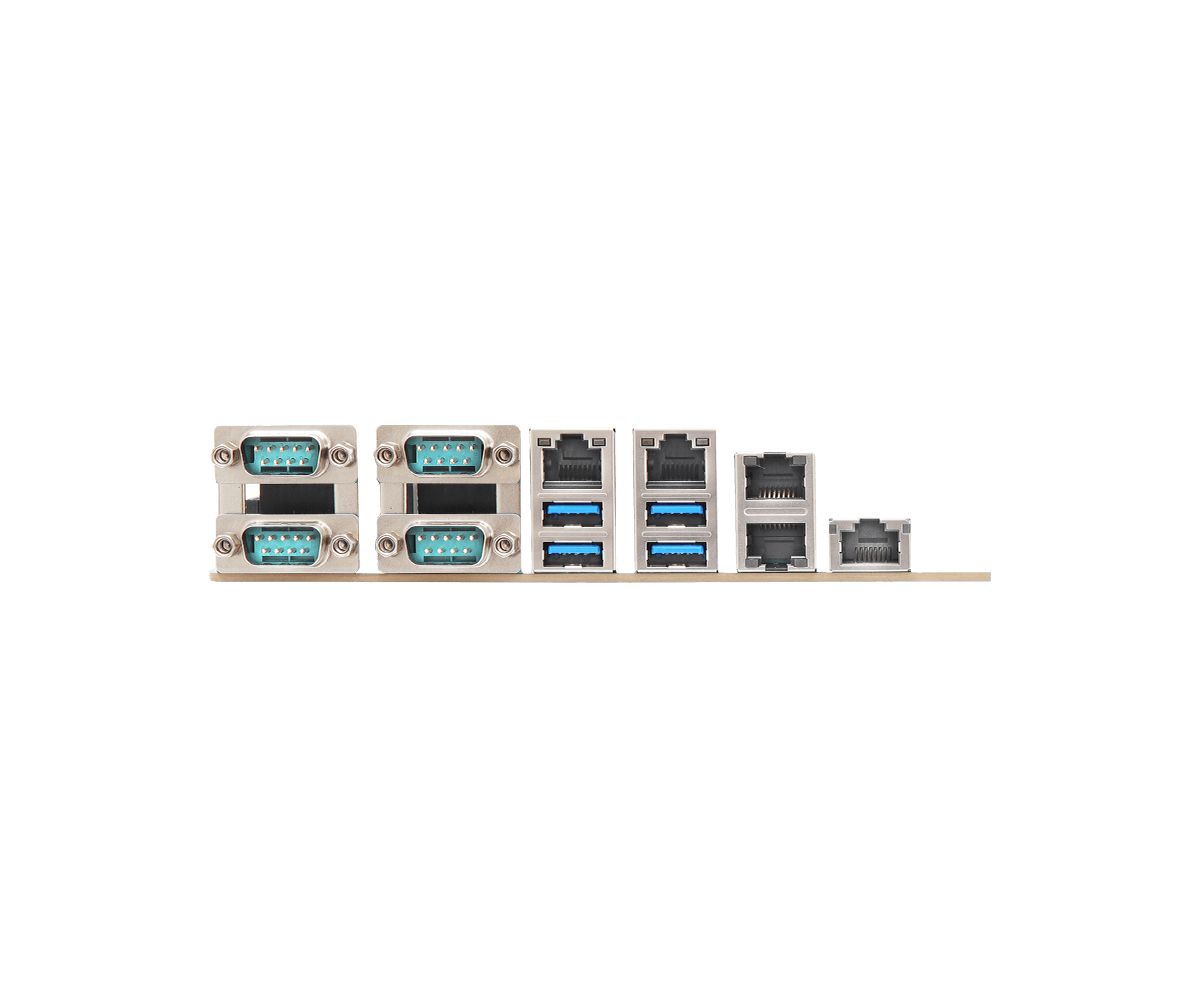

Rear I/O

Ethernet4 x 1 Gigabit LAN
1 x 10 Gigabit LAN (optional)
USB4 x USB 3.2 Gen1
Serial Port2 x COM (RS-232)
2 x COM (RS-232/422/485)

Internal Connector

USB2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM2 x COM (RS-232)
GPIO4 x GPI, 4 x GPO

Security

TPMTPM 2.0 onboard IC

Storage

M.21 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
Mini-SAS4 x SATA3
RAIDIntel® VMD RAID 0/1/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key M
SATA interface: SATA port

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 segments, 0,1,2…255sec

Power Requirements

Input PWRATX PWR (24+8+8-pin)
2 x 8-pin 12V PWR connector for PCIe
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40°C ~ 85°C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%
