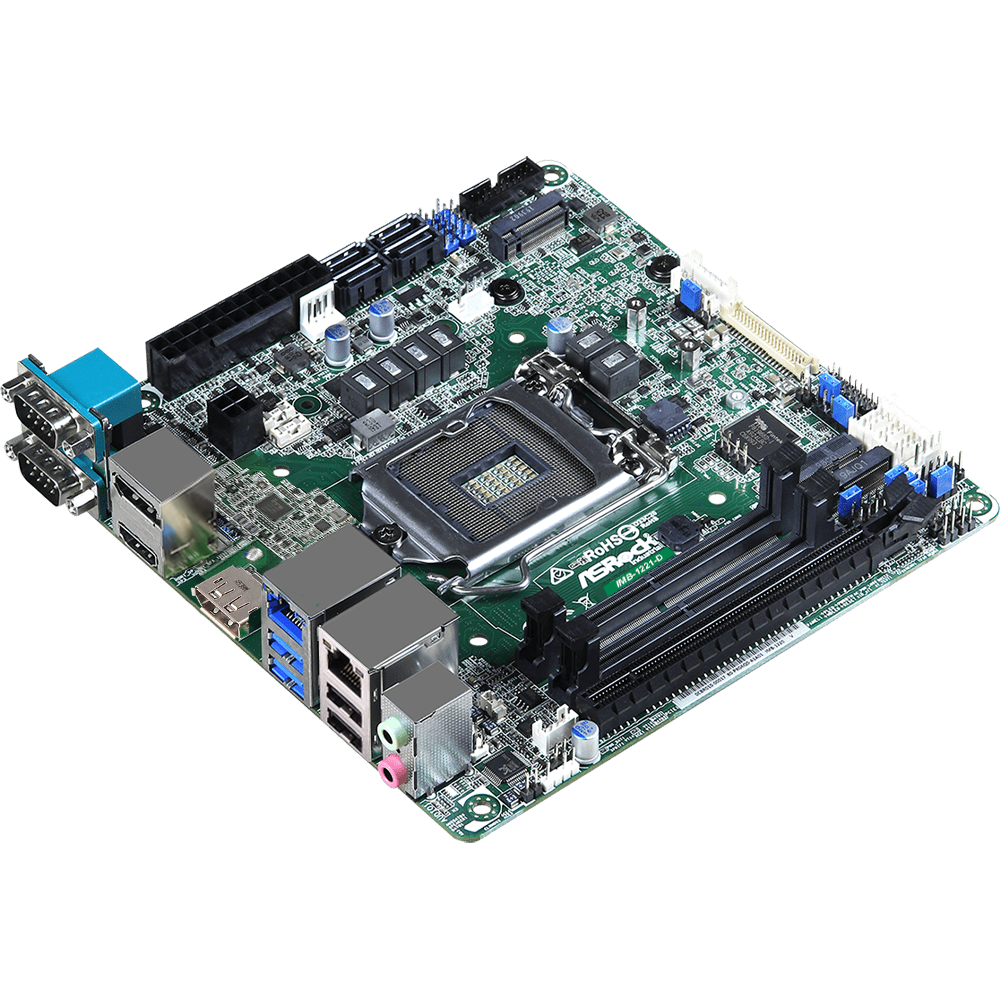

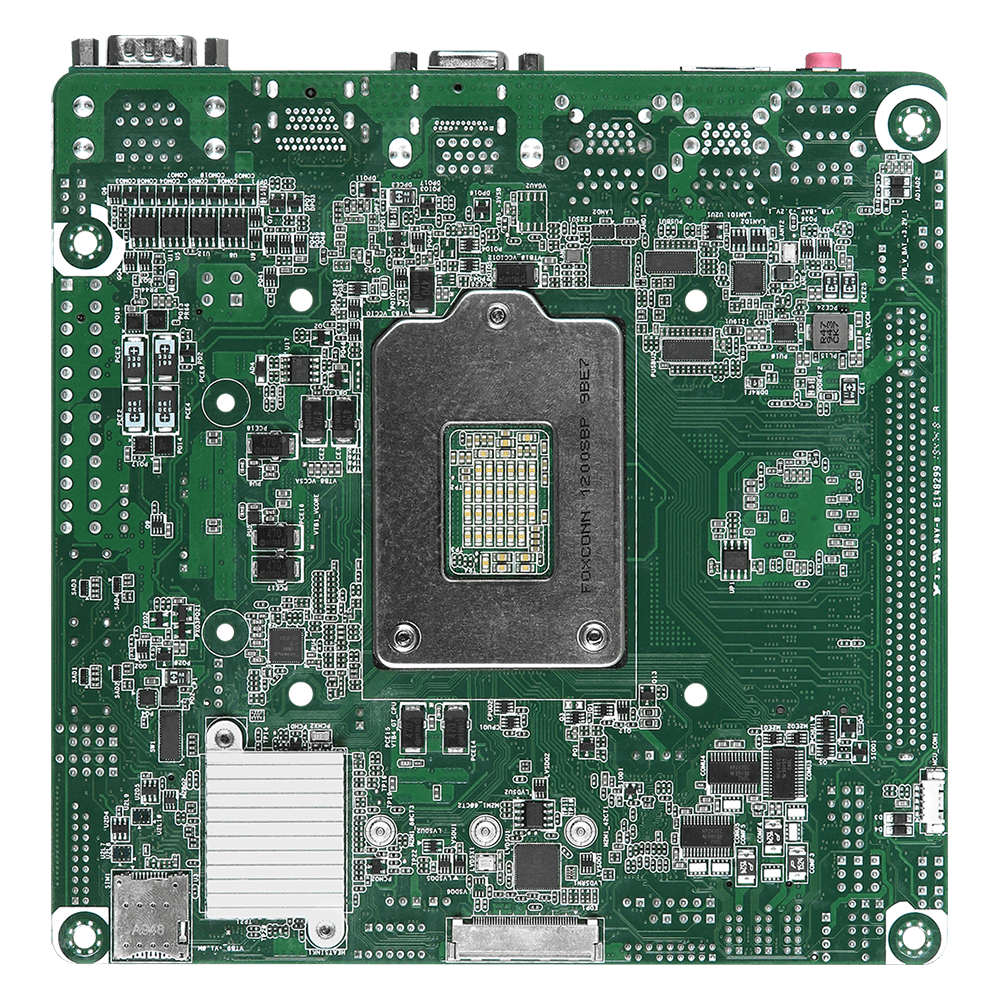

IMB-1221-D

Mini-ITX Motherboard

  • ●Intel® 10th Gen (Comet lake-S) Core™ Processors with H420E chipset

  • ●2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB

  • ●1 x PCIe x16 Gen3, 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 4 x SATA3

  • ●1 x Intel 1 Gigabit LAN

  • ●1 x Intel 2.5 Gigabit LAN

  • ●Support Dual display, 2 x DP 1.2, 1 x eDP, 1 x HDMI 2.0a

  • ●ATX-PWR (24+4-pin)


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® 10th Gen (Cometlake-S) Core™ Processors, up to 80W
*The performance of CPUs over 80W will be limited due to power design.
ChipsetIntel® H420E
SocketLGA1200
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Memory

TechnologyDual Channel DDR4 2933 / 2666 / 2400 MHz
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity64GB (32 GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerIntel® UHD Graphics
DisplayPortDisplayPort 1.2 , DP++
Max resolution up to 4096 x 2160@60Hz
eDPeDP 1.4 Max resolution up to 4096 x 2304@60Hz
MultiDisplayDual Display
HDMIHDMI 2.0a Max resolution up to 4096 x 2160@60Hz

Expansion Slot

PCIe1 x PCIe x16 (Gen3)
M.21 x M.2 (Key E, 2230) with PCIe x1 for Wireless
1 x M.2 (Key B, 3042) with PCIe x1 / USB 3.2 Gen1 / USB2.0 and SIM for 4G / 5G
SIM Socket1 x SIM socket connected to M.2 Key B

Audio

InterfaceRealtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ SpeedLAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel® I219V with 10/100/1000 Mbps
Connector2 x RJ-45

Rear I/O

DisplayPort2 x DP 1.2
Ethernet1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio2 (Mic-in, Line-out)
COM2 x COM (RS-232/422/485)
HDMI1 x HDMI 2.0a

Internal Connector

USB2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM2 x COM (RS-232)
GPIO4 x GPI, 4 x GPO
TPMTPM Header
eDP1
Speaker Header1
SATA PWR Output1

Storage

M.21 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x2 and shared with SATA3 by switch IC (Default M.2)
SATA4 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M (Default M.2)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWRATX PWR (24+4-pin)
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package3 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020623000AK)
1 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package3 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020624000AK)


说明 资讯 操作系统 日期 下载
BIOS 1.70 Enhance system compatibility 2025-02-11
Jumpers and headers setting guide 快速跳线手册 2025-02-11
User Manual 用户手册 2025-02-11
INF driver ver:10.1.18263.8193_Public 驱动程序 Win 10 x 64 2025-02-11
VGA Driver ver:26.20.100.7926_Q0 驱动程序 Win 10 x 64 2025-02-11
Optane Driver ver:17.8.0.1065.2_PV 驱动程序 Win 10 x 64 2025-02-11
SATA Floppy Image ver:17.8.0.1065.2_PV 驱动程序 Win 10 x 64 2025-02-11
Realtek high definition audio driver ver:9057_FF00 驱动程序 Win 10 x 64 2025-02-11
Rapid Storage Technology Driver and utility ver:17.8.0.1065.2_PV 驱动程序 Win 10 x 64 2025-02-11
Intel Management Engine driver ver:14.0.33.1125_MEI 驱动程序 Win 10 x 64 2025-02-11
Rapid Storage Technology Driver and utility ver:17.8.0.1065.2_PV 驱动程序 Win 11 x 64 2025-02-11
Realtek high definition audio driver ver:9057_FF00 驱动程序 Win 11 x 64 2025-02-11
SATA Floppy Image ver:17.8.0.1065.2_PV 驱动程序 Win 11 x 64 2025-02-11
INF driver ver:10.1.18263.8193_Public 驱动程序 Win 11 x 64 2025-02-11
VGA Driver ver:26.20.100.7926_Q0 驱动程序 Win 11 x 64 2025-02-11
Optane Driver ver:17.8.0.1065.2_PV 驱动程序 Win 11 x 64 2025-02-11
Intel Management Engine driver ver:14.0.33.1125_MEI 驱动程序 Win 11 x 64 2025-02-11
Intel Lan driver ver:29.2.1 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-11
