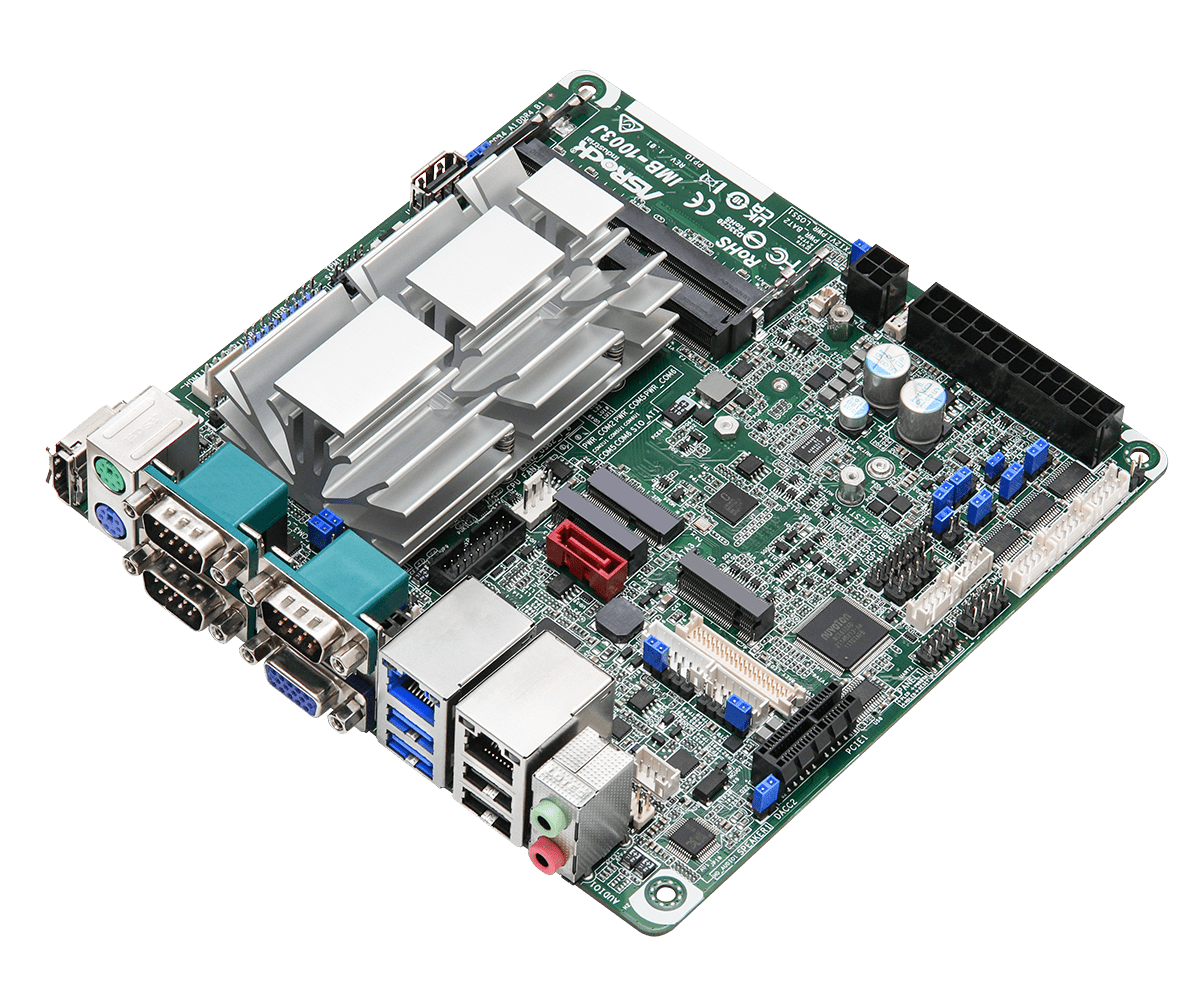

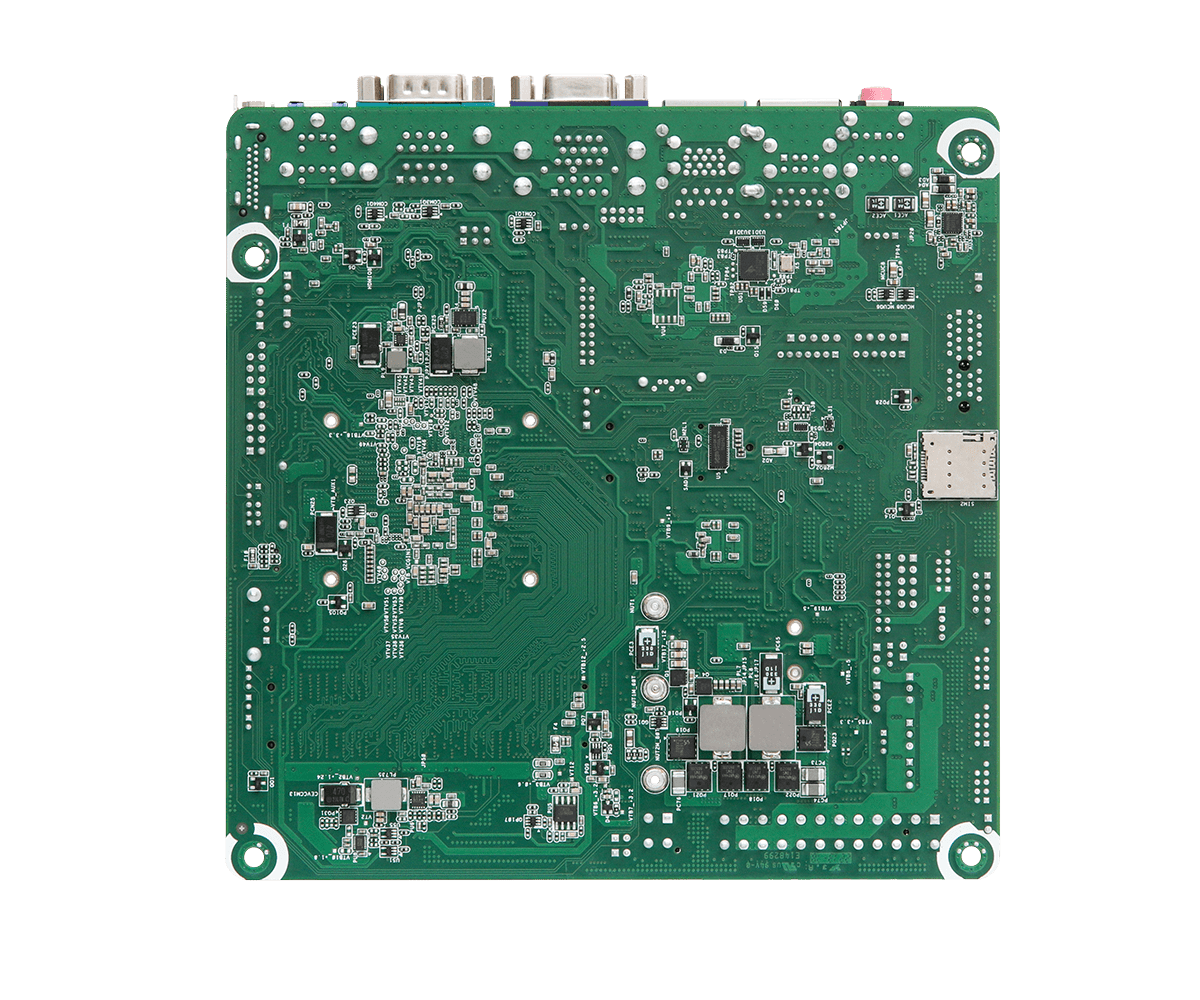

Mini-ITX Motherboard

●Intel® Elkhart Lake SoC Processors J6412
●2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
●1 x PCIE x1 Gen3, 4 x USB 3.2 Gen1, 7 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 2 x SATA3
●1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
●Support Triple display, 1 x LVDS or eDP, 1 x HDMI 2.0b, 1 x VGA
●TPM Header
●ATX-PWR (24+4-pin) and 12~28V DC-In co-design

产品型录产品咨询

产品规格

支援下载

CPU	Intel® Elkhart Lake SoC Processors J6412, QC, Max Speed Up to 2.6GHz, 10W
Chipset	SoC
BIOS	AMI SPI 256 Mbit

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm)

Controller	Intel® Gen 11 Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1080@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Triple display

PCIe	1 x PCIe x1 (Gen3)
M.2	1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket	1x SIM socket connected to M.2 key B

Interface	Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Controller/ Speed	LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector	2 x RJ-45

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 header ) 5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM	COM2, COM5, COM6 (RS-232)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1

M.2	1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x1 for SSD
SATA	2 x SATA3 (6Gb/s), SATA3_2 shared with M.2 Key M

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	ATX PWR (24+4-pin) and 12V~28V DC-In co-design
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Gift Package	1 x SATA Power Cable (14G000100410AK) 1 x I/O Shield (13G02P001000AK) 3 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package	1 x I/O Shield (13G02P001000AK) 3 x SCREW M2*2,D=5 (13G020302031AK)

说明	资讯	操作系统	日期	下载
BIOS 1.60	Update Intel ME version		2025-02-11
Jumpers and Headers Setting Guide	快速跳线手册		2025-02-11
User Manual	用户手册		2025-02-11
Realtek high definition audio driver ver:9239_FF00	驱动程序	Win 10 x 64	2025-02-11
INF driver ver:10.1.18634.8254_Public	驱动程序	Win 10 x 64	2025-02-11
Intel HID Event Filter ver:2.2.1.386	驱动程序	Win 10 x 64	2025-02-11
Intel PSE Driver ver:5.4.1.4510	驱动程序	Win 10 x 64	2025-02-11
Intel Management Engine driver ver:15.40.16.2485_CONS_SW_DCH	驱动程序	Win 10 x 64	2025-02-11
VGA Driver ver:27.20.100.9079.2	驱动程序	Win 10 x 64	2025-02-11
Realtek Lan driver ver:10047_02232021	驱动程序	Win 10 x 64	2025-02-11
Intel Serial IO driver ver:5.123.1.1023	驱动程序	Win 10 x 64	2025-02-11
Intel Serial IO driver ver:5.123.1.1023	驱动程序	Win 11 x 64	2025-02-11
Realtek Lan driver ver:10047_02232021	驱动程序	Win 11 x 64	2025-02-11
VGA Driver ver:27.20.100.9079.2	驱动程序	Win 11 x 64	2025-02-11
Intel Management Engine driver ver:15.40.16.2485_CONS_SW_DCH	驱动程序	Win 11 x 64	2025-02-11
Intel PSE Driver ver:5.4.1.4510	驱动程序	Win 11 x 64	2025-02-11
Intel HID Event Filter ver:2.2.1.386	驱动程序	Win 11 x 64	2025-02-11
INF driver ver:10.1.18634.8254_Public	驱动程序	Win 11 x 64	2025-02-11
Realtek high definition audio driver ver:9239_FF00	驱动程序	Win 11 x 64	2025-02-11
