Mini-ITX Motherboard

●Intel® 13th Gen Raptor Lake-P MCP Processors i5-1335UE
●2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)
●2 x USB4/Thunderbolt™4, 2 x USB 3.2 Gen2, 1x USB 3.2 Gen1, 3 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 2 x SATA3
●2 x Intel 2.5 Gigabit LAN
●Supports Quad display, 2 x HDMI 2.0b, 2 x DP 1.4a (2 from Type C), 1 x LVDS, 1 x eDP
●TPM 2.0 onboard IC
●Supports Intel® vPro, VMD RAID 0/1
●12~28V DC-In (Lockable DC Jack)

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1335UE, 2P+8E
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Controller	Intel® Iris® Xe Graphics
HDMI	2 x HDMI 2.0b Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
eDP	eDP 1.4b Max resolution up to 4096x2160@60Hz
DisplayPort	2 x DisplayPort 1.4a Max resolution up to 4096x2160@60Hz
MultiDisplay	Quad display (Included 2 outputs from Type-C)

M.2	1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2, USB 2.0 and SIM for 4G/5G 1 x M.2 (Key E, 2230) with PCIe, USB 2.0 and CNVi for Wireless
SIM Socket	1x SIM socket connected to M.2 key B

Interface	Realtek ALC897 HD, High Definition Audio.

Controller/ Speed	LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps

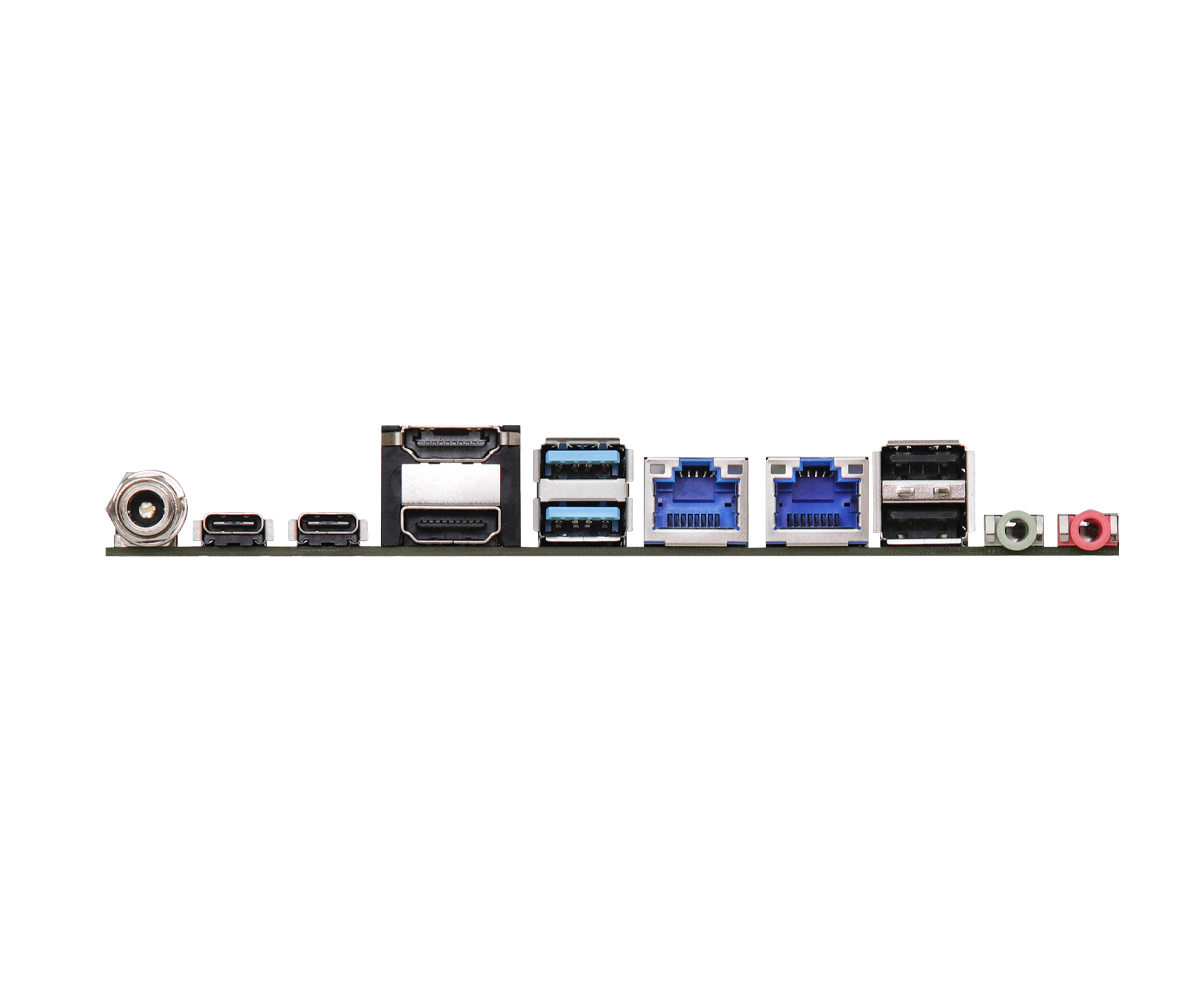

Connector	2 x RJ-45

HDMI	2 x HDMI 2.0b
Ethernet	2 x 2.5 Gigabit LAN
USB	2 x USB 2.0 2 x USB 3.2 Gen2 2 x USB4/Thunderbolt™4 (5V/3A, supports DP 1.4a display output) * For Thunderbolt support, please refer to support list.
Audio	2 (Mic-In/Line-Out)
DC Jack	1 DC-in

TPM	TPM 2.0 onboard IC

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
SATA	2 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B+ M.2 Key M SATA interface: 2 x SATA port

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	12V~28V DC-in with Lockable DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Gift Package	1 x SATA Power Cable (14G000100410AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G020783000AK) 1 x I/O Shield THIN (13G020783010AK) 3 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package	1 x I/O Shield (13G020783000AK) 1 x I/O Shield THIN (13G020783010AK) 3 x SCREW M2*2,D=5 (13G020302031AK)

说明	资讯	操作系统	日期	下载
BIOS 1.00	First release		2025-02-08
Jumpers and headers setting guide	快速跳线手册		2025-02-08
User Manual	用户手册		2025-02-08
Thunderbolt Support List	Thunderbolt支持列表		2025-02-08
INF driver ver:10.1.18950.8298	驱动程序	Win 10 x 64	2025-02-08
Realtek high definition ALC 233 audio driver ver:9235_FF00	驱动程序	Win 10 x 64	2025-02-08
Bluetooth driver ver:22.110.0.2G	驱动程序	Win 10 x 64	2025-02-08
Intel HID Event Filter ver:2.2.1.386	驱动程序	Win 10 x 64	2025-02-08
Intel Serial IO driver ver:30.100.2148.1	驱动程序	Win 10 x 64	2025-02-08
Intel Wireless LAN driver ver: 22.110.0.2_G	驱动程序	Win 10 x 64	2025-02-08
Intel Management Engine driver ver:16.0.15.1723_CORP_SW_DCH	驱动程序	Win 10 x 64	2025-02-08
VGA driver ver: 31.0.101.3689	驱动程序	Win 10 x 64	2025-02-08
Intel Thunderbolt driver ver:88	驱动程序	Win 10 x 64	2025-02-08
Intel I226 Lan driver ver:1.1.3.34	驱动程序	Win 10 x 64	2025-02-08
Intel? PROSet/Wireless ver:27.6	驱动程序	Win 10 x 64	2025-02-08
Intel Rapid Storage Technology driver and utility ver:19.5.1.1040.3	驱动程序	Win 10 x 64	2025-02-08
