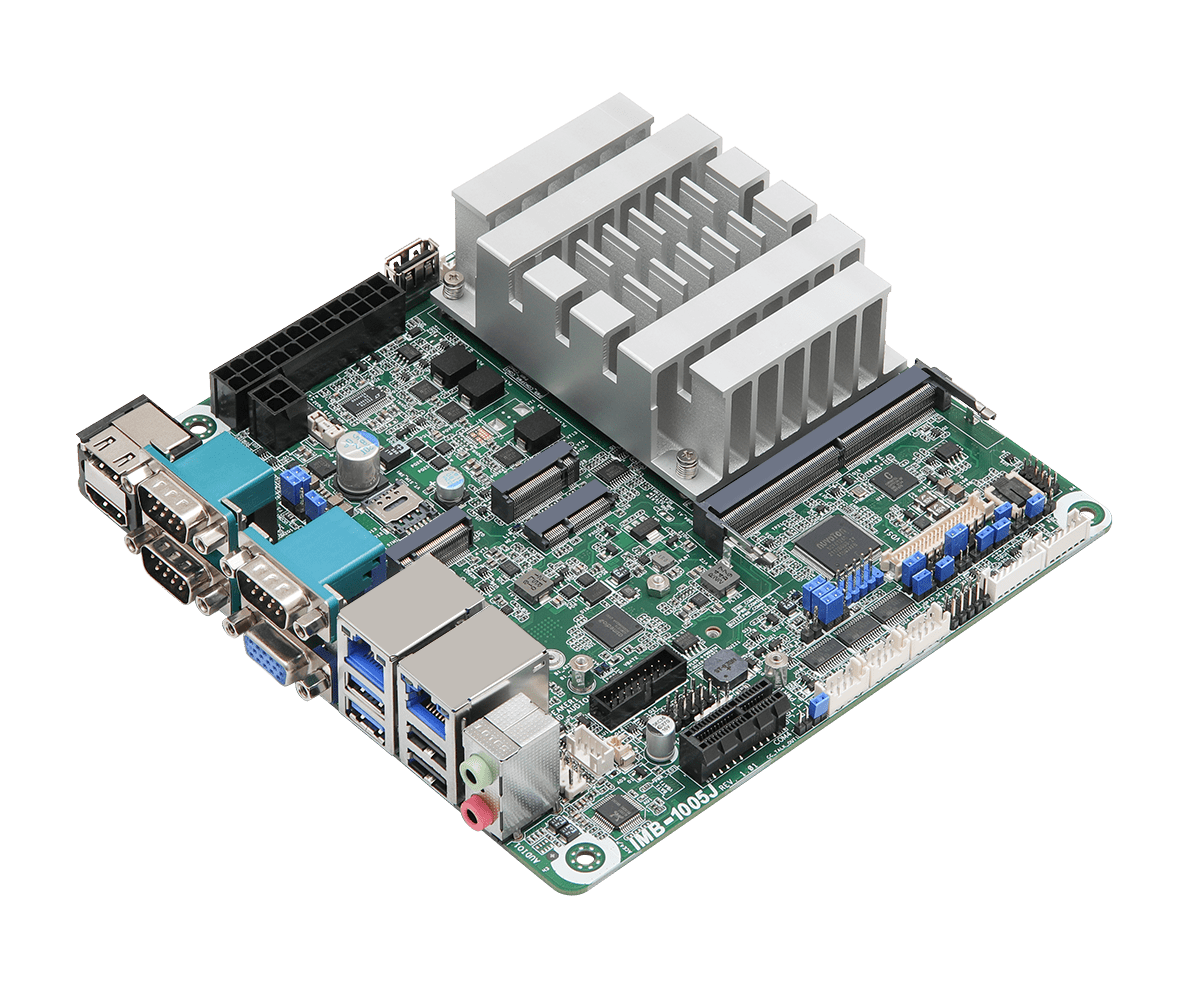

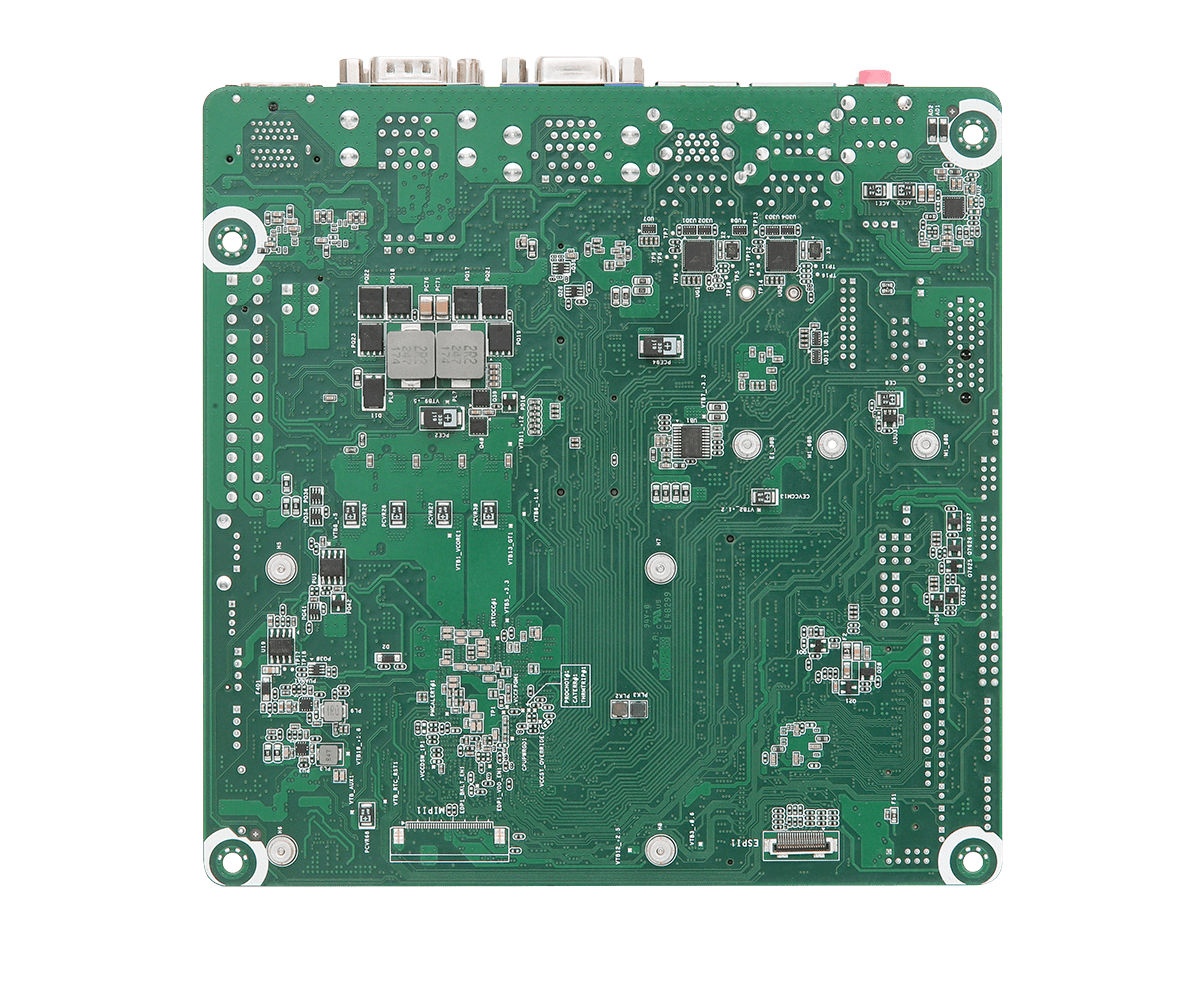

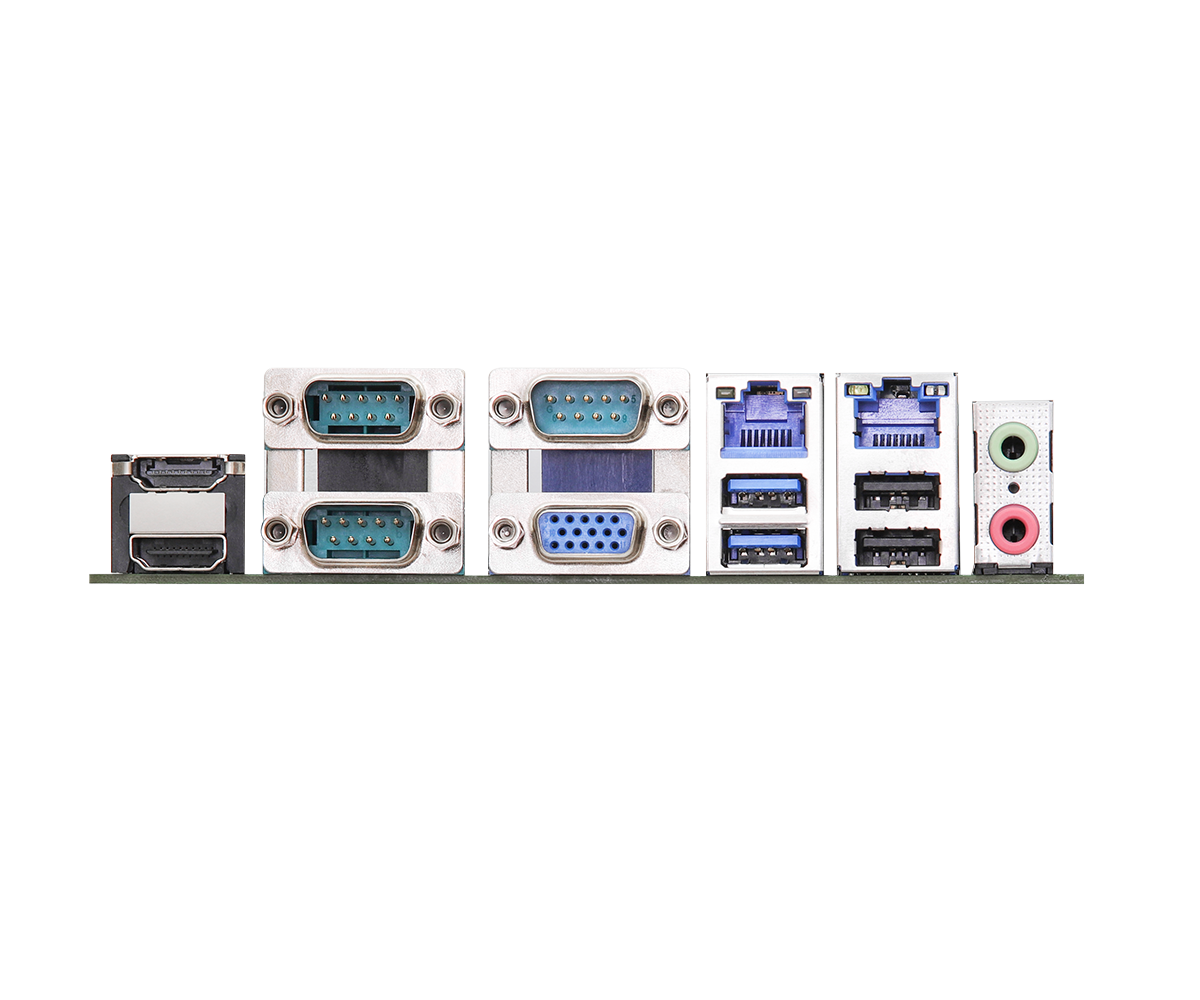

Mini-ITX Motherboard

●Intel® Alder Lake-N SoC Processors N97
●1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
●1 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 6 x COM, 1 x SATA3
●2 x Realtek 2.5 Gigabit LAN
●Support Triple display, 2 x HDMI2.0b, 1 x VGA, 1 x LVDS or eDP
●TPM Header
●ATX-PWR (24+4-pin) and 12~28V DC-In co-design

产品型录产品咨询

产品规格

支援下载

CPU	Intel® Alder Lake-N SoC Processors IMB-1005J (N97, QC, Max Speed Up to 3.6GHz, 12W) *For other CPU SKUs request, please contact regional Sales for availability
Chipset	SoC
BIOS	AMI SPI 256 Mbit

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm)

Controller	Intel® UHD Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Triple display

PCIe	1 x PCIe x1 (Gen3)
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket	1x SIM socket connected to M.2 key B

Interface	Realtek ALC897 HD, High Definition Audio. Mic-in, Line-out

Controller/ Speed	LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 header) 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM	COM4 (RS-232) COM5 (RS-232 or TTL (optional)) COM6 (RS-232 or ccTalk (optional))
GPIO	4 x GPI, 4 x GPO
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1
MIPI Camera Header	1 (optional)

TPM	TPM Header

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 or SATA3 for SSD
SATA	1 x SATA3 (6Gb/s)

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	ATX-PWR (24+4-pin) and 12~28V DC-In co-design
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Gift Package	1 x I/O Shield (13G02P023000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 1 x SATA Power Cable (14G000100410AK) 1 x SATA Cable (14G00010107DAK)
Bulk Package	1 x I/O Shield (13G02P023000AK) 3 x SCREW M2*2,D=5 (13G020302031AK)
