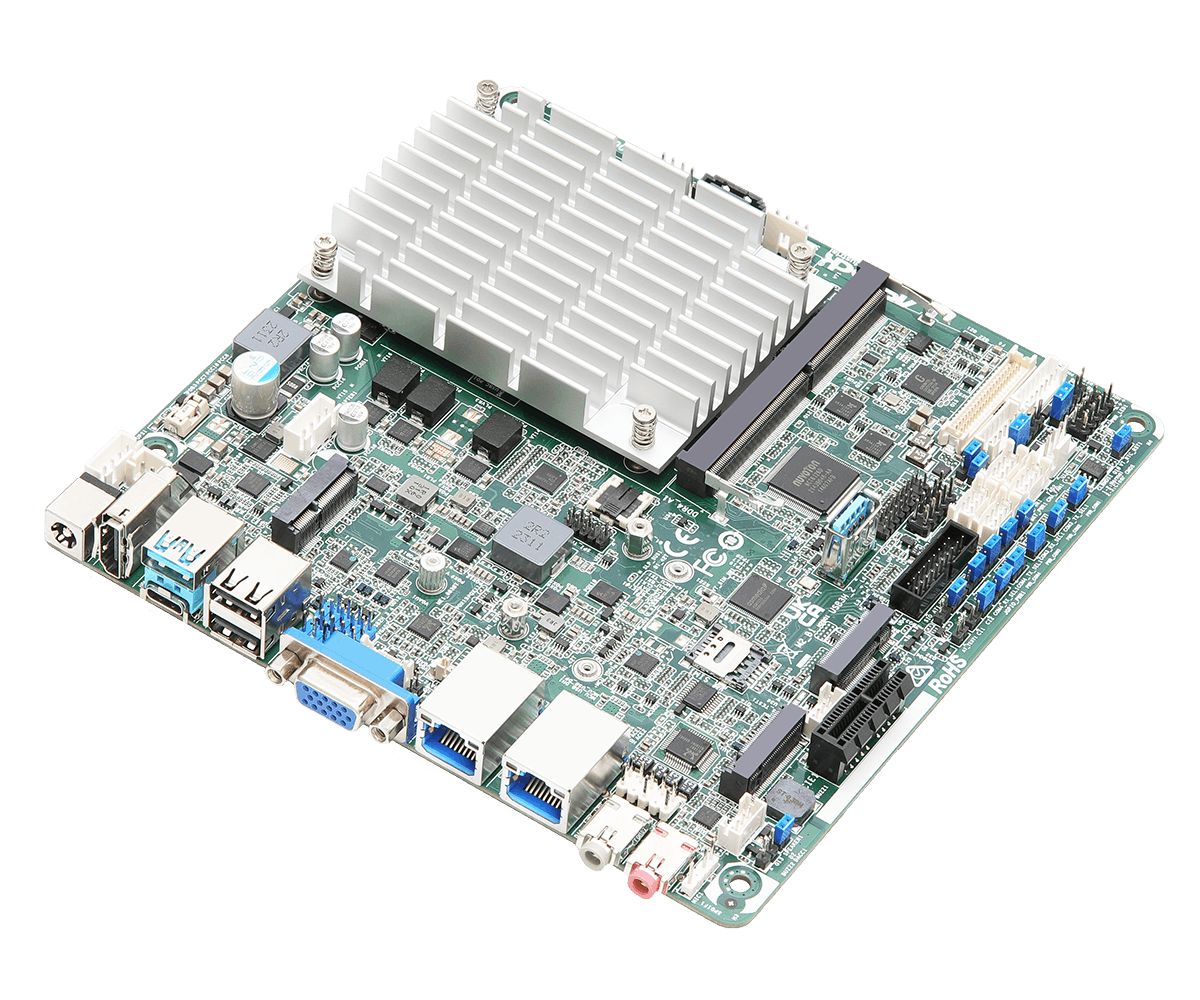

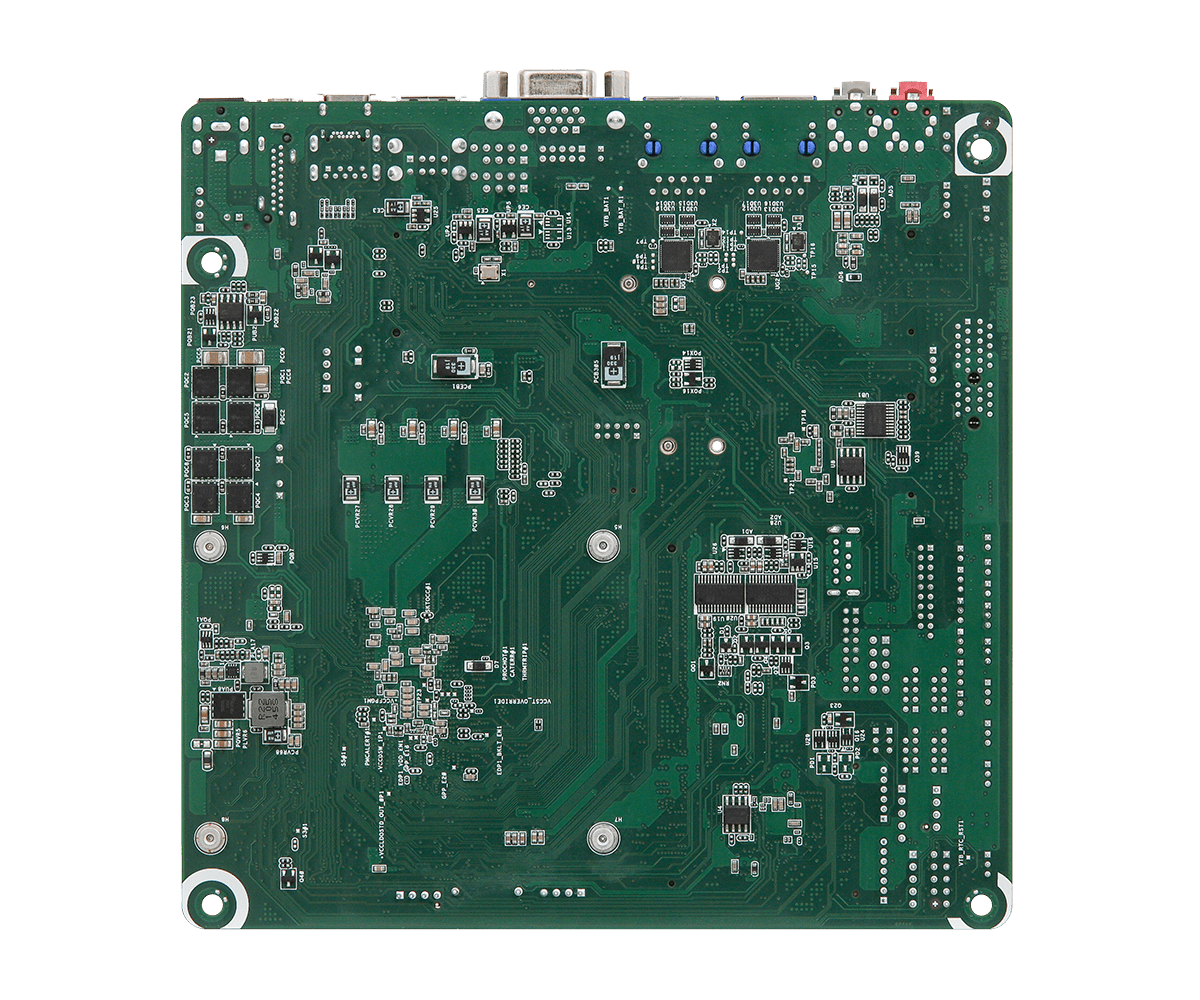

IMB-1006J-WF

Mini-ITX Motherboard

  • ●Intel® Alder Lake-N SoC Processors N97

  • ●1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB

  • ●1 x PCIe x1 (Gen3), 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 4 x COM, 1 x SATA3

  • ●2 x Realtek 2.5 Gigabit LAN

  • ●Support Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a (from Type-C), 1 x VGA, 1 x LVDS or eDP

  • ●TPM Header

  • ●12~28V DC-In



业务员：李工：15920004347（微信同号）

邮   箱Email：haiping@powerwell.com.cn


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Alder Lake-N SoC Processors
IMB-1006J-WF (N97, QC, Max Speed Up to 3.6GHz, 12W)
*For other CPU SKUs request, please contact regional Sales for availability
ChipsetSoC
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Memory

TechnologySingle Channel DDR4 3200 MHz
Capacity32GB
Socket1 x 260-pin SO-DIMM

Graphics

ControllerIntel® UHD Graphics
HDMIHDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPortDP 1.4a
Max resolution up to 4096 x 2160@60Hz
VGAMax resolution up to 1920 x 1200@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDPMax resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplayTriple display (Included 1 output from Type-C)

Expansion Slot

PCIe1 x PCIe x1 (Gen3)
M.21 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket1x SIM socket connected to M.2 key B

Audio

InterfaceRealtek ALC897 HD, High Definition Audio. Mic-in, Line-out

Ethernet

Controller/ SpeedLAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector2 x RJ-45

Rear I/O

HDMI1 x HDMI 2.0b
DisplayPort1 x DP 1.4a
VGA1
Ethernet2 x 2.5 Gigabit LAN
USB1 x USB 3.2 Gen2 (Type-C, 5V/3A, supports DP1.4a display output)
1 x USB 3.2 Gen1
2 x USB 2.0
Audio2 (Mic-In, Line-Out)
DC Jack1

Internal Connector

USB3 x USB 3.2 Gen1 (1 x USB 3.2 header, 1 x USB 3.2 Gen1 Type-A vertical con)
4 x USB 2.0 (2 x 2.54 pitch header)
COMCOM1, COM2 (RS-232/422/485)
COM3, COM4 (RS-232/TTL-5V)
GPIO4 x GPI, 4 x GPO
LVDS1 (Connector with LVDS/eDP signal, switch by BIOS)
VGA1
SATA PWR Output1
Speaker Header1
MIPI Camera Header1 (optional)

Security

TPMTPM Header

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 or SATA3 and USB 2.0 for SSD
SATA1 x SATA3 (6Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x I/O Shield (13G02P020000AK)
1 x I/O Shield THIN (13G02P020010AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Power Cable (14G000100410AK)
1 x SATA Cable (14G00010107DAK)
Bulk Package1 x I/O Shield (13G02P020000AK)
1 x I/O Shield THIN (13G02P020010AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
