首页 > 产品系列 > 工业主板 & 单板电脑 > 工业级主机板 > Mini-ITX > IMB-1007J
< >

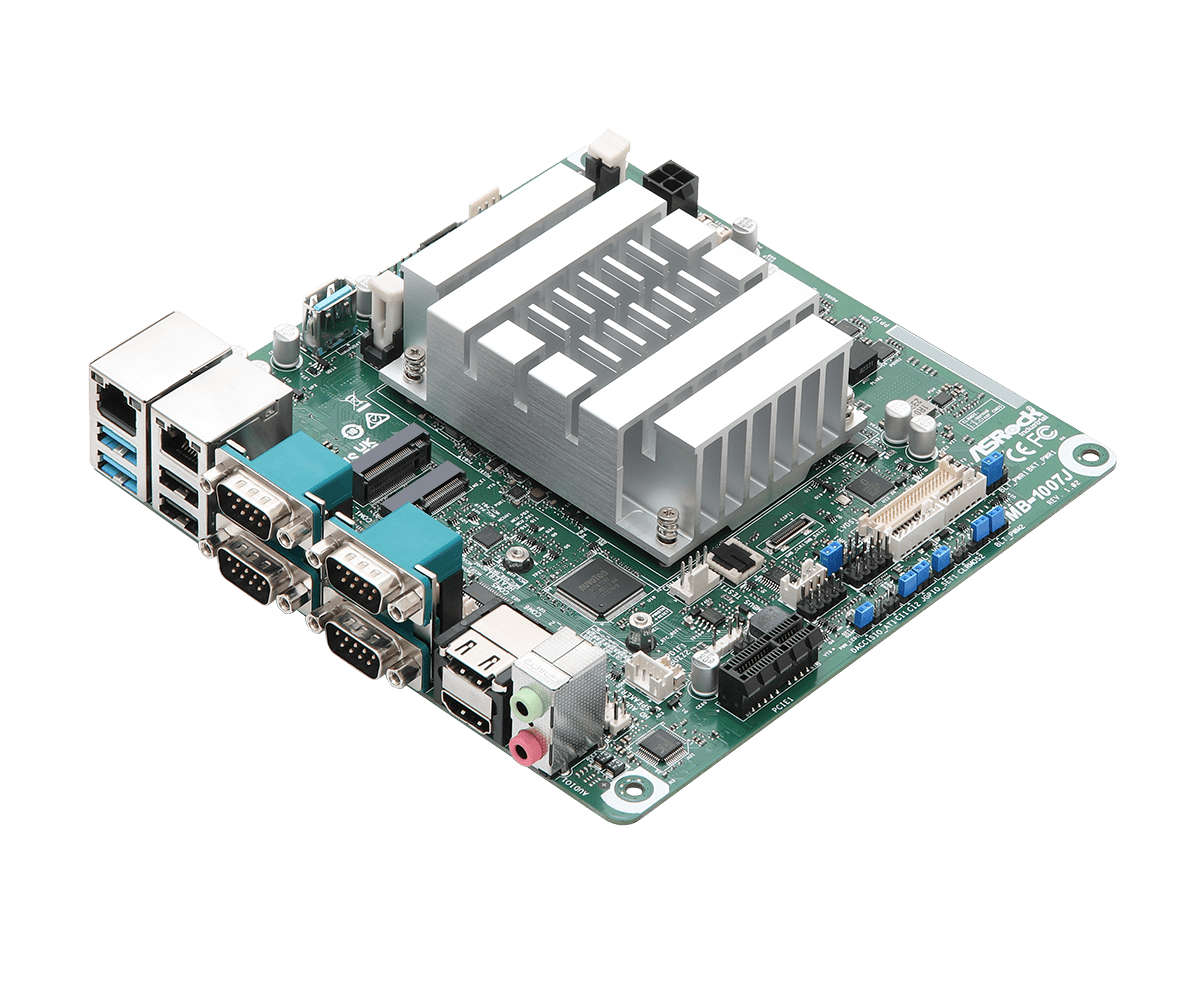

IMB-1007J

Mini-ITX Motherboard

  • ●Intel® Alder Lake-N Processors N97

  • ●1 x 262-pin SO-DIMM DDR5 4800 MHz, up to 32GB

  • ●1 x PCIe x1 (Gen3), 2 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 1 x SATA3

  • ●2 x Realtek Gigabit LAN

  • ●Supports Triple display, 2 x HDMI 2.0b, 1 x LVDS or eDP

  • ●12V DC-In


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Alder Lake-N Processors
IMB-1007J (N97, QC, Max Speed Up to 3.6GHz, 12W)
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.0 cm)

Memory

TechnologySingle Channel DDR5 4800 MHz
Capacity32GB
Socket1 x 262-pin SO-DIMM

Graphics

ControllerIntel® UHD Graphics
HDMIHDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDPMax resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplayTriple display

Expansion Slot

PCIe1 x PCIe x1 (Gen3)
M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

InterfaceRealtek ALC897 HD, High Definition Audio.Mic-in, Line-out

Ethernet

Controller/ SpeedLAN1: Realtek RTL8111H with 10/100/1000 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector2 x RJ-45

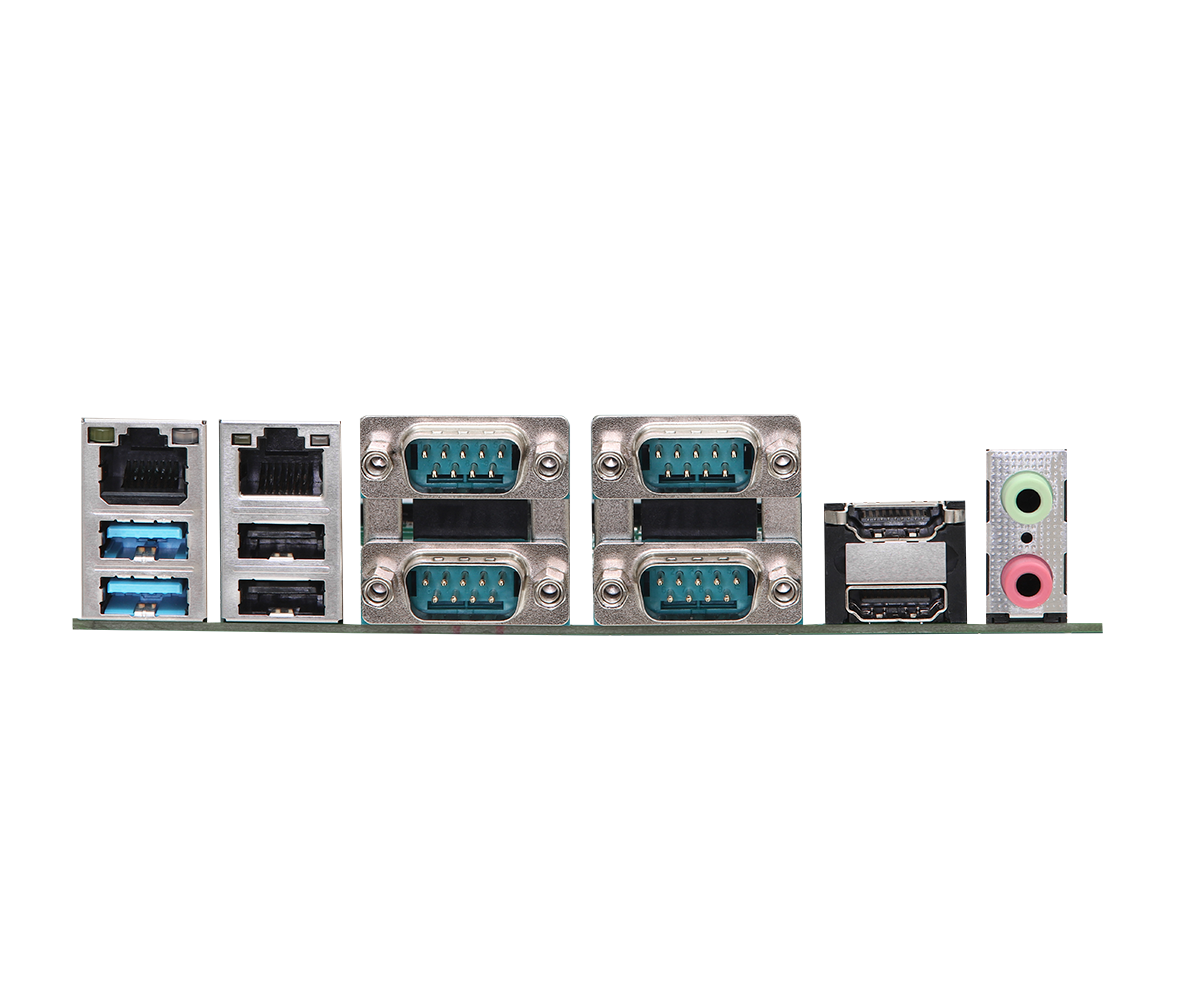

Rear I/O

HDMI2 x HDMI 2.0b
Ethernet2 x 1 Gigabit LAN
USB2 x USB 3.2 Gen2
2 x USB 2.0
Audio2 (Mic-In, Line-Out)
COMCOM1 (RS-232/422/485)
COM2, COM3, COM4 (RS-232)

Internal Connector

USB2 x USB 2.0 (1 x 2.54 pitch header)
COMCOM5, COM6 (RS-232)
GPIO4 x GPI, 4 x GPO
LVDS1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output1
Speaker Header1

Security

TPMIntel® PTT

Storage

M.21 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 or SATA3 for SSD
SATA1 x SATA3 (6Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12V DC-In with 4-pin plug PWR cable
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x I/O Shield (13G02P038000AK)
2 x SCREW M2*2,D=5 (13G020302031AK)
1 x SATA Power Cable (14G000100410AK)
1 x SATA Cable (14G00010107DAK)
Bulk Package1 x I/O Shield (13G02P038000AK)
2 x SCREW M2*2,D=5 (13G020302031AK)


说明 资讯 操作系统 日期 下载
BIOS 1.10 First release 2025-02-08
Jumpers and Headers Setting Guide 快速跳线手册 2025-02-08
User Manual 用户手册 2025-02-08
Realtek Lan driver ver: 10059_06222022 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
INF driver ver:10.1.19222.8341 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Realtek high definition audio driver ver:9239_FF00 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Bluetooth driver ver:22.170.0.2G 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Intel HID Event Filter ver:2.2.1.386 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Intel Serial IO driver ver:30.100.2229.4_v2 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Intel Management Engine driver ver:16.50.0.1175v2 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
VGA driver ver: 31.0.101.3677 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Intel WLAN Driver ver:22.220.0 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
