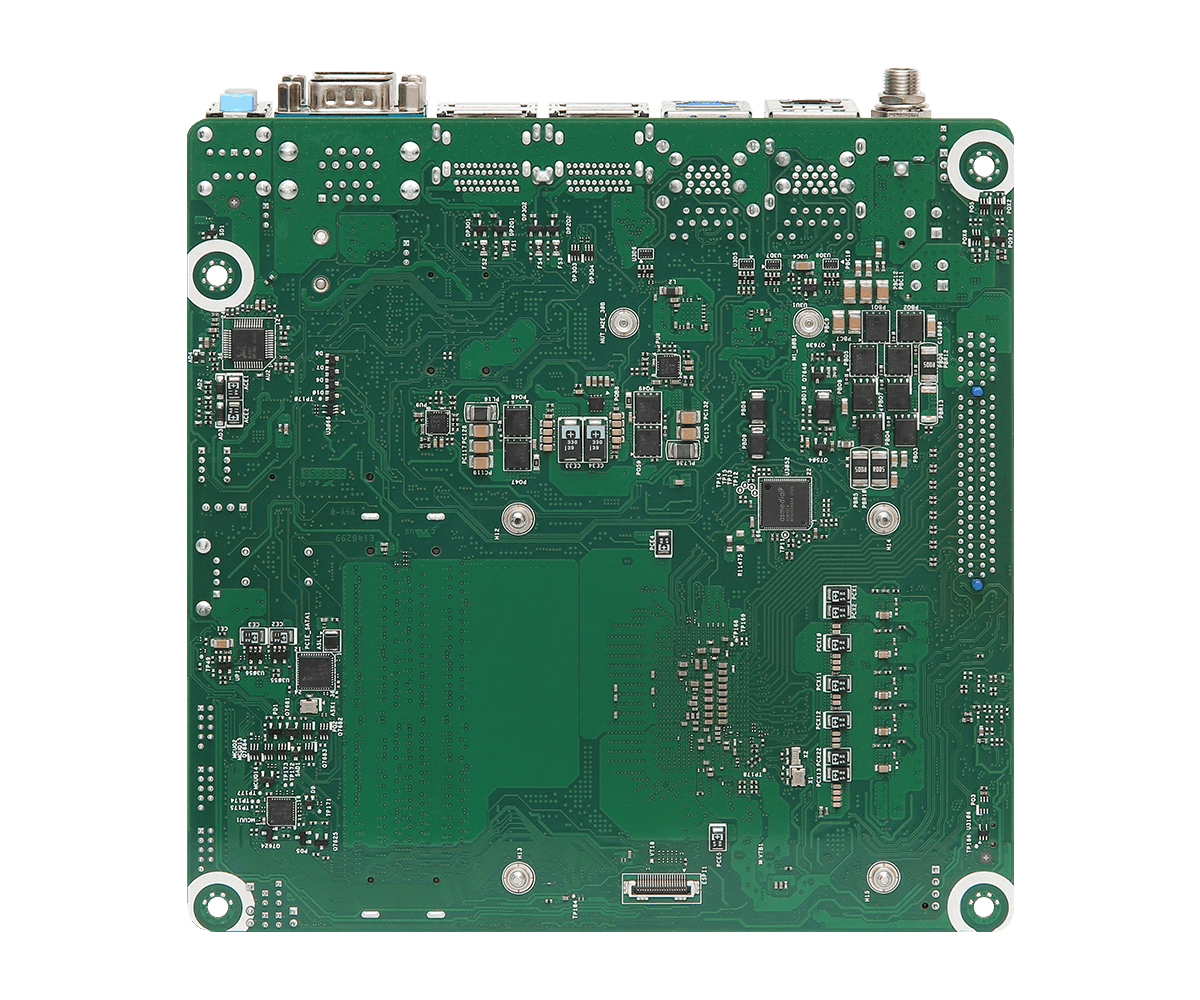

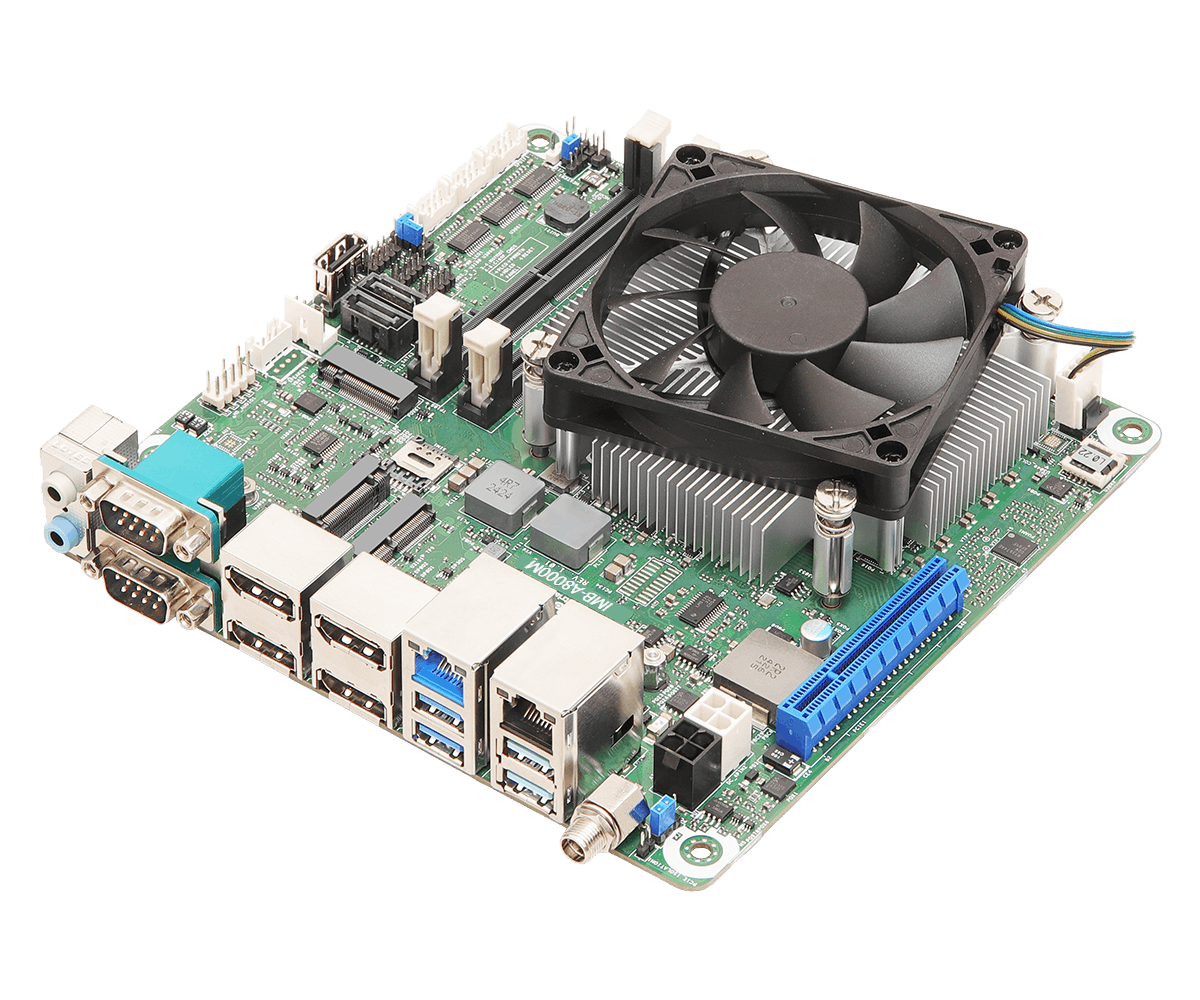

IMB-A8000M

Mini-ITX Motherboard

  • ●AMD Ryzen™ Embedded 8000 PRO 8840U

  • ●2 x 262-pin ECC/non-ECC SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)

  • ●1 x PCIe x8 (Gen4), 1 x USB 3.2 Gen2, 3 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key M, 1 x M.2 Key E, 5 x COM, 2 x SATA3, 1 x ccTalk

  • ●1 x Realtek Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN

  • ●Supports Quad display, 4 x DP 1.4a

  • ●12~28V DC-In (Lockable DC Jack)


业务员：李工：15920004347（微信同号）

邮   箱Email：haiping@powerwell.com.cn


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUAMD Ryzen™ Embedded 8000 SoC processors
IMB-A8000M (PRO 8840U, 8/16, 3.3GHz, 15-30W)
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm)

Memory

TechnologyDual Channel ECC/non-ECC DDR5 5600 MHz
Capacity96 GB (48 GB per DIMM)
Socket2 x 262-pin SO-DIMM

Graphics

ControllerAMD RDNA™ 3
DisplayPortDisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplayQuad Display

Expansion Slot

PCIe1 x PCIe x8 (Gen4)
M.21 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.0, USB 2.0 and SIM Socket for 4G/5G
SIM Socket1 x Socket connected to M.2 Key B

Audio

InterfaceRealtek ALC897, High Definition Audio. Line-in, Line-out

Ethernet

Controller/ SpeedLAN1: Realtek® RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek® RTL8111H with 10/100/1000 Mbps
Connector2 x RJ-45

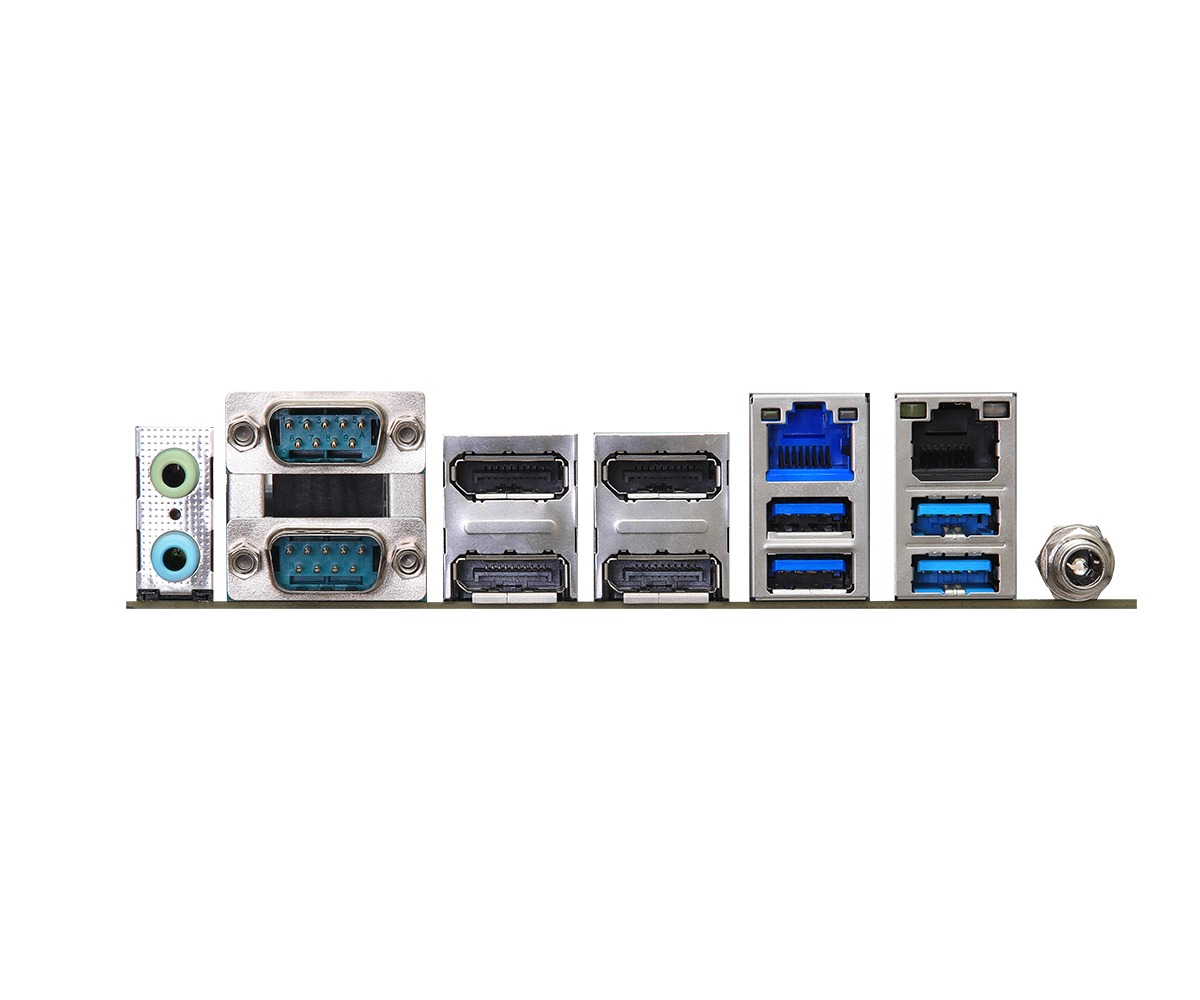

Rear I/O

DisplayPort4 x DP 1.4a
Ethernet1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB1 x USB 3.2 Gen2
3 x USB 3.2 Gen1
Audio2 (Line-in, Line-out)
COMCOM1, COM2 (RS-232/422/485)

Internal Connector

USB4 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COMCOM3, COM4, COM5 (RS-232)
SATA PWR Output1
GPU Card PWR Input1
ccTalk1

Security

TPMAMD FW TPM

Storage

M.21 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA2 x SATA3 (6Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type)
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x COM Cable (14G000000310AK)
2 x SATA Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
1 x I/O Shield (13G02P065000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package1 x I/O Shield (13G02P065000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)


说明 资讯 操作系统 日期 下载
BIOS 1.10 First release 2025-02-08
Jumpers and Headers Setting Guide 快速跳线手册 2025-02-08
User Manual 用户手册 2025-02-08
Display_tool(22.20.ccc2) 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Realtek Lan driver ver:WHQL_5.1.2.2301_20230106 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
VGA driver ver: 231025a-397332C 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Chipset_Driver(5.10.17.921).zip 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
AMD Dynamic Root of Trust Measurement ver: 1.0.17.0 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
AMD_WLAN_BT(v3.3.0.467).zip 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
RAID driver ver: 9.3.2.00255 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
HD Audio Driver_9648.1_UAD_WHQL_2024_0301_111851 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
Nuvoton HighSpeed Setup_v1.8.24.0805 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
RAIDXpert2_Windows_932_00255 驱动程序 Win 11 x 64 , Win 10 x 64 2025-02-08
