首页 > 产品系列 > 工业主板 & 单板电脑 > 工业级主机板 > Mini-ITX > IMB-1242
< >
IMB-1242

Mini-ITX Motherboard

  • ●Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with H610 chipset

  • ●2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)

  • ●1 x PCIe x16 (Gen4), 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM, 2 x SATA3

  • ●1 x Intel Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN

  • ●Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA

  • ●ATX-PWR (24+4-pin) and 12V DC-In co-design


业务员：李工：15920004347（微信同号）

邮   箱Email：haiping@powerwell.com.cn


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
ChipsetIntel® H610
SocketLGA1700
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in x 1.4-in, 17.0 cm x 17.0 cm x 3.6 cm)

Memory

TechnologyDual Channel DDR4 3200 MHz
Capacity64 GB (32 GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerIntel® UHD Graphics
HDMIHDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPortDisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
VGAMax resolution up to 1920x1200@60Hz
MultiDisplayTriple Display

Expansion Slot

PCIe1 x PCIe x16 (Gen4)
M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

InterfaceRealtek ALC897, High Definition Audio. Mic-in, Line-out

Ethernet

Controller/ SpeedLAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector2 x RJ-45

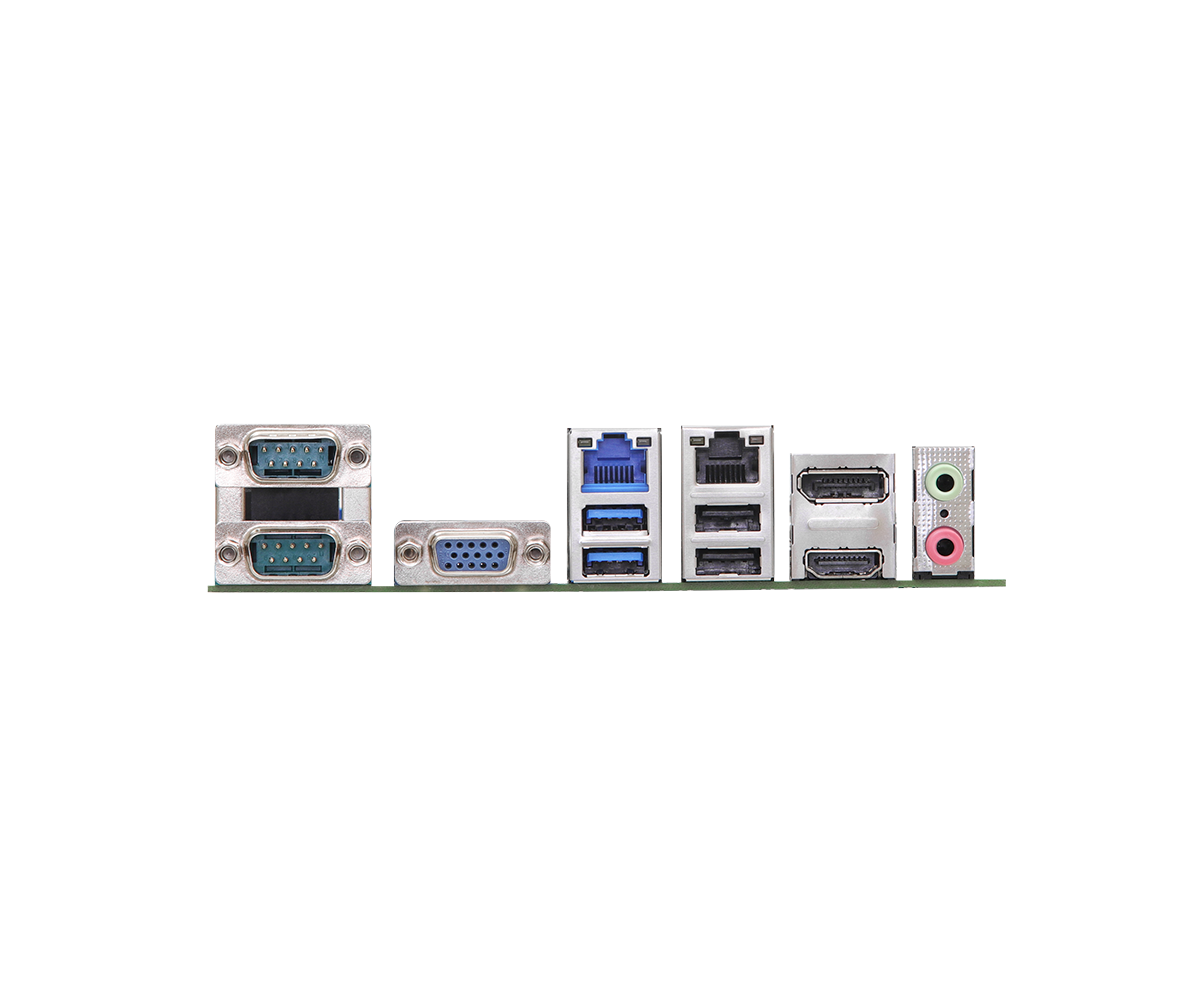

Rear I/O

HDMI1 x HDMI 2.0b
DisplayPort1 x DP 1.4a ++
VGA1
Ethernet1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB2 x USB 3.2 Gen2, 2 x USB 2.0
Audio2 (Mic-in, Line-out)
COMCOM1, COM2 (RS-232/422/485)

Internal Connector

USB2 x USB 3.2 Gen1 (1 x USB 3.2 header)
2 x USB 2.0 (1 x 2.54 pitch header)
SATA PWR Output1

Security

TPMTPM Header

Storage

M.21 x M.2(KeyM, 2260/2280) with PCIe Gen3 x4 and SATA3 for SSD
SATA2 x SATA3 (6Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWRATX-PWR (24+4-pin) and 12V DC-In co-design
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x SATA Power Cable (14G000100410AK)
1 x COM Cable (14G000000310AK)
2 x SATA Cable (14G00010107DAK)
1 x I/O Shield (13G02P043000AK)
2 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package1 x I/O Shield (13G02P043000AK)
2 x SCREW M2*2,D=5 (13G020302031AK)


说明 资讯 操作系统 日期 下载
BIOS 1.70 1. Update Intel microcode to 0x12B 2. Enhance system compatibility 2025-02-07
Jumpers and Headers Setting Guide 快速跳线手册 2025-02-07
User Manual 用户手册 2025-02-07
CPU Support List CPU支持列表 2025-02-07
Realtek high definition audio driver ver:9239_FF00 驱动程序 Win 10 x 64 2025-02-07
INF driver ver:10.1.19199.8340 驱动程序 Win 10 x 64 2025-02-07
Bluetooth driver ver:22.170.0.2G 驱动程序 Win 10 x 64 2025-02-07
Intel HID Event Filter ver:2.2.1.386 驱动程序 Win 10 x 64 2025-02-07
Intel I210/I219 Lan driver ver:27.6 驱动程序 Win 10 x 64 2025-02-07
Intel WLAN Driver ver:22.200.0 驱动程序 Win 10 x 64 2025-02-07
VGA driver ver: 101.4314 驱动程序 Win 10 x 64 2025-02-07
Intel Management Engine driver ver:16.1.25.2020v2_B0_Corporate 驱动程序 Win 10 x 64 2025-02-07
Realtek Lan driver ver: 10059_06222022 驱动程序 Win 10 x 64 2025-02-07
