IMB-1245M-WV

Mini-ITX Motherboard

  • ●Intel® Core™ Ultra processors (Meteor Lake-H) 125H

  • ●2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)

  • ●1 x PCIe x8 (Gen5), 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 3 x COM, 2 x SATA3

  • ●1 x Intel 1 Gigabit LAN, 1 Realtek 2.5 Gigabit LAN

  • ●Supports Quad display, 4 x HDMI, 1 x LVDS or eDP

  • ●Supports Intel® vPro, VMD RAID 0/1

  • ●12~28V DC-In


业务员：李工：15920004347（微信同号）

邮   箱Email：haiping@powerwell.com.cn


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Core™ Ultra processors (Meteor Lake-H)
IMB-1245M-WV (Ultra5 125H, 4P+8E)
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in x 0.97-in, 17.0 cm x 17.0 cm x 2.48 cm)

Memory

TechnologyDual Channel DDR5 5600 MHz
Capacity96GB (48GB per DIMM)
Socket2 x 262-pin SO-DIMM

Graphics

ControllerIntel® Arc™ Graphics
HDMIMax resolution up to 7680x4320@60Hz (HDMI0/1)
Max resolution up to 4096x2160@60Hz (HDMI2/3)
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDPMax resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplayQuad display

Expansion Slot

PCIe1 x PCIe x8 (Gen5)
M.21 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket1x SIM socket connected to M.2 key B

Audio

InterfaceRealtek ALC897 HD, High Definition Audio.

Ethernet

Controller/ SpeedLAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector2 x RJ-45

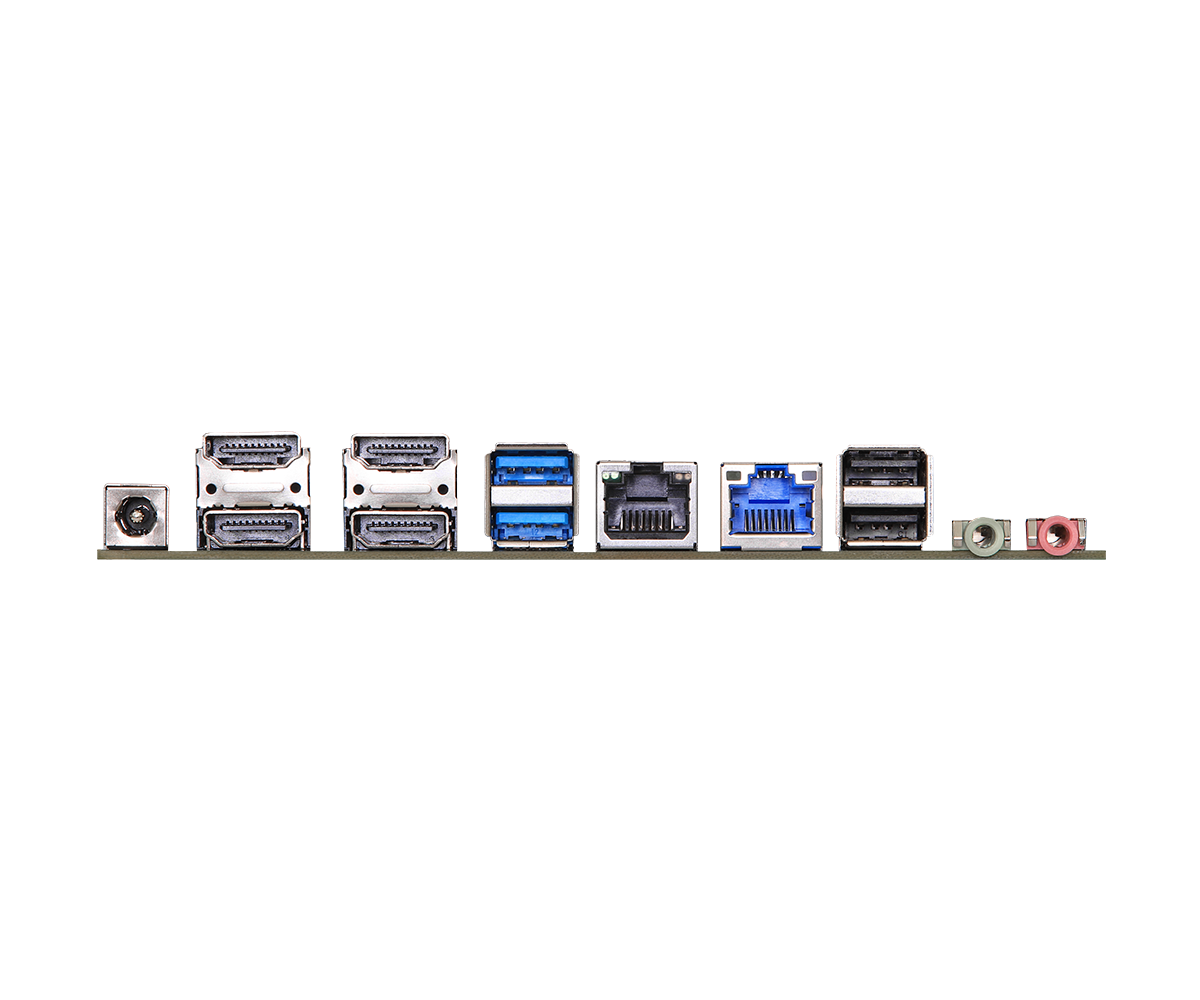

Rear I/O

HDMI4 x HDMI
Ethernet1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB2 x USB 2.0
2 x USB 3.2 Gen2
Audio2 (Mic-In/Line-Out)
DC Jack1 DC-in

Internal Connector

USB4 x USB 2.0 (2 x 2.00mm pitch header)
COMCOM3, COM4, COM5 (RS-232/422/485)
LVDS1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output1
Speaker Header1
MIPI Camera Header1

Security

TPMTPM Header

Storage

M.21 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2242/2280/22110) with PCIe Gen4 x4 for SSD
SATA2 x SATA3 (6Gb/s)
RAIDIntel® VMD RAID 0/1
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B+ M.2 Key M, 2 x M.2 Key M
SATA interface: 2 x SATA port

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12~28V DC-In with 4-pin plug PWR cable or DC Jack
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40°C ~ 85ºC
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x SATA Power Cable (14G000100410AK)
2 x COM Cable (14G000000340AK)
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G02P053000AK)
1 x I/O Shield THIN (13G02P053010AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package1 x I/O Shield (13G02P053000AK)
1 x I/O Shield THIN (13G02P053010AK)
4 x SCREW M2*2,D=5 (13G020302031AK)


说明 资讯 操作系统 日期 下载
BIOS 1.20 Enhance system compatibility 2025-02-07
Jumpers and Headers Setting Guide 快速跳线手册 2025-02-07
User Manual 用户手册 2025-02-07
VGA driver ver: 31.0.101.5125 驱动程序 Win 10 x 64 2025-02-07
Chipset Driver ver: 10.1.19627.8423-Public-MUP 驱动程序 Win 10 x 64 2025-02-07
Intel WLAN Driver ver: 23.0.6.4_G 驱动程序 Win 10 x 64 2025-02-07
Intel Management Engine driver ver: 2344.5.41.0_Corporate 驱动程序 Win 10 x 64 2025-02-07
Intel Serial IO driver ver: 30.100.2318.58 驱动程序 Win 10 x 64 2025-02-07
PMT ver: 3.1.2.2 驱动程序 Win 10 x 64 2025-02-07
Realtek Lan driver ver: 10.060.0615.2022 驱动程序 Win 10 x 64 2025-02-07
GNA ver: 03.05.00.1574 驱动程序 Win 10 x 64 2025-02-07
Realtek high definition audio driver ver:9581.1 RTK1 驱动程序 Win 10 x 64 2025-02-07
Bluetooth driver ver: sbhbtw91668_23.0.1.1 驱动程序 Win 10 x 64 2025-02-07
Intel Lan driver ver:12.19.2.56w 驱动程序 Win 10 x 64 2025-02-07
Intel HID Event Filter ver: 2.2.2.6 PV 驱动程序 Win 10 x 64 2025-02-07
