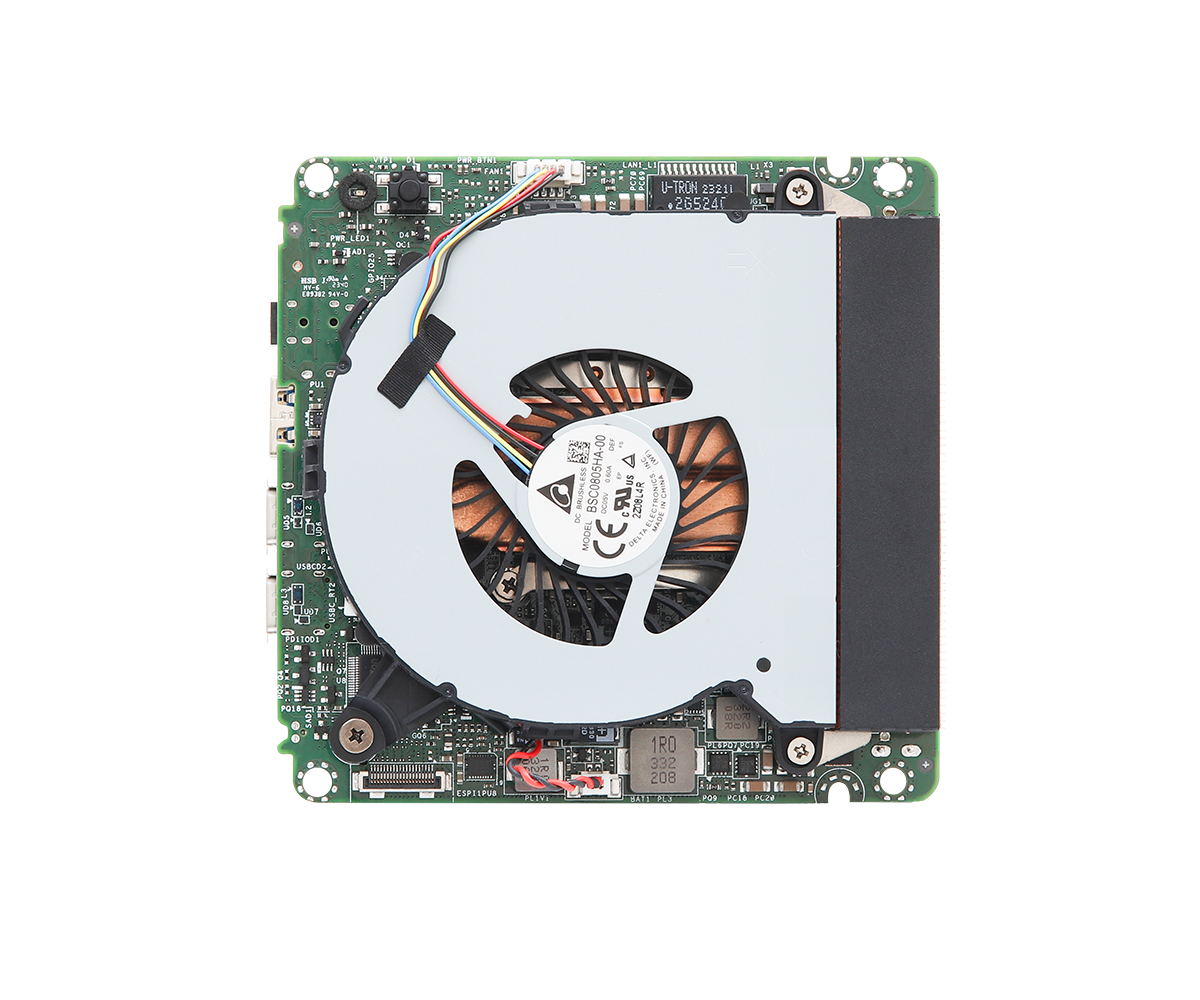

4X4 Motherboard

· AMD Ryzen™ Embedded 8040U-Series

· 2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)

· 2 x USB4, 1 x USB 3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E

· 1 x Realtek Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN

· Supports Quad display, 2 x HDMI 2.1, 2 x DP 1.4a (from Type-C)

· 12V~24V DC-In

产品型录产品咨询

产品规格

支援下载

CPU	AMD Ryzen™ Embedded 8040U-Series - AMD Ryzen™ 7 PRO 8840U (Max Speed up to 5.1GHz)
BIOS	AMI SPI 256 Mbit

Dimensions	4X4 (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)

Controller	AMD Radeon™ Graphics
HDMI	HDMI 2.1 Max resolution up to 7680x4320@60Hz
DisplayPort	DisplayPort 1.4a Max resolution up to 4096x2160@60Hz
MultiDisplay	Max 4 display (included 2 outputs from Type-C)

M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 for Wireless

Interface	Realtek ALC256, High Deﬁnition Audio

Controller/ Speed	LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps

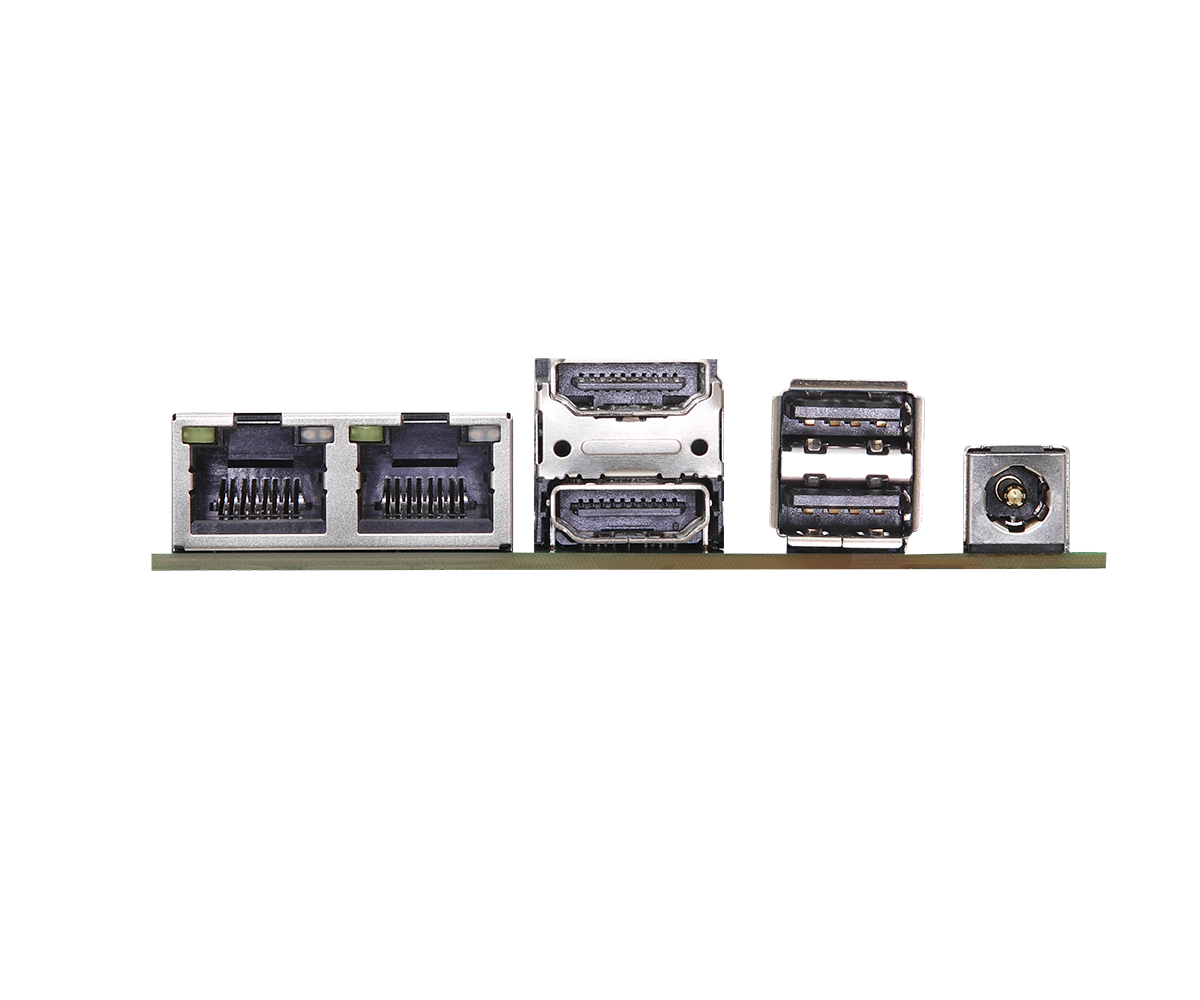

Connector	2 x RJ-45

USB	1 x USB 3.2 Gen2 (Type-A) 2 x USB4 (Type-C, 5V/3A, supports DP1.4a display output)
Audio	1 (headphone & microphone jack)

COM	TTL-3V

TPM	AMD FW TPM

M.2	1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Input PWR	12V~24V DC-In Jack
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready
