4X4 Motherboard

· AMD Ryzen™ 7 5800U

· 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)

· 4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3

· 1 x Realtek 1 Gigabit LAN , 1 x Realtek 2.5 Gigabit LAN

· Supports Quad display, 1 x HDMI 2.0, 3 x DP 1.2a (2 from Type C)

· TPM 2.0 onboard IC

· 12V~19V DC-In

产品型录产品咨询

产品规格

支援下载

Dimensions	4X4 (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)

Controller	AMD Radeon™ Graphics
HDMI	HDMI 2.0a Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.2a, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Max 4 display (Included 2 outputs from Type C)

M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless

Interface	Realtek ALC233, High Deﬁnition Audio.

Controller/ Speed	LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111EPV (DASH) with 10/100/1000 Mbps
Connector	2 x RJ-45

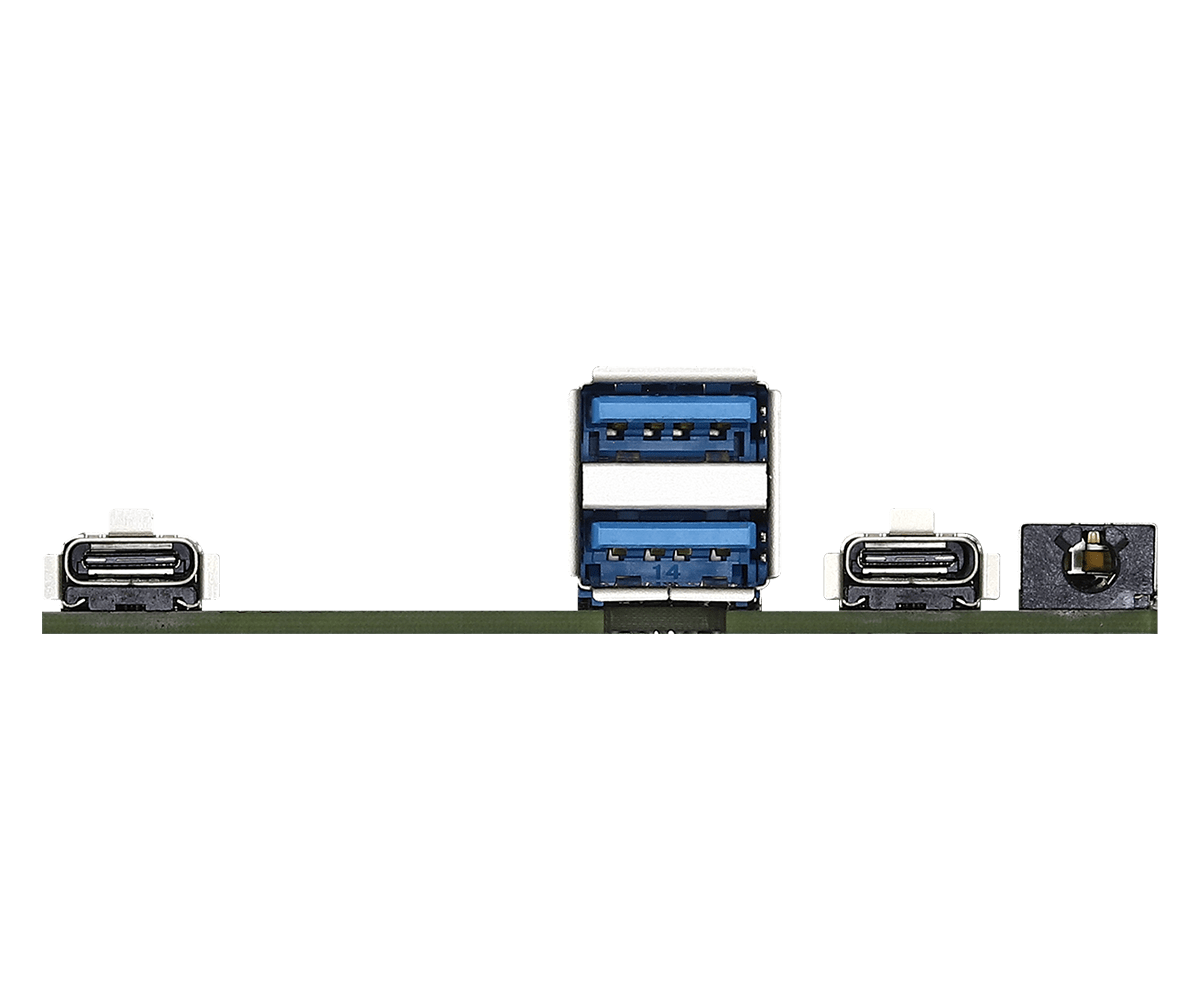

USB	2 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, 5V/3A, Supports DP 1.2a display output)
Audio	1 (headphone & microphone jack)

USB	2 x USB 2.0 (1 x 2.00mm pitch header)
COM	1 x COM (RS-232/422/485)

TPM	TPM 2.0 onboard IC

M.2	1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket)
SATA	1 x SATA3.0 (6.0 Gb/s)

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Input PWR	12V~19V DC-In Jack
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Longivity Support	No

Bulk Package	2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=5.5mm (13G020195070AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x COM Cable (14G000000340AK) 1 x SATA Data/Power Cable (14G000104503AK)
