NUC-1360P-4P/D5

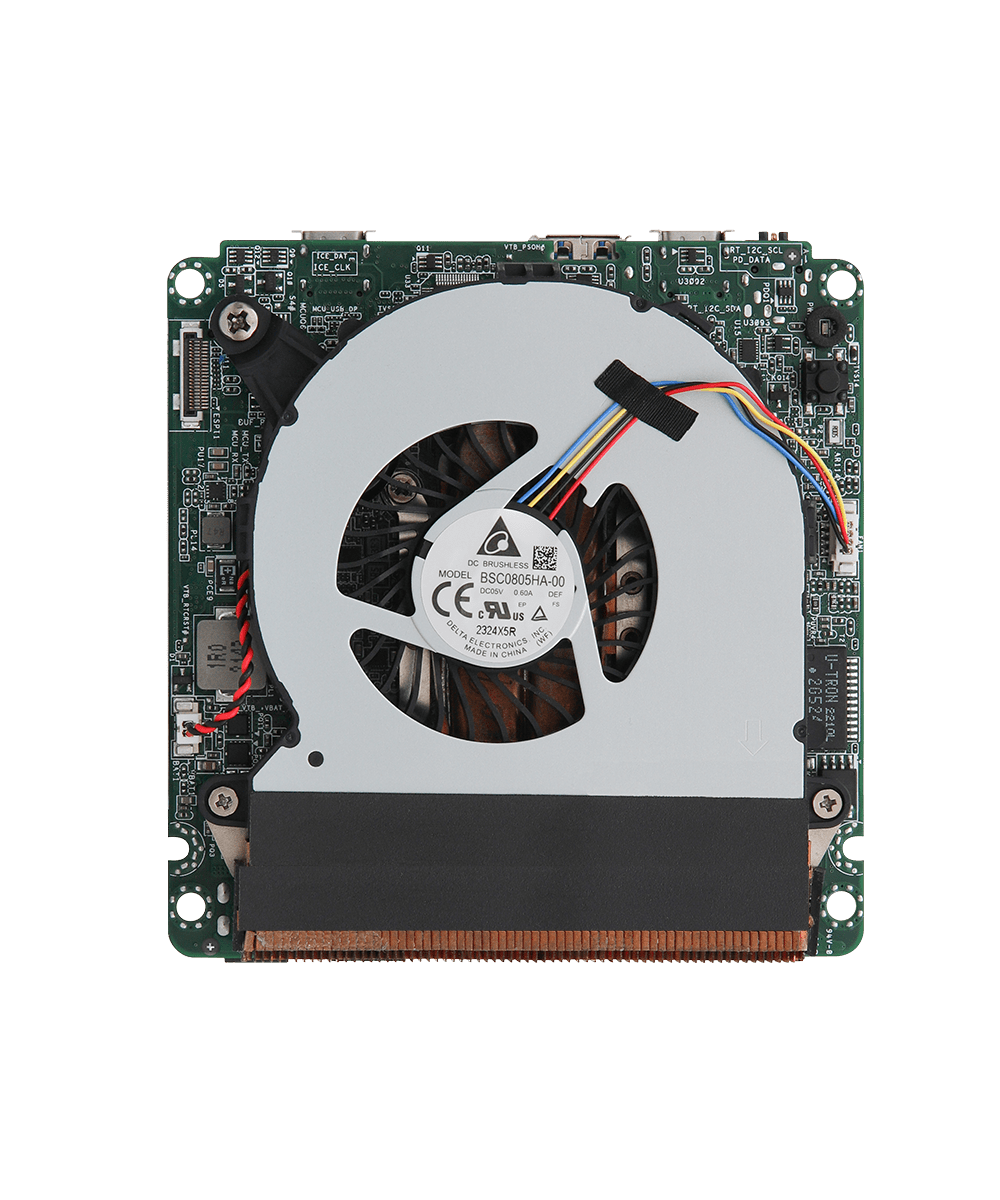

NUC Motherboard

· Intel® 13th Gen (Raptor Lake-P) Core™ Processors i7-1360P

· 2 x 262-pin SO-DIMM DDR5 5200MHz up to 64GB (32GB per DIMM)

· 1 x USB4 / Thunderbolt™ 4, 5 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3

· 2 x Intel 2.5 Gigabit LAN

· Supports Quad display, 1 x HDMI 2.0b, 1 x DP 2.1 (from USB4), 2 x DP 1.4a (1 from Type-C)

· TPM 2.0 onboard IC

· Supports Intel® vPro

· 12V~19V DC-In (4-pin DC-in PWR Con)

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 13th Gen (Raptor Lake-P) Core™ Processors NUC-1360P-4P/D5 (i7-1360P, 4P+8E)
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Dimensions	NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)

Controller	Intel® Iris® Xe Graphics for i7/i5 CPU
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Max 4 display (Included 2 outputs from Type-C)

M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Interface	Realtek ALC256, High Definition Audio.

Controller/ Speed	LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps

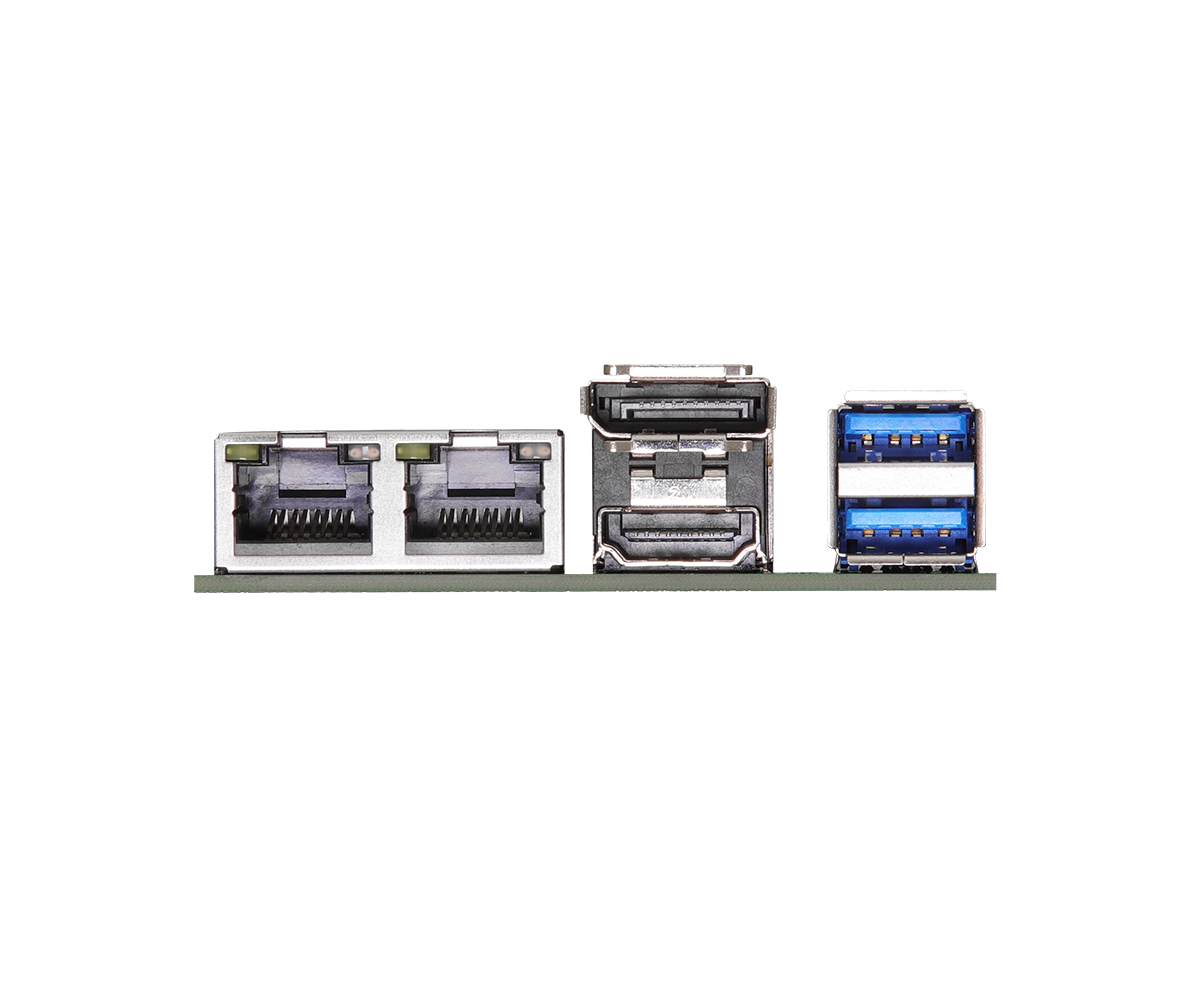

Connector	2 x RJ-45

USB	2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, 5V/1.5A, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list.
Audio	1 (headphone & microphone jack)

USB	2 x USB 2.0 (1 x 2.00 pitch header)
COM	1 x COM (RS-232/RS-422/RS-485)

TPM	TPM 2.0 onboard IC

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280 (Supported by bracket)
SATA	1 x SATA3.0 (6.0 Gb/s)

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	12~19V DC-in (4-pin DC-in PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Bulk Package	2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=5.5mm (13G020195070AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x COM Cable (14G000000340AK) 1 x SATA Data/Power Cable (14G000104503AK) 1 x DC-in Cable (14G000600900AK)
