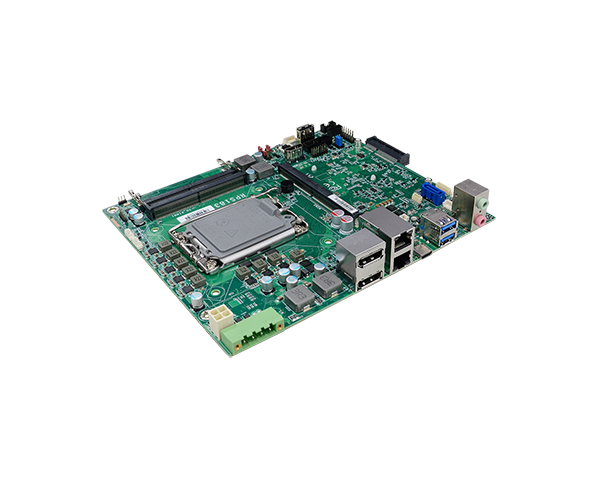

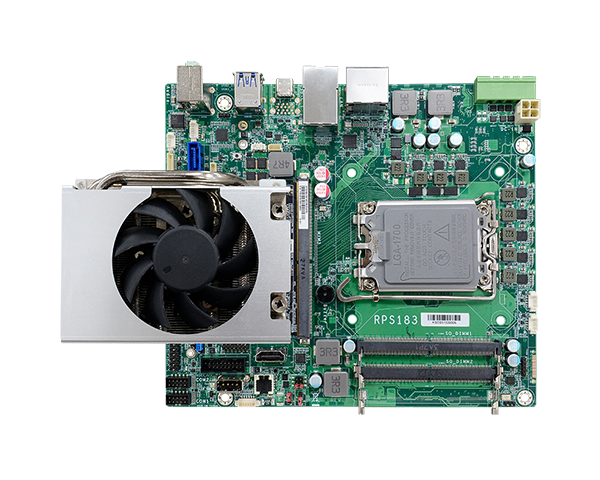

MXM-IPC-Q670E

Proprietary Motherboard

  • 14th/13th/12th Gen Intel® Core Processors

  • 2 DDR5 SODIMM up to 64GB

  • Multiple Display: 1 DP++(CPU), 1 DP++(MXM), 1 USB Type C(DP Alt-mode), 1 eDP(MXM), 1 internal HDMI(MXM)

  • Support MXM module, with 1 internal HDMI, 1 eDP and 1 external DP++

  • Multiple Expansion: 1 PCIe x4(side), 1 M.2 M key, 1 M.2 E Key, 1 M.2 B Key

  • Rich I/O: 2 Intel® 2.5GbE, up to 4 USB 3.2 Type A, up to 1 USB Type C

  • Wide Range power input 19~24V

  • Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.Support EXT-OOB (Full)

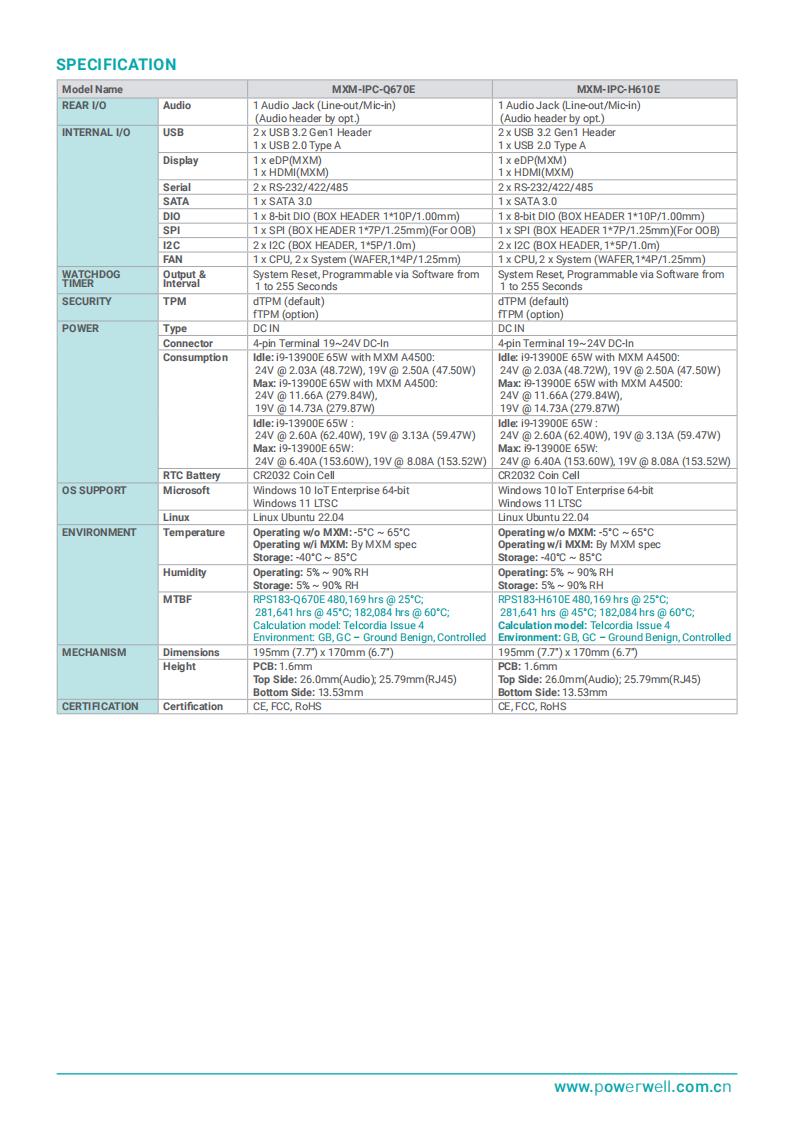

产品规格
支援下载






说明 资讯 操作系统 日期 下载
