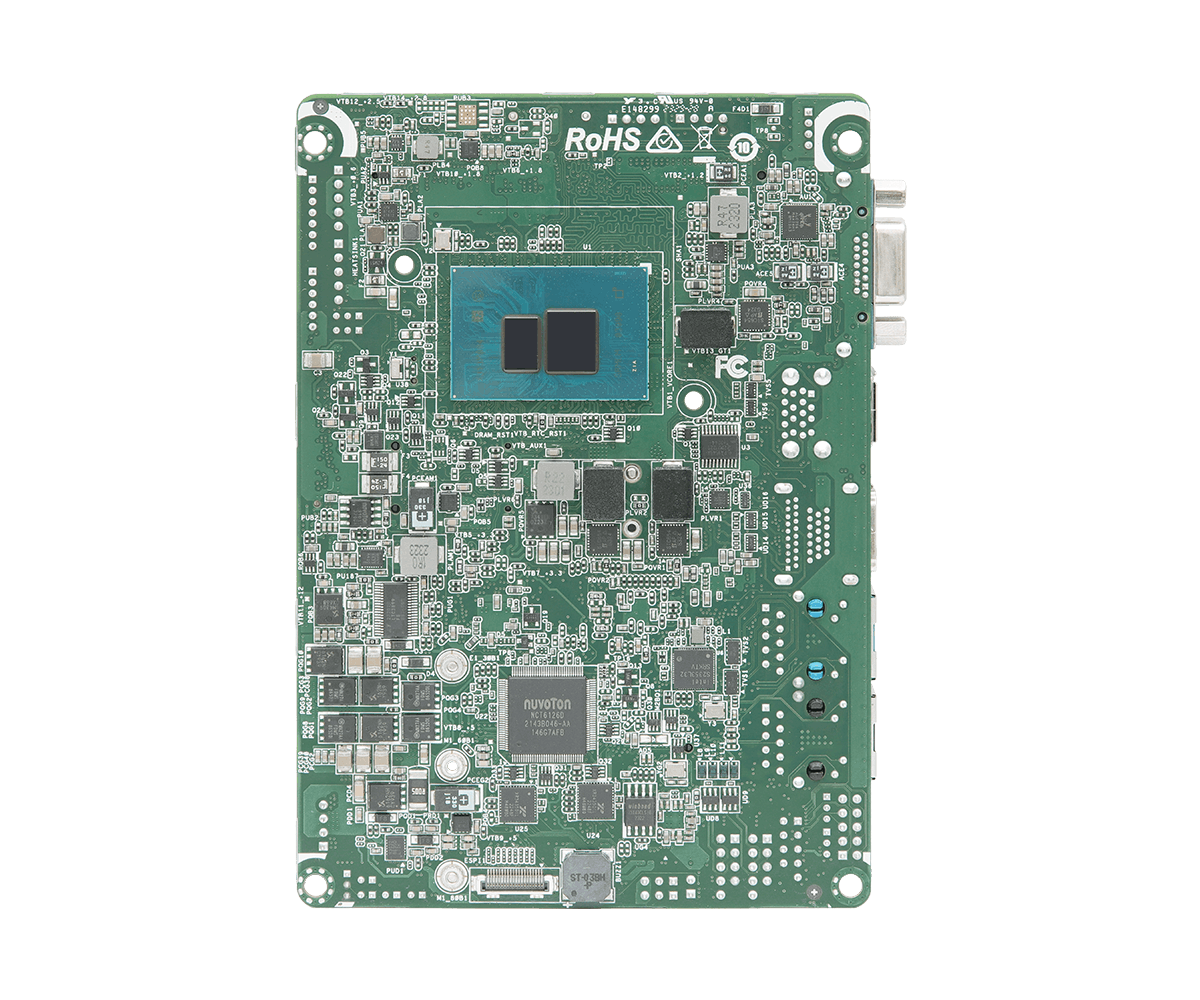

SBC-260J

SBC 3.5

  • ●Intel® Alder Lake-N SoC Processors N97

  • ●1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB

  • ●2 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 1 x SATA3

  • ●1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN

  • ●Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA, 1 x LVDS or eDP

  • ●TPM 2.0 onboard IC

  • ●9~36V DC-In PWR


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Alder Lake-N SoC Processors
SBC-260J (N97, QC, Max Speed Up to 3.6GHz, 12W)
*For other CPU SKUs request, please contact regional Sales for availability
ChipsetSoC
BIOSAMI SPI 256 Mbit

Form Factor

Dimensions3.5"SBC (5.8-in x 4-in x 1.02-in, 14.7 cm x 10.2 cm x 2.60 cm)

Memory

TechnologySingle Channel DDR4 3200 MHz
Capacity32GB
Socket1 x 260-pin SO-DIMM

Graphics

ControllerIntel® UHD Graphics
HDMIHDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPortDP 1.4a
Max resolution up to 4096 x 2160@60Hz
VGAMax resolution up to 1920 x 1200
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDPMax resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplayTriple display

Expansion Slot

M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2/USB 2.0 and SIM for 4G/5G
SIM Socket1x SIM socket connected to M.2 key B

Audio

InterfaceRealtek ALC256 HD, High Definition Audio.

Ethernet

Controller/ SpeedLAN1: Intel® I226V with 10/100/1000/2500 Mbps
LAN2: Intel® I210AT with 10/100/1000 Mbps
Connector2 x RJ-45

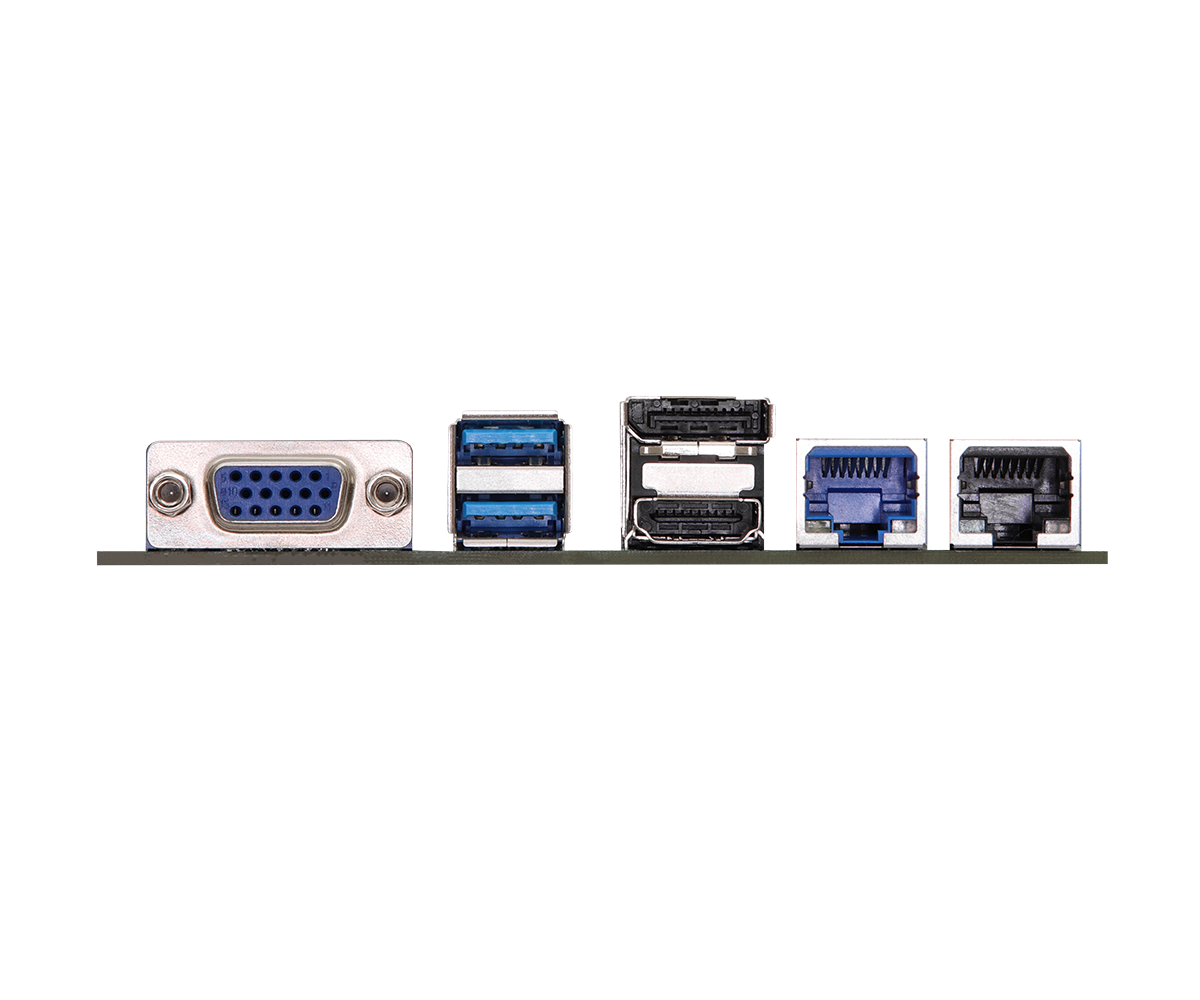

Rear I/O

HDMI1 x HDMI 2.0b
DisplayPort1 x DP 1.4a
VGA1
Ethernet1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB2 x USB 3.2 Gen2

Internal Connector

USB4 x USB 2.0 (2 x 2.54 pitch header)
COMCOM3, COM4 (RS-232)
COM1, COM2 (RS-232/422/485)
GPIO4 x GPI, 4 x GPO
LVDS1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output1
Speaker Header1
MIPI Camera Header1 (Optional)

Security

TPMTPM 2.0 onboard IC

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with PCIe x1 or SATA3 for SSD
SATA1 x SATA3

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR9~36V DC-In with 4-pin wafer PWR
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x Heat Sink 147*102.2mm (13G07P016000AK )
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000340AK)
1 x SATA Data Cable (14G000107101AK)
1 x SATA Power Cable (14G000100410AK)
1 x DC-in Cable (14G000600900AK)
Bulk Package3 x SCREW M2*2,D=5 (13G020302031AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
