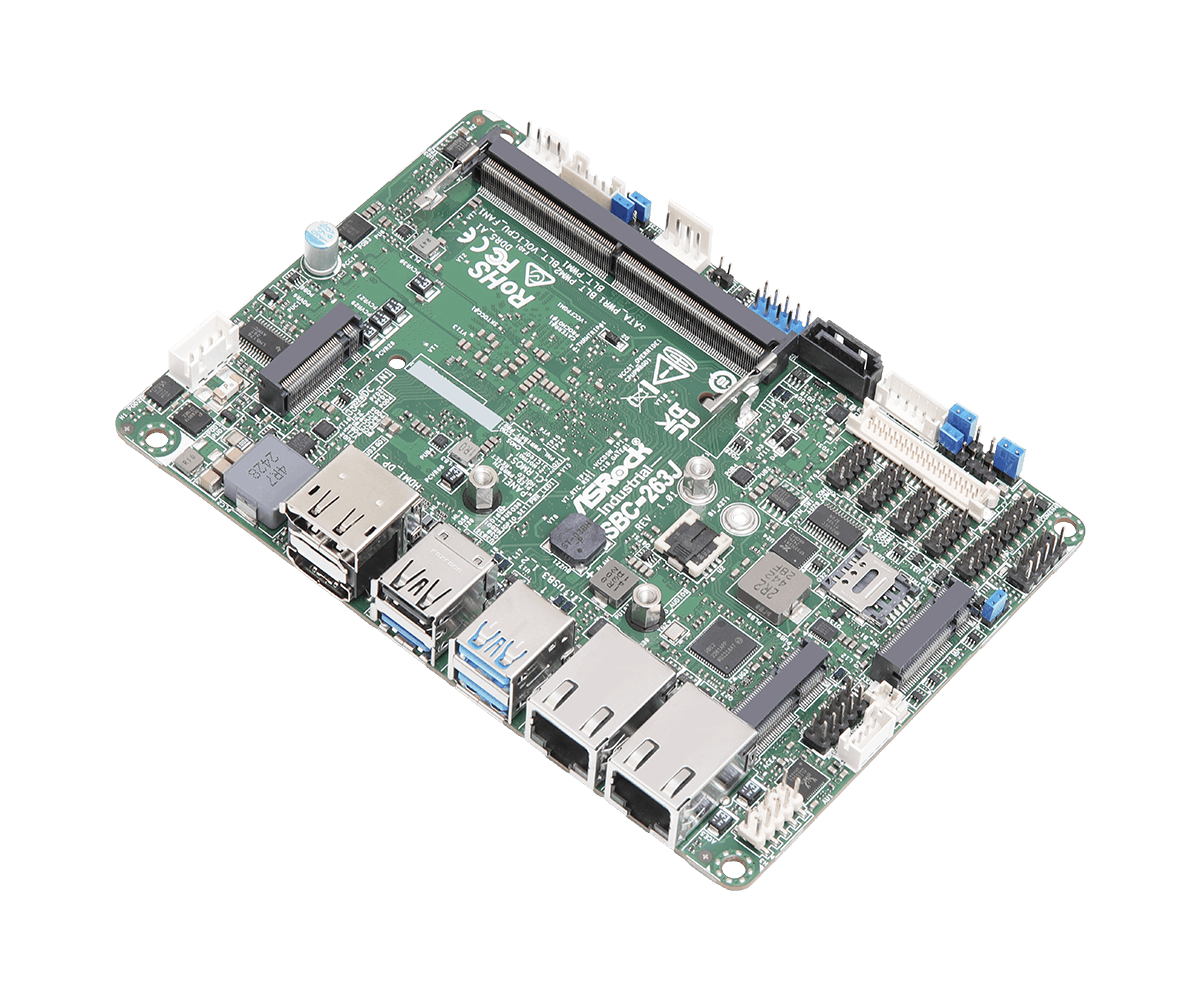

SBC-263J

SBC 3.5

  • ●Intel® Alder Lake-N SoC Processors N97

  • ●1 x 262-pin SO-DIMM DDR5 4800 MHz, up to 32GB

  • ●3 x USB 3.2 Gen2, 3 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 1 x SATA3

  • ●2 x Intel 1 Gigabit LAN

  • ●Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4b, 1 x LVDS or eDP

  • ●9~36V DC-In/ 12V DC-In only (BOM option)



业务员：李工：15920004347（微信同号）

邮   箱Email：haiping@powerwell.com.cn


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Alder Lake-N SoC Processors
SBC-263J (N97, QC, Max Speed Up to 3.6GHz, 12W)
*For other CPU SKUs request, please contact regional Sales for availability
BIOSAMI SPI 256 Mbit

Form Factor

Dimensions3.5"SBC (5.8-in x 4-in x 1.02-in, 14.7 cm x 10.2 cm x 2.60 cm)

Memory

TechnologySingle Channel DDR5 4800 MHz
Capacity32GB
Socket1 x 262-pin SO-DIMM

Graphics

ControllerIntel® UHD Graphics
HDMIHDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPortDP 1.4b
Max resolution up to 4096 x 2160@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDPMax resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplayTriple display

Expansion Slot

M.21 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 2.0 and SIM for 4G/5G
SIM Socket1 x SIM socket connected to M.2 key B

Audio

InterfaceRealtek ALC256 HD, High Definition Audio.

Ethernet

Controller/ SpeedLAN1: Intel® I210AT with 10/100/1000 Mbps
LAN2: Intel® I210AT with 10/100/1000 Mbps
Connector2 x RJ-45

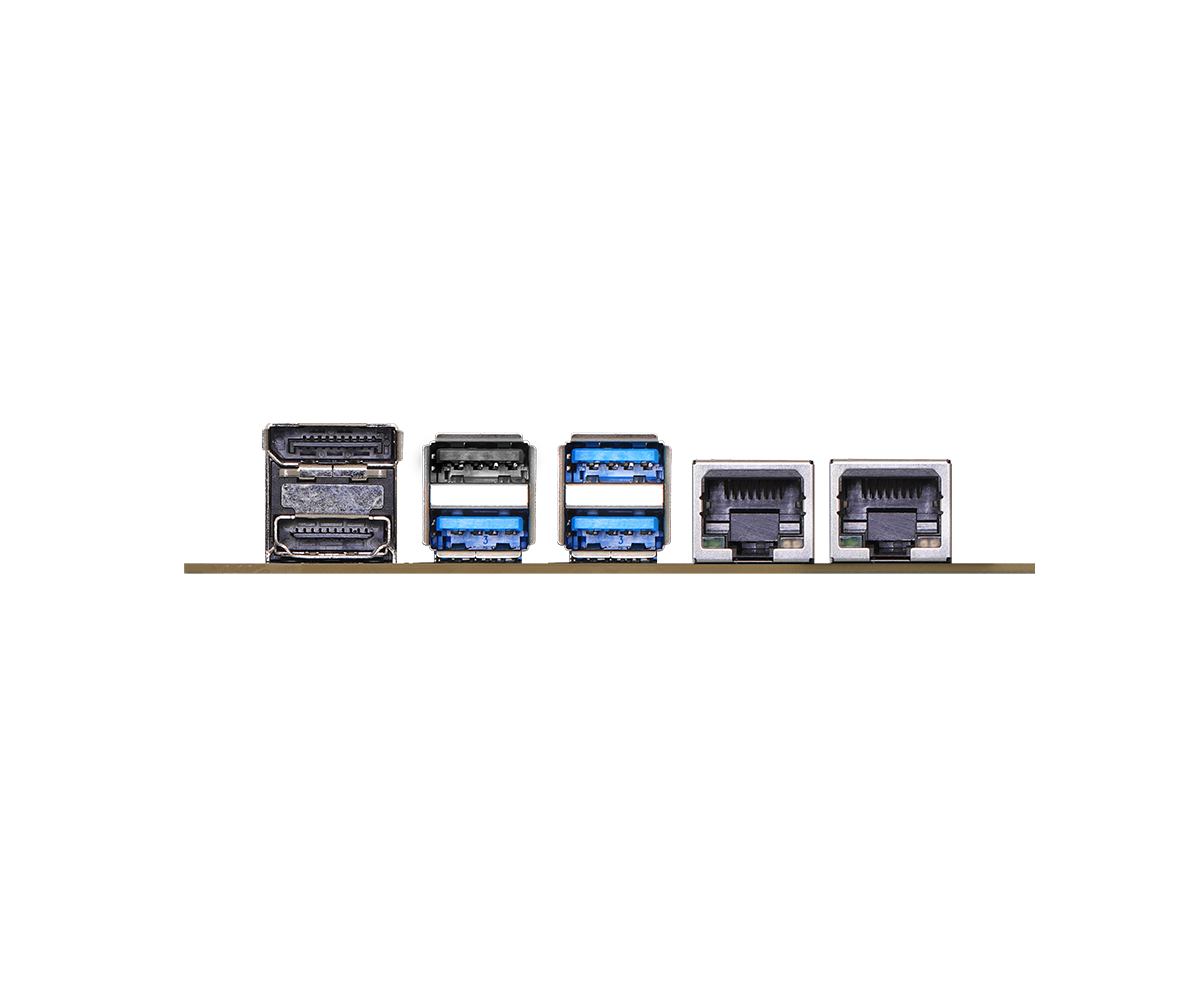

Rear I/O

HDMI1 x HDMI 2.0b
DisplayPort1 x DP 1.4b
Ethernet2 x 1 Gigabit LAN
USB3 x USB 3.2 Gen2
1 x USB 2.0

Internal Connector

USB2 x USB 2.0 (1 x 2.54 pitch header)
COMCOM2, COM3, COM4, COM5, COM6 (RS-232)
COM1 (RS-232/422/485)
GPIO4 x GPI, 4 x GPO
LVDS1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output1
Speaker Header1

Security

TPMIntel® PTT

Storage

M.21 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 and SATA3 for SSD
SATA1 x SATA3 (6Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR9~36V DC-In
12V DC-In only (BOM option)
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40ºC ~ 85ºC
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x Heat Sink 147*102.2mm (13G07P024000AI)
3 x SCREW M3*2.5 (13G02P072010AK)
2 x COM Cable (14G000000340AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
1 x DC-in Cable (14G000600900AK)
Bulk Package3 x SCREW M3*2.5 (13G02P072010AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
