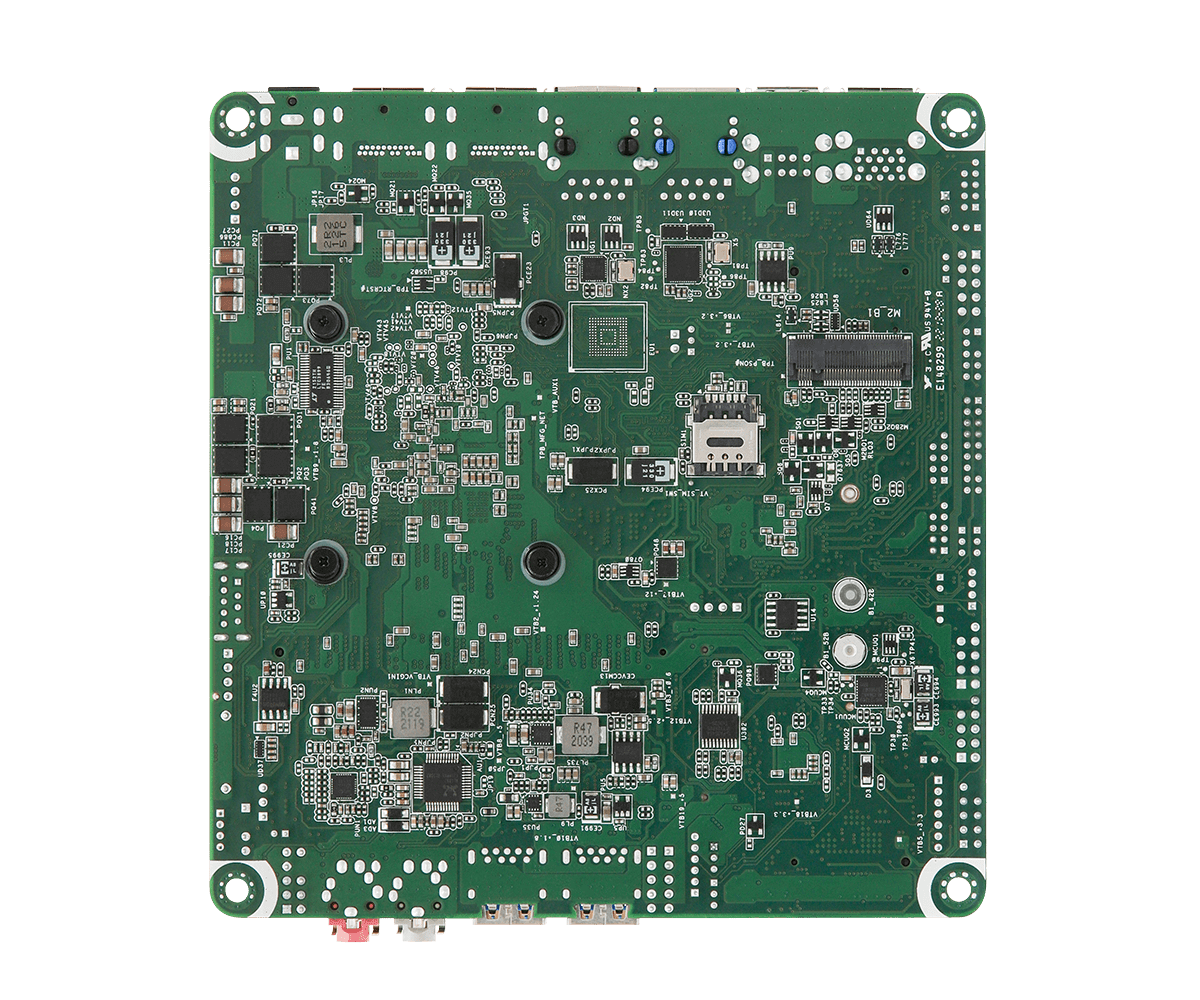

STX-1001J（EOL）

Mini-STX Motherboard

  • ●Intel® Elkhart Lake SoC Processor J6412

  • ●1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB

  • ●1 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 2 x COM, 1 x SATA3

  • ●1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN

  • ●Supports Triple display, 2 x DP1.2, 1 x LVDS or eDP

  • ●12~28V DC-In


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Elkhart Lake SoC Processors
J6412, QC, Max Speed Up to 2.6GHz, 10W
ChipsetSoC
BIOSAMI SPI 256 Mbit

Form Factor

Dimensions3.5"SBC (5.8-in x 4-in x 0.87-in, 14.7 cm x 10.2 cm x 2.20 cm)

Memory

TechnologyDual Channel DDR4 3200 MHz
Capacity32GB (16GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerIntel® Gen 11 Graphics
HDMIHDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
VGAMax resolution up to 1920 x 1200
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDPMax resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplayTriple display

Expansion Slot

M.21 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1 and USB 2.0 and SIM for 4G/5G
SIM Socket1 x SIM socket connected to M.2 key B

Audio

InterfaceRealtek ALC256 HD, High Definition Audio.

Ethernet

Controller/ SpeedLAN1: Intel® I225V with 10/100/1000/2500 Mbps
LAN2: Intel® I225V with 10/100/1000/2500 Mbps
Connector2 x RJ-45

Rear I/O

HDMI1 x HDMI 2.0b
VGA1
Ethernet2 x 2.5 Gigabit LAN
USB1 x USB 3.2 Gen2, 1 x USB 2.0

Internal Connector

USB1 x USB 3.2 Gen1 (1 x USB 3.1 header)
1 x USB 2.0 (1 x USB 3.1 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COMCOM1, COM2, COM4 (RS-232)
COM3 (RS-232/422/485)
GPIO4 x GPI, 4 x GPO
LVDS1 (Connector with LVDS/eDP signal, switch by BIOS)
TPMTPM 2.0 onboard IC
SATA PWR Output1
Speaker Header1

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 for SSD
SATA1 x SATA3 (6Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR9~36V DC-In with 4-pin wafer PWR
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20°C ~ 70°C
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package3 x SCREW M2*2,D=5 (13G020302031AK)
1 x SINK FOR SBC-250 (13G070612000AI)
2 x COM Cable (14G000000340AK)
1 x SATA Data Cable (14G000107101AK)
1 x SATA Power Cable (14G000100410AK)
1 x DC-in Cable (14G000600900AK)
Bulk Package3 x SCREW M2*2,D=5 (13G020302031AK)
