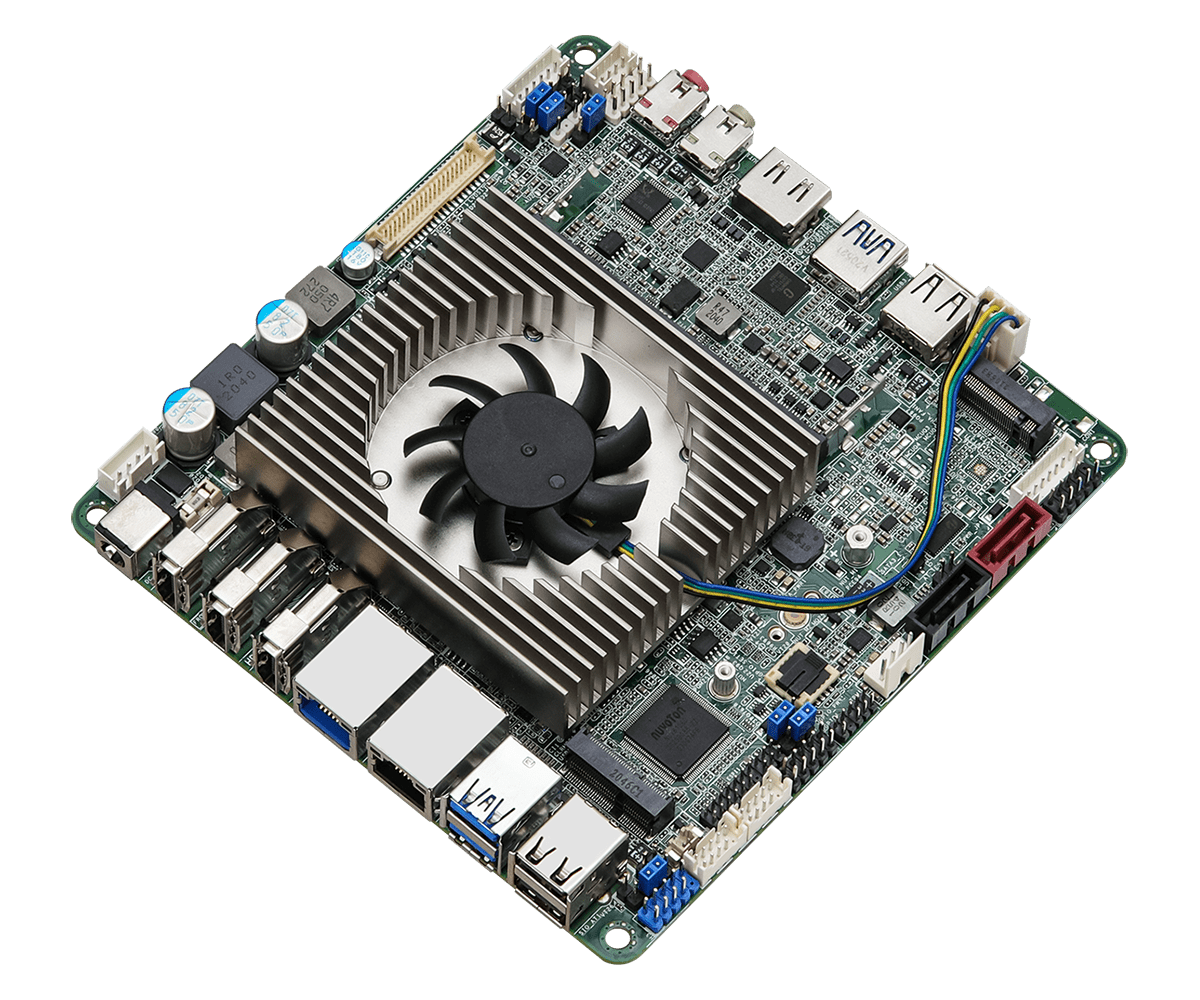

STX-1500E（EOL）

Mini-STX Motherboard

  • ●Intel® Tiger Lake-UP3 MCP Processor

  • ●2 x 260-pin SO-DIMM, Support Dual Channel up to 64GB DDR4 3200 MHz

  • ●3 x USB 3.2 Gen2, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 2 x COM, 2 x SATA3

  • ●1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN

  • ●Support Quad display, 4 x HDMI 2.0a, 1 x LVDS, 1 x eDP 1.4

  • ●TPM Header

  • ●Supports Intel® RAID 0/1

  • ●12~28V DC-In


产品型录 产品咨询
产品规格
支援下载

Processor System

CPUIntel® 11th Gen (Tiger Lake-UP3) Core™ Processors
Celeron 6305E, DC, 1.8GHz, 15W
ChipsetMCP
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-STX (5.5-in x 5.8-in, 14.0 cm x 14.7 cm)

Memory

TechnologyDual Channel DDR4 3200 MHz
Capacity64GB (32GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerIntel® UHD Graphics for Celeron CPU
HDMIHDMI 2.0a
Max resolution up to 4096x2160@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
eDPeDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplayQuad Display

Expansion Slot

M.21 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052/2280) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket1 x SIM socket connected to M.2 key B

Audio

InterfaceRealtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ SpeedLAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel® I219V with 10/100/1000 Mbps
Connector2 x RJ-45

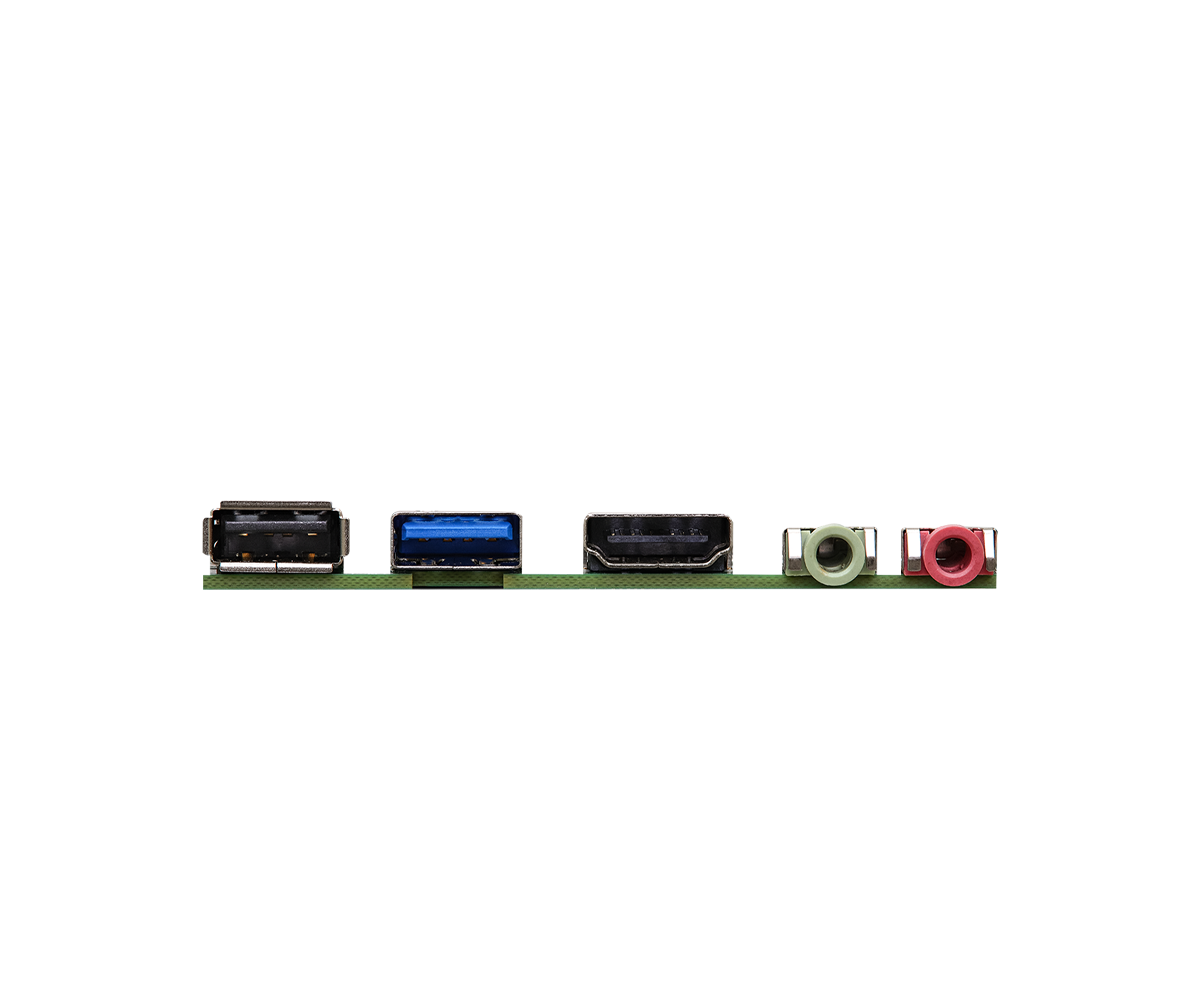

Front I/O

USB1 x USB 3.2 Gen2, 1 x USB2.0
HDMI1 x HDMI 2.0a
Audio2 (Mic-in, Line-out)

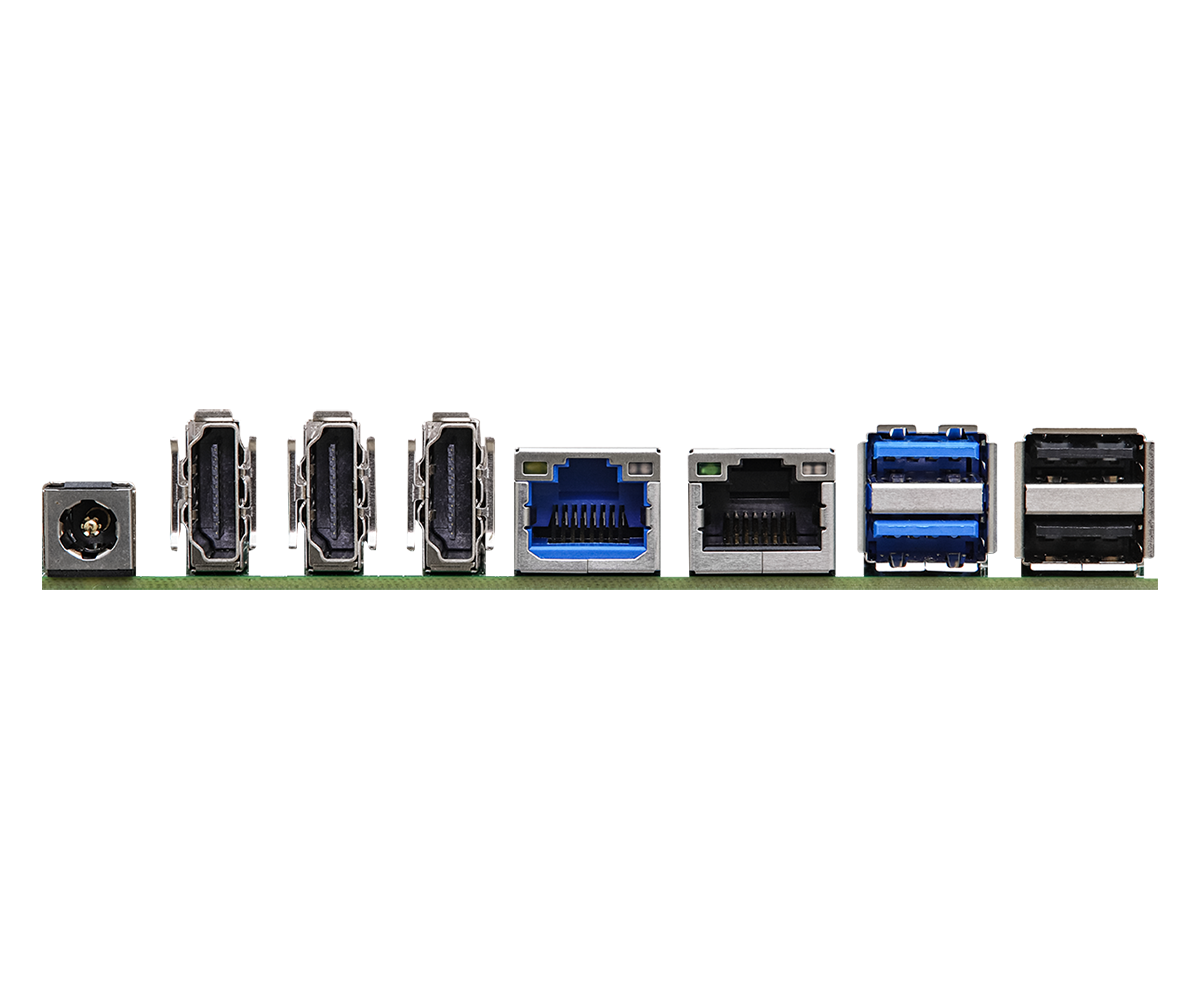

Rear I/O

HDMI3 x HDMI 2.0a
Ethernet1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB2 x USB 3.2 Gen2, 2 x USB2.0
DC Jack1

Internal Connector

USB2 x USB 2.0 (1x2.54 pitch header)
COMCOM1 (RS232/422/485)
COM2 (RS232)
GPIO4 x GPI, 4 x GPO
TPMTPM Header
LVDS1
eDP1
SATA PWR Output1
Speaker Header1

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD
* Shared with SATA3_0
SATA2 x SATA3 (6Gb/s)
RAIDIntel® SATA RAID 0/1

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power OnAT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Bulk Package1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package1 x I/O Shield (13G020673000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
1 x COM Cable (14G000000310AK)
1 x SATA Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
