首页 > 产品系列 > 工业主板 & 单板电脑 > 嵌入式单板电脑 > SBC > SBC-374
< >

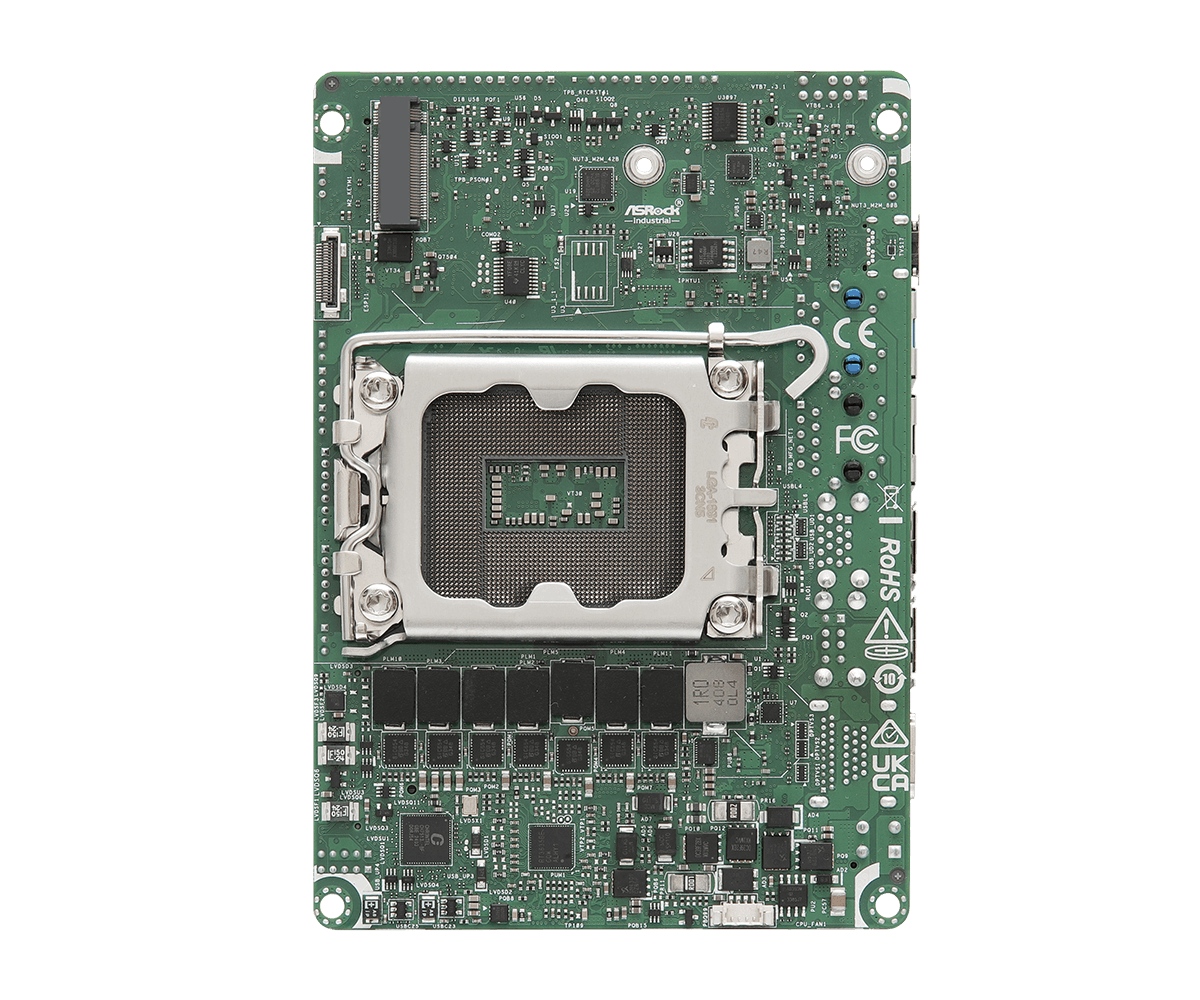

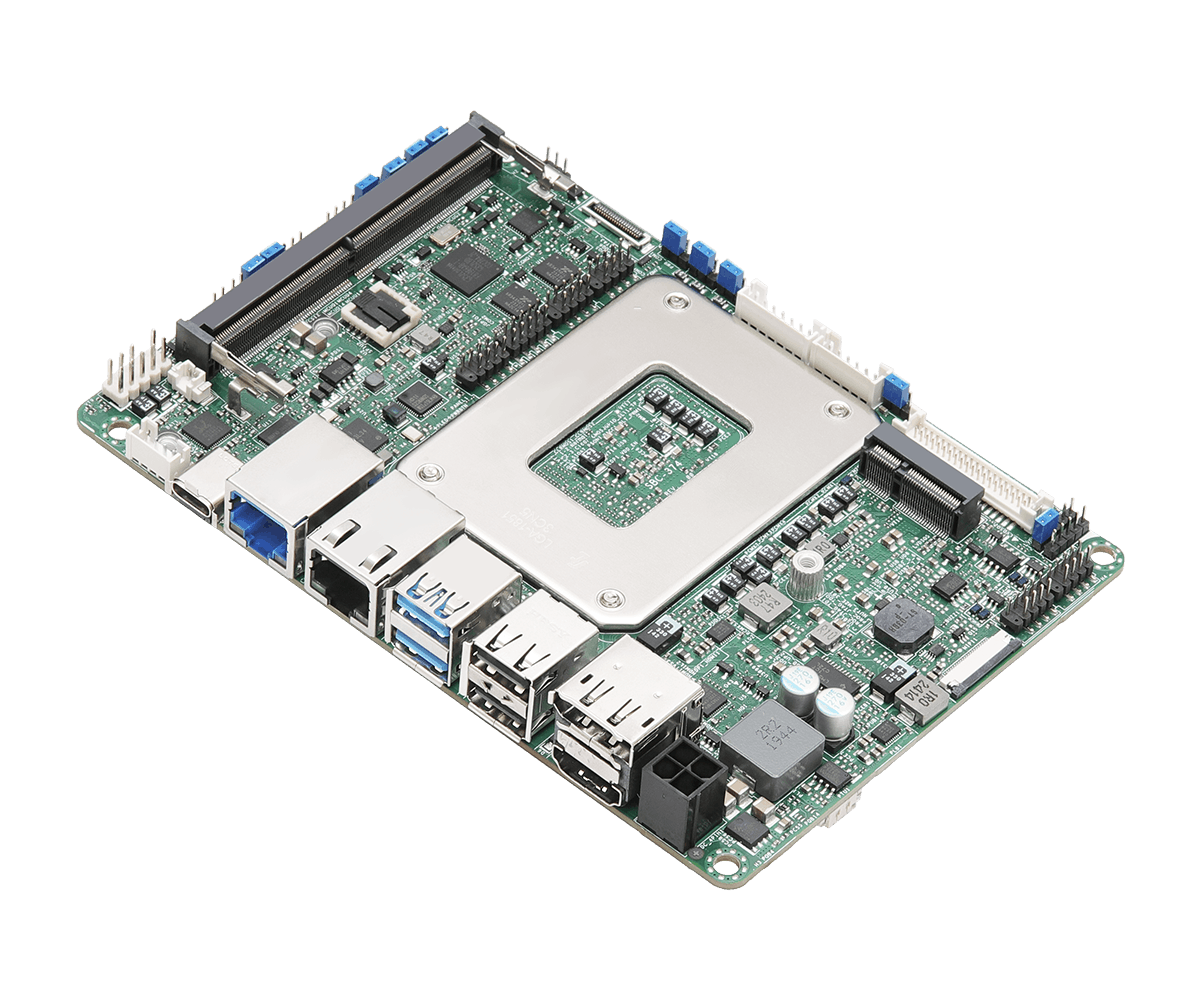

SBC-374

SBC 3.5

  • ●Intel® Core™ Ultra Processors (Meteor Lake-PS)

  • ●1 x 262-pin SO-DIMM DDR5 5600 MHz, up to 48GB

  • ●1 x USB 3.2 Gen2x2, 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM, 1 x SATA3

  • ●1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN

  • ●Supports Quad display, 1 x HDMI 2.1 TMDS, 2 x DP 1.4a (1 from Type-C), 1 x LVDS or eDP

  • ●TPM 2.0 onboard IC

  • ●Support Intel® vPro

  • ●12~28V DC-In


业务员：李工：15920004347（微信同号）

邮   箱Email：haiping@powerwell.com.cn


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Core™ Ultra Processors (Meteor Lake-PS), up to 45W
SocketLGA 1851
BIOSAMI SPI 256 Mbit
Secure FlashAMI SPI 32Mbit (Optional)

Form Factor

Dimensions3.5"SBC (5.8-in x 4-in x 1.09-in, 14.7 cm x 10.2 cm x 2.77 cm)

Memory

TechnologySingle Channel DDR5 5600 MHz
Capacity48GB
Socket1 x 262-pin SO-DIMM

Graphics

ControllerIntel® Xe LPG Graphics
HDMIHDMI 2.1 TMDS
Max resolution up to 4096 x 2160@60Hz
DisplayPortDisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDPMax resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplayQuad display (Included 1 output from Type-C)

Expansion Slot

M.21 x M.2 (Key E, 2230) with PCIe Gen4 x1 and USB 2.0 for Wireless

Audio

InterfaceRealtek ALC256 HD, High Definition Audio.

Ethernet

Controller/ SpeedLAN1: Intel® I226V with 10/100/1000/2500 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro
Connector2 x RJ-45

Rear I/O

HDMI1 x HDMI 2.1 TMDS
DisplayPort1 x DP 1.4a
Ethernet1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, Support DP 1.4a display output)
2 x USB 3.2 Gen2
2 x USB 2.0

Internal Connector

USB4 x USB 2.0 (2 x 2.00 pitch header)
COMCOM1, COM2 (RS-232/422/485)
GPIO4 x GPI, 4 x GPO
LVDS1 (Connector with LVDS/eDP signal, switch by BIOS)
Speaker Header1
MIPI Camera Header1

Security

TPMTPM 2.0 onboard IC

Storage

M.21 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA1 x SATA3 (6Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12~28V DC-In with 4-pin wafer PWR
Power OnAT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40°C ~ 85°C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
