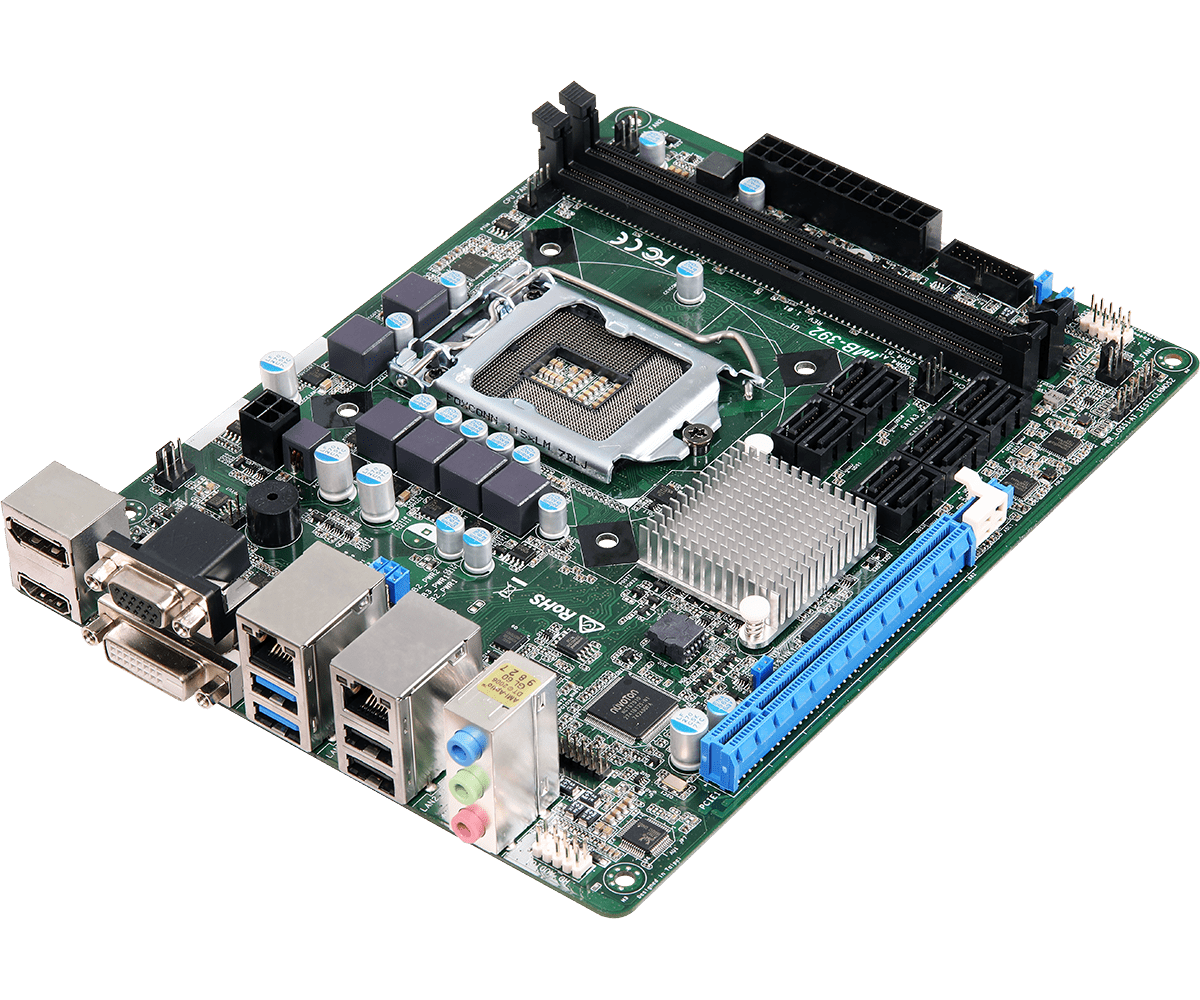

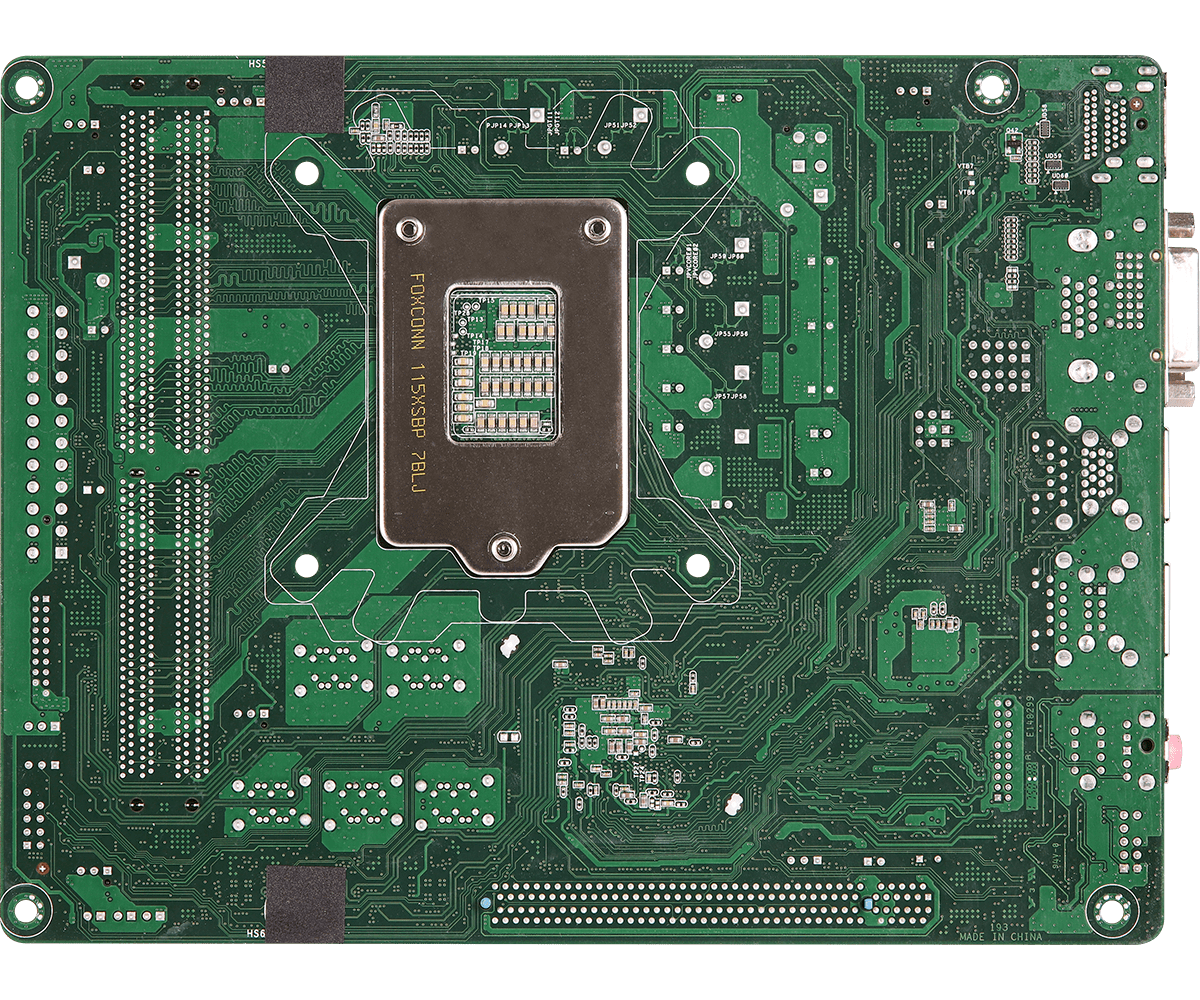

IMB-392

Micro ATX Motherboard

  • ●Intel® 6th Gen (Skylake-S) Core™ Processors with H110 chipset

  • ●Supports Dual Channel DDR4 2133, up to 32GB

  • ●1 x VGA, 1 x HDMI, 1 x DVI, 1 x DisplayPort

  • ●4 x USB 3.0, 6 x USB 2.0, 10 x SATA3

  • ●1 x PCIe x16

  • ●2 x Intel® LAN

  • ●1 x TPM Header

  • ●ATX Power (4+24-pin)


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Elkhart Lake SoC Processors
J6412, QC, Max Speed Up to 2.6GHz, 10W
ChipsetSoC
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm)

Memory

TechnologyDual Channel DDR4 3200 MHz
Capacity32GB (16 GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerIntel® Gen 11 Graphics
HDMIHDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
VGAMax resolution up to 1920 x 1200@60Hz
LVDSDual channel 24 bit up to 1920 x 1080@60Hz
(Connector shared with eDP)
eDPMax resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplayTriple display

Expansion Slot

PCIe1 x PCIe x1 (Gen3)
M.21 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket1x SIM socket connected to M.2 key B

Audio

InterfaceRealtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ SpeedLAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector2 x RJ-45

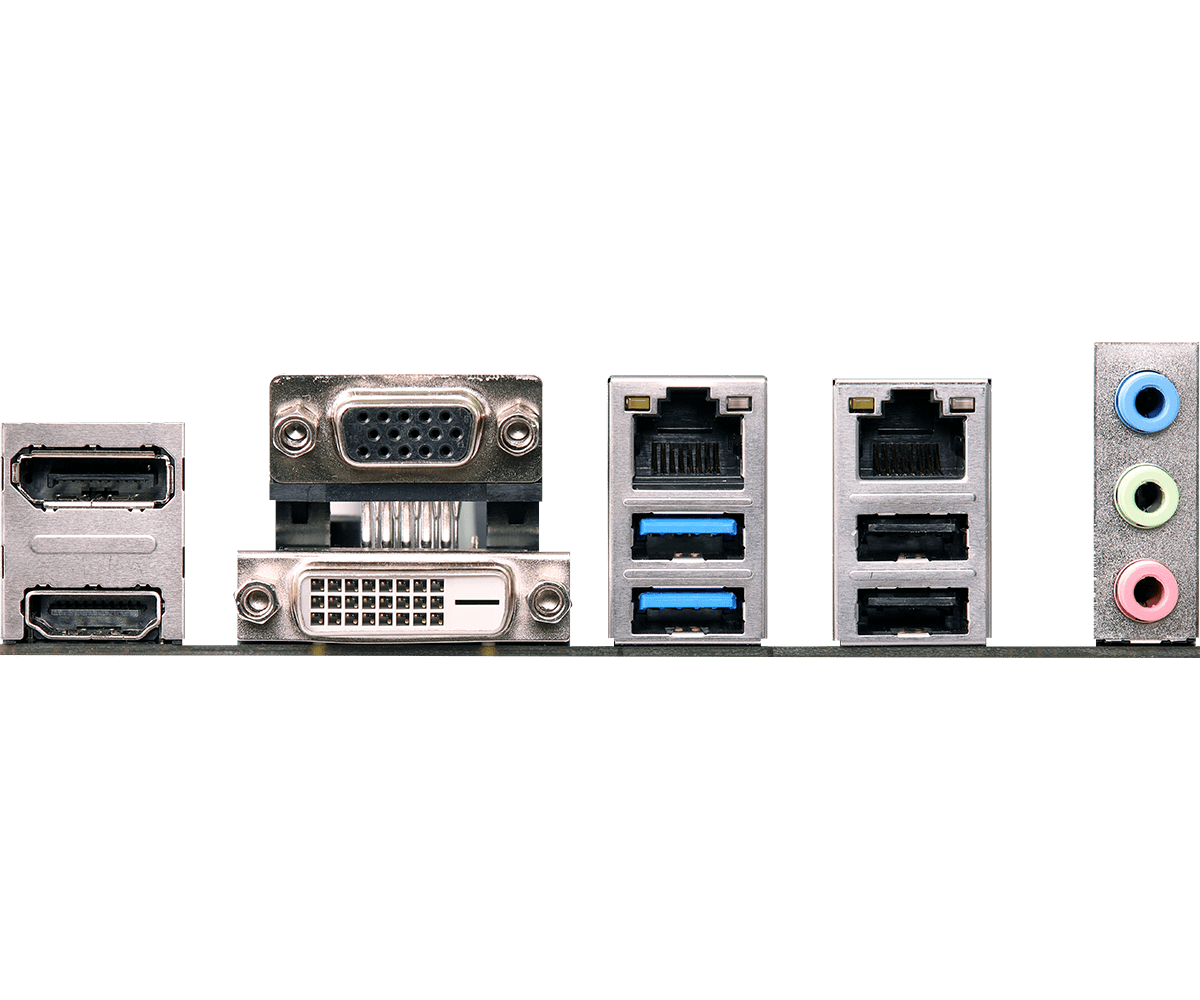

Rear I/O

HDMI1 x HDMI2.0b
VGA1
Ethernet1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio2 (Mic-In, Line-Out)
COMCOM1, COM3, COM4 (RS-232/422/485)
PS21 x PS/2 combo

Internal Connector

USB2 x USB 3.2 Gen1 (1 x USB 3.2 header )
5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COMCOM2, COM5, COM6 (RS-232)
GPIO4 x GPI, 4 x GPO
TPMTPM Header
LVDS1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output1
Speaker Header1

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x1 for SSD
SATA2 x SATA3 (6Gb/s), SATA3_2 shared with M.2 Key M

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWRATX PWR (24+4-pin) and 12V~28V DC-In co-design
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20°C ~ 70°C
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x SATA Power Cable (14G000100410AK)
1 x I/O Shield (13G02P001000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package1 x I/O Shield (13G02P001000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
