IMB-391

Micro ATX Motherboard

  • ●Intel® 7th/6th Gen (Kabylake-S/Skylake-S) Core™ Processors with H110 chipset

  • ●Supports Dual Channel DDR4 2133MHz, up to 32GB

  • ●1 x VGA, 1 x HDMI, 1 x Displayport, 1 x DVI

  • ●4 x USB 3.0, 4 x USB 2.0, 4 x SATA3

  • ●1 x PCIe x16, 2 x PCI, 1 x PCIe x4

  • ●2 x Intel LAN

  • ●1 x TPM Header

  • ●ATX PWR Con (24+8-pin)


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUSupports Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors
ChipsetIntel® H110
SocketLGA1151

Form Factor

DimensionsMicro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Memory

TechnologyDual Channel DDR4 2133 MHz
Capacity32GB
Socket2 x Long-DIMM

Graphics

ControllerIntel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMISupports max resolution up to 4096 x 2160@60Hz
DisplayPortSupports max resolution up to 4096 x 2160@60Hz
VGAMax resolution up to 1920 x 1200@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
DVIMax resolution up to 1920 x 1200@60Hz
MultiDisplayDual Display

Expansion Slot

PCIe1 x PCIe x16, 2 x PCI, 1 x PCIe x4

Ethernet

Controller/ SpeedLAN1: Intel® I210 with 10/100/1000 Mbps
LAN2: Intel® I219V with 10/100/1000 Mbps
Connector2 x RJ-45

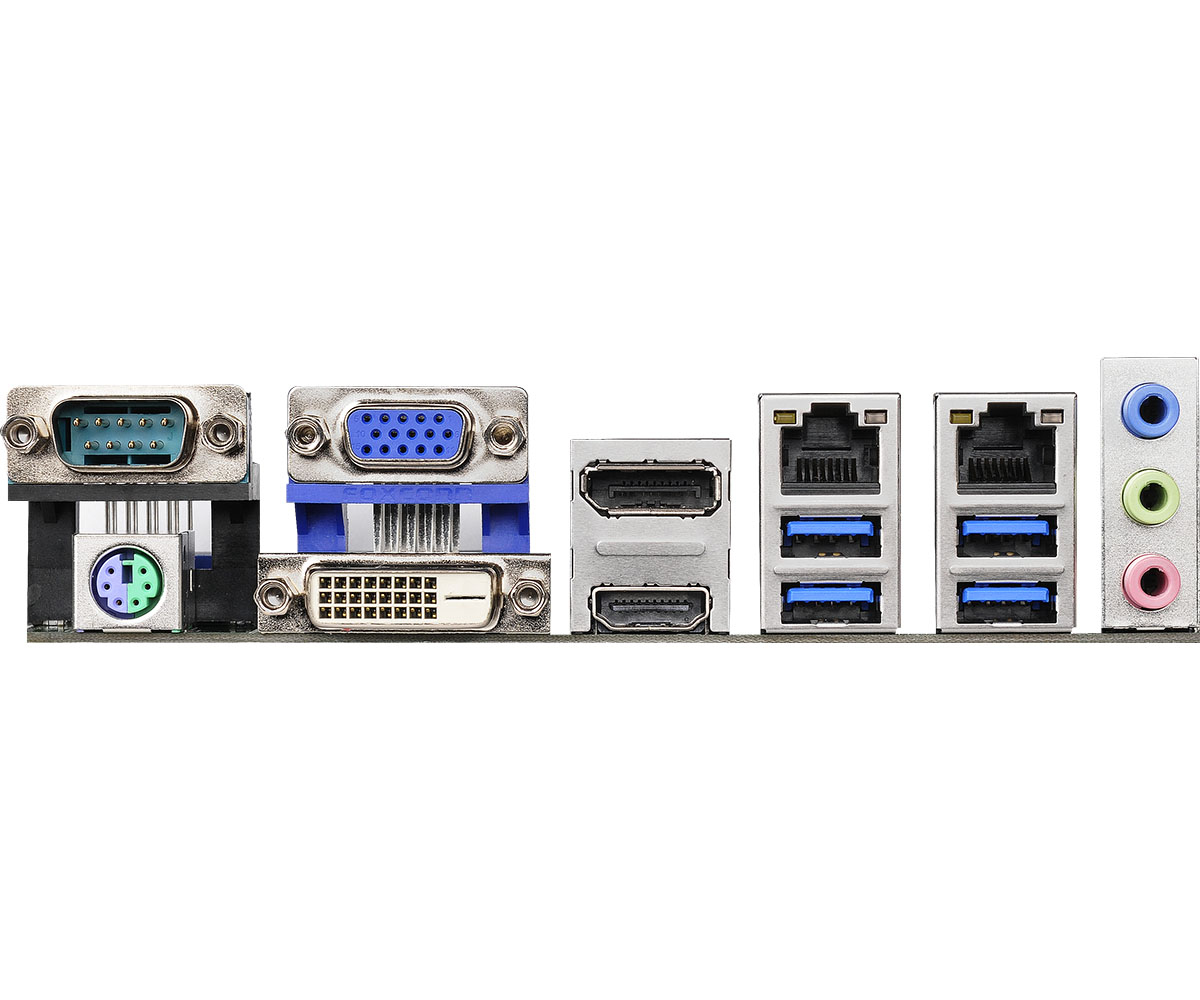

Rear I/O

HDMI1
DisplayPort1
VGA1
DVI1
Ethernet2
USB4 x USB 3.0
Audio3 (Mic-in, Line-in, Line-out)
COMCOM1 (RS-232/422/485)
PS21 x PS/2 combo

Internal Connector

USB4 x USB 2.0
COM3 x COM (RS-232)
Parallel1 (shared with GPIO)
GPIO8 x GPI, 8 x GPO
TPM1 x Header
LVDS1
Speaker Header1

Storage

SATA4 x SATA3 (6.0Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWRATX PWR (24+8-pin)
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C – 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x I/O Shield (13G020401000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package1 x I/O Shield (13G020401000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。


说明 资讯 操作系统 日期 下载
BIOS 2.30 1. Update audio codec 2. Update Intel ME version 3. Update Intel microcode 2025-11-18
Jumpers and headers setting guide 快速跳线手册 2025-11-18
User Manual 用户手册 2025-11-18
CPU Support List CPU支持列表 2025-11-18
SATA Floppy Image ver:14.6.0.1029 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-11-18
INF driver ver:10.1.1.27 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-11-18
VGA driver ver:15.40.10.4300 驱动程序 Win 7 2025-11-18
VGA driver ver:21.20.16.4542 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 2025-11-18
Realtek high definition audio driver ver:9151_FF00 驱动程序 Win 10 x 64 , Win 7 x 64 , Win 7 2025-11-18
Intel Rapid Storage Technology driver and utility ver:14.6.0.1029 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-11-18
Intel USB 3.0 driver ver:4.0.2.42 驱动程序 Win 7 x 64 , Win 7 2025-11-18
Intel USB 3.0 Adaptation driver ver:1.0.1.45 驱动程序 Win 8.1 x 64 2025-11-18
Intel Lan driver ver:23.2 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-11-18
Intel Management Engine driver ver:v11.8.65.3590 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 2025-11-18
ASRock 3TB+ Unlocker utility ver:1.1.1 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-11-18
Microsoft .NET Framework 4.5 驱动程序 Win 7 x 64 , Win 7 2025-11-18
Microsoft Hotfix ver:kb4474419v3_kb4490628 驱动程序 Win 7 x 64 , Win 7 2025-11-18
