IMB-390-L

Micro ATX Motherboard

  • ●Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors with Q170 chipset

  • ●4 x 288-pin Long-DIMM up to 64GB DDR4 2133 MHz (16GB per DIMM)

  • ●1 x PCIe x16 (Gen3), 1 x PCIe x4 (Gen3), 2 x PCI, 6 x USB 3.1 Gen1, 6 x USB 2.0, 1 x mini-PCIe, 1 x mSATA, 6 x COM, 6 x SATA3

  • ●2 x Intel 1 Gigabit LAN

  • ●Supports triple display, 1 x HDMI 2.0, 1 x DP 1.2a, 1 x VGA, 1 x LVDS, 1 x DVI-D

  • ●TPM 2.0 onboard IC

  • ●Supports Intel® vPro, AMT, RAID 0/1/5/10

  • ●ATX PWR


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors, up to 65W
ChipsetIntel® Q170
SocketLGA1151
BIOSAMI SPI 128 Mbit

Form Factor

DimensionsMicro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Memory

TechnologyDual Channel DDR4 2133 MHz
Capacity64GB (16GB per DIMM)
Socket4 x 288-pin Long-DIMM

Graphics

ControllerIntel® Gen9 Graphics DX 11 / 12
HDMIHDMI 2.0
Max resolution up to 4096 x 2160@60Hz
DisplayPortDisplayPort 1.2a, DP++
Max resolution up to 4096 x 2304@60Hz
VGAMax resolution up to 1920 x 1200@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
DVI-DMax resolution up to 1920 x 1200@60Hz
MultiDisplayTriple Display

Expansion Slot

PCIe1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen3)
PCI2
mini-PCIe1 x Full / Half size with PCIe x1 and USB 2.0

Audio

InterfaceRealtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ SpeedLAN1: Intel® I210 with 10/100/1000 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
Connector2 x RJ-45

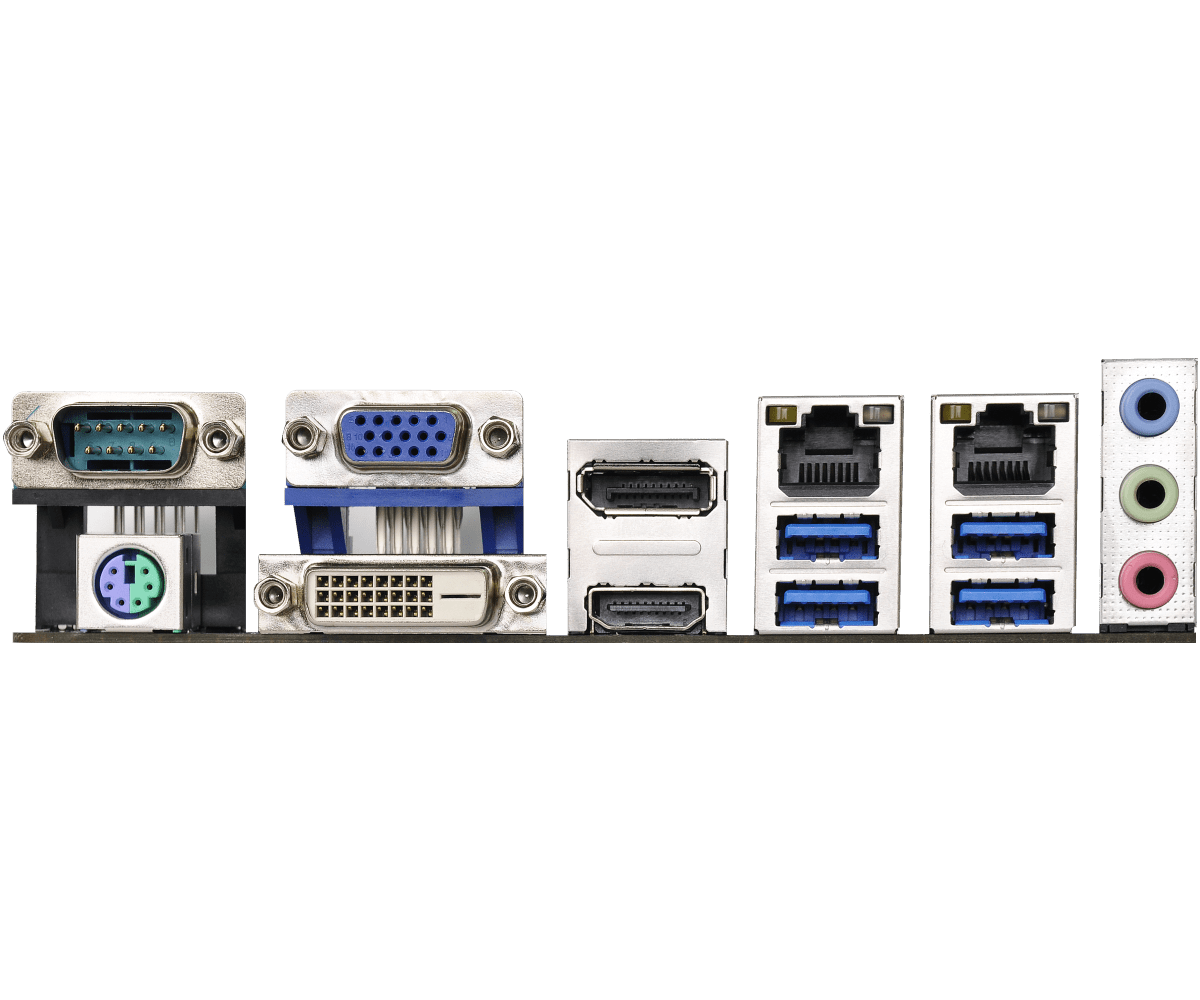

Rear I/O

HDMI1 x HDMI 2.0
DisplayPort1 x DP 1.2a
VGA1
DVI1 x DVI-D
Ethernet2 x 1 Gigabit LAN
USB4 x USB 3.0
Audio3 (Mic-in, Line-in, Line-out)
COMCOM1 (RS-232/422/485)
PS21 x PS / 2 combo

Internal Connector

USB2 x USB 3.0 (1 x Internal header)
6 x USB 2.0 (3 x Internal header)
COM5 x COM (RS-232)
Parallel1 (shared with GPIO)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPMTPM 2.0 onboard IC
LVDS1
Speaker Header1

Storage

mSATA1 x Full size with shared SATA3 and USB 2.0
SATA6 x SATA3, SATA3_6 shared with mSATA
RAIDIntel® SATA RAID 0/1/5/10

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWRATX PWR (24+8-pin)
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C – 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x I/O Shield (13G020401000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package1 x I/O Shield (13G020401000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
