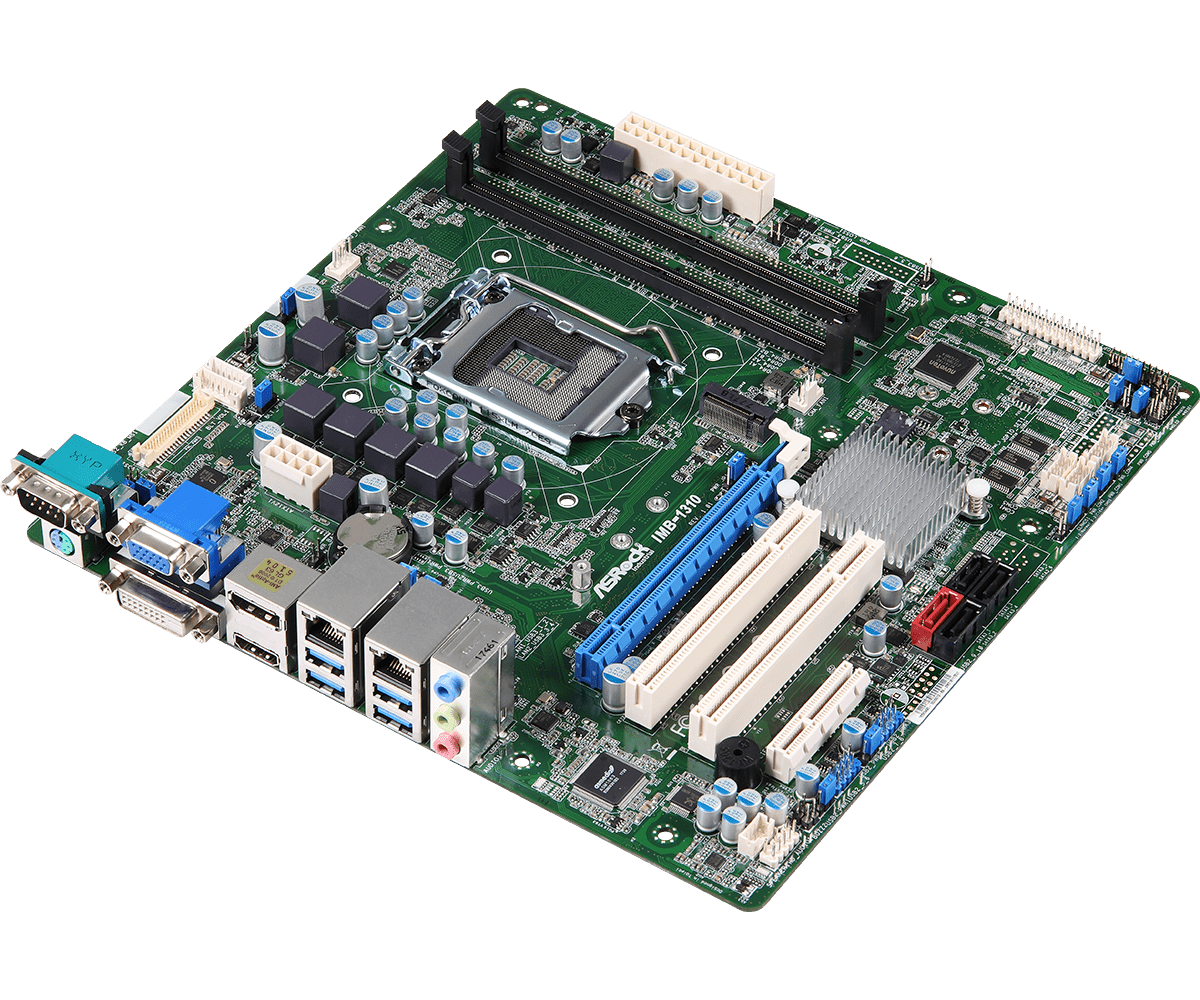

Micro ATX Motherboard

●Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors with H310 chipset
●2 x 288-pin Long-DIMM up to 64GB* DDR4 2666 MHz
●1 x PCIe x16 (Gen3), 1 x PCIe x4 (Gen2), 2 x PCI, 4 x USB 3.1 Gen1,
●4 x USB 2.0, 1 x M.2 Key M, 4 x COM, 4 x SATA3
●2 x Intel 1 Gigabit LAN
●Supports dual display, 1 x HDMI 1.4, 1 x DP 1.2, 1 x VGA, 1 x LVDS, 1 x DVI-D
●TPM Header
●ATX PWR

产品型录产品咨询

产品规格

支援下载

Processor System

CPU	Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 95W *For cooling the CPU exceeding 90W and its surrounding components, please install a CPU cooler with a top-down blowing design.
Chipset	Intel® H310
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2666 MHz
Capacity	64GB* * Intel Core i9/i7/i5 CPUs support up to 64GB (32GB per DIMM) Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
Socket	2 x 288-pin Long-DIMM

Graphics

Controller	Coffee Lake integrated graphics
HDMI	HDMI 1.4 Max resolution up to 4096x2160@24Hz
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2304@60Hz
VGA	Max resolution up to 1920x1200@60Hz
LVDS	Dual channel 24 bit up to 1920x1200@60Hz
DVI	DVI-D Max resolution up to 1920x1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x16 (Gen3) 1 x PCIe x4 (Gen2)
PCI	2

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219V with 10/100/1000 Mbps
Connector	2 x RJ-45

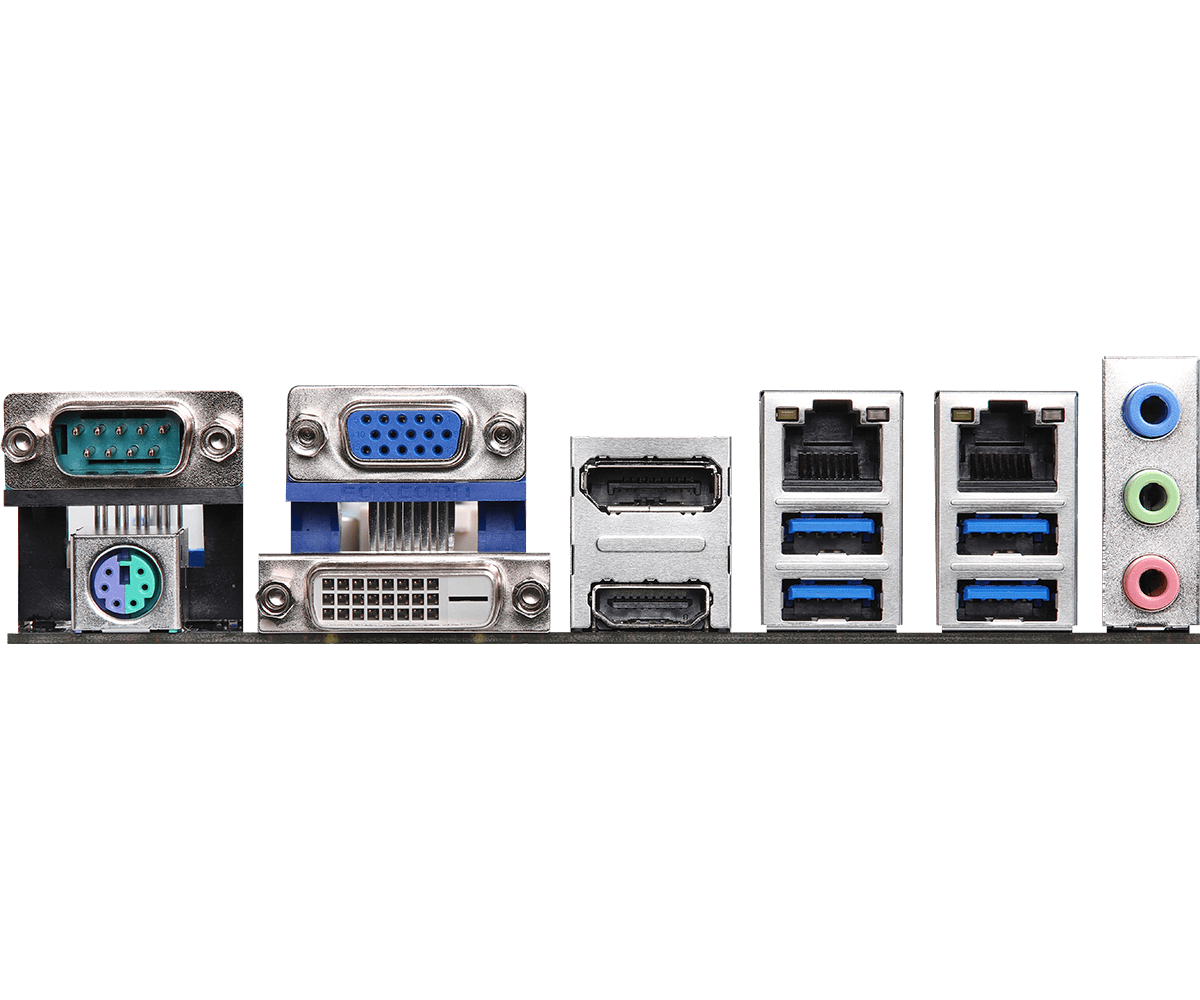

Rear I/O

HDMI	1 x HDMI 1.4
DisplayPort	1 x DP 1.2
VGA	1
DVI	1 x DVI-D
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.1 (Gen1)
Audio	3 (Mic-in, Line-in, Line-out)
COM	COM3(RS-232/422/485)
PS2	1 x PS/2 combo

Internal Connector

USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	COM1, 2, 4(RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM Header
LVDS	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD
SATA	4 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020401000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020401000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
