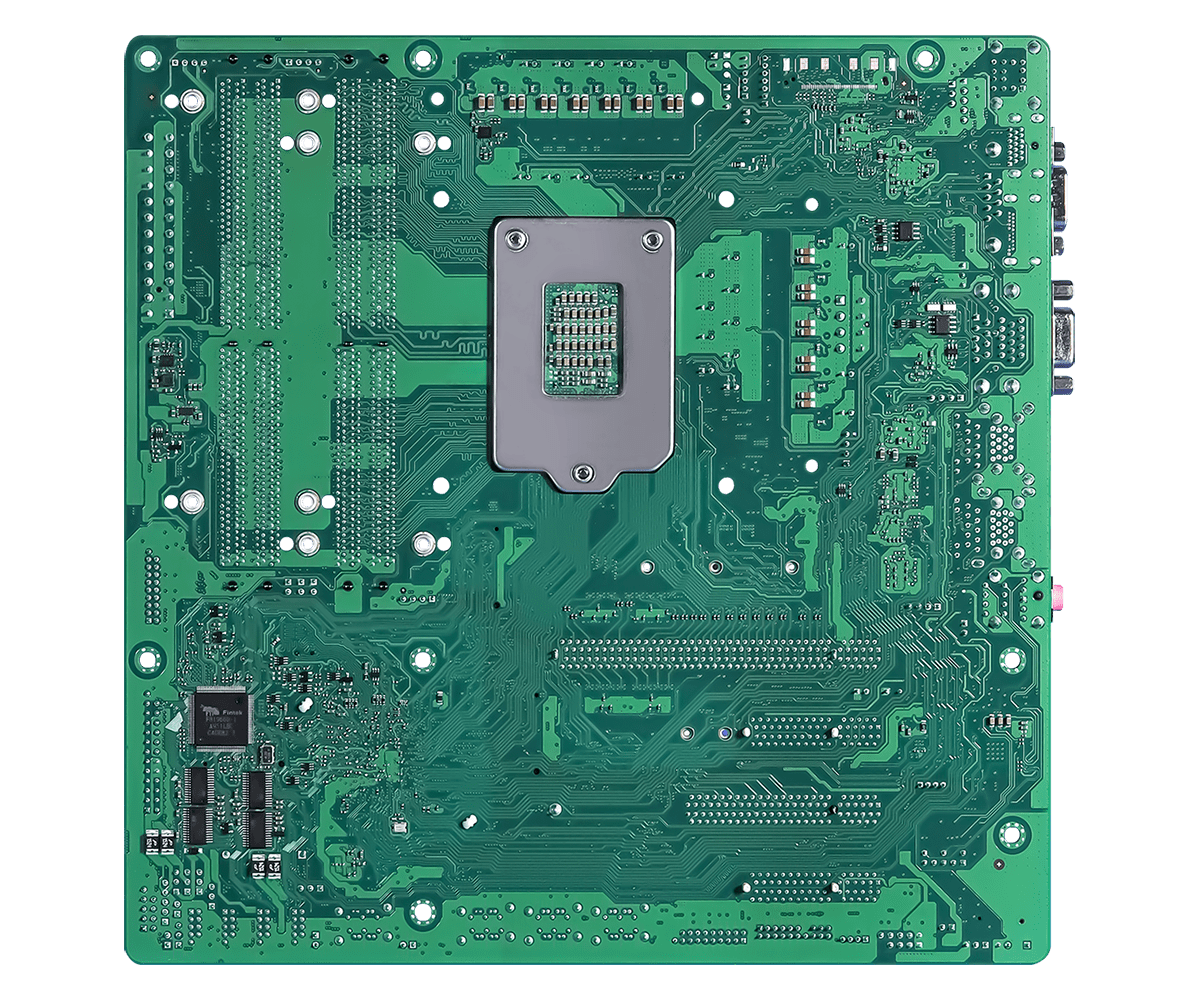

Micro ATX Motherboard

●Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
●4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GB
●1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 2 x PCIe x4 Gen3
●4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0
●8 x SATA3, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM
●1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
●Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x LVDS (eDP 1.4 optional), 1 x HDMI 2.0a
●TPM 2.0 onboard
●Supports Intel® vPro, AMT, RAID 0/1/5/10
●ATX-PWR (24+8-pin)

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 125 W
Chipset	Intel® Q470E
Socket	LGA1200
BIOS	AMI SPI 256 Mbit

Dimensions	Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Technology	Dual Channel DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity	128GB
Socket	4 x 288-pin Long-DIMM

Controller	Intel® UHD Graphics
HDMI	HDMI 2.0a, Max resolution up to 4096 x 2160 @60Hz
DisplayPort	DisplayPort 1.2 , DP++ Max resolution up to 4096 x 2160@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay	Triple Display
eDP	eDP 1.4, Max resolution up to 4096 x 2304@60Hz

PCIe	2 x PCIe Gen3 Slots (PCIE1 / PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1)/ x8 (PCIE3)) (PCIE1: Support riser card x8 / x8, x8 / x4 / x4) 2 x PCIe x4 Gen3
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM for 4G / 5G
SIM Socket	1 x SIM socket connected to M.2 Key B

Interface	Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In

Controller/ Speed	LAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector	2 x RJ-45

USB	4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header) 6 x USB 2.0 (3 x 2.54 pitch header)
COM	4 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard
LVDS	1
Speaker Header	1
eDP	1 (BOM Option support)

M.2	1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA and PCIe x4 for SSD * Shared with SATA3_5 / SATA3_6 Ports - When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled - When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available
SATA	8 x SATA3 (6Gb/s) *Only SATA3_1 ~ SATA3_6 Ports support RAID function
RAID	Intel® SATA RAID 0/1/5/10

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Gift Package	3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020643000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020643000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
