Micro ATX Motherboard

●Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
●4 x 288-pin ECC/non-ECC Long-DIMM DDR5 4400/5600 MHz, up to 192GB (48GB per DIMM)
●1 x PCIex16 (Gen5), 1 x PCIex8 (Gen5), 2 x PCIex4 (Gen4), 1 x USB 3.2 Gen2x2, 7 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA3
●1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN
●Supports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDS
●TPM 2.0 onboard IC
●Supports Intel® vPro, VMD RAID 0/1/5/10
●ATX PWR (24+8 Pin)

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W
Chipset	Intel® W680
Socket	LGA 1700
BIOS	AMI SPI 256 Mbit

Dimensions	Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm)

Technology	Dual Channel ECC/non-ECC DDR5 4400/5600 MHz* Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ For DDR5 5600 support refer to memory support list
Capacity	192GB (48GB per DIMM)
Socket	4 x 288-pin Long-DIMM

Controller	Intel® UHD Graphics
HDMI	2 x HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
DisplayPort	DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay	Quad Display

PCIe	2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support riser card x8/x8) 2 x PCIex4 (Gen4)* *If using PCIEx8/x16 card on PCIE2 slot, M.2 Key M2(M2_M2) is limited to install.
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Interface	Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In

Controller/ Speed	LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, support vPro LAN2: Intel® I210AT with 10/100/1000 Mbps

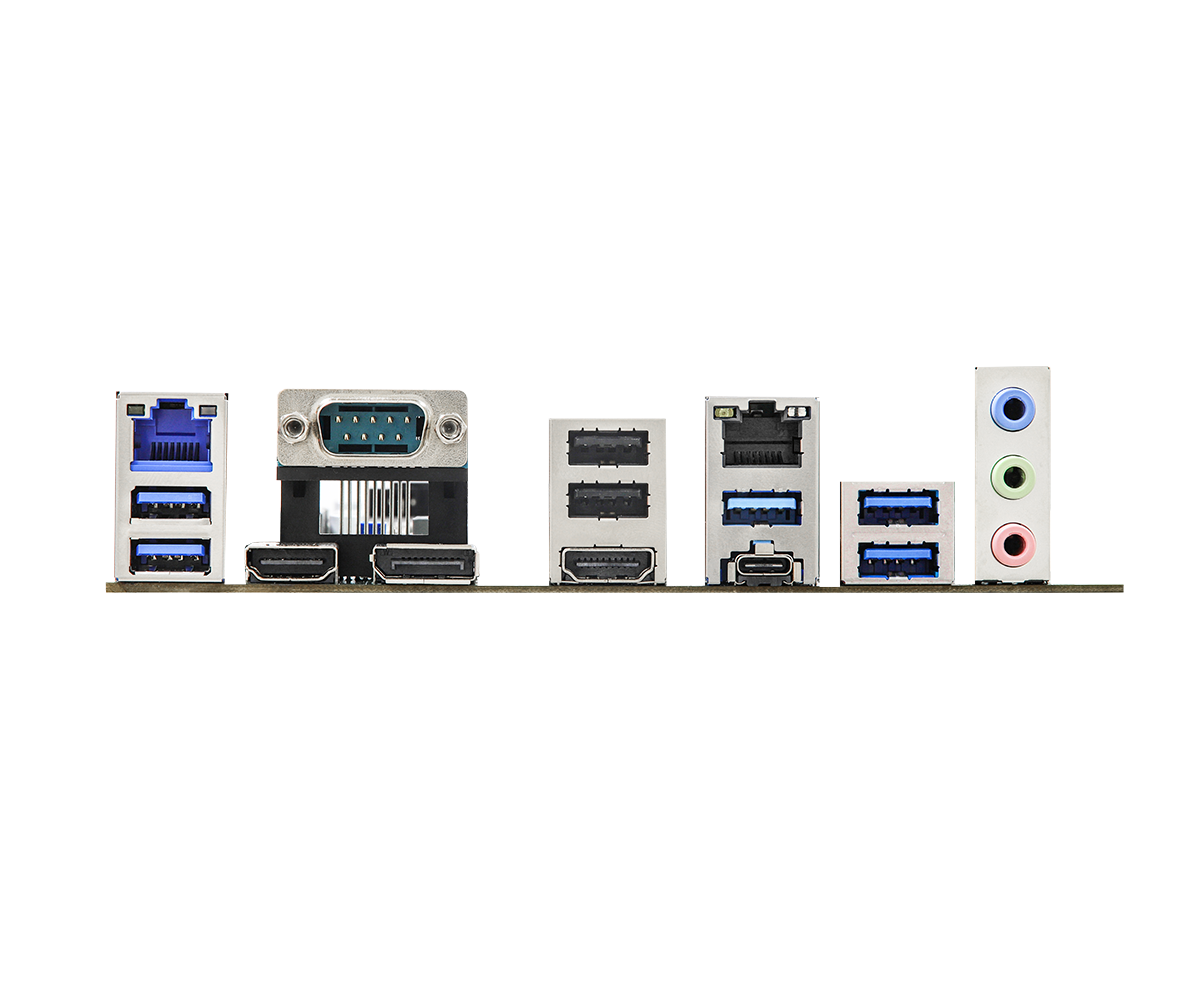

Connector	2 x RJ-45

HDMI	2 x HDMI 2.0b
DisplayPort	1 x DP++
Ethernet	1 x 2.5 Gigabit LAN 1 x 1 Gigabit LAN
USB	2 x USB 2.0 5 x USB 3.2 Gen2 1 x USB 3.2 Gen2x2 (Type C, 5V/3A)
Audio	3 (Line-In/Line-Out/Mic-In)
Serial Port	COM1 (RS-232/422/485)

USB	2 x USB 3.2 Gen2 vertical Con
COM	COM2 (RS-232/422/485) COM3, COM4, COM5, COM6 (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
LVDS	1
Speaker Header	1
PS/2	1 x PS/2 header
Thunderbolt header	1 (only PCIE3 support)

TPM	TPM 2.0 onboard IC

M.2	1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x4 for SSD
SATA	8 x SATA3
RAID	Intel® VMD RAID 0/1/5/10 *supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B + M.2 Key M1/2 or 2M.2 Key M SATA interface: SATA port

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Gift Package	2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P041000AK) 4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package	1 x I/O Shield (13G02P041000AK) 4 x SCREW M2*2,D=5 (13G020302031AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
