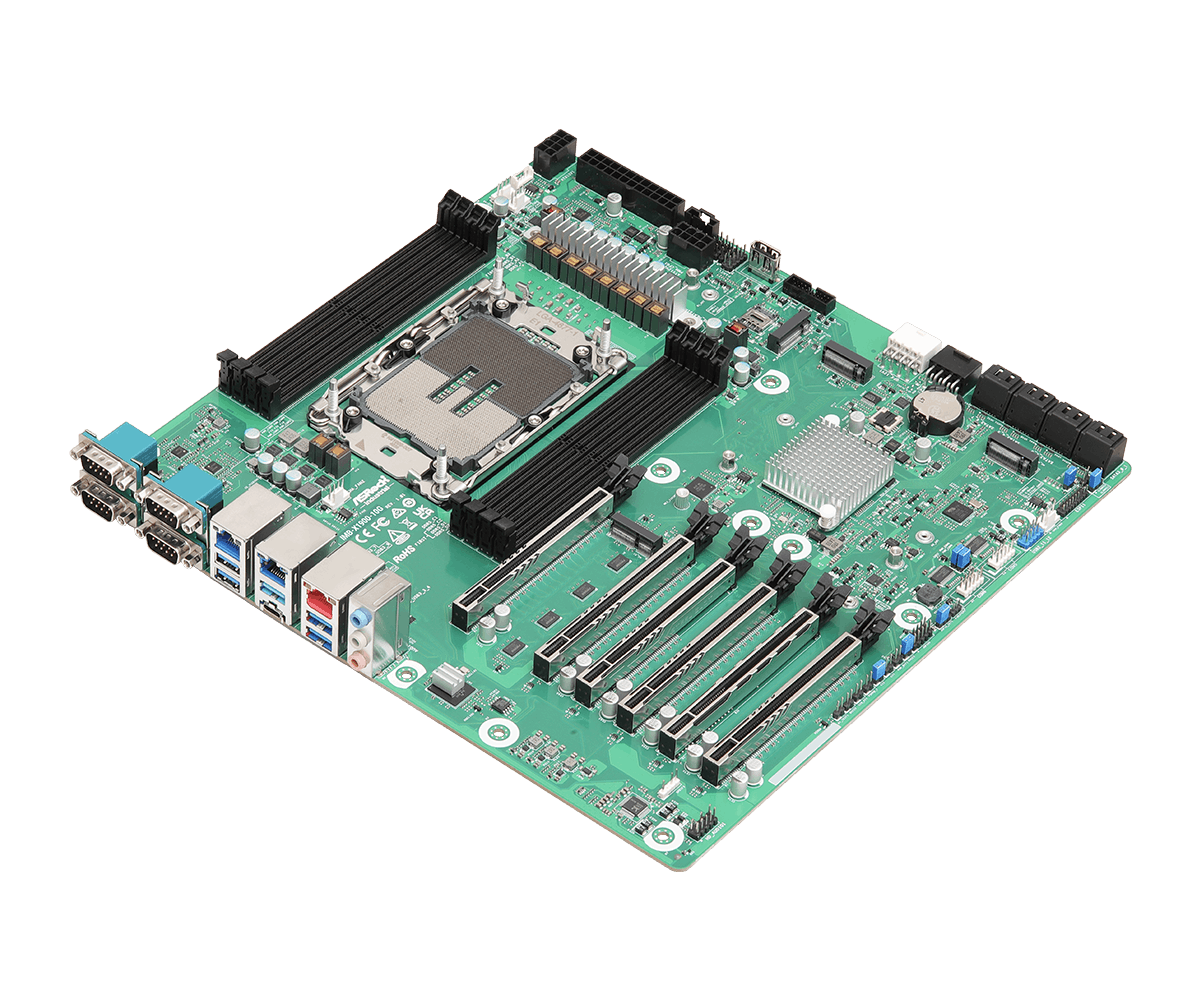

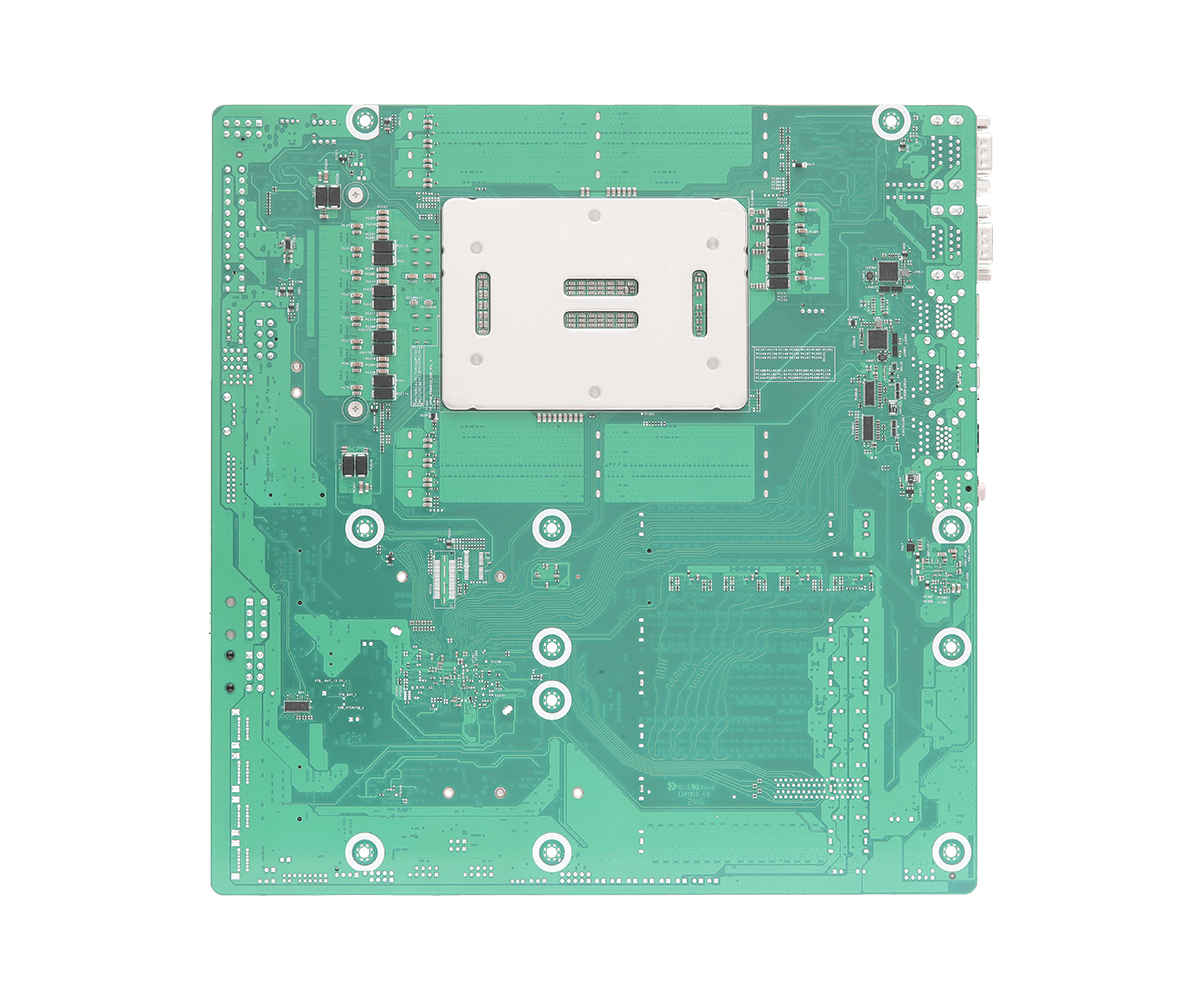

EATX Motherboard

●Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors with W790 chipset
●8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 4400/4800 MHz, up to 2TB
●1 x PCIe x16 (Gen5), 3 x PCIe x16 (Gen4), 1 x PCIe x8 (Gen4), 1 x PCIe x4 (Gen4), 1 x USB 3.2 Gen2x2, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 3 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA3
●2 x Intel 2.5 Gigabit LAN, 1 x Marvell 10 Gigabit LAN
●TPM 2.0 onboard IC
●Support Intel® vPro, VMD RAID 0/1/5/10
●ATX PWR (8+8+24 Pin)

产品型录产品咨询

产品规格

支援下载

CPU	Intel® Xeon® W-3500/3400 and W-2500/2400 Series Porcessors
Chipset	Intel® W790
Socket	LGA4677
BIOS	AMI SPI 256 Mbit

Dimensions	EATX (12-in x 11.7-in x 1.6-in, 30.5 cm x 29.7 cm x 4.0 cm)

Technology	Quad Channel ECC DDR5 4400/4800 MHz* *1DPC 4800 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5 2DPC 4400 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5 Supports 4400 MHz Natively for Xeon® W3, W5-3423 and W5-3433
Capacity	2TB
Socket	8 x 288-pin RDIMM/RDIMM-3DS

PCIe	1 x PCIe x16 Gen5 slot 4 x PCIe x16 Gen4 slot (PCIE3/PCIE4: single at x16 (PCIE4); dual at x8 (PCIE3) / x8 (PCIE4)) 1 x PCIe x16 Gen4 slot (PCIE5 supports x4 mode
M.2	1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Interface	Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in

Controller/ Speed	LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps LAN3: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps

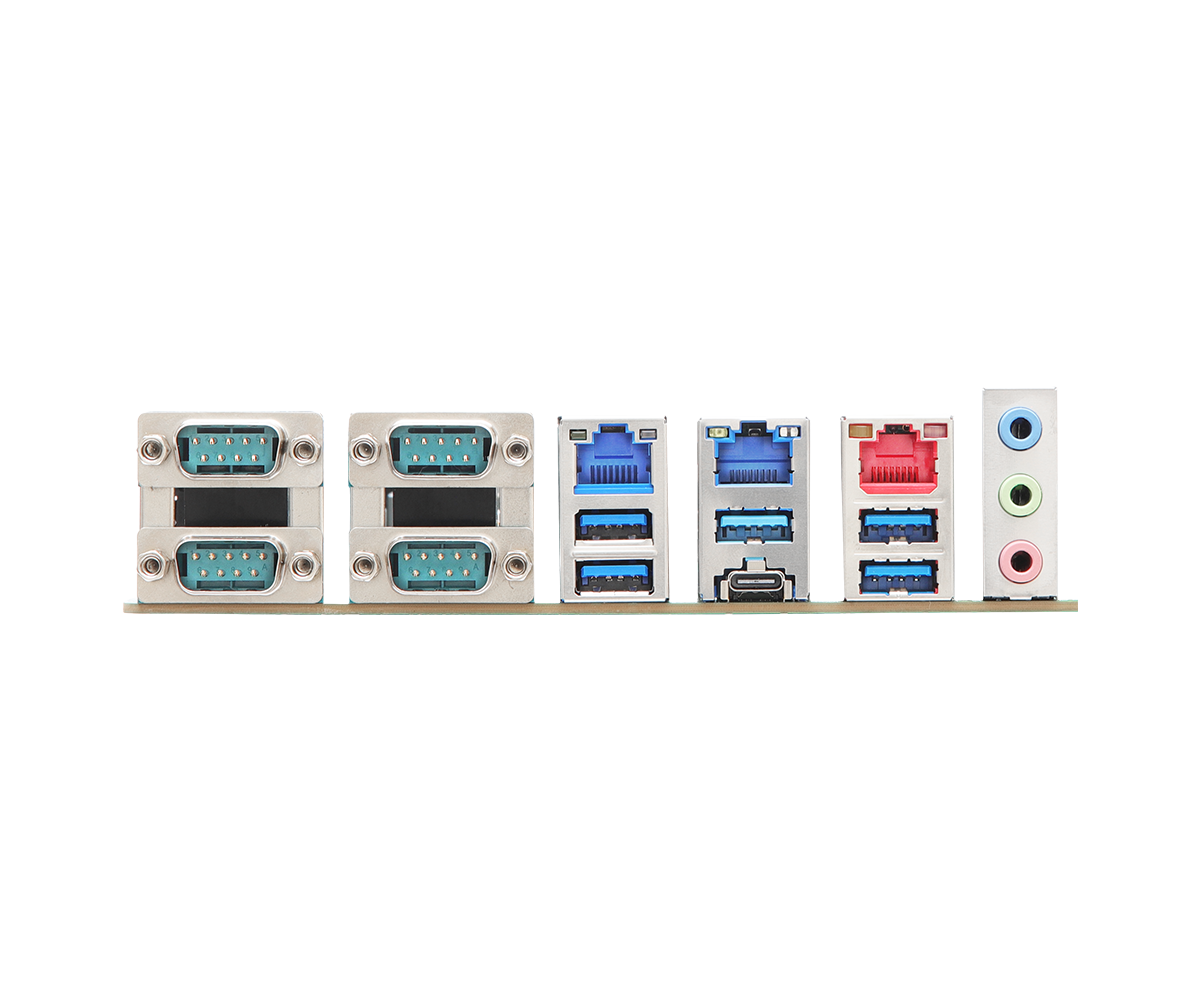

Connector	3 x RJ-45

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 header) 2 x USB 2.0 (1 x 2.54 pitch header) 1 x USB 2.0 (vertical con)
COM	COM5, COM6 (RS-232)
GPIO	4 x GPI, 4 x GPO

TPM	TPM 2.0 onboard IC

M.2	1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 and SATA3 for SSD 1 x M.2 (Key M, 2260/2280/25110) with PCIe Gen4 x4 for SSD
SATA	8 x SATA3, SATA3_0 shared with M.2 K ey M1
RAID	Intel® VMD RAID 0/1/5/10 *supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B + M.2 Key M1/2 or 2M.2 Key M SATA interface: SATA port

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Input PWR	1 x 24-pin ATX PWR connector 2 x 8-pin 12V PWR connector 1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
