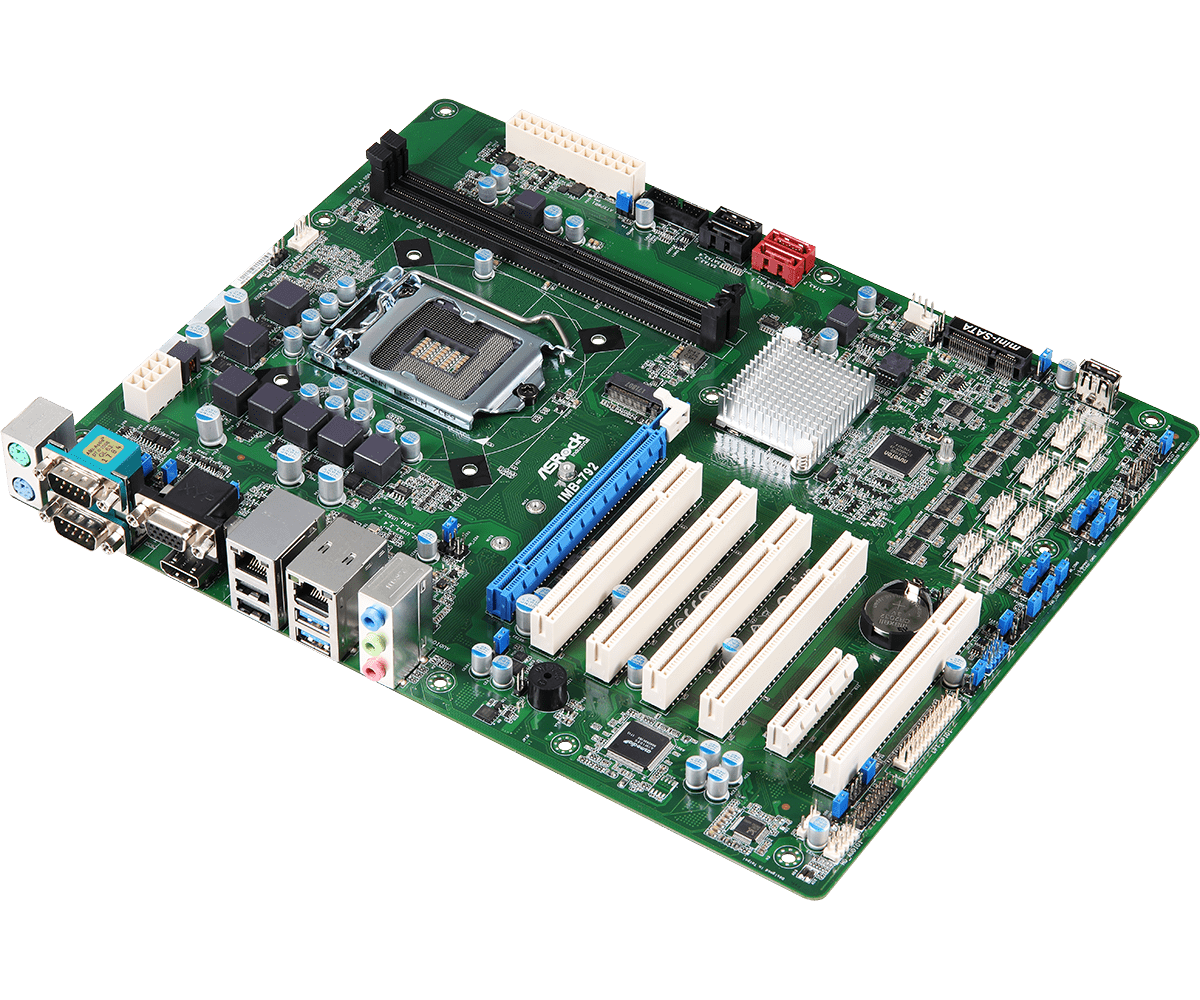

IMB-792

ATX Motherboard

  • ●Intel® 7th/6th Gen (Kabylake-S / Skylake-S) Core™ Processors with H110 chipset

  • ●Supports Dual Channel DDR4 2133MHz, up to 32GB

  • ●1 x VGA, 1 x HDMI

  • ●4 x USB 3.0, 5 x USB 2.0, 4 x SATA3, 10 x COM

  • ●1 x PCIe x16, 1 x PCIe x4, 5 x PCI,

  • ●1 x mSATA, 1 x M.2 (KEY M)

  • ●2 x Intel LAN

  • ●1 x TPM Header

  • ●ATX PWR 24+8-pin

产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® 7th / 6th Gen (Kabylake-S/Skylake-S) Core™ Processors
ChipsetIntel® H110
SocketLGA1151
BIOSAMI SPI 128 Mbit

Form Factor

DimensionsATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Memory

TechnologyDual Channel DDR4 2133 MHz
Capacity32GB
Socket2 x Long-DIMM

Graphics

ControllerIntel® Gen9 Graphics DX 11 / 12, OGL4.3/4.4
VGASupports max resolution up to 1920 x 1200
MultiDisplayDual Display
HDMIMax resolution up to 4096 x 2160@30Hz

Expansion Slot

PCIe1 x PCIe x16, 1 x PCIe x4
PCI5

Audio

InterfaceRealtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ SpeedIntel® I219V with 10/100/1000 Mbps,
Intel I210 with 10/100/1000 Mbps
Connector2 x RJ-45

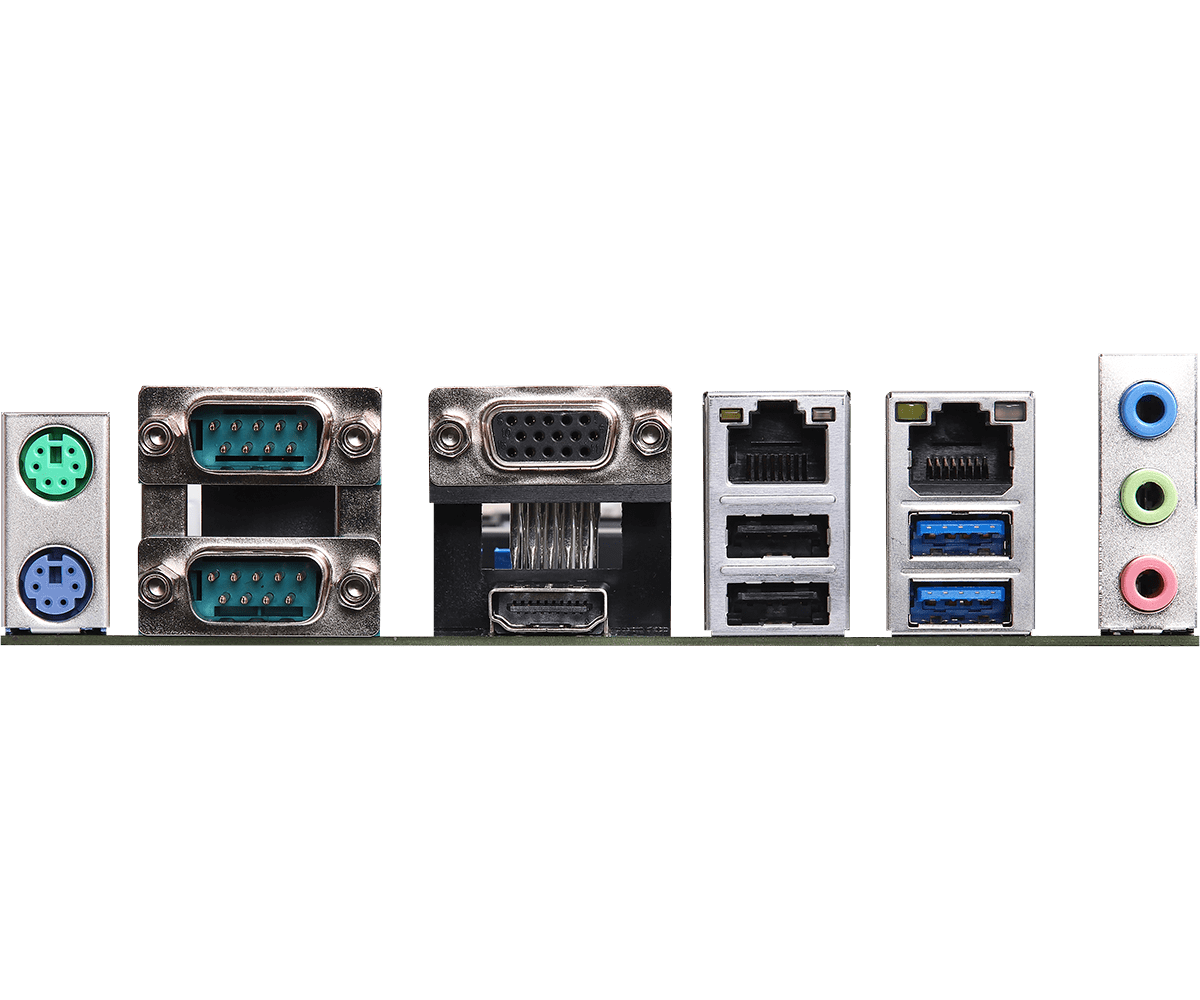

Rear I/O

VGA1
Ethernet2
USB2 x USB3.0, 2 x USB2.0
Audio3 (Mic-in, Line-in, Line-out)
COM2 x COM (RS-232/422/485)
PS22 (1 x keyboard, 1 x mouse)
HDMI1

Internal Connector

USB2 x USB3.0, 3 x USB2.0
COM8 x COM(RS-232)
Parallel1 (shared with GPIO)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPM1 x Header
Speaker Header1

Storage

mSATA1 x Full size with shared SATA3 and USB2.0
SATA4 x SATA3, one is shared with M.2 Key M, one is shared with mSATA
M.21 x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 segments, 0,1,2…255sec

Power Requirements

Input PWRATX PWR (24+8-pin)
Power OnAT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C – 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x I/O Shield (13G020506000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020506000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。


说明 资讯 操作系统 日期 下载
BIOS 1.50 1. Update audio codec 2. Update Intel ME version 2025-05-29
Jumpers and headers setting guide 快速跳线手册 2025-05-29
User Manual 用户手册 2025-05-29
CPU Support List CPU支持列表 2025-05-29
Realtek high definition audio driver ver:9126.FF00 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-05-29
INF driver ver:10.1.1.27 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-05-29
Intel Management Engine driver ver:11.6.0.1126 驱动程序 Win 7 x 64 , Win 7 2025-05-29
Intel Lan driver ver:23.2 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-05-29
SATA Floppy Image ver:14.6.0.1029 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-05-29
Intel USB 3.0 driver ver:4.0.2.42 驱动程序 Win 7 x 64 , Win 7 2025-05-29
Intel USB 3.0 Adaptation driver ver:1.0.1.45 驱动程序 Win 8.1 x 64 2025-05-29
VGA driver ver:15.40.10.4300 驱动程序 Win 7 2025-05-29
VGA driver ver:21.20.16.4542 驱动程序 Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 2025-05-29
VGA driver ver:25.20.100.6519 驱动程序 Win 10 x 64 2025-05-29
ASRock 3TB+ Unlocker utility ver:1.1.1 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 2025-05-29
Intel Management Engine driver ver:v11.8.65.3590 驱动程序 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 2025-05-29
