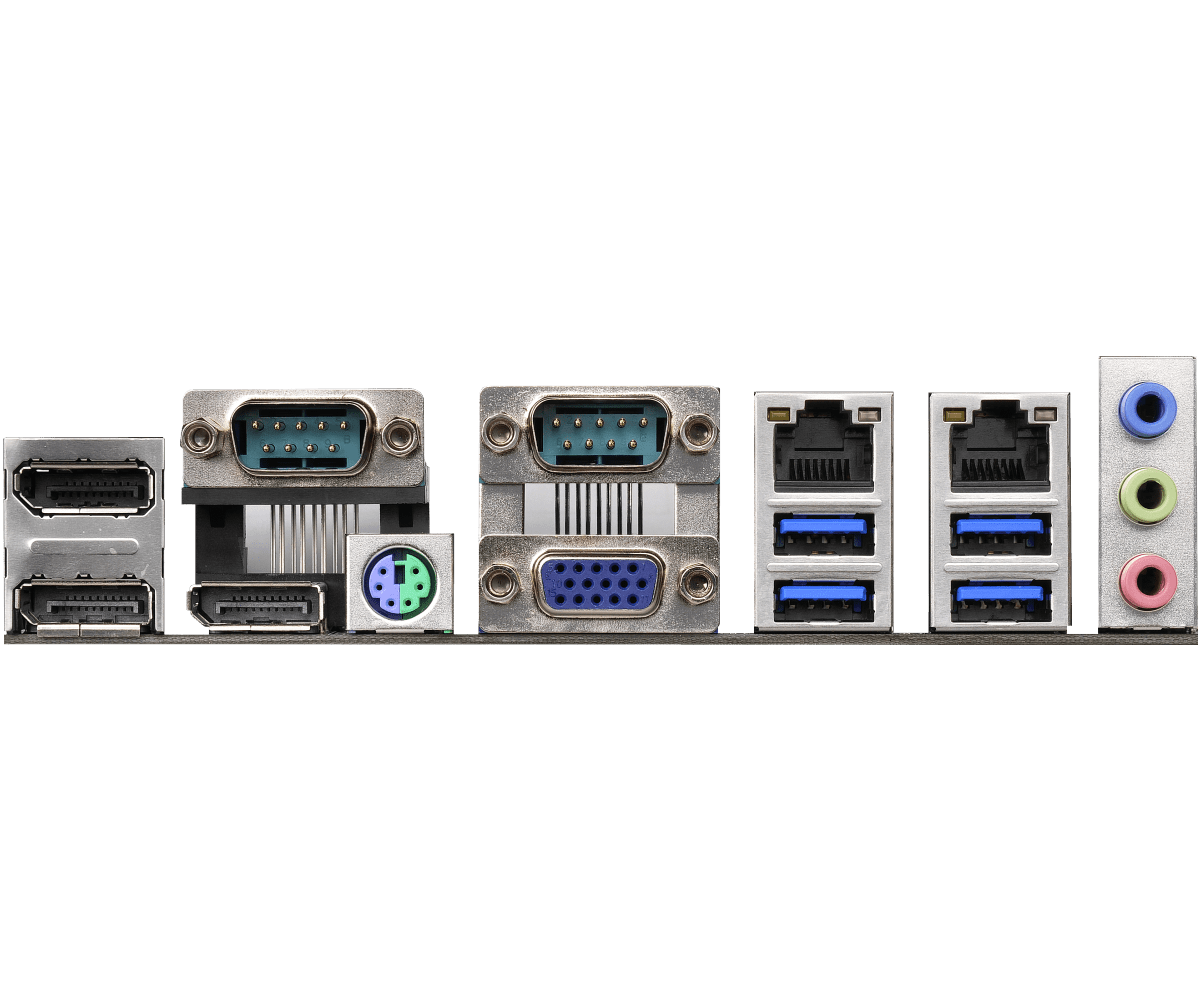

ATX Motherboard

●Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors with Q170 chipset
●4 x 288-pin Long-DIMM up to 64GB DDR4 2133 MHz (16GB per DIMM)
●1 x PCIe x16 (Gen3), 1 x PCIe x8 (Gen3), 1 x PCIe x4 (Gen3), 1 x PCIe x1 (Gen3), 3 x PCI, 6 x USB 3.1 Gen1, 6 x USB 2.0, 1 x mini-PCIe, 1 x mSATA, 1 x M.2 Key M, 6 x COM, 6 x SATA3
●2 x Intel Gigabit LAN
●Supports triple display, 3 x DP1.2a, 1 x VGA
●TPM 2.0 onboard IC
●Supports Intel® vPro, AMT, RAID 0/1/5/10
●ATX PWR

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors, up to 65W
Chipset	Intel® Q170
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Dimensions	ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Controller	Intel® Gen9 Graphics DX 11/12
DisplayPort	DisplayPort 1.2a, DP++ Max resolution up to 4096x2304@60Hz
VGA	Max resolution up to 1920x1200@60Hz
MultiDisplay	Triple Display

PCIe	2 x PCIE 3.0 Slots (PCIE1/PCIE3: singel at x16(PCIE1); dual at x8(PCIE1)/ X8(PCIE3)) 1 x PCIE 3.0 x4 Slots 1 x PCIE 3.0 x1 Slots
PCI	3
mini-PCIe	1 x Full/Half size with PCIe x1 and USB 2.0

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
Connector	2 x RJ-45

USB	2 x USB 3.0 (1 x USB 3.0 header) 6 x USB 2.0 (2 x 2.54 pitch header, 2 x USB 2.0 Type-A vertical con)
COM	4 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard IC

M.2	1 x M.2 (Key M, 2230/2242/2260/2280/22110) with PCIe x4 and shared SATA3 for SSD
mSATA	1 x Full size with shared SATA3 and USB2.0
SATA	6 x SATA3 (6Gb/s), SATA3_1 shared with mSATA and SATA3_6 shared with M.2 Key M
RAID	Intel® SATA RAID 0/1/5/10

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec/min

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Gift Package	1 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020401000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020401000AK)
