IMB-X790

ATX Motherboard

  • Intel® Xeon & 7th/6th Gen (Kabylake-S / Skylake-S) Core™ Processors with C236 chipset

  • Supports Dual Channel DDR4 2133MHz, up to 64GB

  • Supports ECC UDIMM memory modules

  • 1 x VGA, 3 x Displayport

  • 6 x USB 3.0, 6 x USB 2.0, 6 x SATA3

  • 1 x PCIe x16, 1 x PCIe x8, 1 x PCIe x4, 1 x PCIe x1, 3 x PCI, 1 x Mini-PCIe, 1 x mSATA, 1 x M.2 Key M

  • 2 x Intel LAN

  • 1 x TPM IC onboard

  • ATX PWR Con (24+8-pin)

  • Supports RAID 0, 1, 5, 10


产品规格
支援下载


Processor System

CPUSupports Intel 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors
ChipsetIntel® C236

Form Factor

DimensionsATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Memory

TechnologyDual Channel DDR4 2133 MHz
Capacity64GB
Socket4 x Long-DIMM

Graphics

ControllerIntel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
DisplayPortSupports max resolution up to 4096 x 2160@60Hz
VGASupports max resolution up to 1920 x 1200
MultiDisplayTriple Display

Expansion Slot

PCIe1 x PCIe x16(Support riser card), 1 x PCIe x8, 1 x PCIe x4, 1 x PCIe x1
**Slot1: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied.
PCI3
mini-PCIe1 x Full / Half size with PCIe x1 and USB 2.0

Audio

InterfaceRealtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ SpeedLAN1: Intel® I210 with 10/100/1000 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps
Connector2 x RJ-45

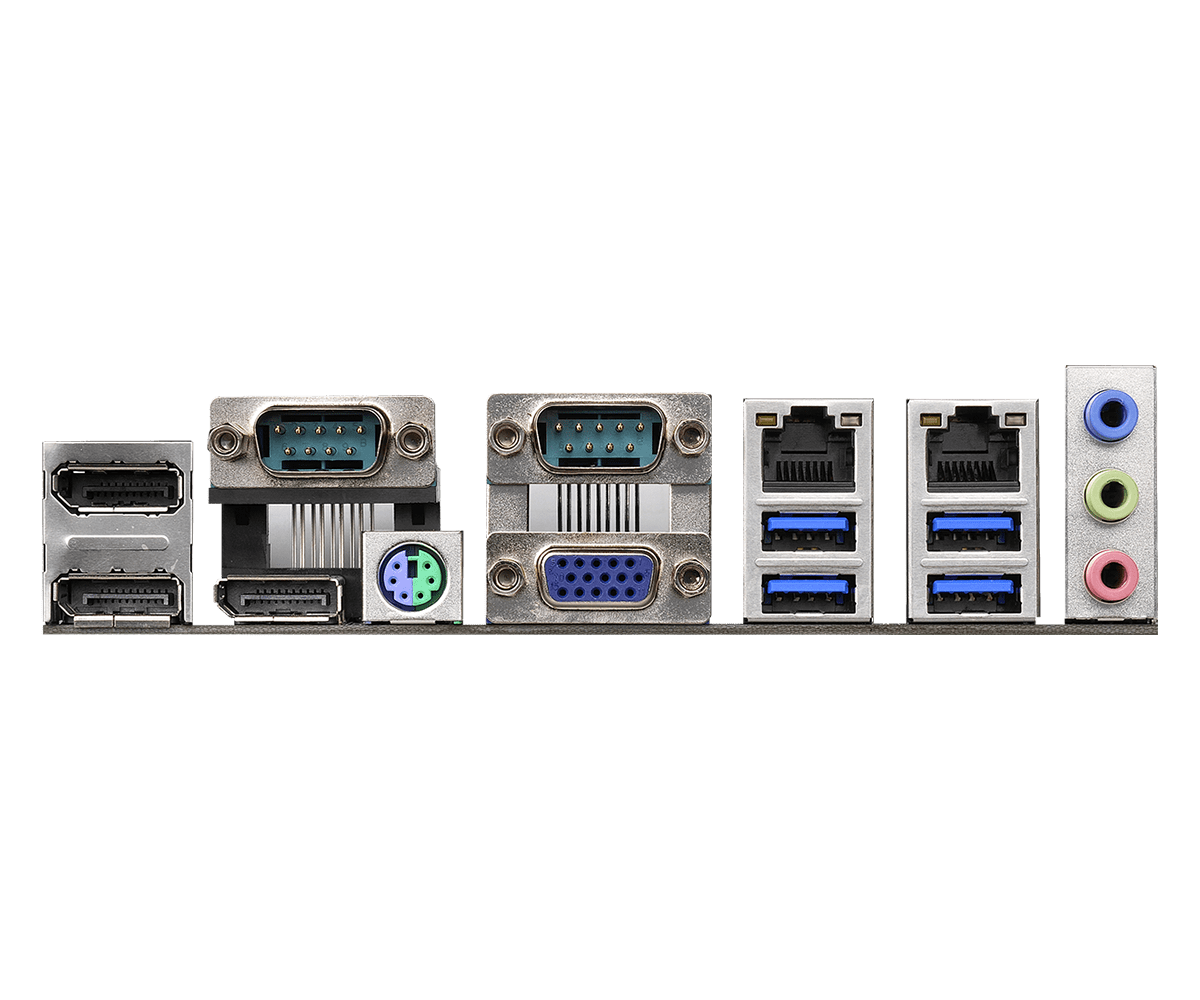

Rear I/O

DisplayPort3 x DP 1.2a
VGA1
Ethernet2 x 1 Gigabit LAN
USB4 x USB 3.0
Audio3 (Mic-in, Line-in, Line-out)
COM2 x COM (RS-232/422/485)
PS21 x PS/2 combo

Internal Connector

USB2 x USB 3.0, 6 x USB 2.0 (2 x header,2 vertical Type-A)
COM4 x COM (RS-232)
Parallel1 (shared with GPIO)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPMTPM 2.0 onboard IC

Storage

M.21 x M.2 (Key M, 2230/2242/2260/2280/22110) with PCIe x4 and shared SATA3 for SSD
mSATA1 x Full size with shared SATA3 and USB 2.0
SATA6 (SATA1 shared with MSATA, SATA5 shared with M.2)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 segments, 0,1,2…255sec

Power Requirements

Input PWRATX PWR (24+8-pin)
Power OnAT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C – 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x SCREW M2,D=5 (13G020302031AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020341000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package1 x SCREW M2,D=5 (13G020302031AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020341000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
