IMB-1710

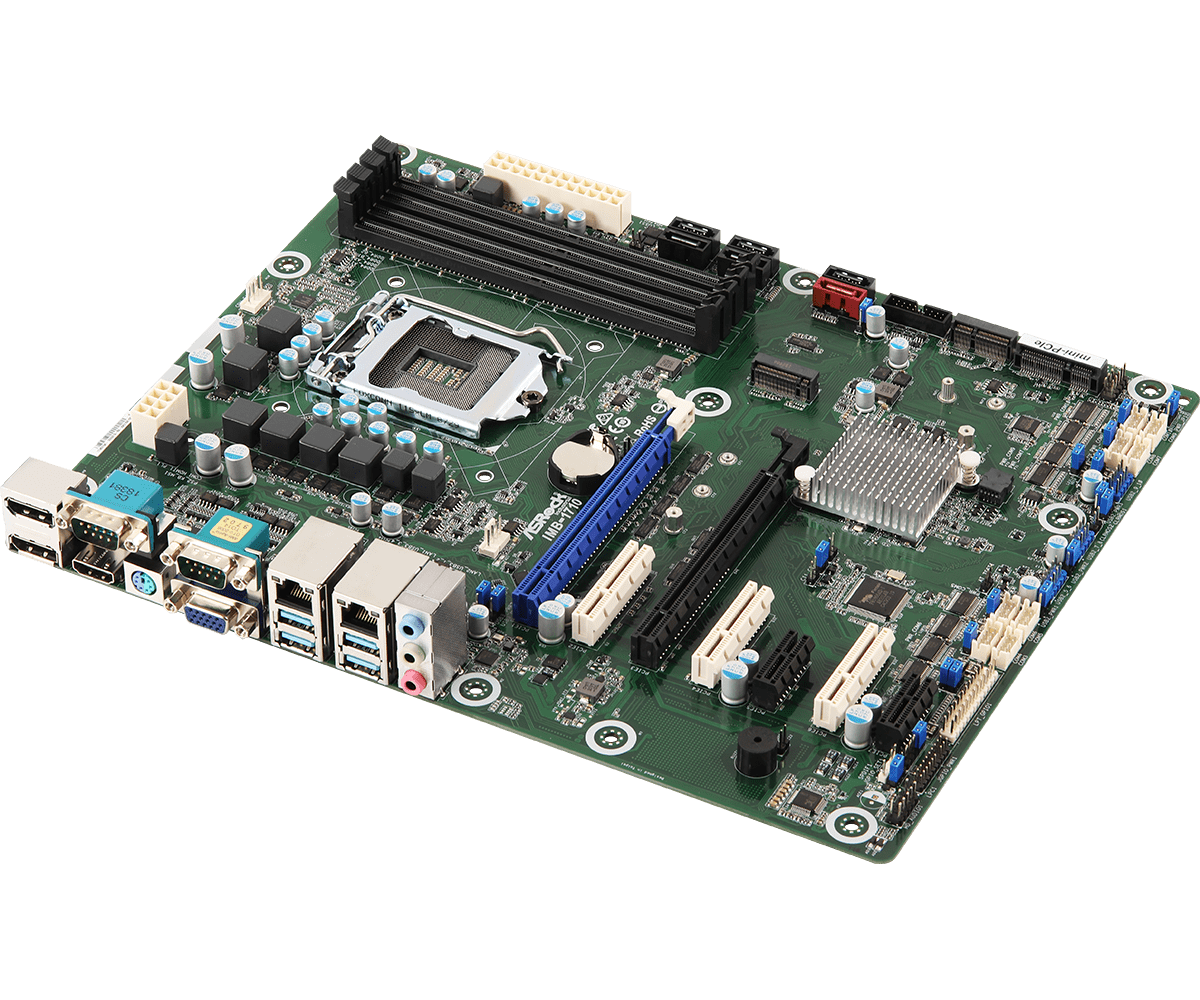

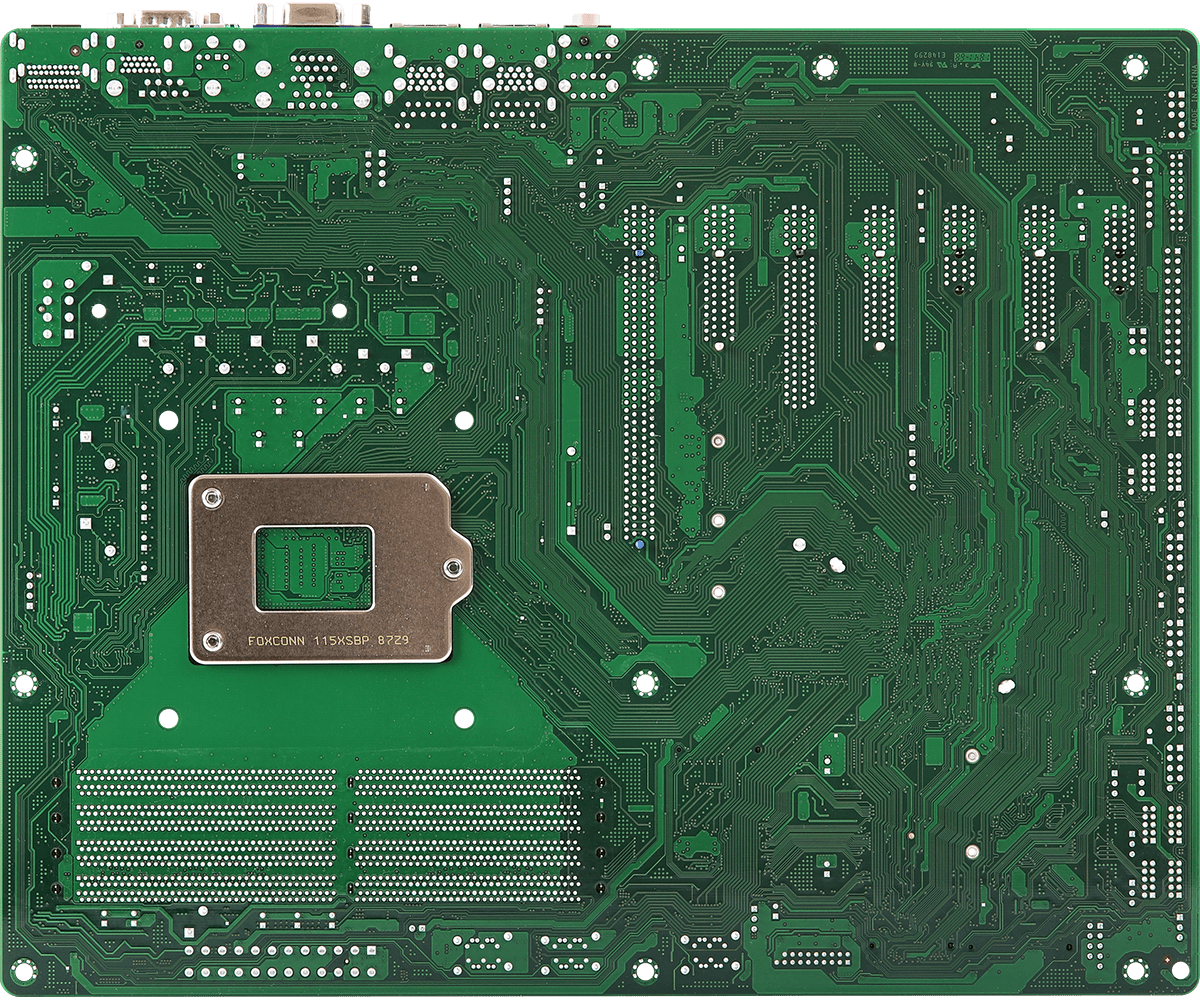

ATX Motherboard

  • ●Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors with Q370 chipset

  • ●4 x 288-pin Long-DIMM up to 128GB* DDR4 2666 MHz

  • ●1 x PCIe x16 (Gen3), 1 x PCIe x8 (Gen3), 3 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 6 x USB 3.1 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x mini-PCIe, 1 x M.2 Key M, 10 x COM, 6 x SATA3

  • ●2 x Intel 1 Gigabit LAN

  • ●Supports triple display, 1 x HDMI 1.4, 2 x DP 1.2, 1 x VGA

  • ●TPM 2.0 onboard IC

  • ●Supports Intel® vPro, AMT, RAID 0/1/5/10

  • ●ATX PWR


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 95W
ChipsetIntel® Q370
SocketLGA1151
BIOSAMI SPI 128 Mbit

Form Factor

DimensionsATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Memory

TechnologyDual Channel DDR4 2666 MHz
Capacity128GB*
* Intel Core i9/i7/i5 CPUs support up to 128GB (32GB per DIMM)
Intel Core i3/Pentium/Celeron CPUs support up to 64GB (16GB per DIMM))
Socket4 x 288-pin Long-DIMM

Graphics

ControllerCoffee Lake integrated graphics
HDMIHDMI 1.4
Max resolution up to 4096x2160@24Hz
DisplayPortDisplayPort 1.2, DP++ Max resolution up to 4096x2304@60Hz
VGAMax resolution up to 1920x1200@60Hz
MultiDisplayTriple Display

Expansion Slot

PCIe3 x PCIE 3.0 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3) )
2 x PCIE 3.0 x4 Slots (PCIE4) (PCIE6)
2 x PCIE 3.0 x1 Slots (PCIE5) (PCIE7)
mini-PCIe1 x Full/Half size with PCIe x1 and USB 2.0
M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

InterfaceRealtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ SpeedLAN1: Intel® I210 with 10/100/1000 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
Connector2 x RJ-45

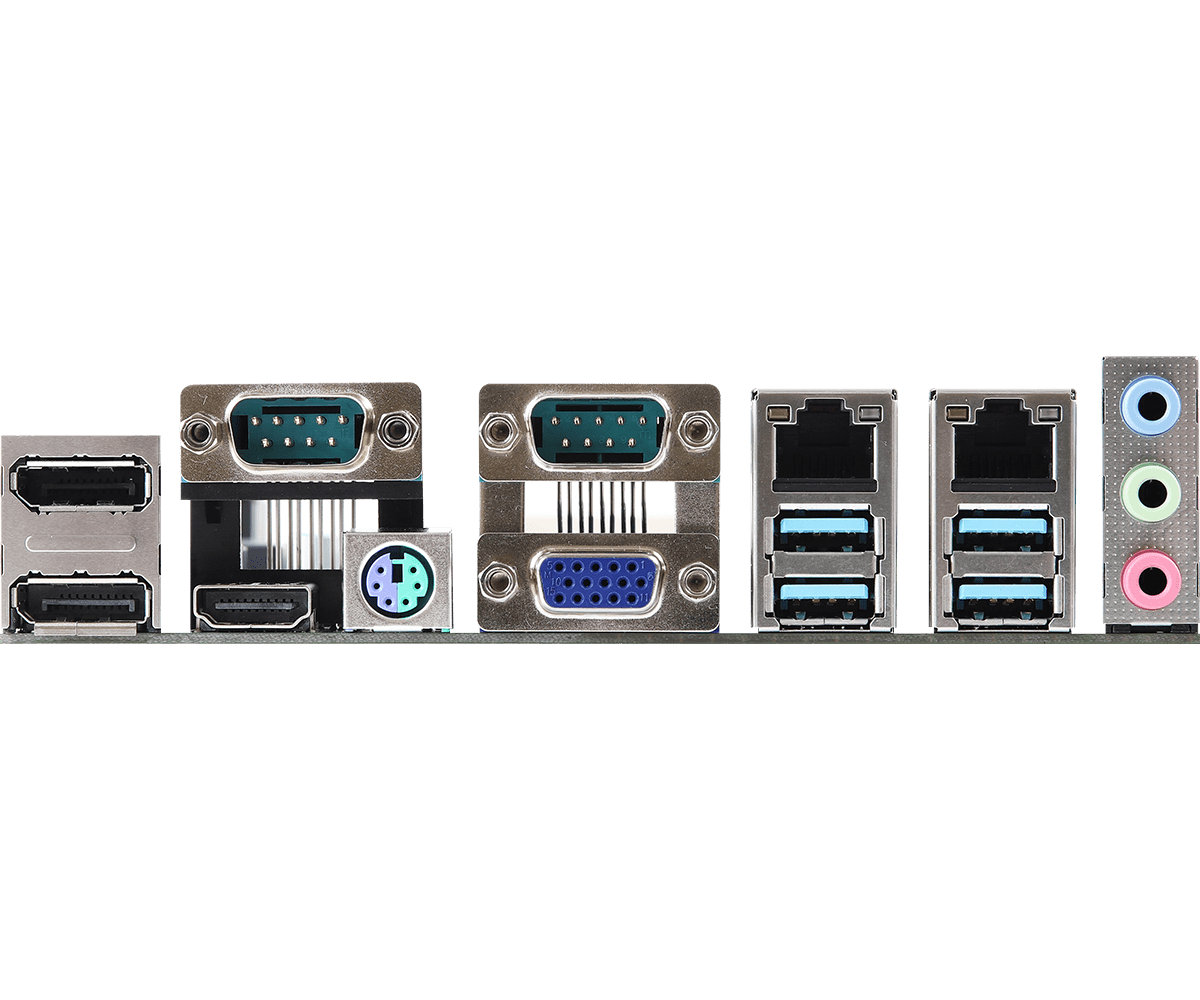

Rear I/O

HDMI1 x HDMI 1.4
DisplayPort2 x DP 1.2
VGA1
Ethernet2 x 1 Gigabit LAN
USB4 x USB 3.0
Audio3 (Mic-in, Line-in, Line-out)
COMCOM1, 2(RS-232/422/485)
PS21 x PS/2 combo

Internal Connector

USB2 x USB 3.1 Gen1 (1 x USB 3.1 header)
6 x USB 2.0 (3 x 2.54 pitch header)
COM8x COM (RS-232)
Parallel1 (shared with GPIO)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPMTPM 2.0 onboard IC
LVDSN/A
Speaker Header1

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD
SATA6 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M
RAIDIntel® SATA RAID 0/1/5/10

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 segments, 0,1,2…255sec/min

Power Requirements

Input PWRATX PWR (24+8-pin)
Power OnAT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C – 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package2 x SCREW M2,D=5.3 (13G020302010AK)
1 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020505000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package2 x SCREW M2,D=5.3 (13G020302010AK)
1 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020505000AK)
