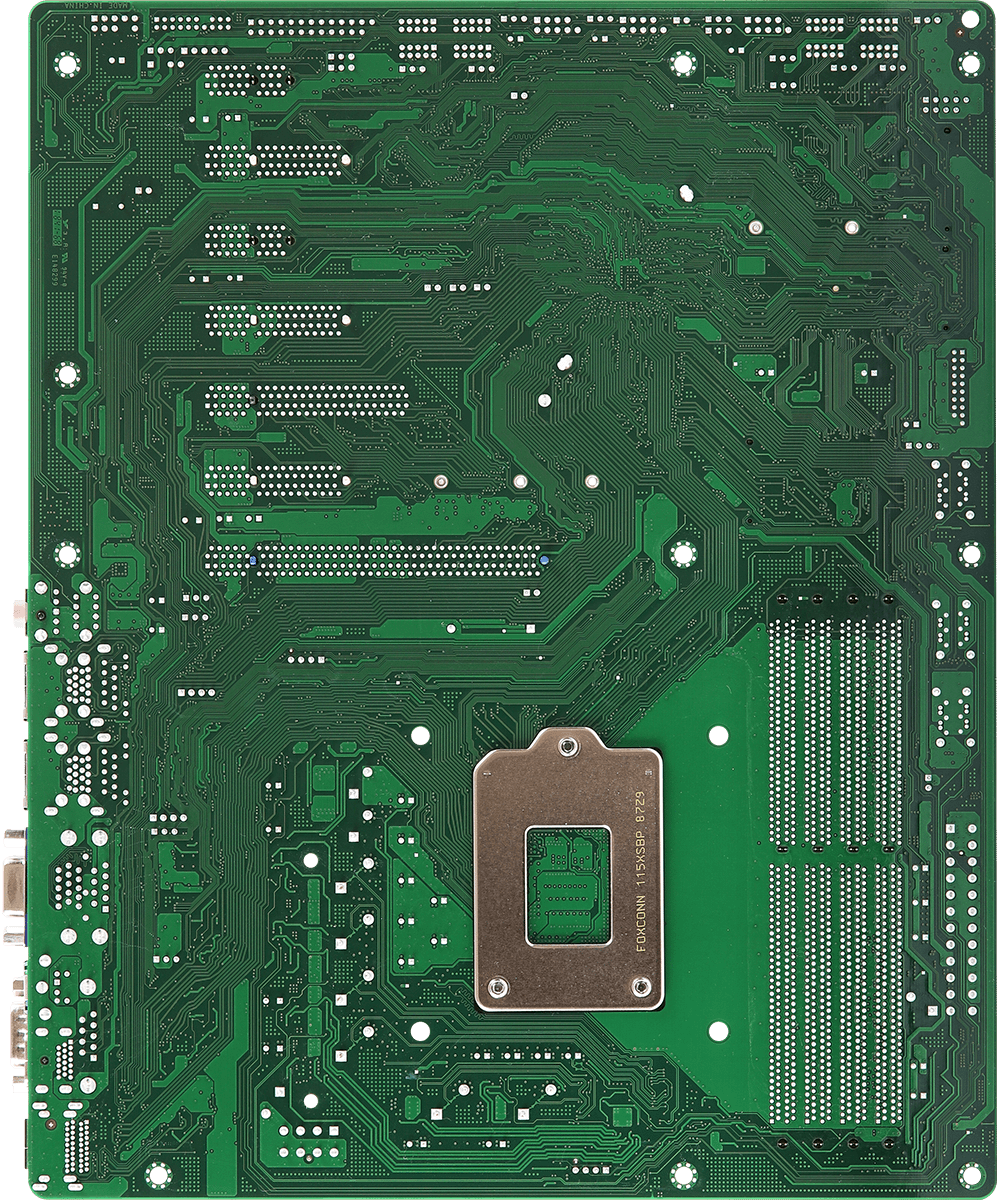

ATX Motherboard

●Intel® Xeon & 9th/8th Gen (Coffee Lake-S) Core™ Processors with C246 chipset
●4 x 288-pin Long-DIMM up to 128GB* DDR4 2666 MHz
●Supports ECC DIMM memory modules
●1 x PCIe x16 (Gen3), 1 x PCIe x8 (Gen3), 3 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 6 x USB 3.1 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x mini-PCIe, 1 x M.2 Key M, 10 x COM, 6 x SATA3
●2 x Intel 1 Gigabit LAN

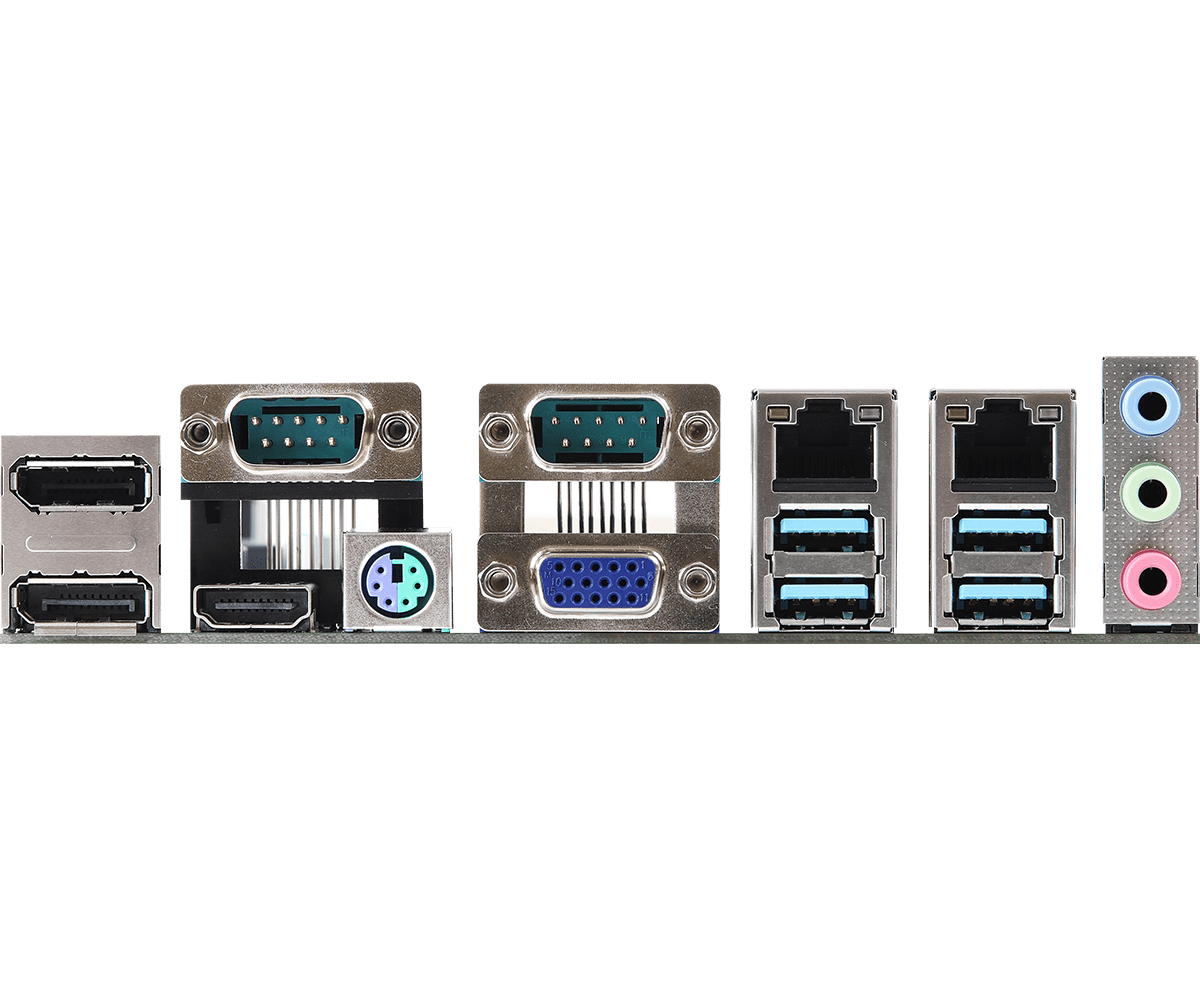

●Supports triple display, 1 x HDMI 1.4, 2 x DP 1.2, 1 x VGA
●TPM 2.0 onboard IC
●Supports Intel® vPro, AMT, RAID 0/1/5/10
●ATX PWR

产品型录产品咨询

产品规格

支援下载

CPU	Supports Intel® Xeon® E-2100 Processors
Chipset	Intel® C246
Socket	LGA1511
BIOS	AMI SPI 128 Mbit

Dimensions	ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Technology	Dual Channel DDR4 2400 / 2666 MHz
Capacity	128GB* * Intel Core i9/i7/i5 CPUs support up to 128GB (32GB per DIMM) Intel Core i3/Pentium/Celeron CPUs support up to 64GB (16GB per DIMM))
Socket	4 x Long-DIMM

PCIe	1 x PCIe x16, 1 x PCIe x 8, 3 x PCIe x4, 2 x PCIe x1
mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB 2.0 for Wireless

Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in,Line-in

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps
Connector	2 x RJ-45

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD
SATA	6 x SATA3 (6.0Gb/s), one is shared with M.2 Key M
RAID	Intel® SATA RAID 0/1/5/10

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready
