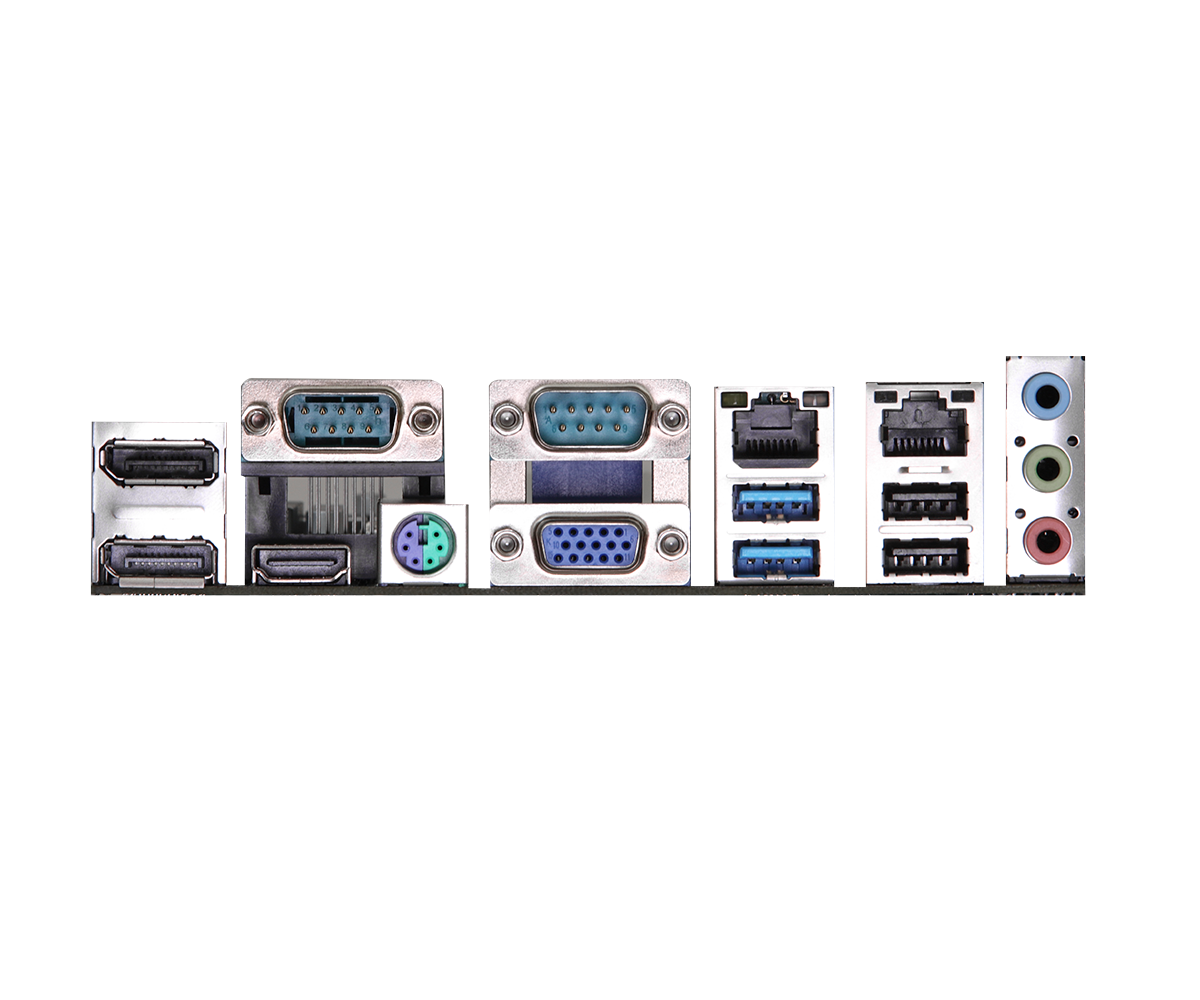

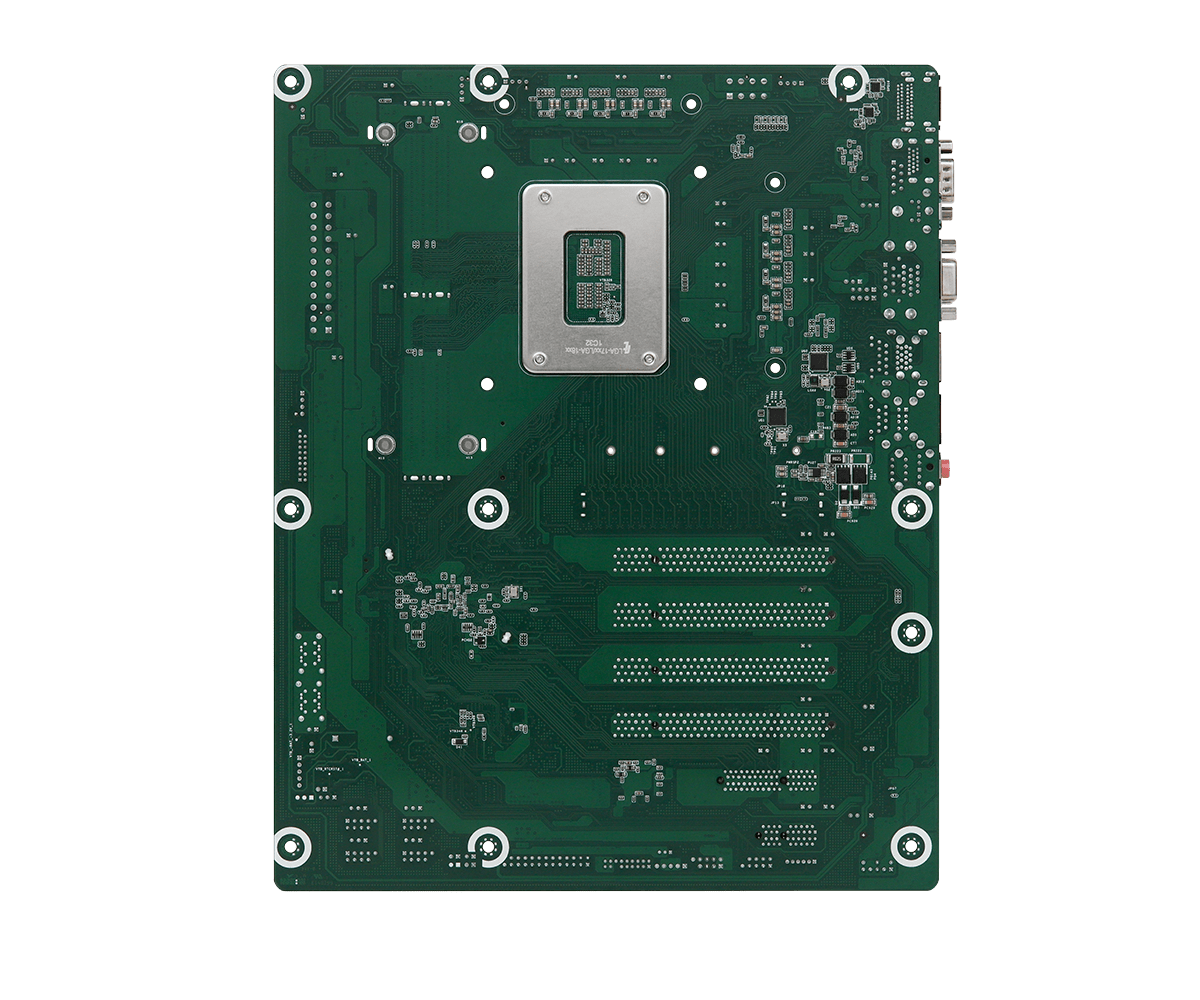

ATX Motherboard

●Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with H610 chipset
●2 x 288-pin Long-DIMM DDR5 4800/5600 MHz, up to 96GB (48 GB per DIMM)
●1 x PCIe x16 (Gen5), 1 x PCIe x4 (Gen3), 1 x PCIe x1 (Gen3), 4 x PCI
●2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 5 x USB 2.0
●1 x M.2 Key M, 6 x COM, 4 x SATA3
●1 x Intel 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN with PoE function
●Supports Triple display, 1 x HDMI 2.0b, 2 x DP 1.4a, 1 x VGA
●TPM 2.0 onboard IC
●ATX PWR (8+24pin)

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125 W
Chipset	Intel® H610
Socket	LGA1700
BIOS	AMI SPI 256 Mbit

Dimensions	ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm)

Technology	Dual Channel DDR5 4800/5600 MHz* *Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ
Capacity	96GB (48GB per DIMM)
Socket	2 x 288-pin Long-DIMM

Controller	Intel® UHD Graphics
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

PCIe	1 x PCIe x16 (Gen5) 1 x PCIe x4 (Gen3) 1x PCIe x1 (Gen3)
PCI	4 x PCI

Interface	Realtek ALC897, High Definition Audio. Line-In, Line-Out, Mic-In

Controller/ Speed	LAN1: Realtek® RTL8125BG with 10/100/1000/2500 Mbps, supports PoE LAN2: Intel® I219V with 10/100/1000 Mbps *PoE Output (DC) : 54V(IEEE802.3af/at), Imax 0.6A
Connector	2 x RJ-45

USB	2 x USB 3.2 Gen1 (1 x USB 3.1 header) 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM	COM3, COM4, COM5, COM6 (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO, (shared with LPT header)
TPM	TPM 2.0 onboard IC
Speaker Header	1

M.2	1 x M.2 (Key M, 3042/2260/2280/22110) with PCIe Gen3 x 1
SATA	4 x SATA3 (6Gb/s)

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Input PWR	ATX-PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Gift Package	2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G020505000AK) 1 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package	1 x I/O Shield (13G020505000AK) 1 x SCREW M2*2,D=5 (13G020302031AK)
