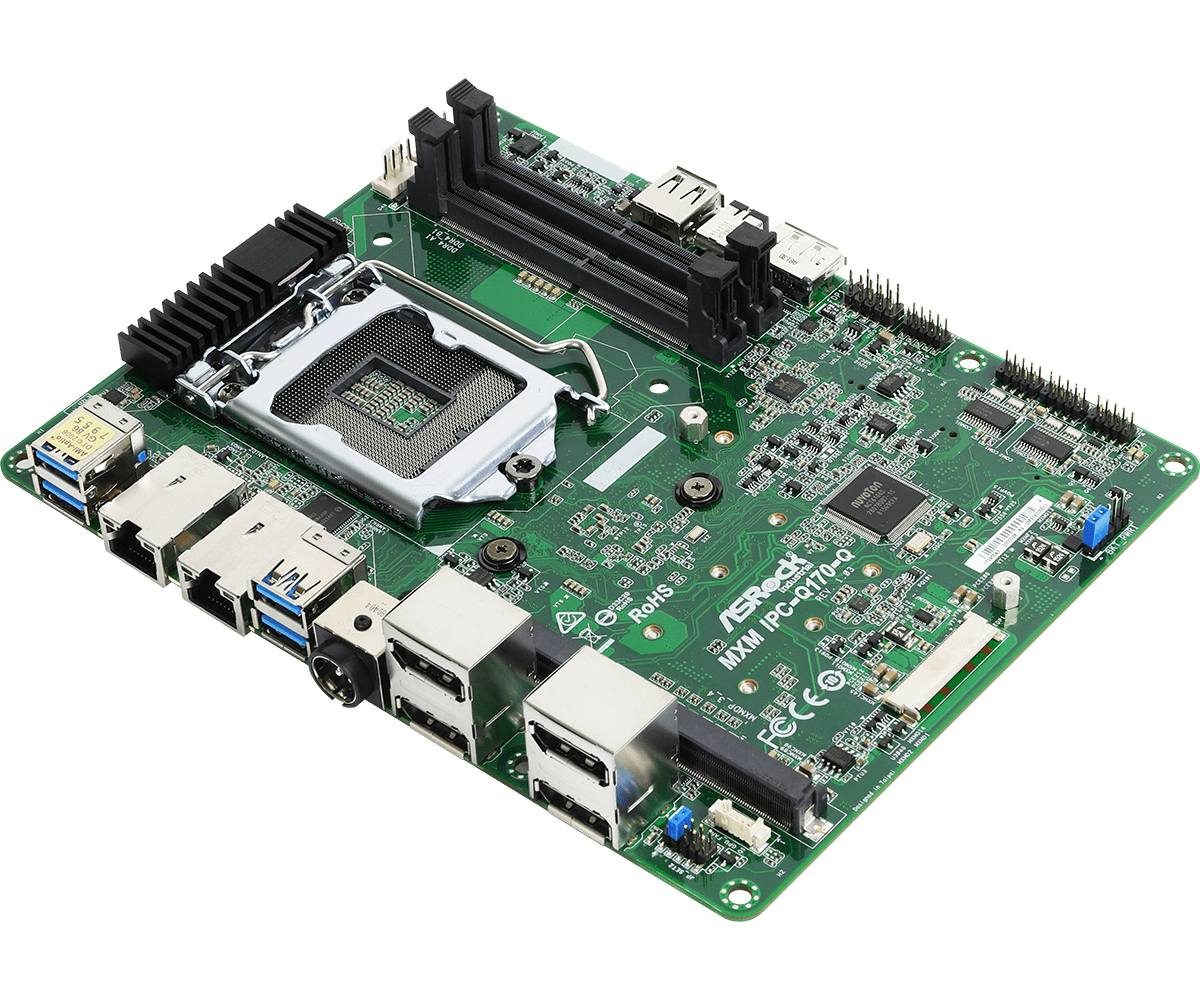

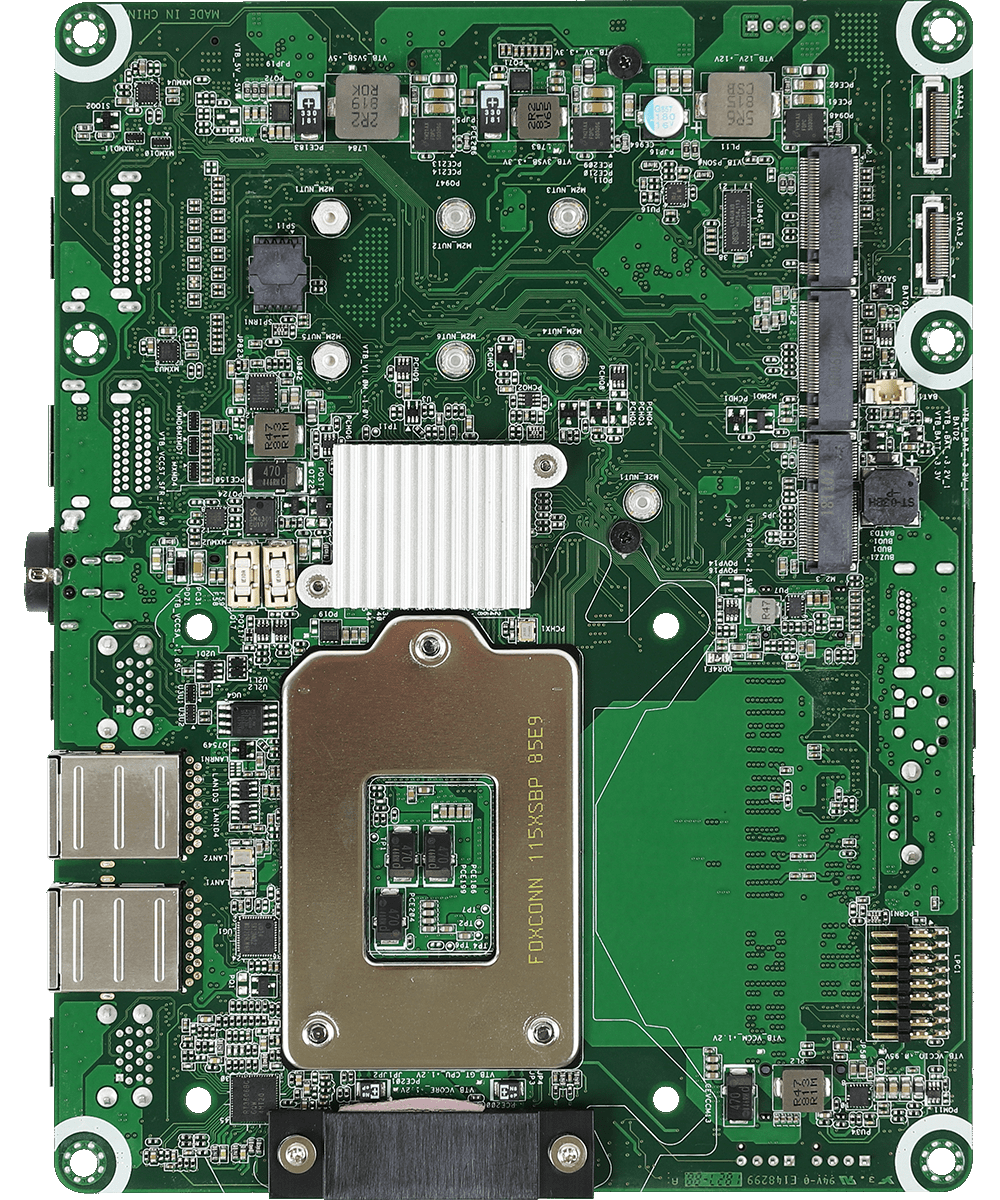

Micro-STX Motherboard

●Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors (Socket 1151)
●Supports MXM Graphics Card (Type-A or Type-B , Up to 150W)
●Supports DDR4 SO-DIMM 2400, up to 32GB

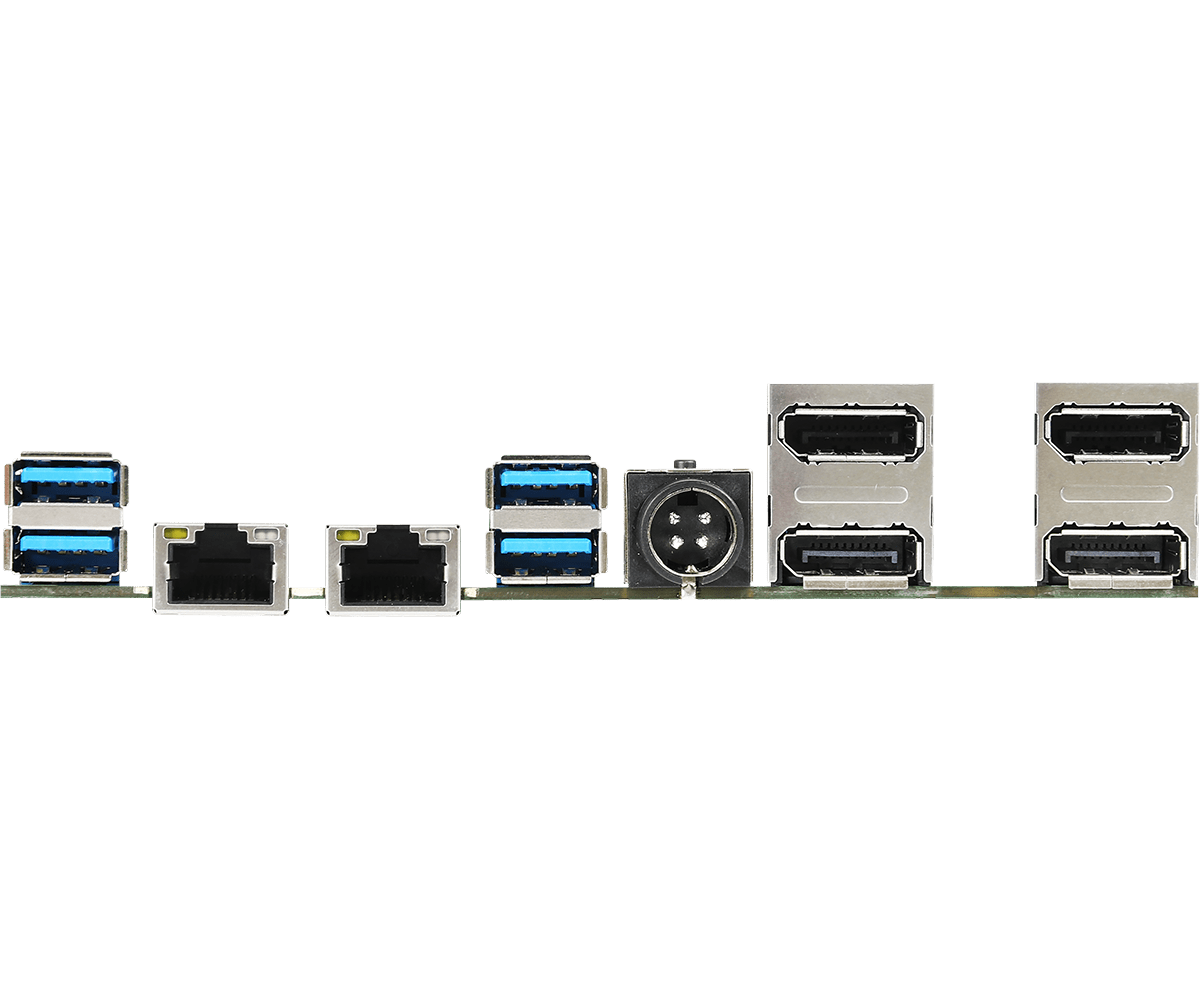

●5 x DisplayPort (1 from CPU, 4 from MXM)
●4 x USB 3.0, 3 x USB 2.0, 2 x COM (RS232 only)
●3 x M.2 (1 x Key E, 2 x Key M=>R1.04)
●2 x Intel 1 Gigabit LAN
●1 x TPM Header
●Supports Intel® vPro, AMT, RAID 0/1/5/10
●DC 19V Input (220W for Quadro P5000, GTX1060/1070, 270W for GTX1080)

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core. Processors, up to 65W
Chipset	Intel® Q170
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Dimensions	Micro-STX (5.8-in x 7.4-in, 14.7 cm x 18.8 cm)

Controller	Intel® Gen8 Graphics DX 11,OGL3.2
DisplayPort	1 x Supports max resolution up to 4K@60Hz (CPU integrated graphics) 4 x Supports max resolution up to 4K@60Hz (MXM Graphics Card)
MultiDisplay	Penta Display

M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
mini-PCIe	1x Full size with PCIe x1 and USB 2.0

Interface	Realtek ALC233, High Deﬁnition Audio.

Controller/ Speed	LAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2:1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
Connector	2 x RJ-45

M.2	1 x M.2 (KEY M, 2242/2260/2280) with PCIe x 4 and SATA3 1 x M.2 (KEY M, 2242/2260/2280) with SATA or PCIe x 4
SATA	2 x SATA3.0 (6.0 Gb/s)
RAID	Intel® SATA RAID 0/1/5/10

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	19V DC-In Jack (220W for Quadro P5000, GTX1060/1070, 270W for GTX1080)
Power On	- AT/ATX Supported - AT : Directly PWR on as Power input ready - ATX: Press Button to PWR on after Power input ready

Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 2 x COM Cable (14G000000340AK) 2 x SATA Data/Power Cable (14G000104502AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
