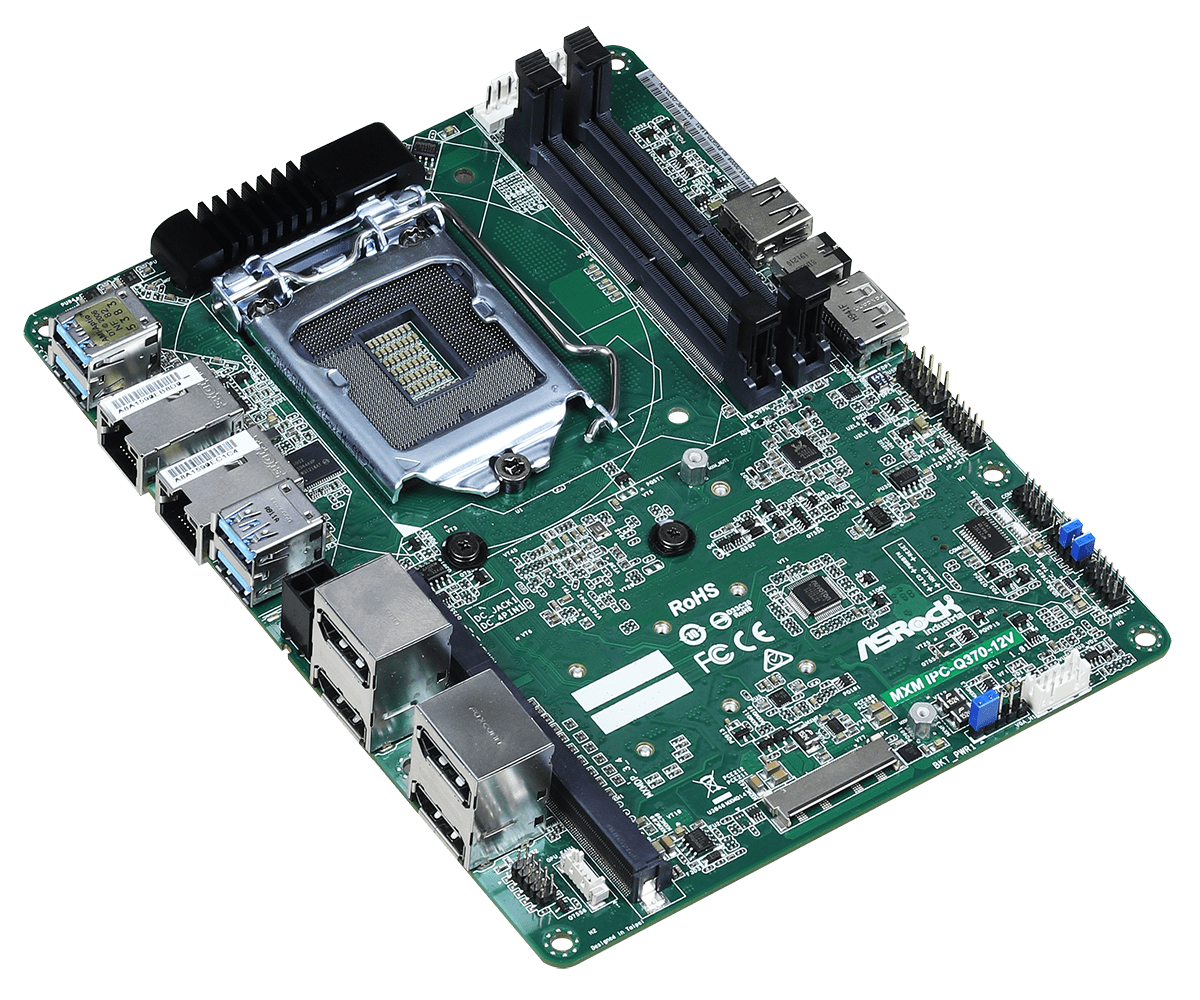

MXM IPC-Q370-12V

Micro-STX Motherboard

  • Intel® 9th / 8th Gen (Coffee Lake-S) Core™ Processors with Q370 chipset

  • 2 x 260-pin SO-DIMM up to 64GB DDR4 2666 MHz (32GB per DIMM)

  • 1 x MXM with PCIe x16 Lanes (Gen3), 4 x USB 3.1 Gen1, 3 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 2 x SATA3

  • 2 x Intel Gigabit LAN

  • Supports Hexa Display, 5 x DP 1.2, 1 x VGA, 1 x eDP

  • TPM Header

  • Supports Intel® vPro, AMT, RAID 0/1

  • 12V DC-In (4-pin plug PWR cable for maximum 200 watt DC input)


产品规格
支援下载


Processor System

CPUIntel® 9th / 8th Gen (Coffee Lake-S) Core™ Processors
ChipsetIntel® Q370
SocketLGA1151
BIOSAMI SPI 128 Mbit

Form Factor

DimensionsMicro-STX (5.8-in x 7.4-in, 14.7 cm x 18.8 cm)

Memory

TechnologyDual Channel DDR4 2666 MHz
Capacity64GB*
* Intel Core i9/i7/i5 CPUs support up to 64GB (32GB per DIMM)
Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerIntel® Gen9 Graphics DX 11 / 12
eDPeDP 1.4
Max resolution up to 4096 x 2304@60Hz
VGAMax resolution up to 1920 x 1200@60Hz
DisplayPortDisplayPort 1.2, DP++
Max resolution up to 4096 x 2304@60Hz
MultiDisplayHexa Display

Expansion Slot

M.21 x M.2 (Key E, 2230) with PCIe x1, CNVi and shared USB 2.0 for Wireless
MXM1 x MXM with PCIe x16 Lanes (Gen3) Supports NVIDIA Quadro P5000 & GTX Series (Type A/ Type B/ Type B+)

Audio

InterfaceRealtek ALC233, High Definition Audio.

Ethernet

Controller/ SpeedLAN1: 1 x Intel® I210 with 10/100/1000 Mbps
LAN2: 1 x Intel® I219LM with 10/100/1000 Mbps,
supports AMT / vPro
Connector2 x RJ-45

Front I/O

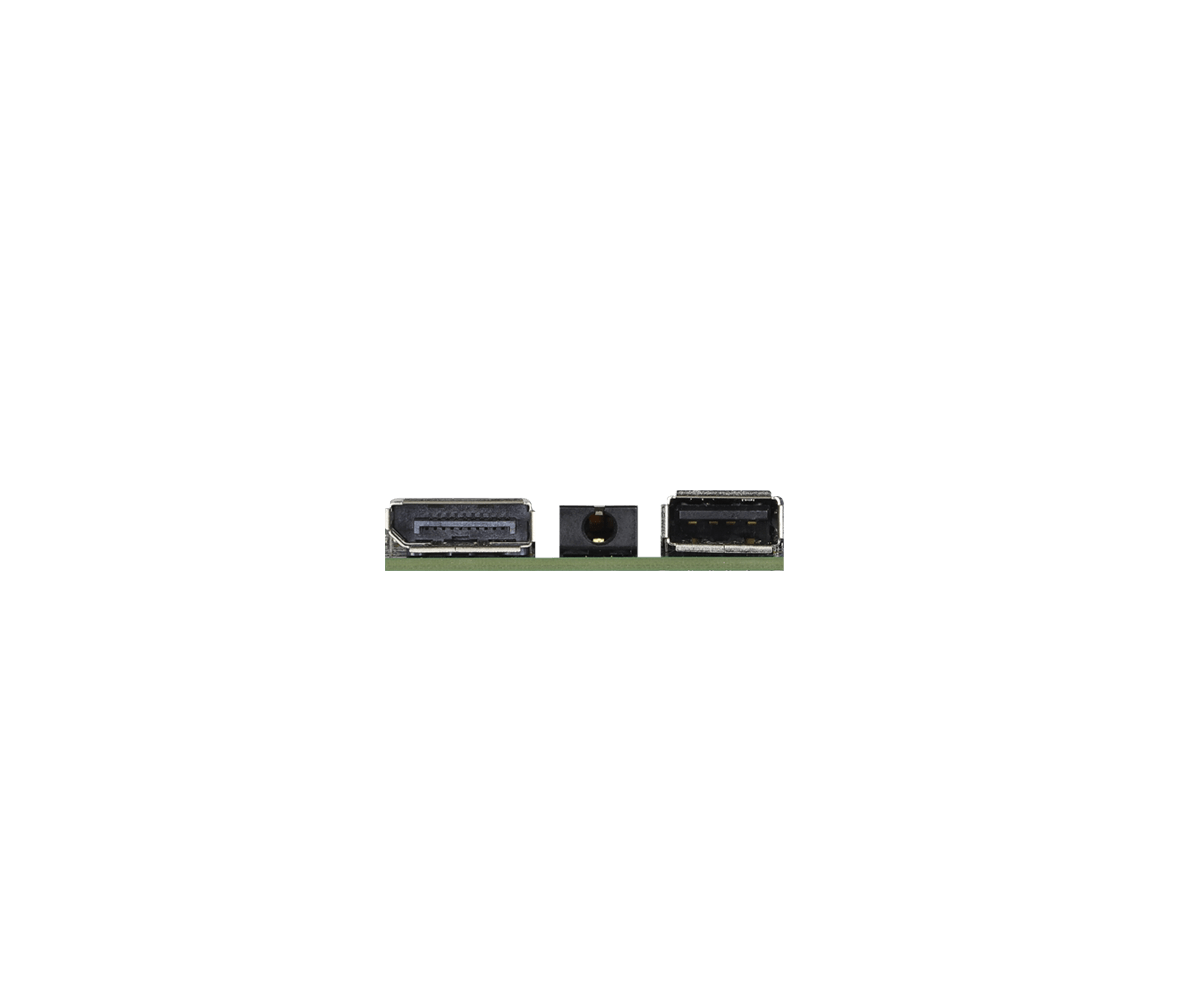

DisplayPort1 x DP 1.2
USB1 x USB 2.0
Audio1 (Mic-in, Line-out)

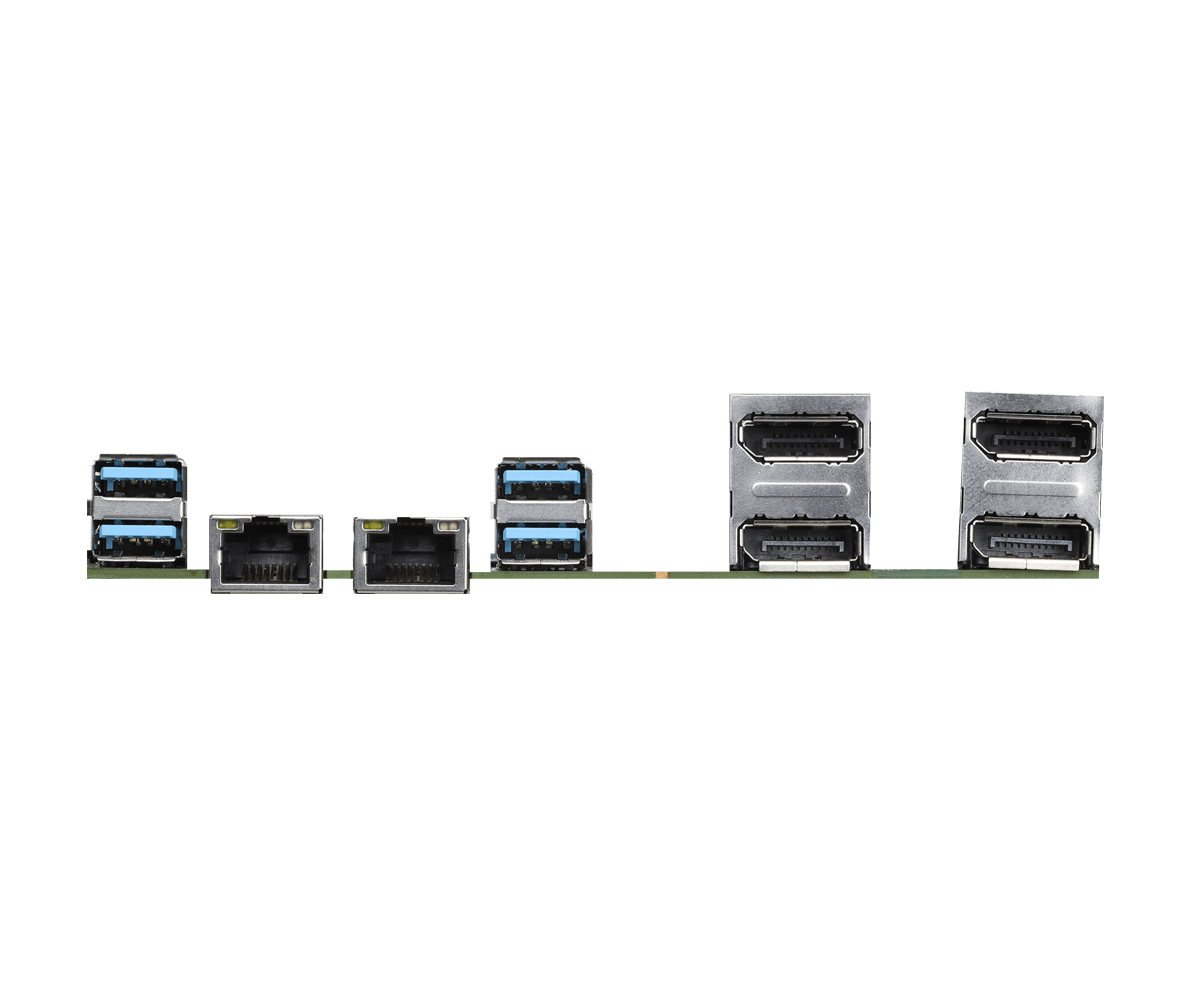

Rear I/O

DisplayPort4 x DP 1.2
Ethernet2 x 1 Gigabit LAN
USB4 x USB 3.1 (Gen1)

Internal Connector

USB2 x USB 2.0 (2 x 2.54 pitch header)
TPMTPM Header
eDP1
VGA1
COMCOM1 (RS-232)

Storage

M.22 x M.2 (Key M, 2242 / 2260 / 2280) with PCIe x4 & SATA3 for SSD
SATA2 x SATA3 (6Gb/s)
RAIDIntel® SATA RAID 0/1

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12V DC-In (4-pin plug PWR cable for maximum 200 watt DC input)
Power OnAT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40ºC – 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Bulk Package2 x SCREW FOR WIFI CARD (13G020305011AK)
2 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000340AK)
2 x SATA Data/Power Cable (14G000104502AK)
