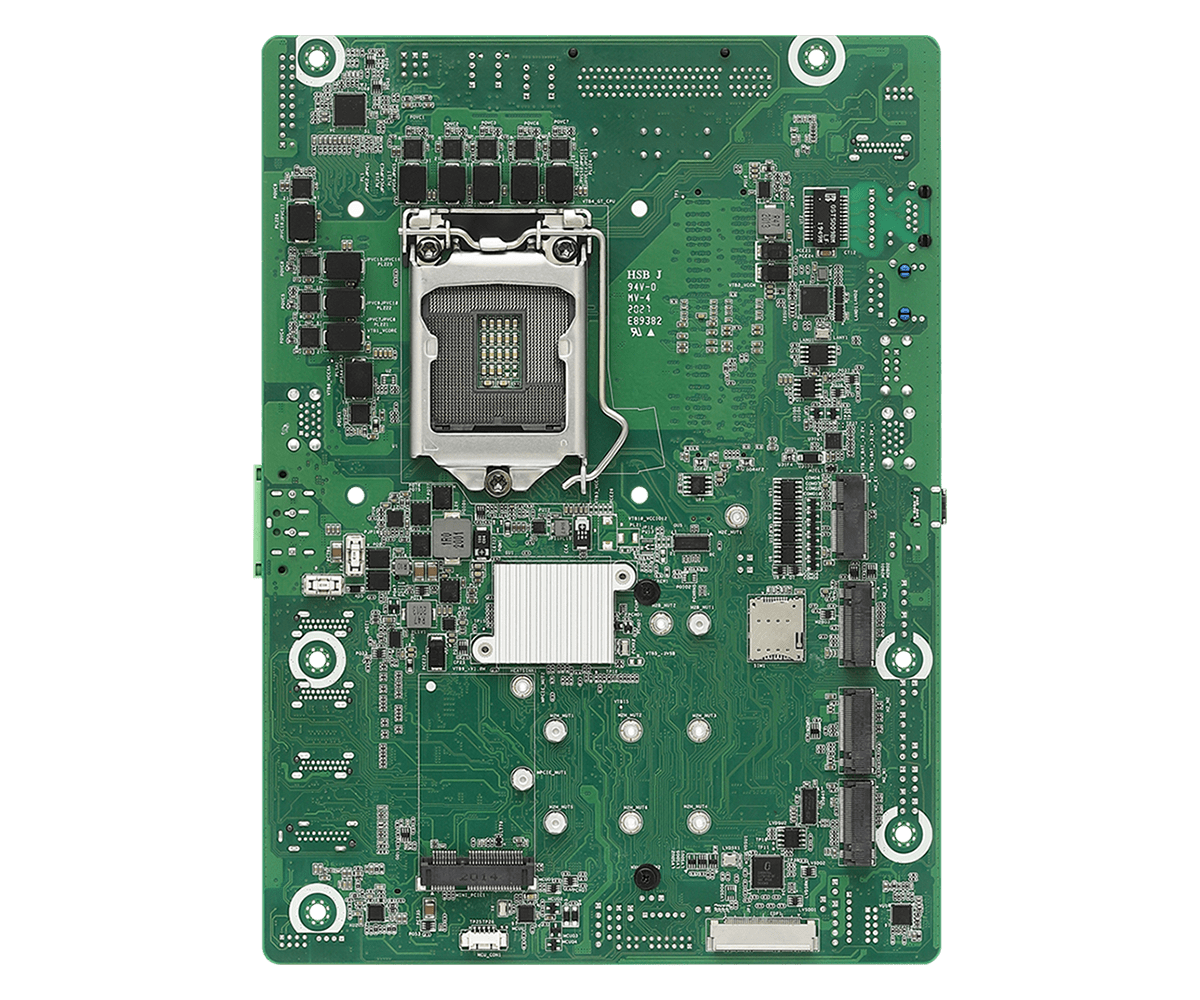

Proprietary Motherboard

●Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
●2 x 260-pin SO-DIMM DDR4 2933 (i9/i7 CPU) / 2666 (i5/i3 CPU) / 2400 (Pentium/ Celeron CPU), up to 64GB
●Supports MXM Graphics Card (Type-A or Type-B , Up to 150W)
●1 x PCIe x4 Gen3, 1 x mini-PCIe
●4 x USB 3.2 Gen1, 1 x USB 3.2 Gen1 (Type-C), 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 4 x SATA3
●1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN

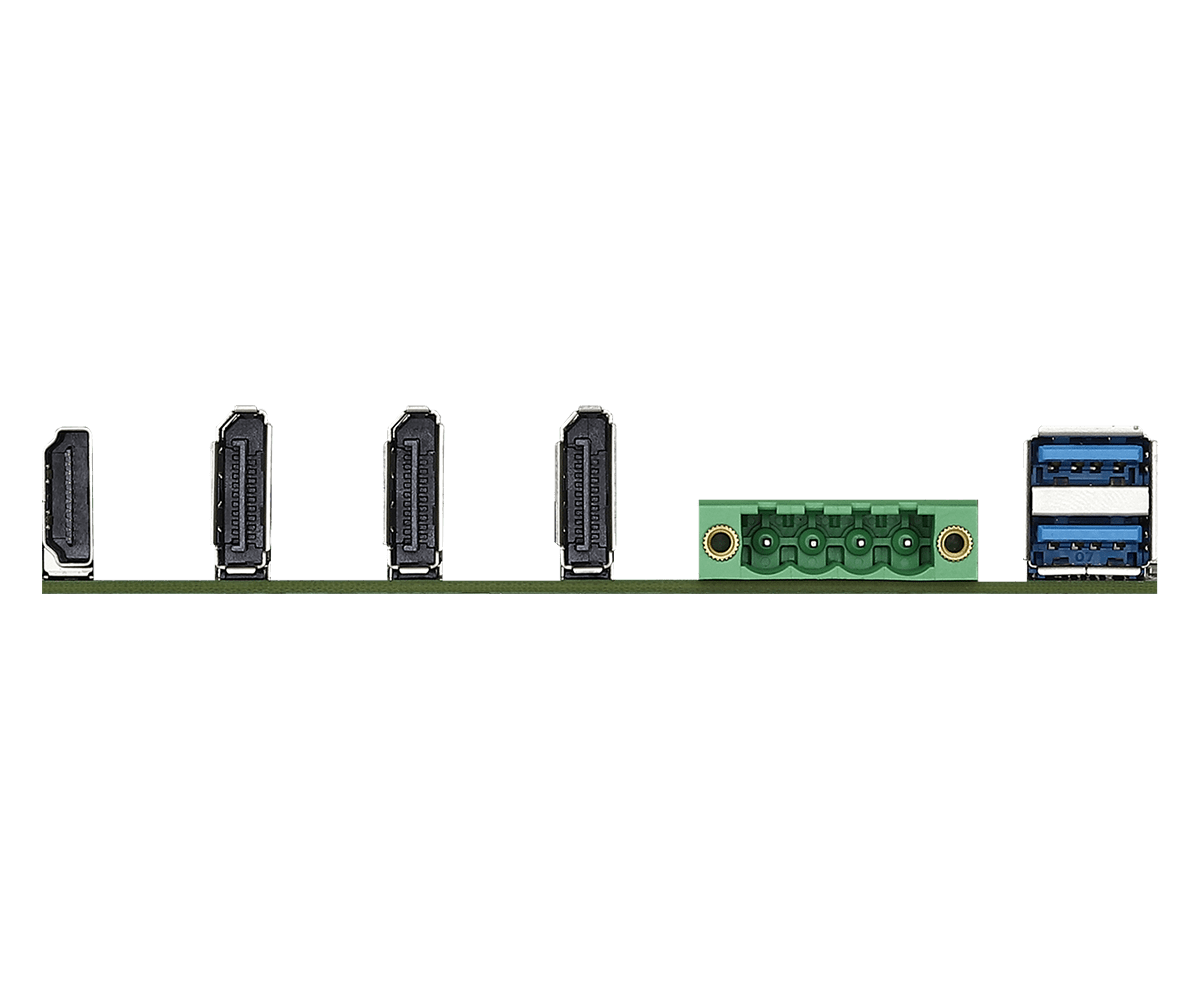

●Supports Hepta display, 1 x DP 1.2, 1 x VGA, 1 x eDP 1.4 / LVDS (from CPU) and 3 x DP 1.2, 1 x HDMI 2.0a (from MXM)
●TPM 2.0 onboard IC
●Supports Intel® vPro, AMT, RAID 0/1/5/10
●18~26V DC-In wide range DC input with lockable connector (Max power 300W)

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 10th Gen (Cometlake-S) Core™ Processors,up to 125 W
Chipset	Intel® Q470E
Socket	LGA1200
BIOS	AMI SPI 256 Mbit

Dimensions	7.0-in x 9.6-in, 17.8 cm x 24.4 cm

Technology	Dual Channel DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz
Capacity	64GB (32GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Controller	- CPU integrated graphics to support 1 x DP + 1 x VGA + 1 eDP / LVDS (Gen9 Intel® Graphics, Support for DirectX 11/12, OpenCL 2.0) - Add on MXM Graphic Card (Type B) to support 3 x DP + 1 x HDMI - NVIDIA® Quadro series P5000, NVIDIA® GeForce GTX 1050 / 1060 / 1070 / 1080
eDP	eDP 1.4 Max resolution up to 4096 x 2304 @60Hz
VGA	Max resolution up to 1920 x 1200 @60Hz
DisplayPort	DisplayPort 1.2 , DP++ Max resolution up to 4096 x 2160 @60Hz
HDMI	HDMI 2.0a Max resolution up to 4096 x 2160 @60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200 @60Hz
MultiDisplay	Hepta Display

M.2	1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless and BT 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB 2.0 and SIM for 4G / 5G
PCIe	1 x PCIe x4 Gen3
SIM Socket	1 x SIM socket connected to M.2 key B
mini-PCIe	1 x Full Size with PCIe x1 and USB 2.0

Interface	Realtek ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In 3W audio amplifier supported (Realtek ALC122)

Controller/ Speed	LAN1: Intel® I219LM, with 10 / 100 / 1000 Mbps, support AMT / vPro LAN2: Intel® I225V with 10 / 100 / 1000 / 2500 Mbps
Connector	2 x RJ-45

M.2	1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3_2 and PCIe x4 for SSD 1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 or PCIe x 4 for SSD
SATA	4 x SATA3 (6Gb/s)
RAID	Intel® SATA RAID 0/1/5/10

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	18~26V DC-In Jack (220W for Quadro P5000, GTX1060/1070, 270W for GTX1080
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
