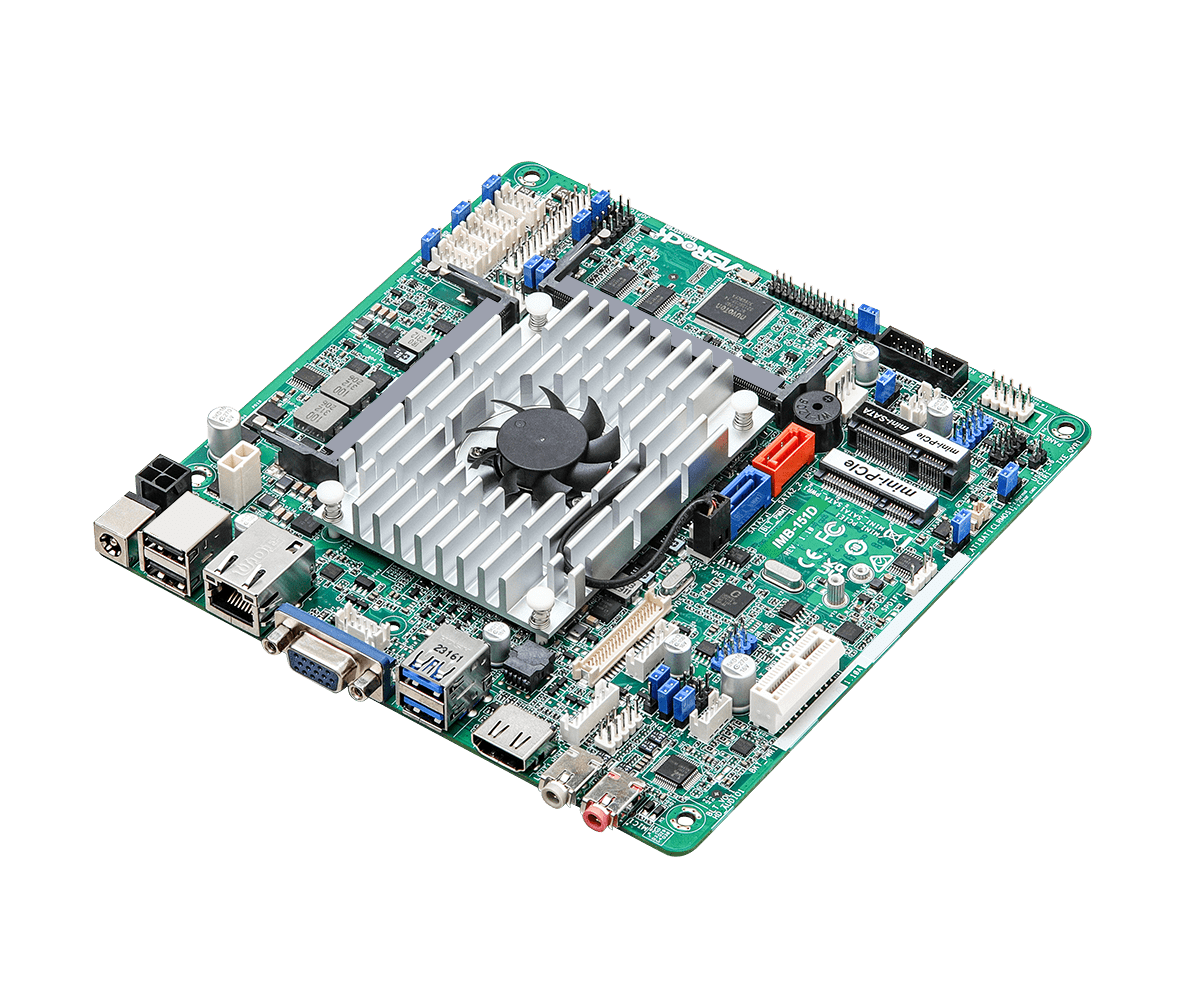

Mini-ITX Motherboard

●Intel® Baytrail SoC Processor J1900 (IMB-151D / IMB-151D-WF) / N2930 (IMB-151N)
●Supports Dual Channel DDR3L SO-DIMM 1333, up to 8GB
●1 x HDMI, 1 x VGA, 1 x LVDS
●4 x USB 3.0, 6 x USB 2.0, 2 x SATA2
●1 x Mini-PCIe, 1 x PCIe x1, 1 x mSATA
●1 x Realtek LAN
●1 x TPM Header
●12~19 V DC-in

产品型录产品咨询

产品规格

支援下载

Processor System

CPU	Intel® Baytrail SoC Processor -IMB-151D (J1900, QC, 2.00 GHz, 10 W) -IMB-151D-WF (J1900, QC, 2.00 GHz, 10 W) -IMB-151N (N2930, QC, 1.83 GHz, 7.5 W)
Chipset	SoC

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR3 1333 MHz
Capacity	8GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen7 Intel Graphics DX 11*, OGL3.2
HDMI	Supports max resolution up to 1920 x 1200
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Supports max resolution up to 1920 x 1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x1
mini-PCIe/mSATA	1 x Full size with PCIe x1, SATA2 and USB 2.0
mini-PCIe	1 x Half size with PCIe x1 and USB 2.0

Audio

Interface	Realtek ALC662/897 HD, High Definition Audio. Mic-in / Line-out

Ethernet

Controller/ Speed	10/100/1000 Mbps
Connector	1 x Realtek RTL8111G/RTL8111H-CG

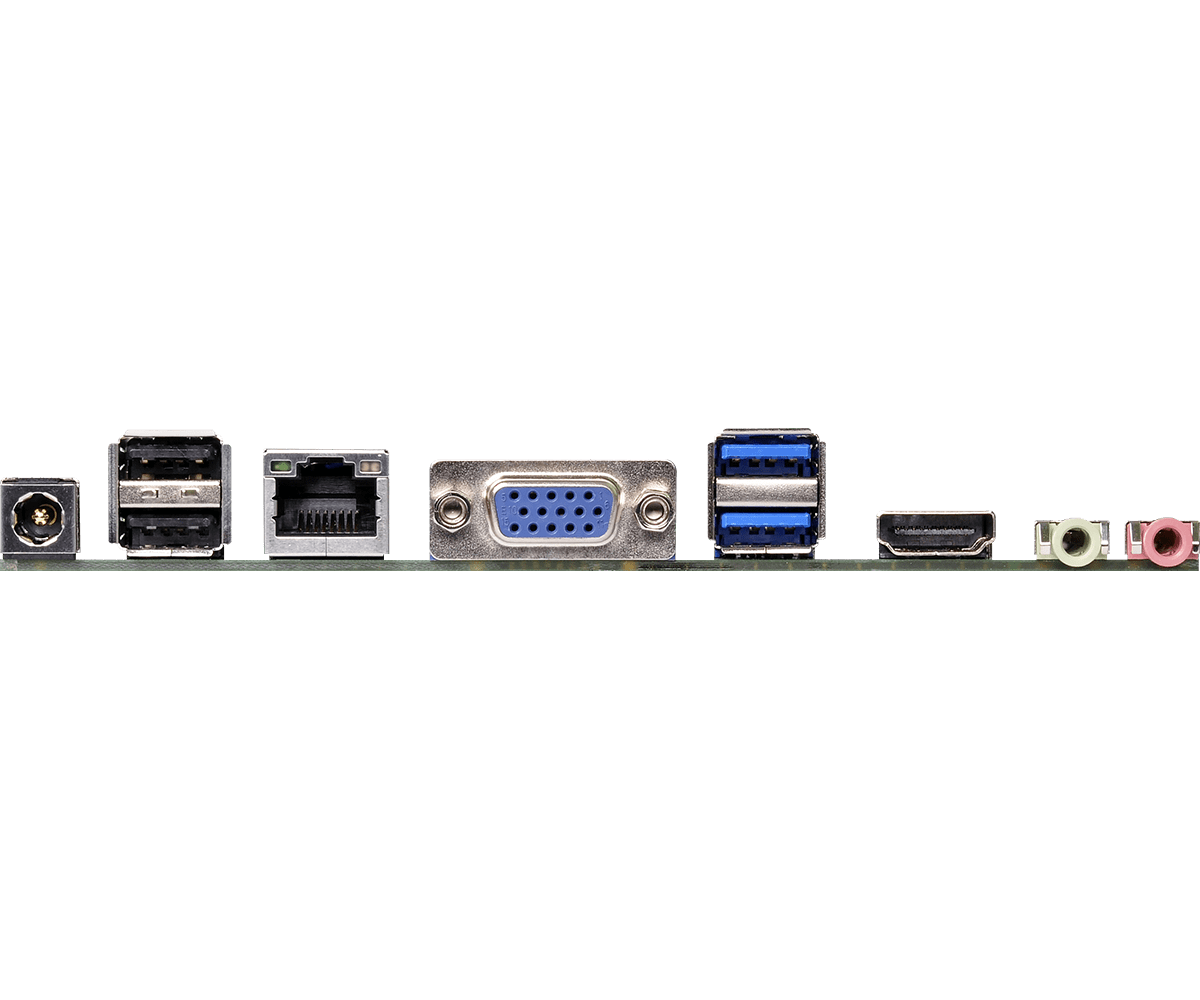

Rear I/O

HDMI	1
VGA	1
Ethernet	1
USB	2 x USB 3.0, 2 x USB 2.0
Audio	2 (Mic-in, Line-out)
DC Jack	1

Internal Connector

USB	2 x USB 3.0, 4 x USB 2.0
COM	4 x COM (RS-232), 1 x COM (RS-232/422/485)
Parallel	1
GPIO	4 x GPI + 4 x GPO
TPM	1 x Header
LVDS	1
SATA PWR Output	1
Speaker Header	1
VGA	1

Storage

SATA	2 x SATA2

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~19V DC-In (4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020189000AK) 1 x I/O Shield THIN (13G020190000AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020189000AK) 1 x I/O Shield THIN (13G020190000AK)
