Mini-ITX Motherboard

●Intel® Baytrail SoC Processor J1900
●Integrated Intel® Gen7 Intel Graphics DX 11*, OGL3.2
●Supports Dual Channel DDR3L 1333MHz, 2 x SO-DIMM, up to 8GB system memory
●1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
●4 x USB 3.0, 6 x USB 2.0, 2 x SATA2
●1 x mini-PCIe, 1 x PCIe x1 slot
●Gigabit LAN : 1 x Realtek Lan
●1 x TPM Header
●12 V DC-in

产品型录产品咨询

产品规格

支援下载

Processor System

CPU	Intel® Baytrail SoC Processor J1900, QC, 2.00 GHz, 10 W
Chipset	SoC
BIOS	UEFI

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR3 1333 MHz
Capacity	8 GB
Socket	1 x SO-DIMM

Graphics

Controller	Intel® Gen7 Intel Graphics DX 11*, OGL3.2
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Supports max resolution up to 1920 x 1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x1
mini-PCIe	1 x Half size with PCIe x1

Audio

Interface	Realtek ALC662/897 HD, High Definition Audio. Mic-in / Line-out

Ethernet

Controller/ Speed	10/100/1000 Mbps
Connector	1 x Realtek RTL8111G/RTL8111H-CG

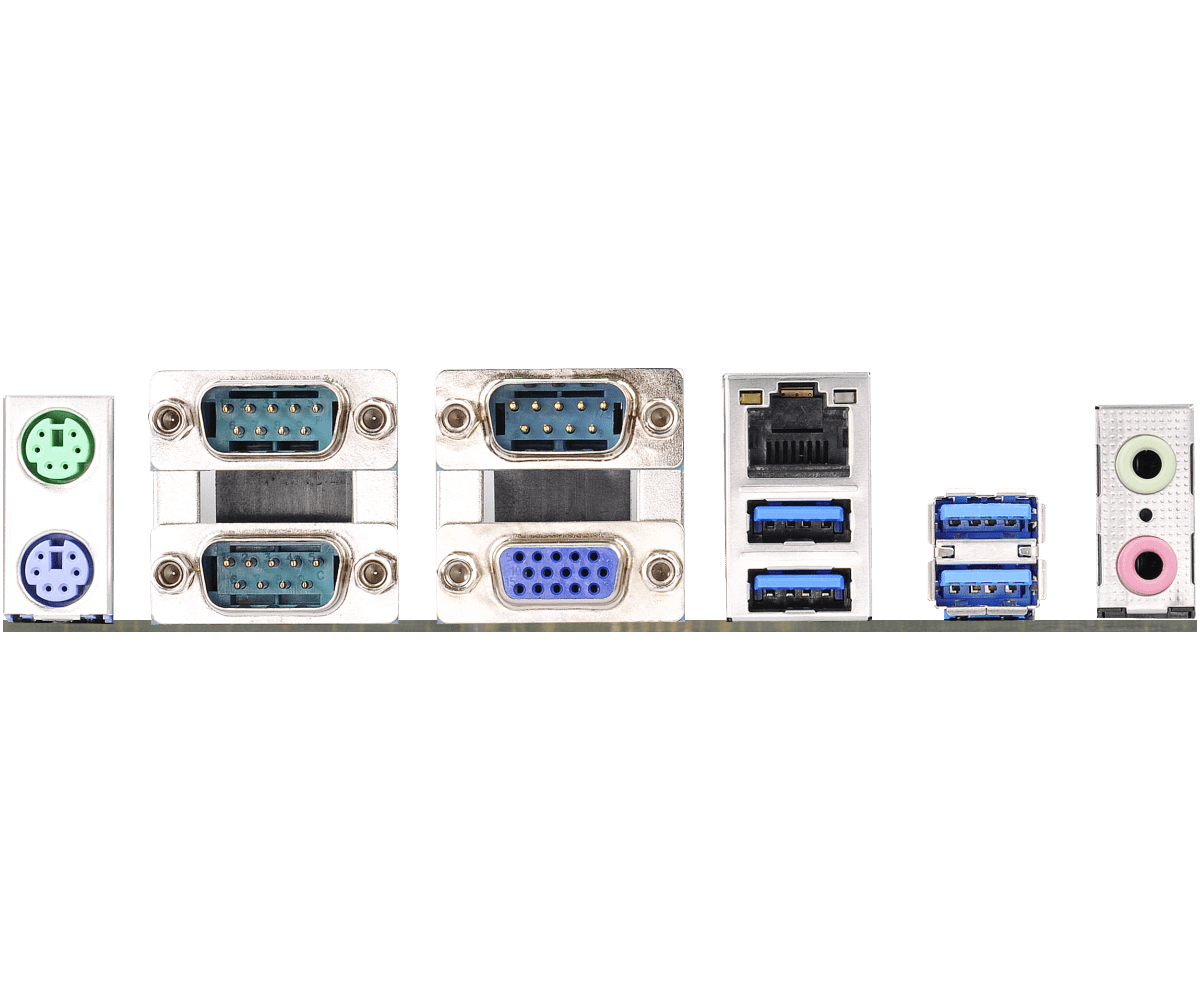

Rear I/O

VGA	1
Ethernet	1 Optional 2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
PS2	2 (1 x keyboard and 1 x mouse)
COM	3 x RS-232

Internal Connector

USB	6 (3 x 2.54 pitch header USB 2.0 compliant)
Parallel	1
GPIO	4 x GPI + 4 x GPO Share with COM 5
TPM	1 x Header
LVDS	1
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA2 (3.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-In (4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305010AK) 1 x I/O Shield (13G020244000AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305010AK) 1 x I/O Shield (13G020244000AK)
