Mini-ITX Motherboard

●Intel® Braswell SoC Processor N3160
●Supports Dual Channel DDR3L SO-DIMM 1333 / 1600, up to 8GB
●1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS / eDP
●4 x USB 3.0, 4 x USB 2.0, 1 x SATA3, 6 x COM
●1 x Mini-PCIe, 1 x PCIe x1, 1 x mSATA
●2 x Realtek LAN
●1 x TPM Header
●+12V or +19V~+24V DC-In

产品型录产品咨询

产品规格

支援下载

Processor System

CPU	Intel® Braswell SoC Processor N3160, QC, 1.60 GHz, 6 W
Chipset	SoC

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR3L 1333 / 1600MHz
Capacity	8GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen8 Intel Graphics DX 11*, OGL3.2
HDMI	Supports max resolution up to 1920 x 1200
VGA	Supports max resolution up to 1920 x 1200
LVDS	Supports max resolution up to 1920 x 1200@60Hz
eDP	Supports max resolution up to 4096 x 2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x1
mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps

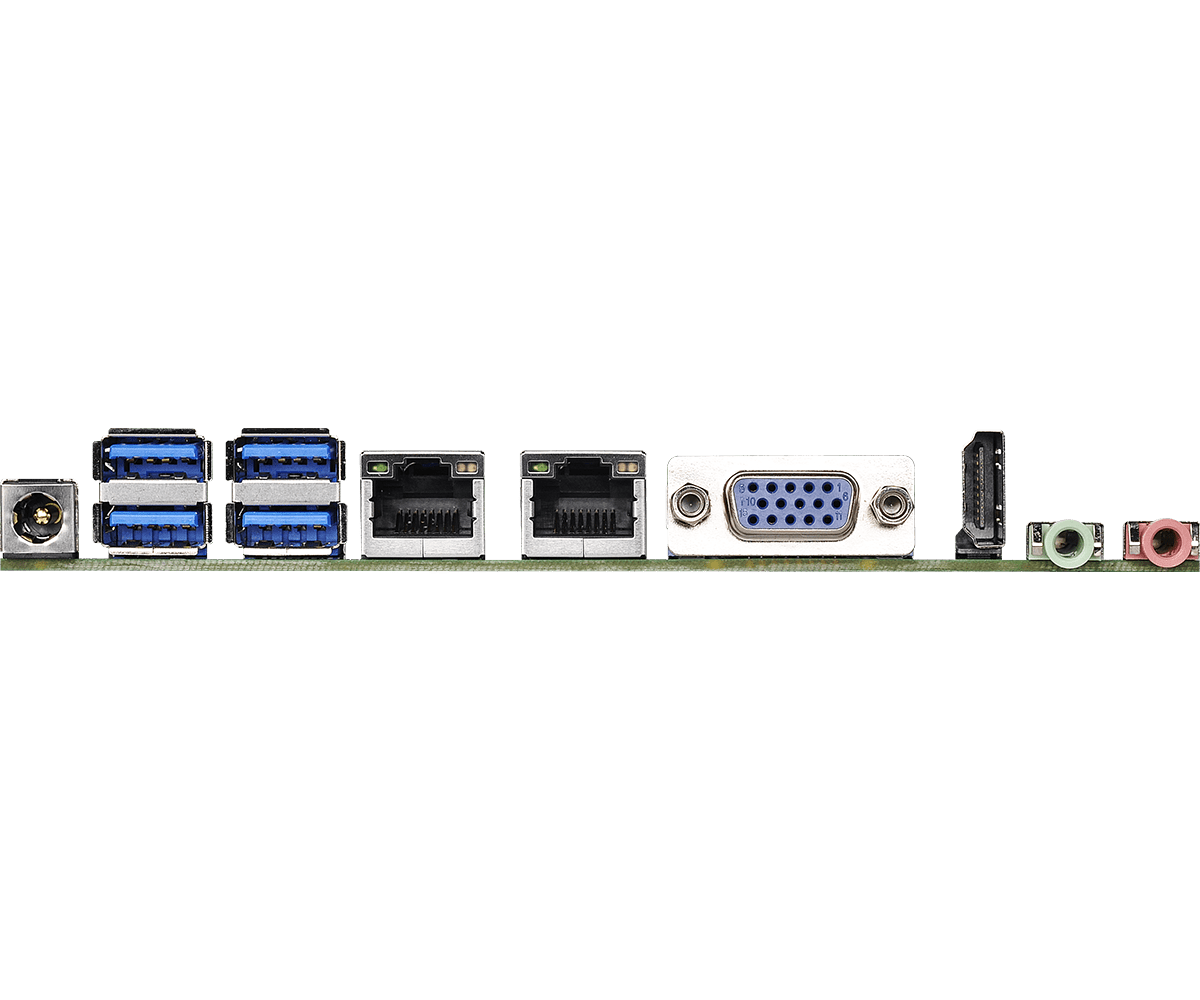

Rear I/O

HDMI	1
VGA	1
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
DC Jack	1

Internal Connector

USB	4 x USB 2.0
COM	4 x COM (RS-232), 2 x COM (RS-232/RS-422/485)
Parallel	1 (Co-lay with 8in / 8out DIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	1 x Header
LVDS	1
SATA PWR Output	1
Speaker Header	1
VGA	1

Storage

SATA	1 x SATA3 (6.0Gb/s)
mSATA	1 x Full size with SATA3

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V or 19~24V DC in (4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020320000AK) 1 x I/O Shield THIN (13G020320010AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020320000AK) 1 x I/O Shield THIN (13G020320010AK)

说明	资讯	操作系统	日期	下载
BIOS 2.40	1. Update audio codec 2. Enhance LAN compatibility		2025-02-28
Jumpers and headers setting guide	快速跳线手册		2025-02-28
User Manual	用户手册		2025-02-28
INF driver ver:10.0.26	驱动程序	Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7	2025-02-28
Intel Smart Connect driver ver:4.2.41.2710	驱动程序	Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7	2025-02-28
Intel Serial IO driver ver:1.0	驱动程序	Win 8.1 x 64	2025-02-28
Realtek Lan driver ver:7086	驱动程序	Win 7 x 64 , Win 7	2025-02-28
Realtek Lan driver ver:8025 (Support ASRock Cloud)	驱动程序	Win 8.1 x 64 , Win 8 x 64	2025-02-28
Realtek Teaming driver ver:2.0.2.7	驱动程序	Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7	2025-02-28
COM Port driver ver:1.0.2011.1109	驱动程序	Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7	2025-02-28
Intel Dynamic Platform and Thermal Framework (Intel DPTF) driver ver:8.1.10300.137	驱动程序	Win 8.1 x 64	2025-02-28
Intel iRMT ver:1.1.50.493	驱动程序	Win 8.1 x 64 , Win 7 x 64	2025-02-28
Intel Trusted Execution Engine ver:2.0.0.2060	驱动程序	Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7	2025-02-28
Intel USB 3.0 driver ver:4.0.0.27	驱动程序	Win 7 x 64 , Win 7	2025-02-28
Intel USB 3.0 Adaptation driver ver:1.0.0.26	驱动程序	Win 8.1 x 64	2025-02-28
VGA driver ver:15.38.5.64.4277	驱动程序	Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64	2025-02-28
VGA driver ver:15.40.4.4300	驱动程序	Win 10	2025-02-28
Intel Smart Connect utility ver:1.0.7	驱动程序	Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7	2025-02-28
Realtek Lan driver ver:7136_02232021	驱动程序	Win 7 x 64 , Win 7	2025-02-28
Realtek high definition audio driver ver:9151_FF00	驱动程序	Win 10 x 64	2025-02-28
