首页 > 产品系列 > 工业主板 & 单板电脑 > 工业级主机板 > Mini-ITX > IMB-156
< >

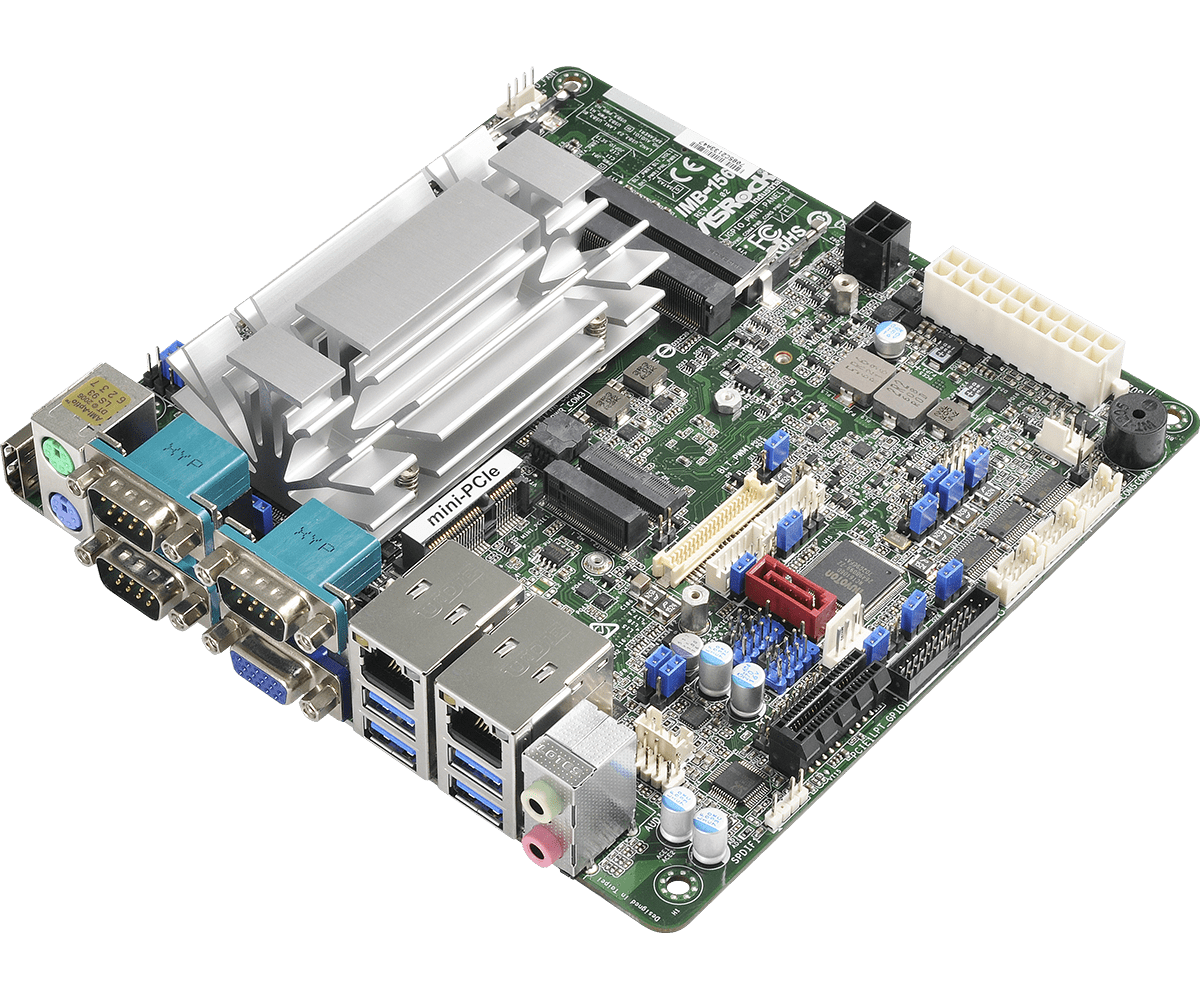

IMB-156

Mini-ITX Motherboard

  • ●Intel® Apollo Lake SoC Processor

  • ●2 x 204-pin SO-DIMM up to 16GB DDR3L 1866 MHz (8GB per DIMM)

  • ●1 x PCIe x1 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x M.2 Key M, 1 x M.2 Key E, 6 x COM, 1 x SATA3

  • ●2 x Realtek 1 Gigabit LAN

  • ●Supports triple display, 1 x HDMI 1.4b, 1 x VGA, 1 x LVDS

  • ●TPM header

  • ●12V or +19V~+24V DC-In / ATX PWR


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Apollo Lake SoC Processor
-IMB-156M (E3940, QC, 1.6 GHz, 9.5 W)
-IMB-156J (J3455, QC, 1.5 GHz, 10 W)
-IMB-156D (N4200, QC, 1.1 GHz, 6 W)
-IMB-156L (N3350, DC, 1.1 GHz, 6 W)
ChipsetSoC
BIOSAMI SPI 128 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

TechnologyDual Channel DDR3L 1866 MHz
Capacity16 GB (8GB per DIMM)
Socket2 x 204-pin SO-DIMM

Graphics

ControllerIntel® Gen9 Graphics DX 12
HDMIHDMI 1.4b
Max resolution up to 4096 x 2160@24Hz
VGAMax resolution up to 1920 x 1200@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplayTriple Display

Expansion Slot

PCIe1 x PCIe x1 (Gen2)
mini-PCIe1 x Full size with PCIe x1 and shared USB 2.0
M.21 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless

Audio

InterfaceRealtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector2 x RJ-45

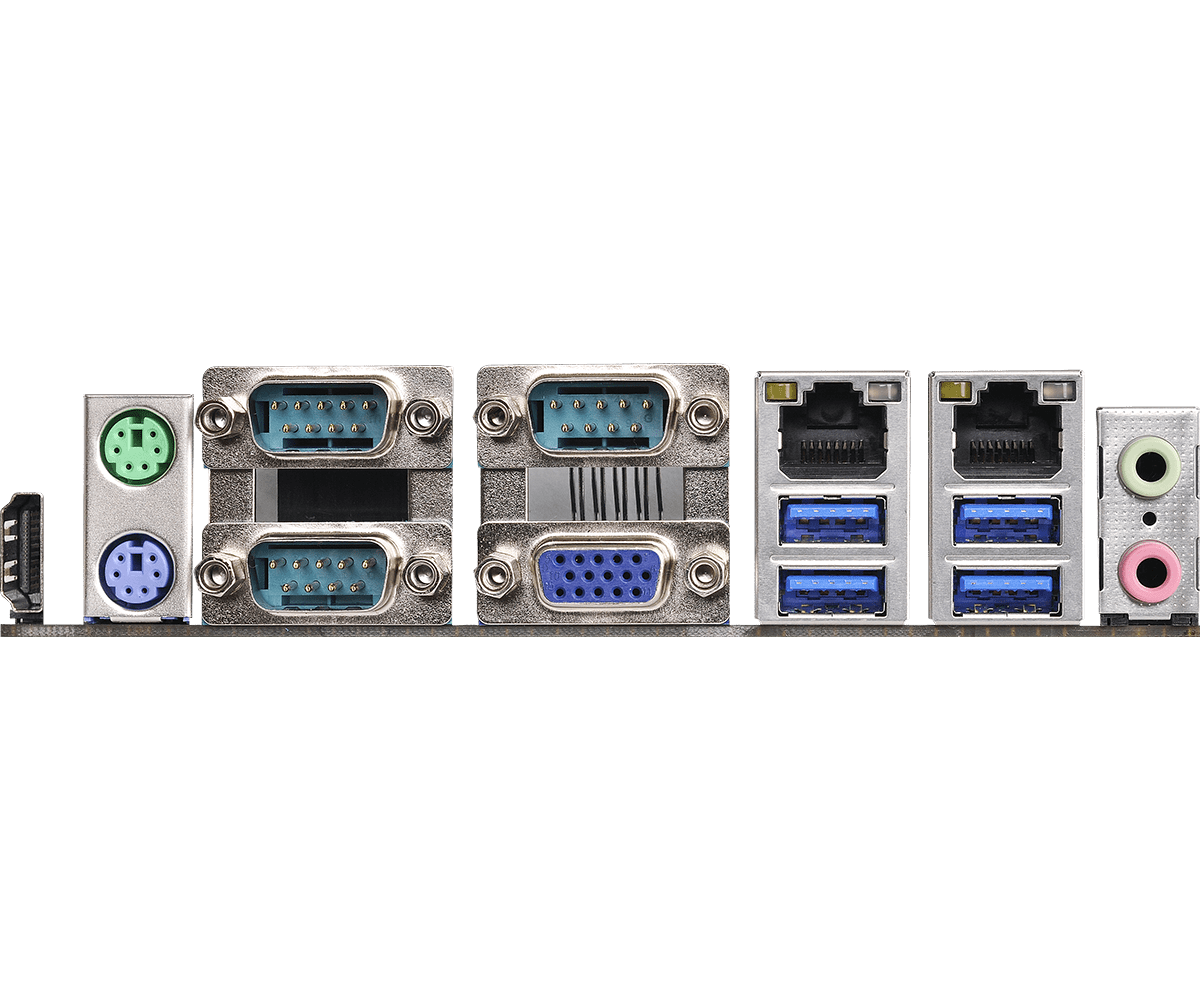

Rear I/O

HDMI1 x HDMI 1.4b
VGA1
Ethernet2 x Realtek 1 Gigabit LAN
USB4 x USB 3.0
Audio2 (Mic-in, Line-out)
COM3 x COM (RS-232/422/485)
PS21 x PS / 2 combo

Internal Connector

USB4 x USB 2.0 (2 x 2.54 pitch header)
COM3 x COM (RS-232)
Parallel1 (shared with GPIO)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPMTPM Header
LVDS1
SATA PWR Output1
Speaker Header1

Storage

M.21 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD
SATA1 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12V or +19V~+24V DC-In / ATX PWR
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package2 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020221000AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package2 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020221000AK)


说明 资讯 操作系统 日期 下载
BIOS 1.80 Enhance LAN compatibility 2025-02-28
Jumpers and headers setting guide 快速跳线手册 2025-02-28
User Manual 用户手册 2025-02-28
Realtek Lan driver ver:10047_02232021 驱动程序 Win 10 x 64 2025-02-28
Realtek high definition audio driver ver:9151_FF00 驱动程序 Win 10 x 64 2025-02-28
INF driver ver:10.1.1.34 驱动程序 Win 10 x 64 2025-02-28
Intel Serial IO driver ver:30.100.1631.03_PV 驱动程序 Win 10 x 64 2025-02-28
Intel Trusted Execution Engine ver:3.1.75.2351 驱动程序 Win 10 x 64 2025-02-28
Intel iRMT ver:1.1.50.493 驱动程序 Win 10 x 64 2025-02-28
Realtek Teaming driver ver:2.0.2.11 驱动程序 Win 10 x 64 2025-02-28
VGA driver ver:15.45.20.64.4727 驱动程序 2025-02-28
[Beta] VGA driver ver:31.0.101.2114 驱动程序 Win 10 x 64 2025-02-28
