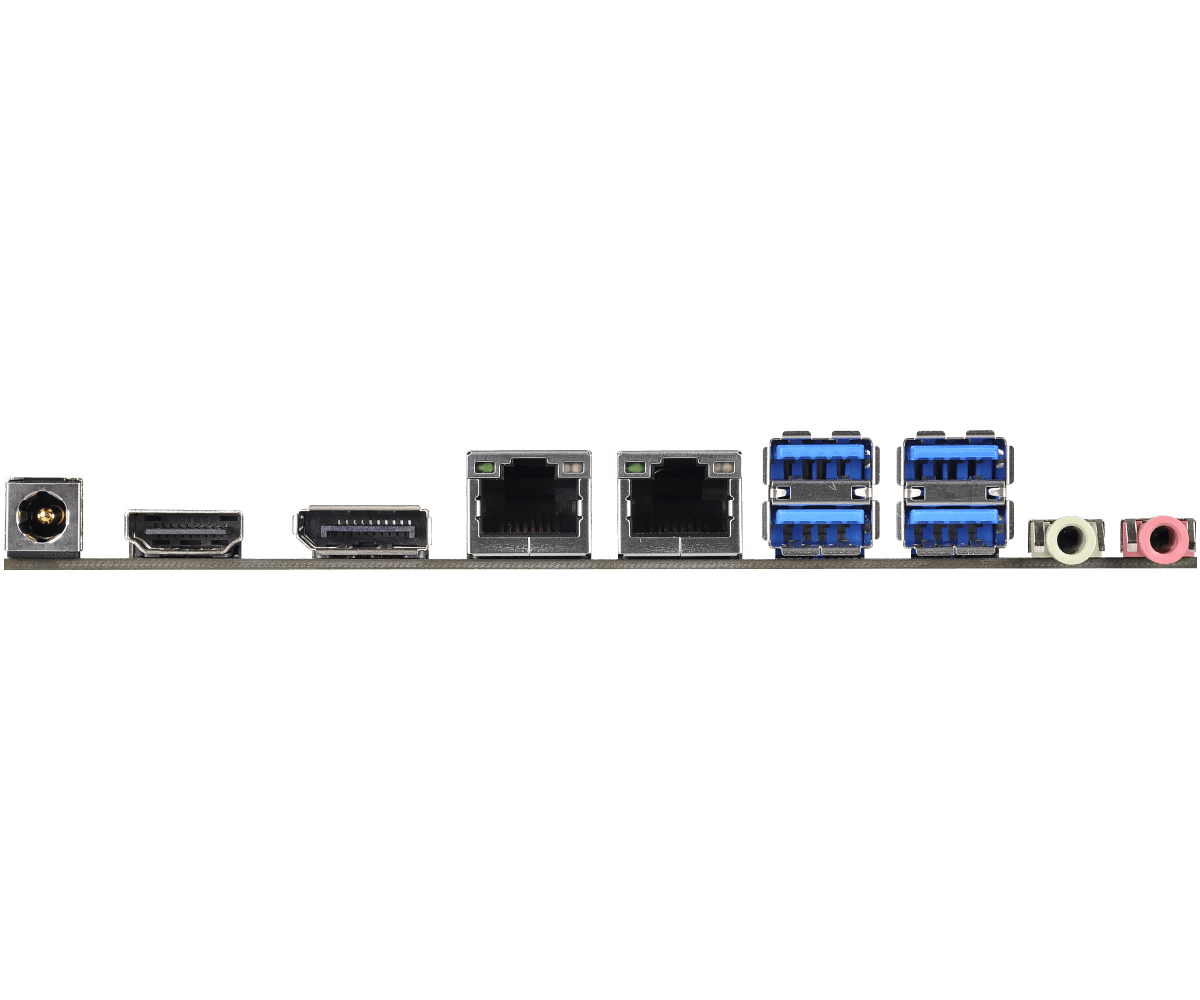

Mini-ITX Motherboard

●Intel® 7th/ 6th Gen (Kabylake-U/Skylake-U) Core™ MCP Processors
●2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
●4 x USB 3.0, 4 x USB 2.0, 1 x mini-PCIe,1 x M.2 Key E, 1 x mSATA, 6 x COM, 2 x SATA3
●1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
●Supports triple display, 1 x HDMI 2.0, 1x VGA, 1 x LVDS (For V sku)
●Supports triple display, 1 x HDMI 2.0, 1 x DP 1.2, 1 x eDP (For D sku)
●TPM Header
●Supports Intel® vPro, AMT, RAID 0/1
●12V/ 19V~24V DC-In

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ MCP Processors -IMB-198M-D (i5-6300U, DC, 2.40 GHz, 15W)
Chipset	MCP
BIOS	AMI SPI 128 Mbit

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Controller	Intel® Gen9 Graphics DX 11/12
HDMI	HDMI 2.0 Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2304@60Hz
VGA	Max resolution up to 1920x1200@60Hz
LVDS	Dual channel 24 bit up to 1920x1200@60Hz
eDP	eDP 1.3 resolution up to 4096x2304@60Hz
MultiDisplay	Triple Display

mini-PCIe	1 x Full/Half size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless

Interface	Realtek ALC887, High Deﬁnition Audio. Line-out,Mic-in

Controller/ Speed	LAN1: Intel I219LM with 10/100/1000 Mbps, supports AMT/vPro LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	COM1, 2(RS-232/422/485) COM3, 4, 5, 6(RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM Header
LVDS	1 (Only for V sku)
eDP	1 (Only for D sku)
VGA	1 x Header (Only for V sku)
SATA PWR Output	1
Speaker Header	1

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	12V or 19~24V DC-In with 4-pin plug PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Gift Package	1 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020256000AK) 1 x I/O Shield THIN (13G020256010AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	1 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020256000AK) 1 x I/O Shield THIN (13G020256010AK)
