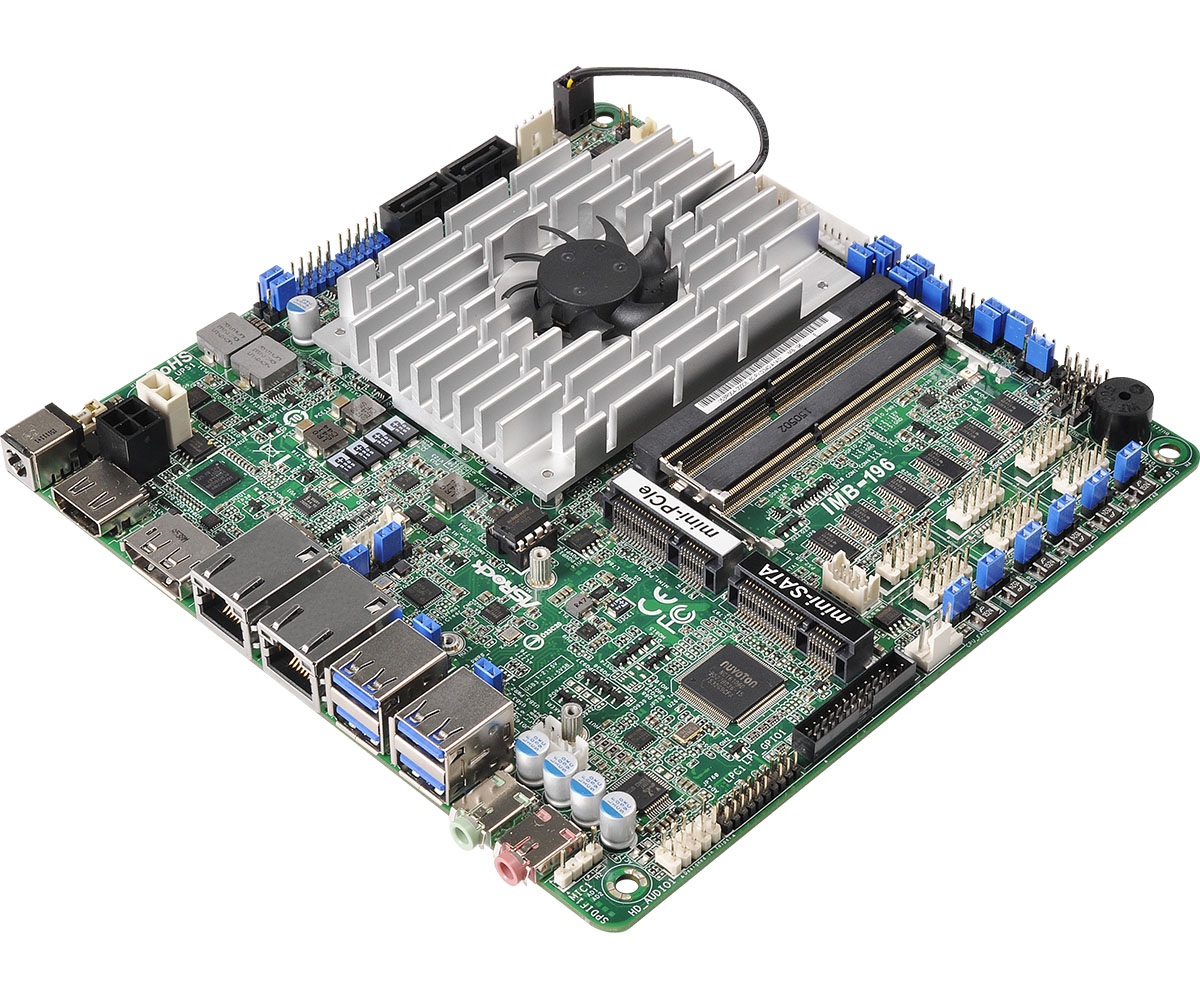

IMB-196

Mini-ITX Motherboard

  • ●BGA1356 for Intel® Core i7 / i5 (Skylake-U)

  • ●Intel® Gen9 Intel® Graphics DX 11 / 12, OGL4.3 / 4.4

  • ●Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory

  • ●1 x VGA, 1 x HDMI, 1 x Displayport, 1 x eDP

  • ●4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3

  • ●1 x Mini-PCIe, 1 x mSATA

  • ●Gigabit LAN : 1 x Intel LAN, 1 x Realtek LAN

  • ●1 x TPM Header

  • ●+12V or +19V~+24V DC-In


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUBGA1356 for Intel® Core i7 / i5 (Skylake-U)
BIOSUEFI

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

TechnologyDual Channel DDR4 2133MHz
Capacity32 GB
Socket2 x SO-DIMM

Graphics

ControllerIntel® Gen9 Graphics DX 11 / 12, OGL4.3 / 4.4
HDMISupports HDMI 1.4a, Max. resolution 4096 x 2160@30Hz
LVDSSupports max resolution up to 1920 x 1200@60Hz
eDPSupports Max. resolution 4096 x 2160@60Hz
DisplayPortSupports DP 1.2, Max. resolution 4096 x 2160@60Hz
VGASupports max resolution up to 1920 x 1200
MultiDisplayTriple Display

Expansion Slot

mini-PCIe1 x Full / Half size with PCIe x1 and USB 2.0

Ethernet

Controller/ Speed1 x Intel® I219LM (vPro) with 10/100/1000 Mbps
Connector2 x RJ-45

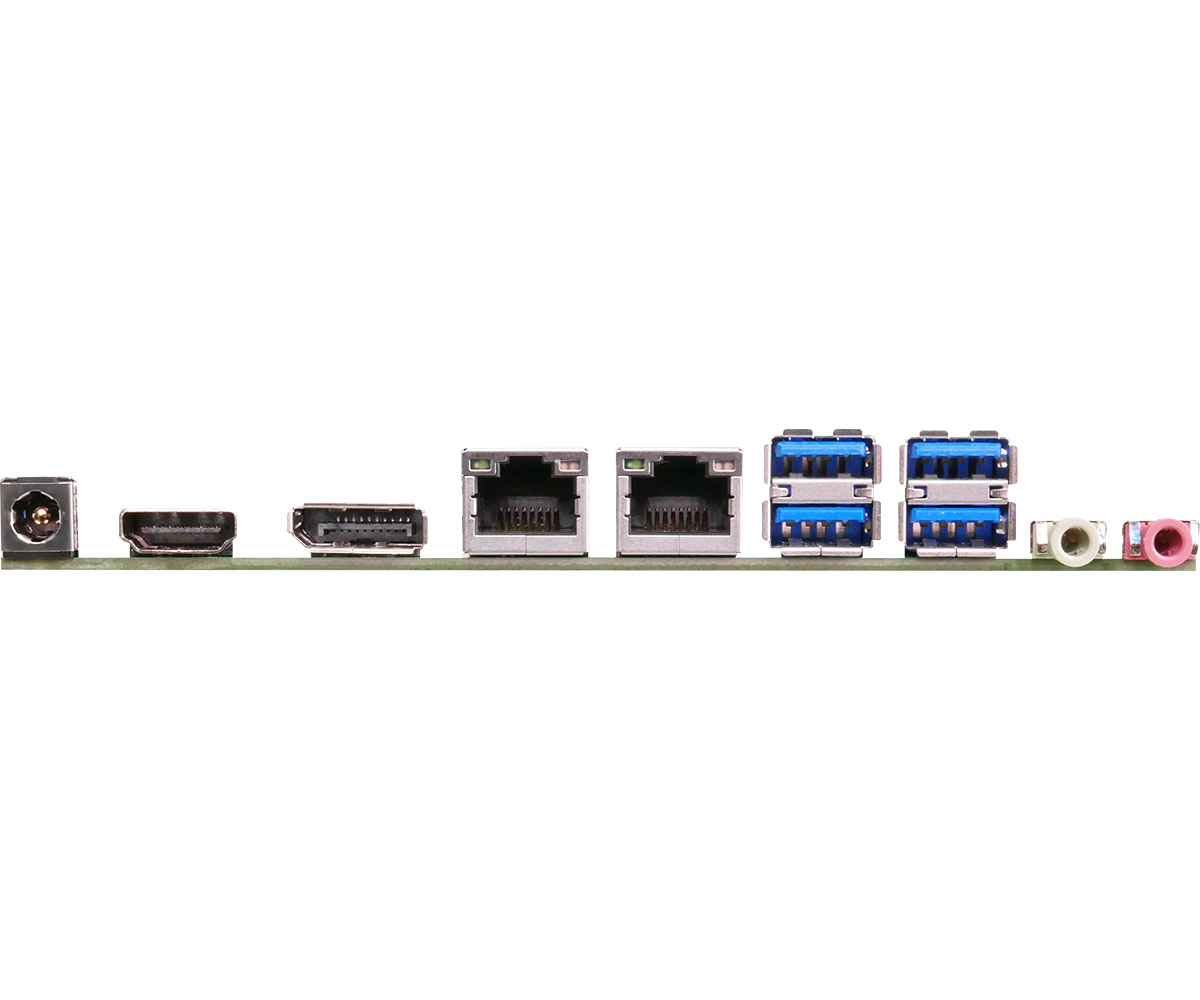

Rear I/O

HDMI1
Ethernet2
USB4 x USB 3.0
Audio2 (Mic-in, Line-out)
DisplayPort1
DC Jack1

Internal Connector

USB4 x USB 2.0 (2 x 2.54 pitch header)
COM6 x COM (COM1 and COM2 with RS-232/422/485)
LVDS1
eDP1
GPIO8 x GPI, 8 x GPO
VGA1
Parallel1 (shared with GPIO)
SATA PWR Output1
Speaker Header1

Storage

SATA2 x SATA3 (6.0Gb/s)
mSATA1 x Full size with SATA3 (shared) and USB 2.0

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR+12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con)
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020256000AK)
1 x I/O Shield THIN (13G020256010AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020256000AK)
1 x I/O Shield THIN (13G020256010AK)


说明 资讯 操作系统 日期 下载
BIOS 1.60 1.Update Intel Microcode 2.Update Intel ME version 3.Enhance chassis fan behavior 2025-02-27
Jumpers and headers setting guide 快速跳线手册 2025-02-27
User Manual 用户手册 2025-02-27
Realtek high definition audio driver ver:7543 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 2025-02-27
INF driver ver:10.1.1.12 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 2025-02-27
Intel Management Engine driver ver:11.0.0.1180 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 2025-02-27
Intel Serial IO driver ver:30.61.1519.07 驱动程序 Win 7 x 64 2025-02-27
Realtek Lan driver ver:7099 驱动程序 Win 7 x 64 , Win 7 2025-02-27
Realtek Lan driver ver:8025 (Support ASRock Cloud) 驱动程序 Win 10 x 64 , Win 8.1 x 64 2025-02-27
Lan driver ver:20.4 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 2025-02-27
COM Port driver ver:1.0.2011.1109 驱动程序 Win 8.1 x 64 , Win 7 x 64 , Win 7 2025-02-27
SATA Floppy Image ver:14.8.0.1042 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 2025-02-27
Intel Rapid Storage Technology driver and utility ver:14.8.0.1042 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 2025-02-27
Intel USB 3.0 driver ver:4.0.0.36 驱动程序 Win 7 x 64 , Win 7 2025-02-27
Intel USB 3.0 Adaptation driver ver:1.0.1.45 驱动程序 Win 8.1 x 64 2025-02-27
VGA driver ver:21.20.16.4541 驱动程序 Win 7 2025-02-27
VGA driver ver:15.40.10.64.4300 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 2025-02-27
ASRock 3TB+ Unlocker utility ver:1.1.1 驱动程序 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 2025-02-27
