Mini-ITX Motherboard

●Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors with H110 chipset
●2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
●1 x PCIe x 16 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA, 4 x COM, 4 x SATA3
●2 x Intel Gigabit LAN
●Supports dual display, 1 x HDMI 1.4b, 1 x DP 1.2a, 1 x VGA, 1 x LVDS
●TPM Header
●ATX PWR

产品型录产品咨询

产品规格

支援下载

Processor System

CPU	Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors
Chipset	Intel® H110
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@24Hz
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096 x 2304@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x16 (Gen2)
mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0

Audio

Interface	Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219V with 10/100/1000Mbps
Connector	2 x RJ-45

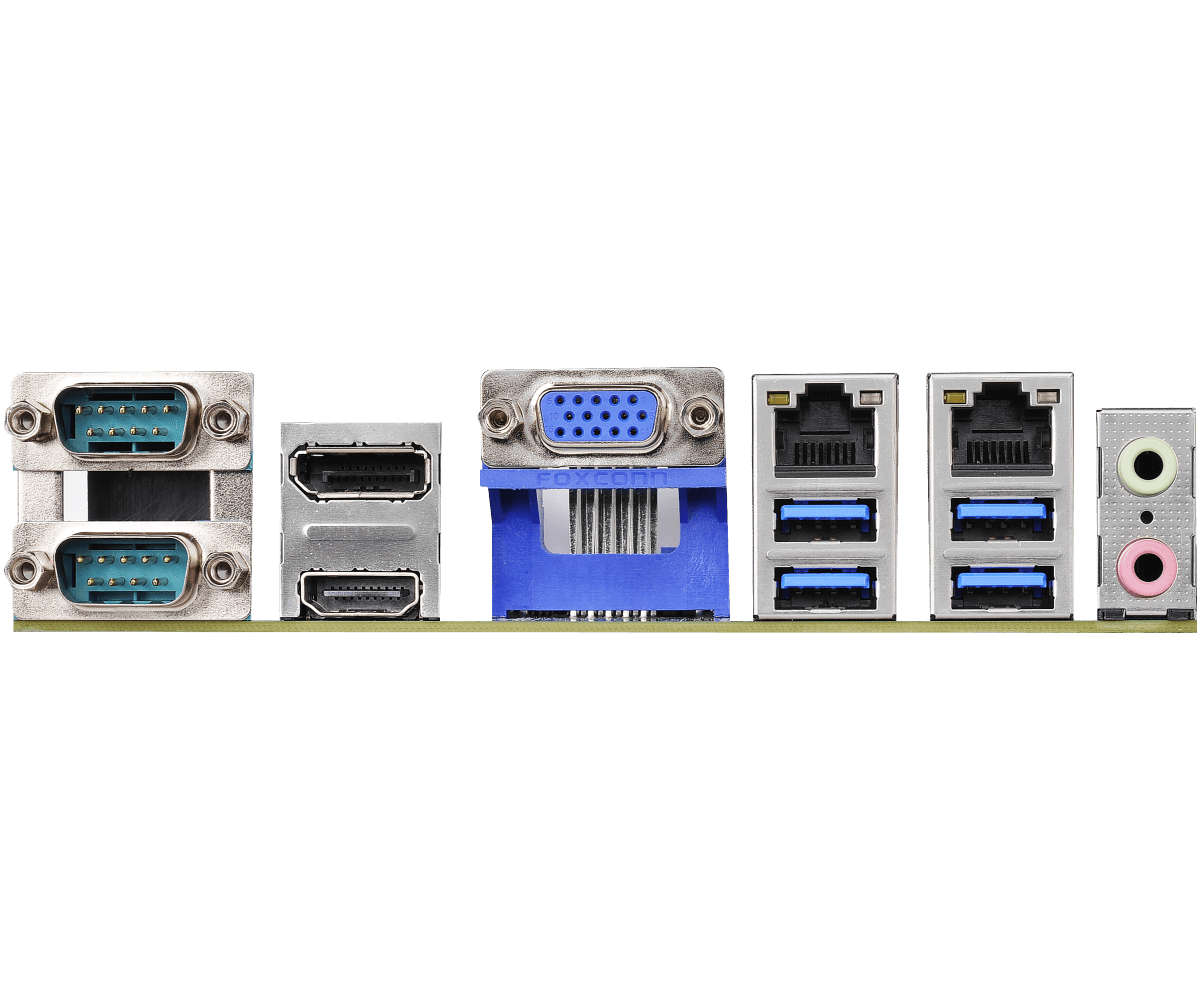

Rear I/O

HDMI	1 x HDMI 1.4b
DisplayPort	1 x DP 1.2
VGA	1
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
COM	COM1 (RS-232/422/485), COM2 (RS-232)

Internal Connector

USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	COM3,4 (RS-232)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	1
Speaker Header	1

Storage

mSATA	1 x Full size with shared SATA3 and USB 2.0
SATA	4 x SATA3 (6Gb/s), SATA3_1 is shared with mSATA

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+4-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020335000AK) 1 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020335000AK)
