IMB-192

Mini-ITX Motherboard

  • ●Intel® 7th/ 6th Gen (Kabylake-S / Skylake-S) Core™ Processors with H110 chipset

  • ●2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)

  • ●1 x PCIe x4 (Gen2), 4 x USB 3.1 Gen1, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM, 2 x SATA3

  • ●1 x Intel Gigabit LAN

  • ●Supports dual display, 1 x HDMI 2.0, 1 x VGA, 1 x LVDS

  • ●TPM Header

  • ●19V DC-In


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUSupports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™
Processors
ChipsetIntel® H110
SocketLGA1151

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

TechnologyDual Channel DDR4 2133 MHz
Capacity32 GB
Socket2 x SO-DIMM

Graphics

ControllerIntel® Gen9 Intel® Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMISupports max resolution up to 4K x 2K (4096 x 2160) @ 24Hz / (3840 x 2160) @ 30Hz
VGASupports max resolution up to 1920 x 1200 @ 60Hz
LVDSSupports max resolution up to 1920 x 1200@60Hz
eDPSupports max resolution up to 4096 x 2160 @60Hz
MultiDisplayDual Display

Expansion Slot

PCIe1 x PCIe x4
M.21 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD

Ethernet

Controller/ SpeedLAN1: Intel® I219V with 10/100/1000 Mbps
Connector1 x RJ-45

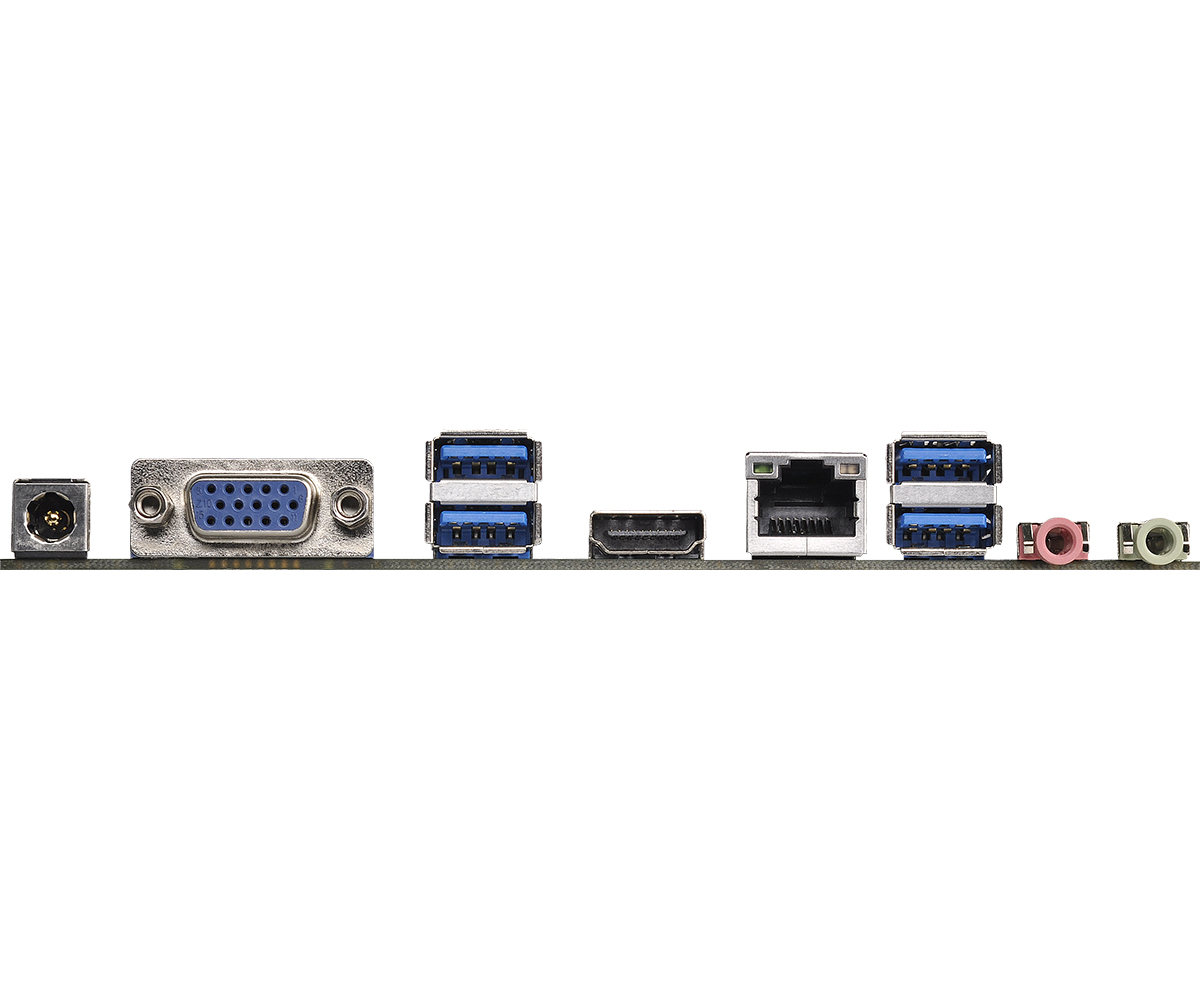

Rear I/O

HDMI1
Ethernet1
USB4 x USB 3.0
Audio2 (Mic-in, Line-out)
VGA1
DC Jack1

Internal Connector

USB5 x USB 2.0 (2 x Header, 1 x Type A)
COM2 x COM (RS-232)
TPMTPM Header
LVDS1
SATA PWR Output1
Speaker Header1

Storage

SATA2 x SATA3 (6.0Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR19V phone jack DC-In
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package2 x SCREW M2,D=5.3 (13G020302010AK)
1 x I/O Shield (13G020313000AK)
1 x I/O Shield THIN (13G020313010AK)
2 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package2 x SCREW M2,D=5.3 (13G020302010AK)
1 x I/O Shield (13G020313000AK)
1 x I/O Shield THIN (13G020313010AK)


说明 资讯 操作系统 日期 下载
BIOS 1.30 1.Update Intel Microcode 2.Update Intel ME version 3.Enhance chassis fan behavior 2025-02-27
Jumpers and headers setting guide 快速跳线手册 2025-02-27
User Manual 用户手册 2025-02-27
CPU Support List CPU支持列表 2025-02-27
Realtek high definition audio driver ver:7614 驱动程序 Win 10 x 64 2025-02-27
Intel Management Engine driver ver:11.7.0.1045 驱动程序 Win 10 x 64 2025-02-27
Intel Lan driver ver:20.2 驱动程序 Win 10 x 64 2025-02-27
SATA Floppy Image ver:14.6.0.1029 驱动程序 Win 10 x 64 2025-02-27
Intel Rapid Storage Technology driver and utility ver:14.6.0.1029 驱动程序 Win 10 x 64 2025-02-27
VGA driver ver:21.20.16.4542 驱动程序 Win 10 x 64 2025-02-27
INF driver ver:10.1.1.14 驱动程序 Win 10 x 64 2025-02-27
