Mini-ITX Motherboard

●Intel® 7th/6th Gen (Kabylake-S / Skylake-S) Core™ Processors with Q170 chipset
●Supports Dual Channel DDR4 SO-DIMM 2133, up to 32GB
●3 x HDMI, 1 x LVDS
●4 x USB 3.0, 4 x USB 2.0, 2 x SATA3, 4 x COM
●2 x Mini-PCIe, 1 x PCIe x4, 1 x mSATA
●2 x Intel® LAN
●1 x TPM Header
●Supports Intel® vPro, AMT, RAID 0/1
●12V / 19~24V DC-in

产品型录产品咨询

产品规格

支援下载

Processor System

CPU	Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors (Socket 1151)
Chipset	Intel® Q170

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32 GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMI	HDMI1: Supports max resolution 4096 x 2160@60Hz HDMI2 & 3: Supports max resolution 4096 x 2160@30Hz
VGA	Supports max resolution up to 1920 x 1200
LVDS	Supports Dual channel 24-bit co-lay with eDP, max resolution up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x4
mini-PCIe	1 x Half size with PCIe x1 and USB 2.0
mini-PCIe/mSATA	1 x Full size with PCIe x1, SATA3 and USB 2.0

Audio

Interface	Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Intel® I219LM with 10/100/1000 Mbps LAN2: Intel® I210 with 10/100/1000Mbps

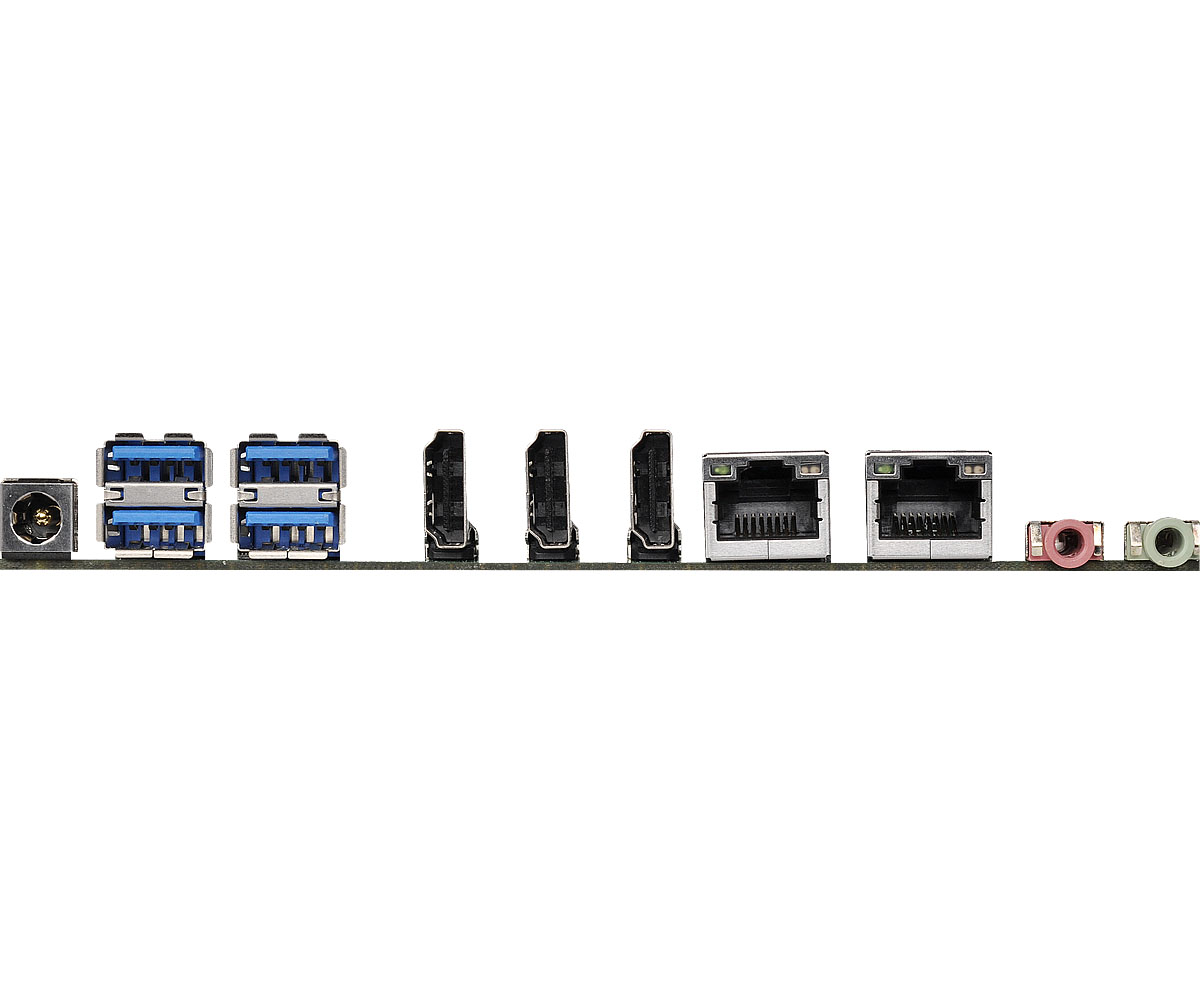

Rear I/O

HDMI	3
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
DC Jack	1

Internal Connector

USB	4 x USB 2.0
COM	2 x COM (RS-232), 2 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
TPM	1 x Header
LVDS	1
VGA	1
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA3 (6.0Gb/s)
RAID	Intel® SATA RAID 0/1

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313020AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020313000AK) 1 x I/O Shield THIN (13G020313020AK)
