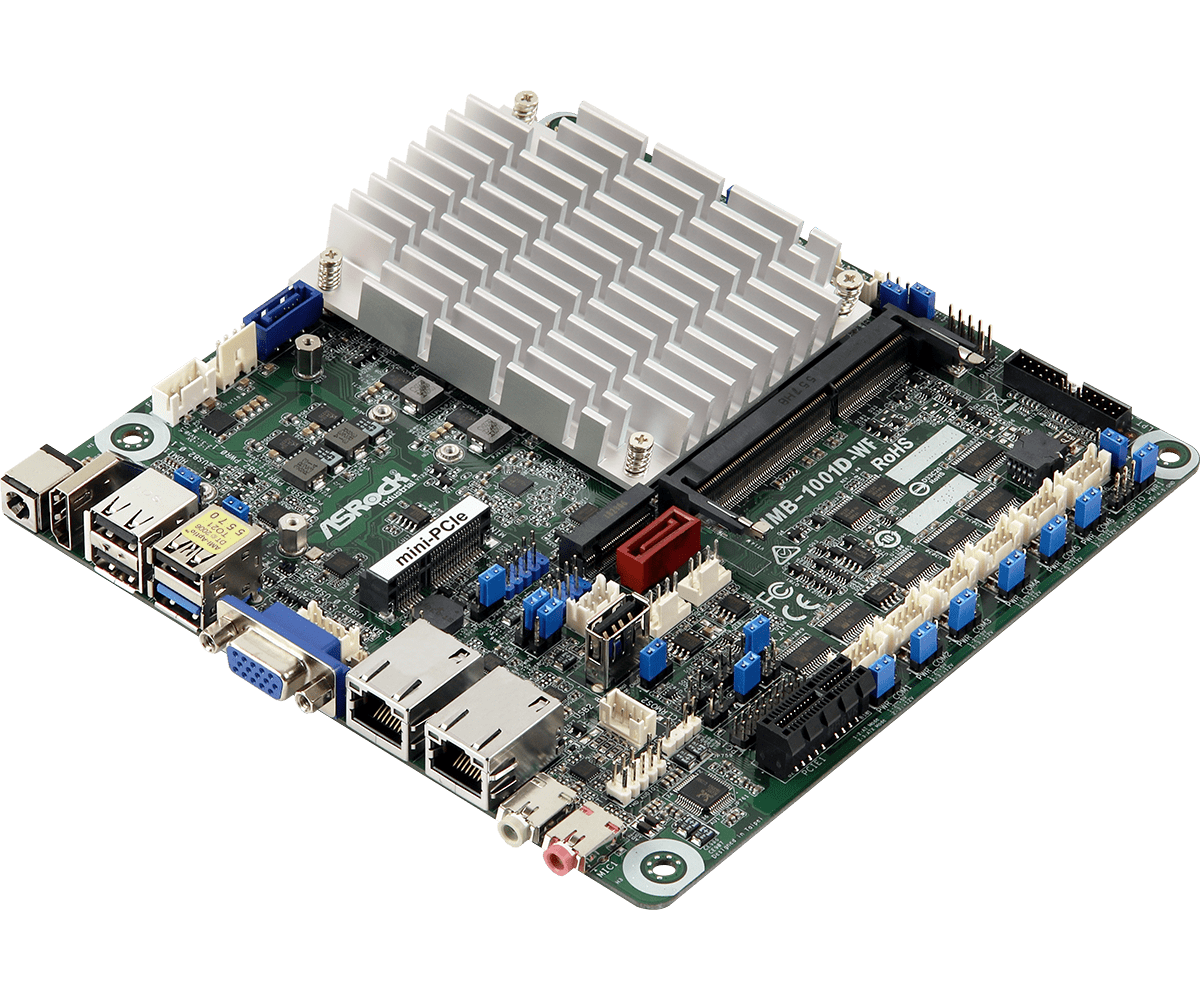

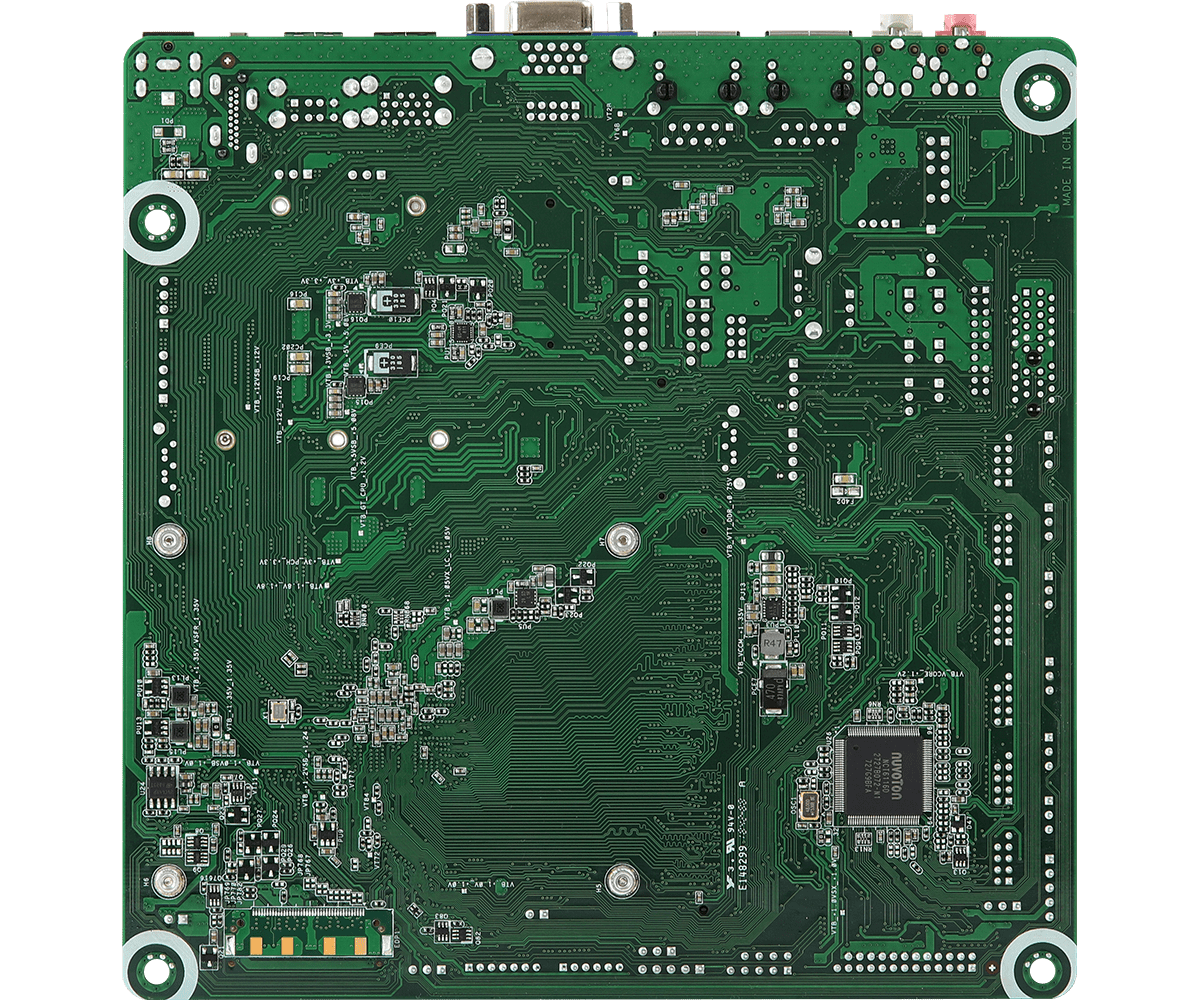

IMB-1001D-WF(EOL)

Mini-ITX Motherboard

  • ●Intel® Baytrail SoC Processor J1900

  • ●1 x 204-pin SO-DIMM up to 8GB DDR3L 1333MHz

  • ●1 x PCIe x1 (Gen2), 1 xUSB 3.1 Gen1, 8 x USB 2.0, 1 x mini-PCIe,

  • ●1 x M.2 Key M, 6 x COM, 2 x SATA2

  • ●2 x Realtek 1 Gigabit LAN

  • ●Supports dual display, 1 x HDMI 1.4a, 1 x VGA, 1 x LVDS

  • ●TPM Header

  • ●12V DC-In


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Baytrail SoC Processor J1900
J1900, QC, 2.00GHz, 10W
ChipsetSoC
BIOSAMI SPI 64 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

TechnologySingle Channel DDR3L 1333 MHz
Capacity8GB
Socket1 x 204-pin SO-DIMM

Graphics

ControllerIntel® Gen7 Graphics DX 11
HDMIHDMI 1.4a
Max resolution up to 1920 x 1200@60Hz
VGAMax resolution up to 1920x1200@60Hz
LVDSDual channel 24 bit up to 1920x1200@60Hz
MultiDisplayDual Display

Expansion Slot

PCIe1 x PCIe x1 (Gen2)
mini-PCIe1 x Full/Half size with PCIe x1 and USB 2.0

Audio

InterfaceRealtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector2 x RJ-45

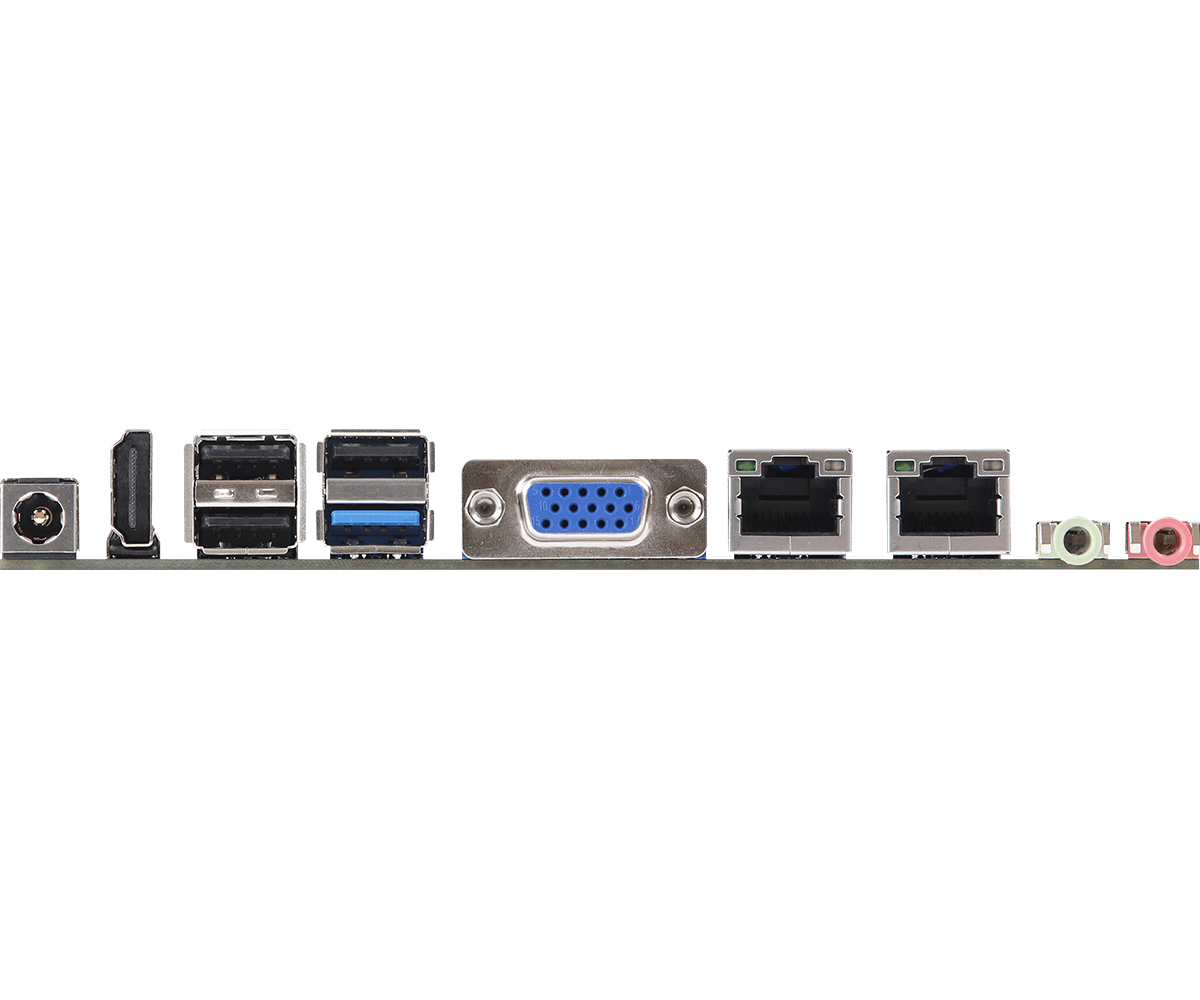

Rear I/O

HDMI1 x HDMI 1.4a
VGA1 (shared with internal VGA)
Ethernet2 x 1 Gigabit LAN
USB1 x USB 3.0, 3 x USB 2.0
Audio2 (Mic-in, Line-out)
DC Jack1

Internal Connector

USB5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COMCOM1, 2, 4, 5, 6(RS-232), COM3 (RS-232/422/485)
Parallel1 (shared with GPIO)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPMTPM Header
LVDS1
VGA1 x Header (shared with VGA port)
SATA PWR Output1
Speaker Header1

Storage

M.21x M.2 (Key M, 2242/2260/2280) with shared SATA2 for SSD
SATA2 x SATA2 (3Gb/s), SATA2_2 shared with M.2 Key M

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12V DC-In (DC Jack)
Power OnAT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
1 x I/O Shield THIN (13G020563010AK)
2 x SCREW M2*2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
Bulk Package1 x I/O Shield THIN (13G020563010AK)
2 x SCREW M2*2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)


说明 资讯 操作系统 日期 下载
BIOS 1.50 Update Intel Microcode for D1 Stepping 2025-02-27
Jumpers and headers setting guide 快速跳线手册 2025-02-27
User Manual 用户手册 2025-02-27
INF driver ver:9.4.4.1006 驱动程序 Win 7 x 64 2025-02-27
VGA driver ver:37.15.0.1091 驱动程序 Win 7 x 64 2025-02-27
Realtek high definition audio driver ver:R271 驱动程序 Win 7 x 64 2025-02-27
Intel Trusted Execution Engine ver:1.1.0.1089 驱动程序 Win 7 x 64 2025-02-27
Intel USB 3.0 driver ver:3.0.0.19 驱动程序 Win 7 x 64 2025-02-27
COM Port driver ver:1.0.2011.1109 驱动程序 Win 7 x 64 2025-02-27
Realtek Lan driver ver:7121 驱动程序 Win 7 x 64 2025-02-27
Realtek Teaming driver ver:2.0.4.0 驱动程序 Win 7 x 64 2025-02-27
ASRock 3TB+ Unlocker utility ver:1.1.1 驱动程序 Win 7 x 64 2025-02-27
