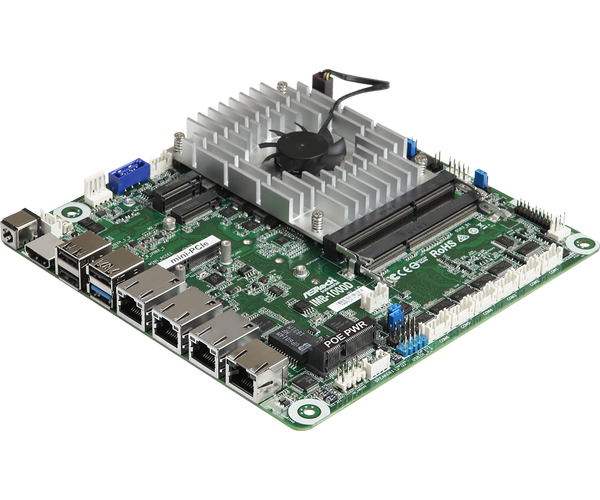

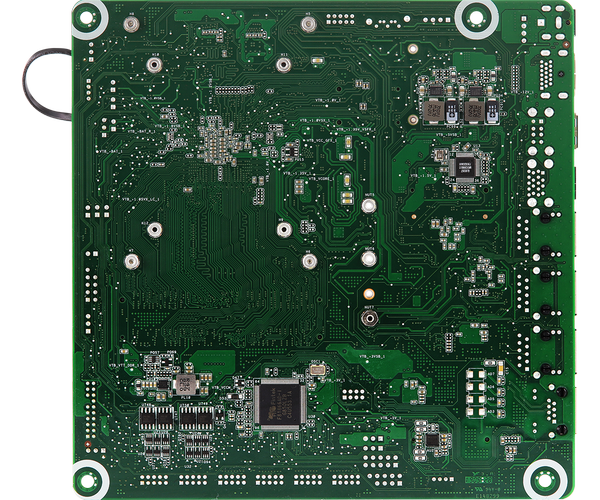

IMB-1000D(EOL)

Mini-ITX Motherboard

  • ●Intel® Bay Trail SoC Processor J1900

  • ●2 x 204-pin SO-DIMM up to 16GB DDR3L 1333 MHz (8GB per DIMM)

  • ●1 x Mini PCIe, 1 x USB 3.1 Gen1, 5 x USB 2.0, 2 x M.2 Key M (1 for SSD, 1 for VPU), 6 x COM, 1 x SATA2

  • ●1 x POE Power slot for ASRI PSE module

  • ●(Optional: LAN4 supports POE function by PSE-30W/PSE-15W)

  • ●2 x Intel® Gigabit LAN, 2 x Realtek Gigabit LAN

  • ●Supports dual display, 1 x HDMI 1.4a, 1 x VGA

  • ●TPM Header

  • ●12V DC-in


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® Bay Trail SoC Processor
J1900, QC, 2.00GHz, 10W
ChipsetSoC
BIOSAMI SPI 64 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

TechnologyDual Channel DDR3L 1333 MHz
Capacity16 GB (8GB per DIMM)
Socket2 x 204-pin SO-DIMM

Graphics

ControllerIntel® Gen7 Graphics DX 11
HDMIHDMI 1.4a
Max resolution up to 1920x1200@60Hz
VGAMax resolution up to 1920x1200@60Hz
MultiDisplayDual Display

Expansion Slot

mini-PCIe1 x Full/Half size with PCIe x1 and USB 2.0
M.21 x M.2 (Key M, 2260) with PCIe x1 (Optional for VPU)

Audio

InterfaceRealtek ALC887, High Definition Audio Header

Ethernet

Controller/ SpeedLAN1: Realtek RT8119I with 10/100/1000 Mbps
LAN2: Realtek RT8119I with 10/100/1000 Mbps
LAN3: Intel® I210IT with 10/100/1000 Mbps
LAN4: Intel® I210IT with 10/100/1000 Mbps
(Optional: LAN4 supports POE function by ASRI PSE module)
Connector4 x RJ-45

Rear I/O

HDMI1 x HDMI 1.4a
Ethernet4 x 1 Gigabit LAN
USB1 x USB 3.1 (Gen1), 3 x USB 2.0

Internal Connector

USB2 x USB 2.0 (1 x 2.54 pitch header)
COM2 x COM(RS232/422/485), 4 x COM(RS-232)
GPIO4 x GPI, 4 x GPO
TPMTPM Header
LVDSN/A
VGA1
SATA PWR Output1
Speaker Header1
PS/21

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with SATA2 for SSD
SATA1 x SATA2 (3Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12V DC-In (with 4-pin wafer PWR cable or DC Jack)
Power OnAT/ATX Supported
- AT : Directly PWR on as po wer input ready
- ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%


说明 资讯 操作系统 日期 下载
BIOS 1.20 Improve system compatibility 2025-02-27
Jumpers and headers setting guide 快速跳线手册 2025-02-27
User Manual 用户手册 2025-02-27
[Beta] INF driver ver:10.1.1.8 驱动程序 Win 10 x 64 2025-02-27
[Beta] VGA driver ver:v15.33.37.64.4242_PV 驱动程序 Win 10 x 64 2025-02-27
[Beta] Realtek high definition audio driver ver:7560 驱动程序 Win 10 x 64 2025-02-27
[Beta] Intel Sideband Fabric Device ver:1.70.305.16316 驱动程序 Win 10 x 64 2025-02-27
[Beta] COM Port driver ver:170721 驱动程序 Win 10 x 64 2025-02-27
[Beta] Realtek Lan driver ver:10006 驱动程序 Win 10 x 64 2025-02-27
[Beta] Realtek Teaming driver ver:2.0.4.0 驱动程序 Win 10 x 64 2025-02-27
ASRock 3TB+ Unlocker utility ver:1.1.1 驱动程序 Win 10 x 64 2025-02-27
[Beta] Intel Trusted Execution Engine ver:1.1.4.1145 驱动程序 Win 10 x 64 2025-02-27
