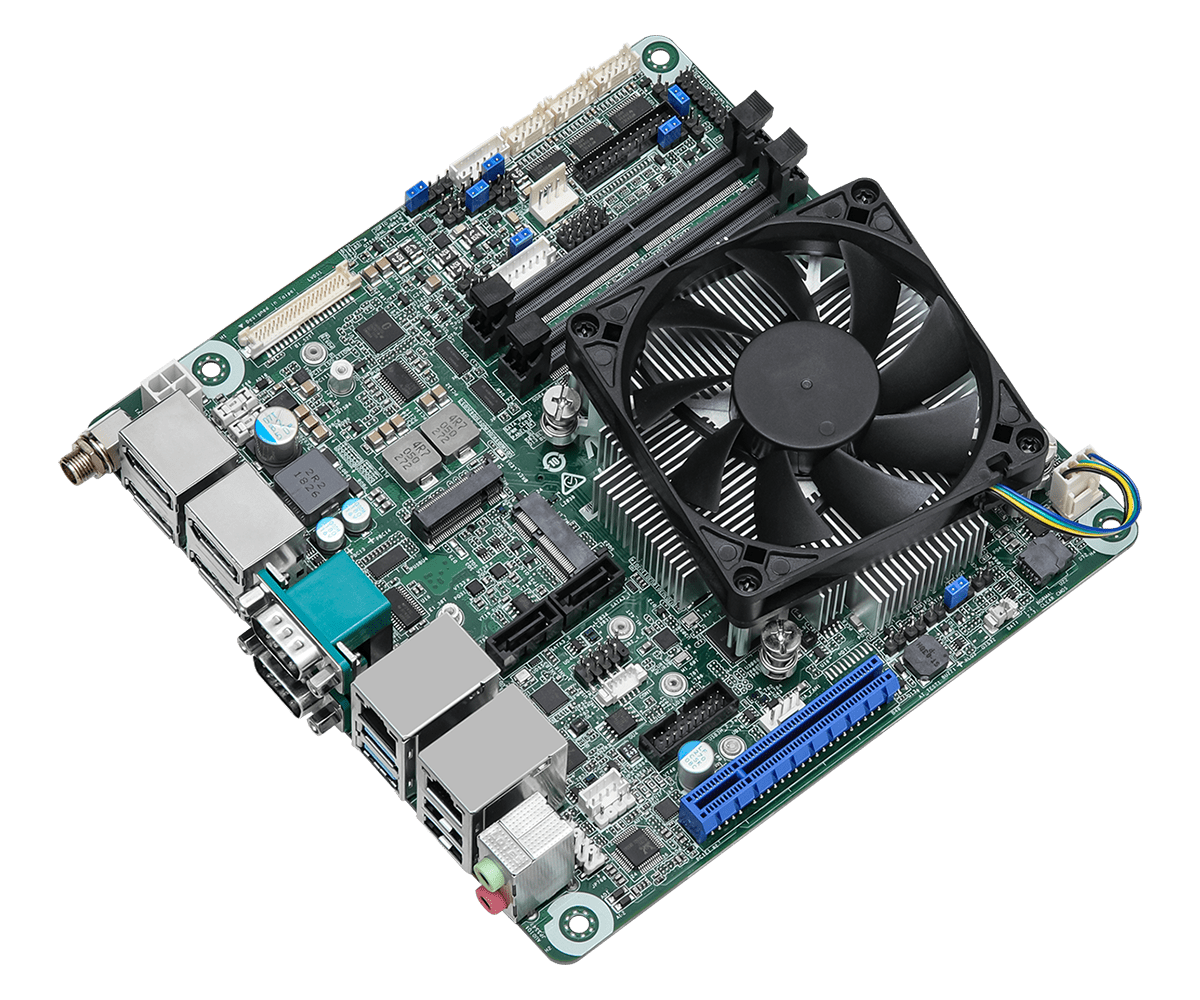

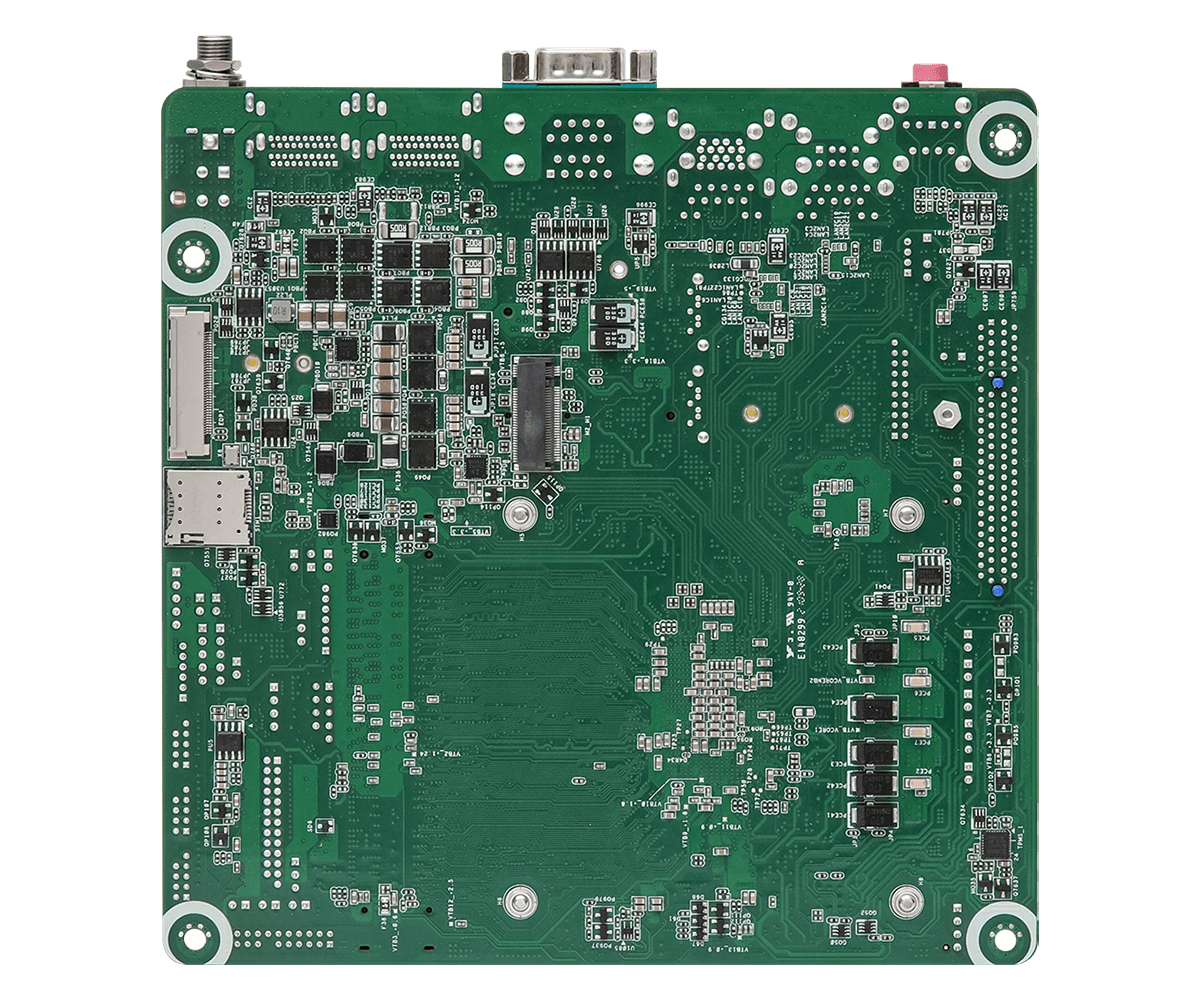

IMB-V2000S

Mini-ITX Motherboard

  • ●AMD Ryzen™ Embedded V2000 SoC processors V2546

  • ●2 x 260-pin ECC/non-ECC SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)

  • ●4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 1 x PCIe x8, 5 x COM, 2 x SATA3, 1 x ccTalk

  • ●1 x Realtek 1 Gigabit LAN (Support DASH), 1 x Realtek 2.5 Gigabit LAN

  • ●Support Quad display, 1 x LVDS, 1 x eDP, 3 x DP 1.2, 1 x DP 1.4

  • ●TPM 2.0 onboard IC

  • ●Support DASH

  • ●12~28V DC-In (Lockable DC Jack)


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUAMD Ryzen™ Embedded V2000 SoC processors, up to 54W
V2546, 3.0GHz, 35-54W
ChipsetSoC
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Memory

TechnologyDual Channel ECC/non-ECC DDR4 3200 MHz
Capacity64GB (32GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerAMD Radeon™ Graphics
DisplayPort3 x DP 1.2a, Max resolution up to 3840x2160 @60Hz
1 x DP 1.4, Max resolution up to 5120x2880 @120Hz
LVDSLVDS shared with DP_1
Dual channel 24 bit up to 1920 x 1200@60Hz
eDPeDP shared with DP_0
Max resolution up to 3840x2160 @60Hz
MultiDisplayQuad Display

Expansion Slot

PCIe1 x PCIe x8 (Gen3)
SIM Socket1x SIM socket connected to M.2 key B
M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G

Audio

InterfaceRealtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ SpeedLAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111EPV with 10/100/1000 Mbps
Support DASH
Connector2 x RJ-45

Rear I/O

DisplayPort3 x DP 1.2a, 1 x DP 1.4
Ethernet1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio2 (Mic-in, Line-out)
COM1 x COM (RS-232)
1 x COM (RS-232/422/485)
DC Jack1 (Screw Type)

Internal Connector

USB2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM3 x COM (RS-232)
ccTalk1
GPIO8 x GPI, 8 x GPO
LVDS1
eDP1
SATA PWR Output1
Speaker Header1

Security

TPMTPM 2.0 onboard IC

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x4 for SSD
SATA2 x SATA3 (6Gb/s)

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12~28V DC-In with 4-pin plug PWR cable or DC Jack (Screw Type)
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp-20ºC ~ 70ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x I/O Shield (13G020713000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package1 x I/O Shield (13G020713000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
