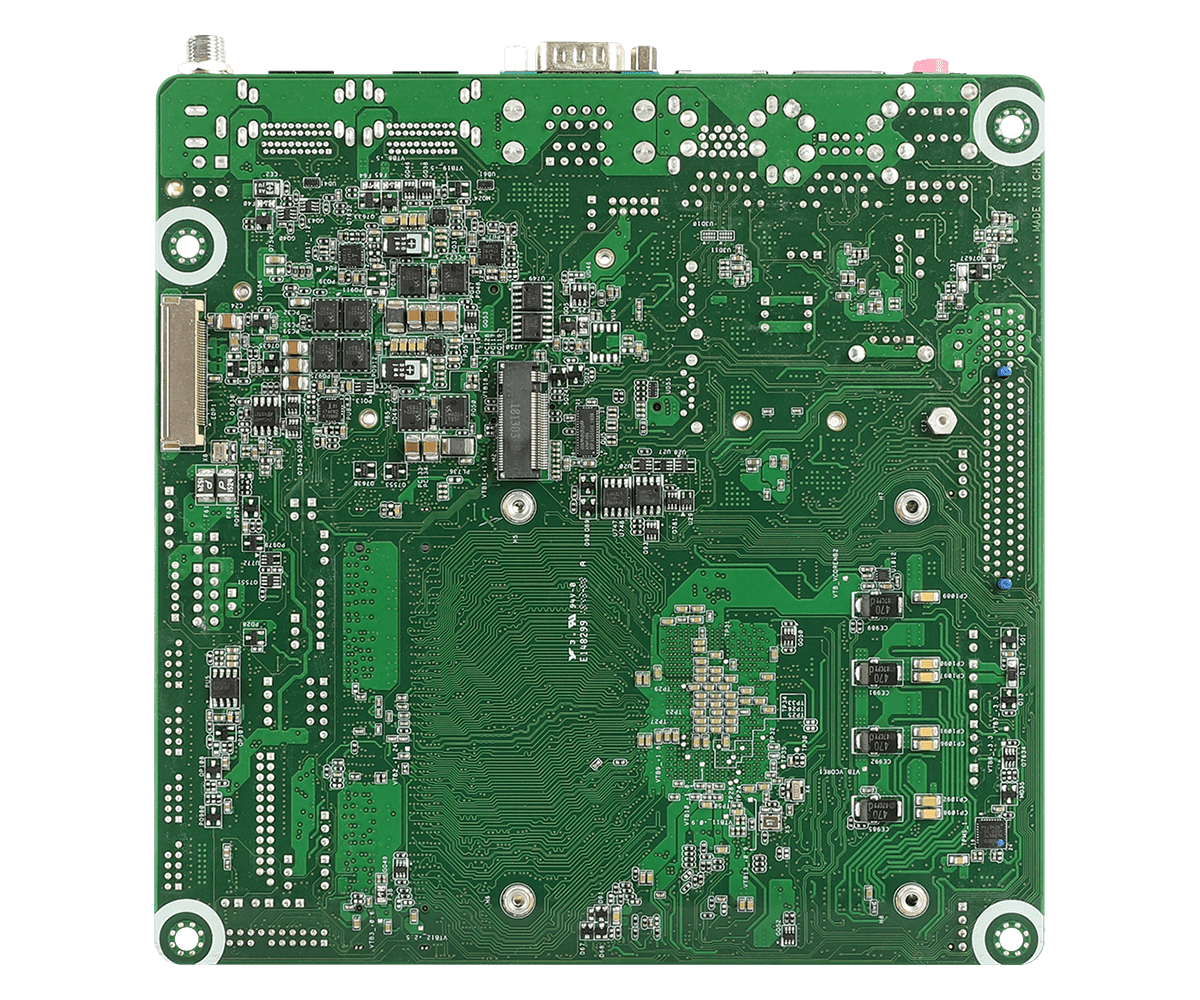

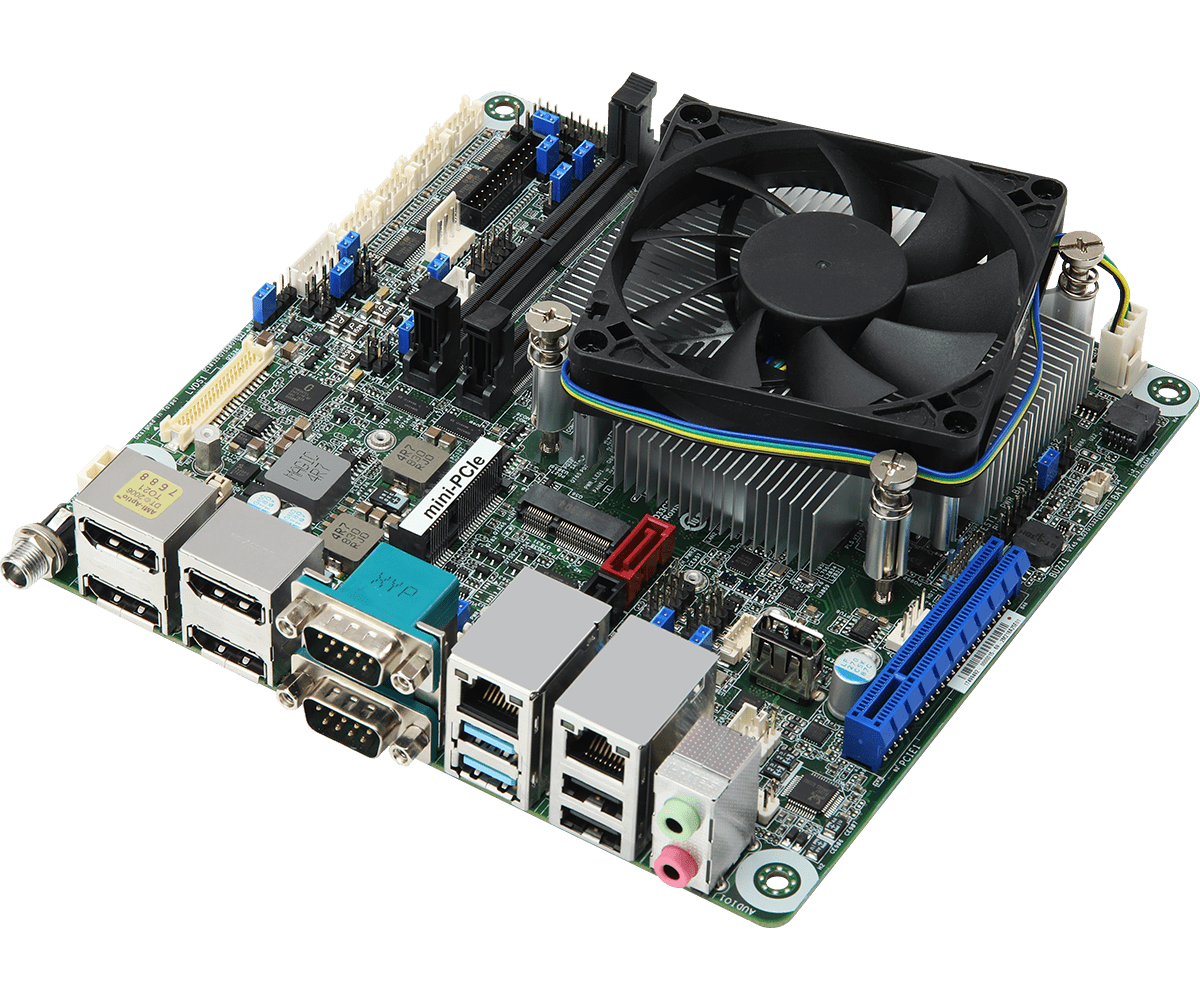

IMB-V1000V

Mini-ITX Motherboard

  • ●AMD Ryzen™ Embedded V1000 SoC processors V1202B

  • ●2 x 260-pin SO-DIMM up to 32GB DDR4 3200 MHz (16GB per DIMM)

  • ●1 x PCIe x8 (Gen3), 2 x USB 3.2 Gen2, 7 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x mini-PCIe, 6 x COM (1 x CCTALK), 2 x SATA3

  • ●2 x Realtek Gigabit LAN

  • ●Supports Quad display,4 x DisplayPort 1.2a

  • ●TPM 2.0 onboard IC

  • ●12V/19~28V DC-In


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUAMD Ryzen™ Embedded V1000 SoC processors
V1202B, DC, 2.3GHz, 12-25W
ChipsetSoC
BIOSAMI SPI 64 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

TechnologyDual Channel DDR4 3200 MHz (V1807B)
Dual Channel DDR4 2400 MHz (V1605B/ V1202B)
Capacity32 GB (16 GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerAMD Radeon™ Vega 11 Graphics (IMB-V1000P)
AMD Radeon™ Vega 8 Graphics (IMB-V1000M)
AMD Radeon™ Vega 3 Graphics (IMB-V1000V)
DisplayPortDisplayPort 1.2a
Max resolution up to 3840x2160@60Hz
VGAMax resolution up to 1920x1200@60Hz
LVDSDual channel 48 bit up to 1920 x 1200@60Hz
eDPeDP 1.3
Max resolution up to 3840x2160@60Hz
MultiDisplayQuad Display

Expansion Slot

PCIe1 x PCIe x8 (Gen3)
mini-PCIe1 x Full/Half size with PCIe x1 and USB 2.0
M.21 x M.2 (Key E, 2230) with PCIe x1 and shared USB 2.0 for Wireless

Audio

InterfaceRealtek ALC887, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed2 x Realtek R8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector2 x RJ-45

Rear I/O

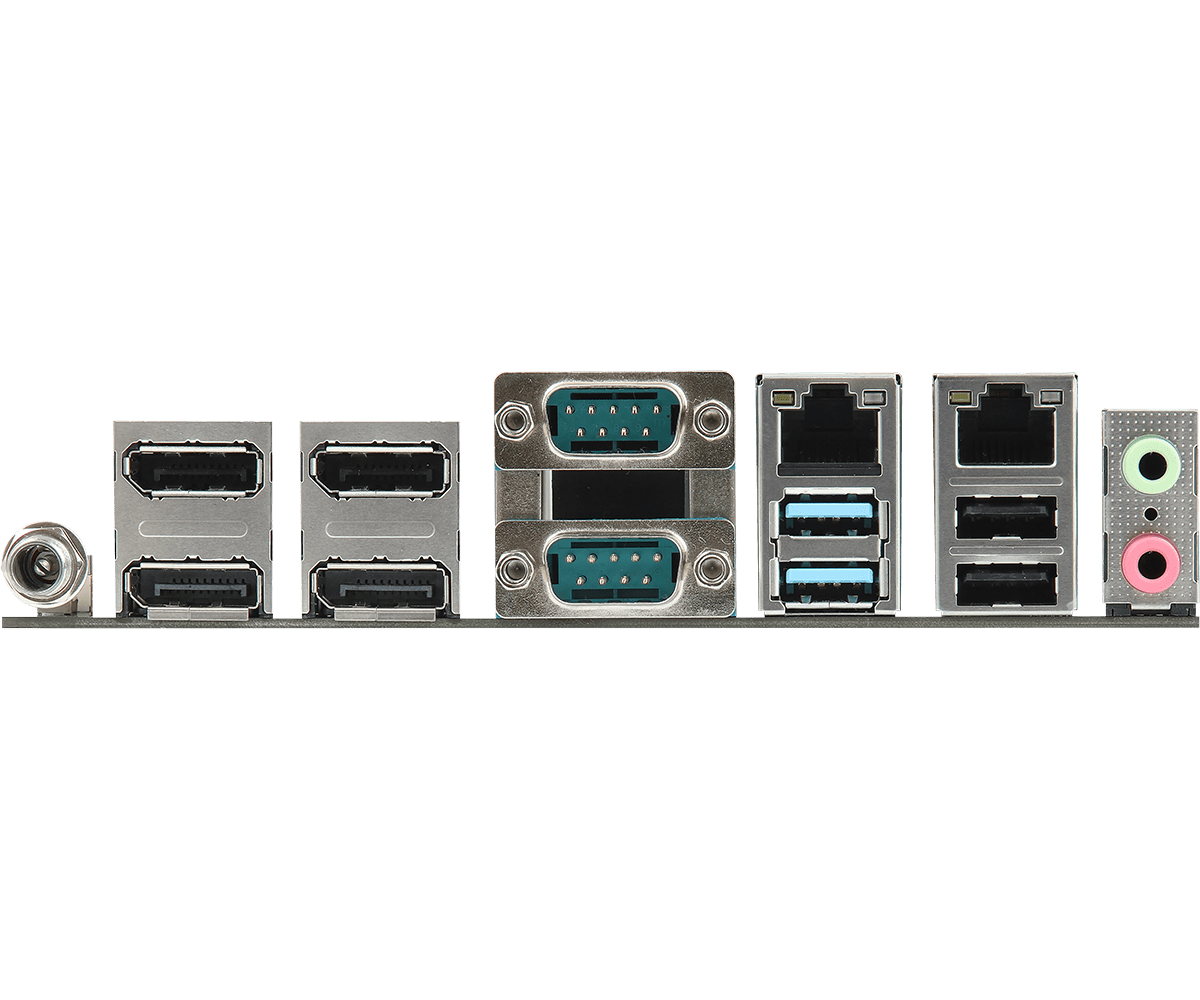

DisplayPort4 x DP 1.2a
Ethernet2 x 1 Gigabit LAN
USB2 x USB 3.2 Gen2 2 x USB 2.0
Audio2 (Mic-in, Line-out)
COM2 x COM (RS-232/422/485)

Internal Connector

USB5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM4 x COM (RS-232, COM6 shared with ccTalk)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPMTPM 2.0 onboard IC
LVDS1(Shared with DP1)
eDP1(Shared with DP0)
VGA1(Shared with DP3)
SATA PWR Output1
Speaker Header1

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with PCIe x2 and SATA for SSD
SATA2 x SATA3 (6.0Gb/s), Red header shared with M.2 Key M SATA signal

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12V or 19~28V DC-In with 4-pin plug PWR cable or DC Jack
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Gift Package1 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020513000AK)
1 x SATA Data Cable (14G00010107DAK)
1 x COM Cable (14G000000340AK)
Bulk Package1 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020513000AK)


说明 资讯 操作系统 日期 下载
BIOS 1.30 1. Improve system compatibility 2. Update Realtek Lan FW 2025-02-26
Jumpers and headers setting guide 快速跳线手册 2025-02-26
User Manual 用户手册 2025-02-26
Realtek Lan driver ver:10031_10232018 驱动程序 Win 10 x 64 2025-02-26
Realtek Teaming driver ver:2.0.3.0 驱动程序 Win 10 x 64 2025-02-26
VGA driver ver:18.50.33.01.190522a 驱动程序 Win 10 x 64 2025-02-26
Realtek high definition audio driver ver:9088_FF00 驱动程序 Win 10 x 64 2025-02-26
Realtek Lan driver ver:10047_02232021 驱动程序 Win 10 x 64 2025-02-26
Realtek high definition audio driver ver:9088_FF00 驱动程序 2025-02-26
